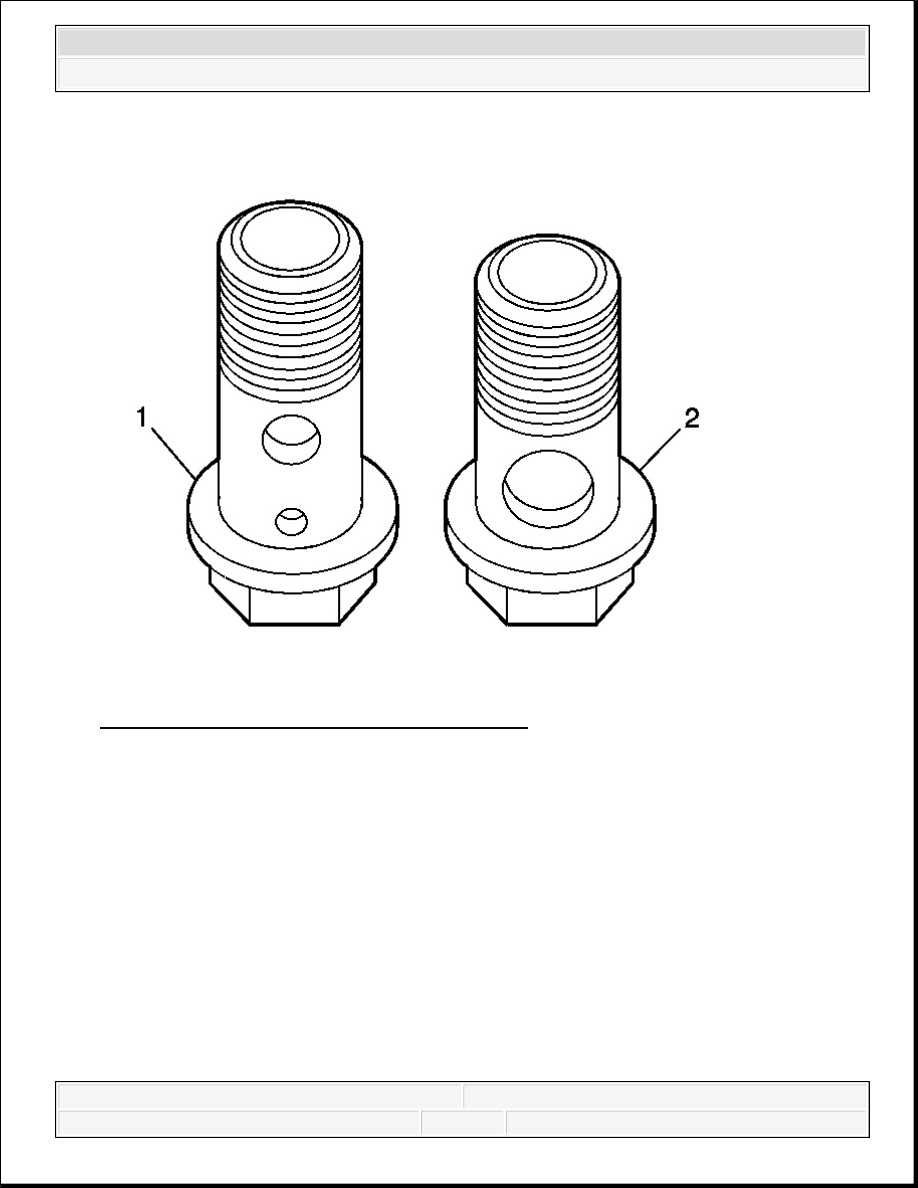

Fig. 32: View Of Cooling Outlet Hose Eye Bolts
Courtesy of GENERAL MOTORS CORP.
7. Install the cooling outlet hose eye bolts.
IMPORTANT: If the cooling outlet hose eye bolts were removed, install the
longer bolt (1) with two holes, in the top location. Install the
shorter bolt (2) in the lower location.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

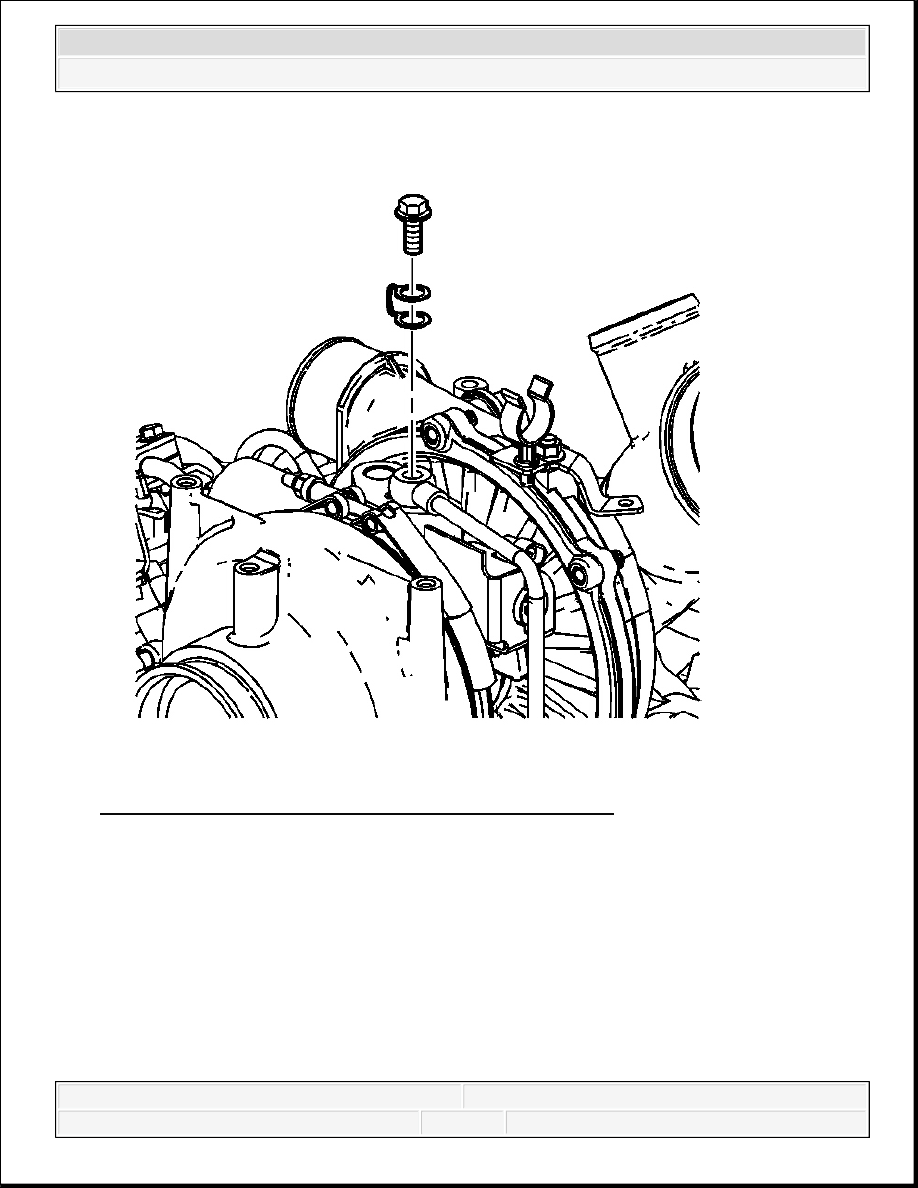

Fig. 33: View Of Turbocharger Oil Feed Pipe Banjo Bolt
Courtesy of GENERAL MOTORS CORP.
8. Install the oil supply line eye bolt and washers to the turbocharger.
NOTE:
Do not twist the turbocharger oil feed pipe. Twisting of the feed
pipe will result in the collapse and deformation of the plastic
pipe, restricting oil flow and causing turbocharger damage.
During turbocharger replacement, gently push the oil feed pipe
towards the front of the engine to clear the turbocharger.
Assistance may be required to keep the pipes clear of the
turbocharger during removal or installation.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Lubricate the washers with diesel fuel before installing.
Tighten: Tighten the oil supply hose eye bolt to 26 N.m (19 lb ft).

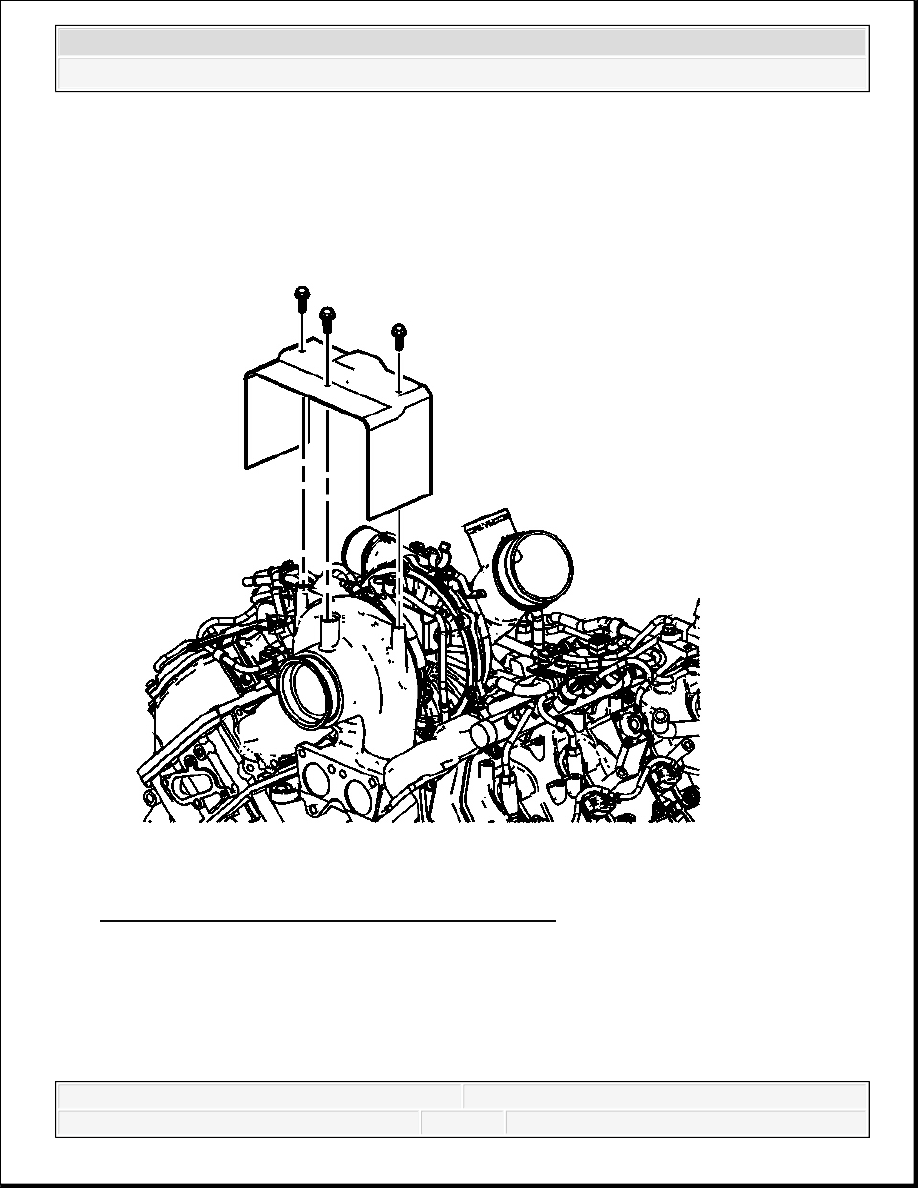

Fig. 34: View Of Turbocharger Upper Heat Shield
Courtesy of GENERAL MOTORS CORP.
9. Install the turbocharger heat shield.
10. Install the turbocharger upper heat shield bolts.
Tighten: Tighten the turbocharger upper heat shield bolts to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
EXHAUST GAS RECIRCULATION AND COOLER INSTALLATION

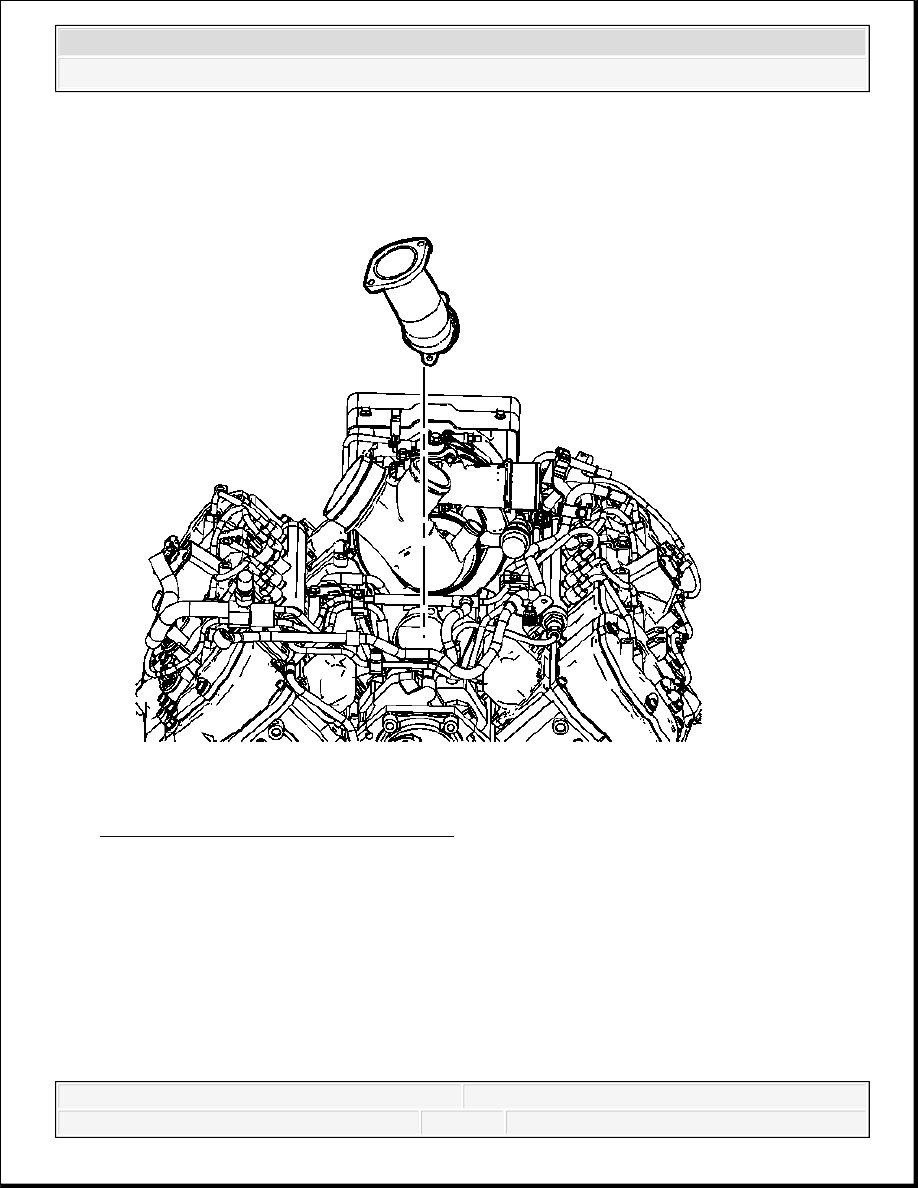

Fig. 35: View Of Intake Manifold Tube
Courtesy of GENERAL MOTORS CORP.
1. Install the intake manifold tube.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
