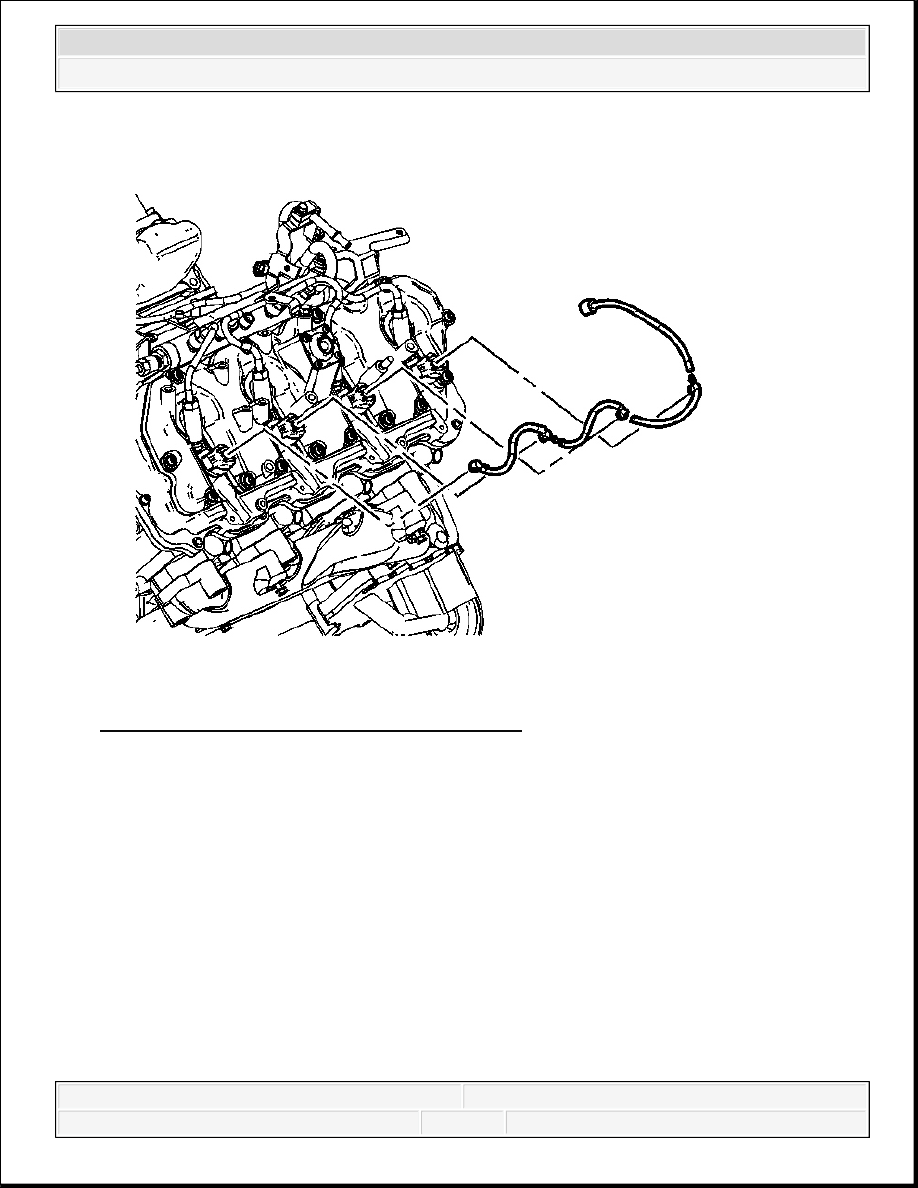

Fig. 25: View Of Right Fuel Return Hose & Injectors
Courtesy of GENERAL MOTORS CORP.
15. Install the right fuel return hose.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

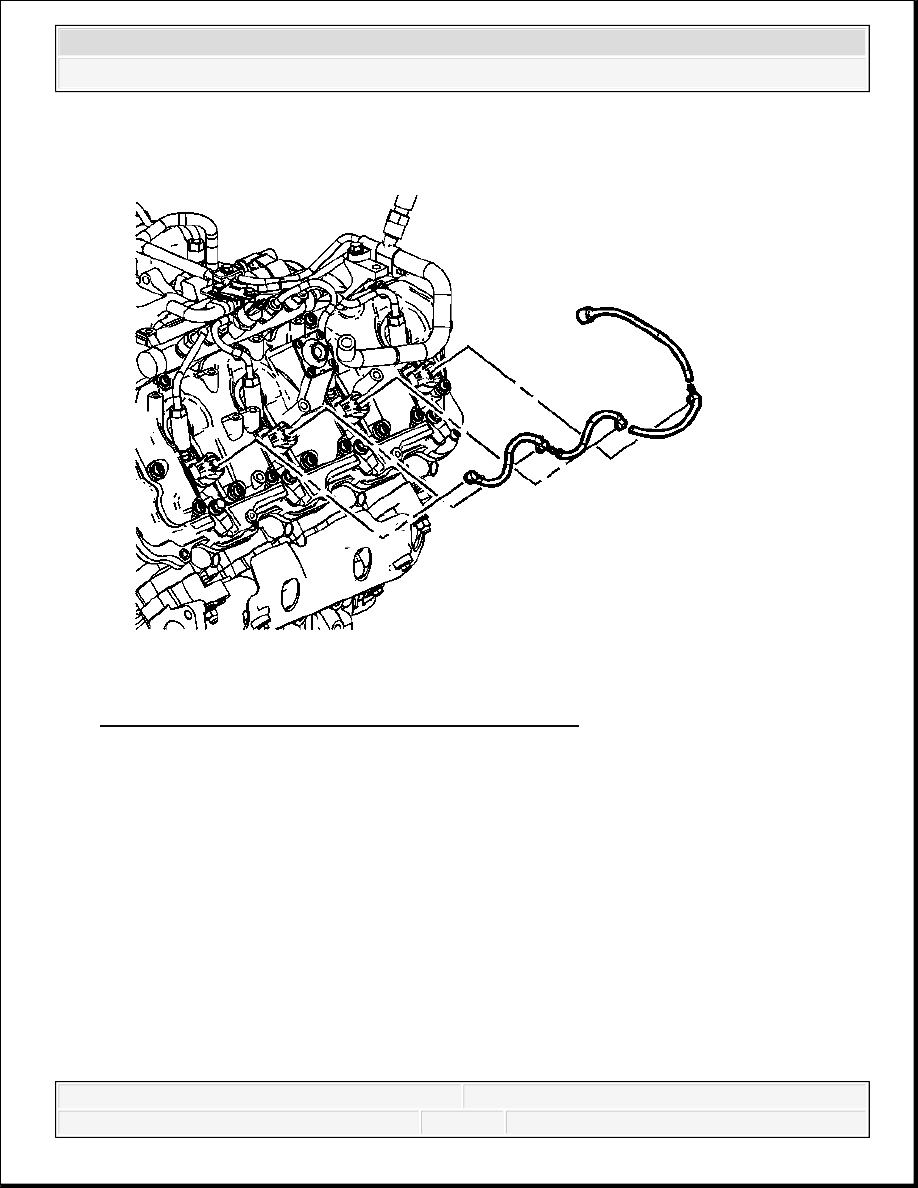

Fig. 26: View Of Fuel Return Hose & Injectors
Courtesy of GENERAL MOTORS CORP.
16. Install the left fuel return hose.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

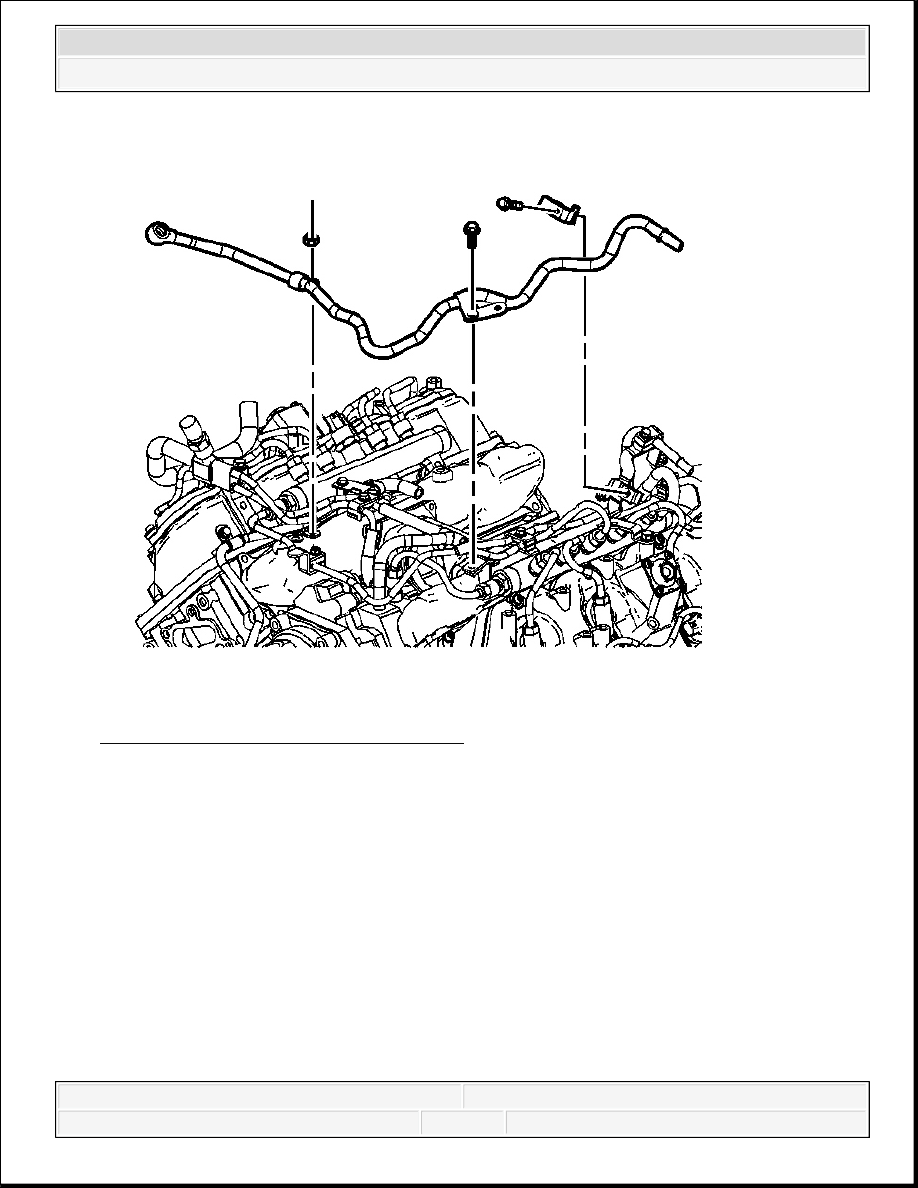

Fig. 27: View Of Fuel Rail Balance Pipe & Bolts
Courtesy of GENERAL MOTORS CORP.
17. Install the fuel rail balance pipe.
18. Install the fuel rail balance pipe bolts.
Tighten: Tighten the fuel rail balance pipe bolts to 21 N.m (15 lb ft).
19. Connect the fuel rail balance pipe to the fuel rails.
Tighten: Tighten the fuel rail balance pipe nuts to 41 N.m (30 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

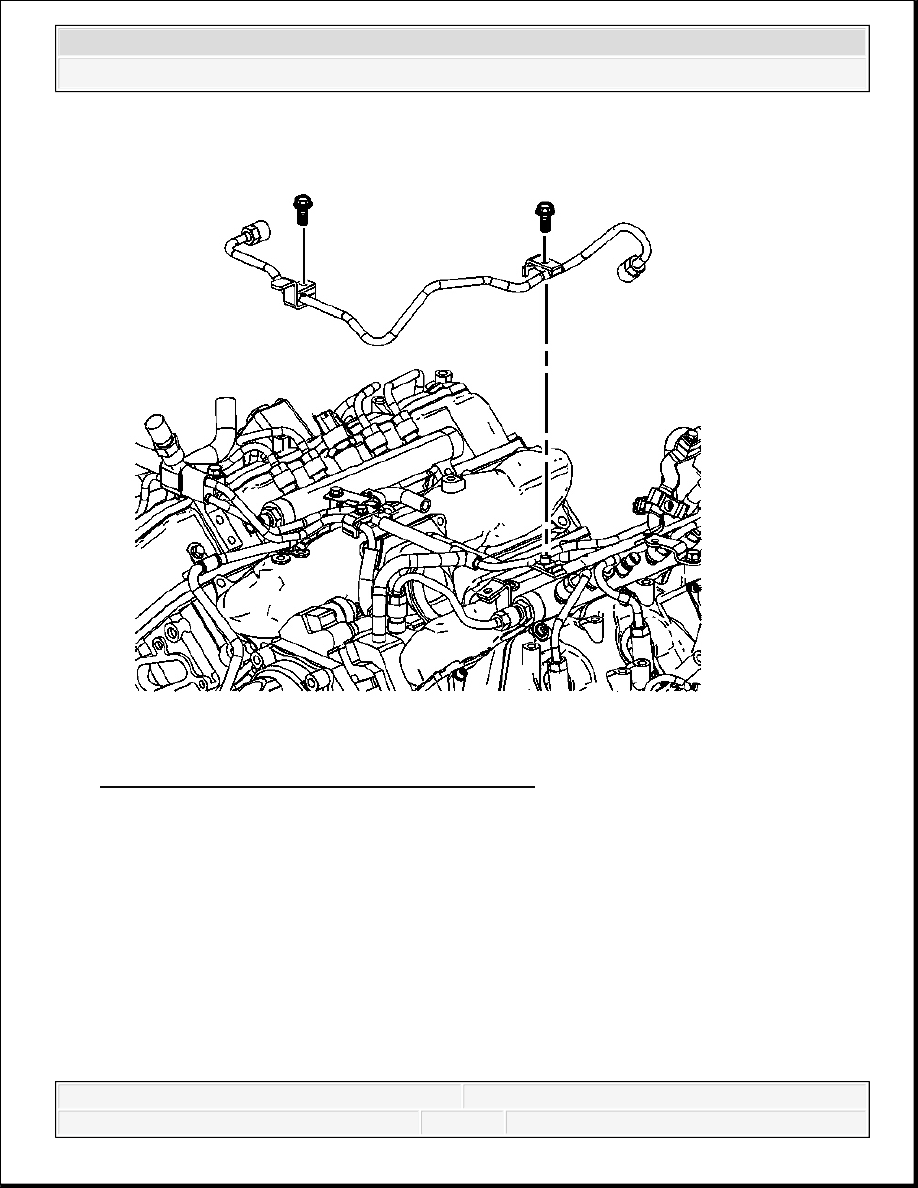

Fig. 28: View Of Fuel Feed Pipe & Bolts
Courtesy of GENERAL MOTORS CORP.
20. Install the fuel feed pipe.
21. Install the fuel feed pipe attaching nuts and bolts.
Tighten: Tighten the fuel feed pipe bolts and nut to 25 N.m (18 lb ft).
TURBOCHARGER INSTALLATION
