Chevrolet Silverado / GMC Sierra. Manual - part 547

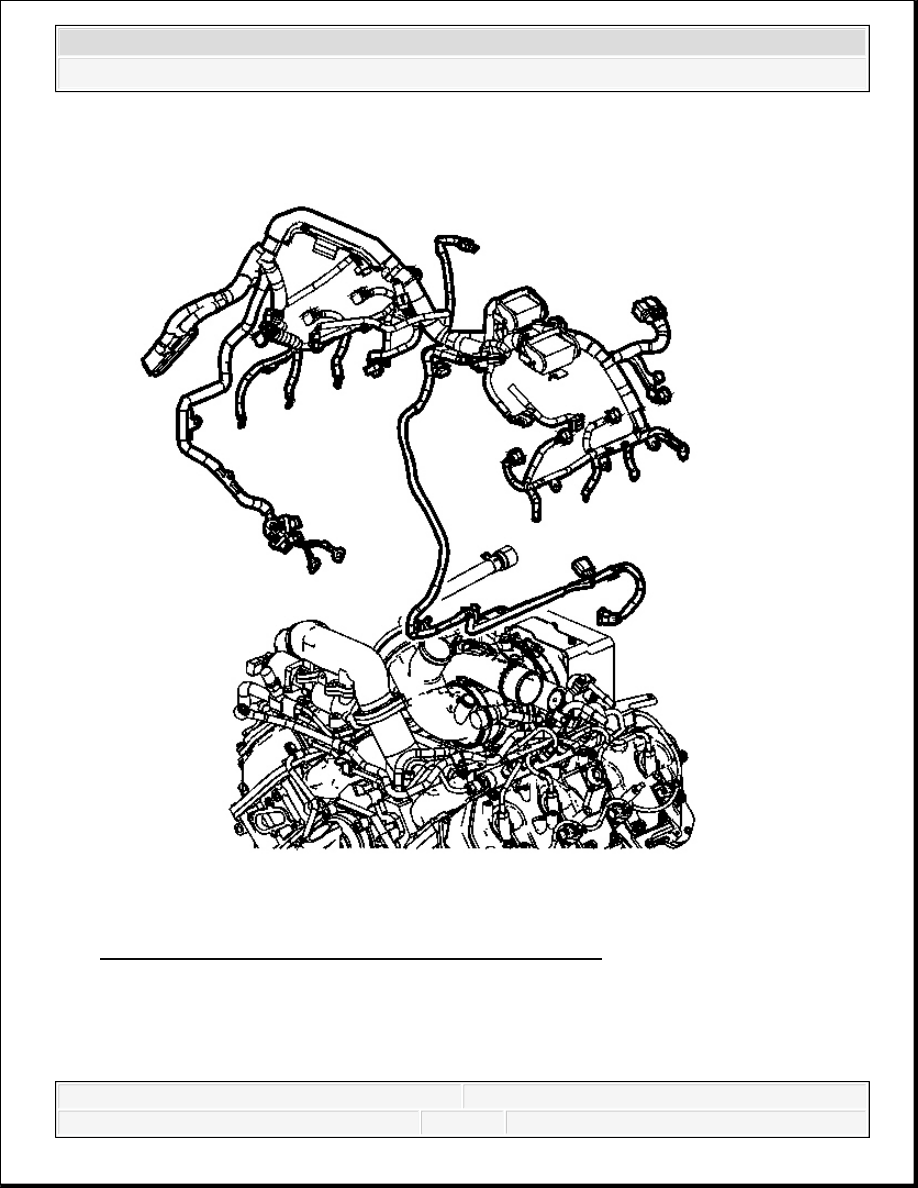

Fig. 75: View Of Fuel Injector Control Module Harness
Courtesy of GENERAL MOTORS CORP.
28. Remove the engine wiring harness.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

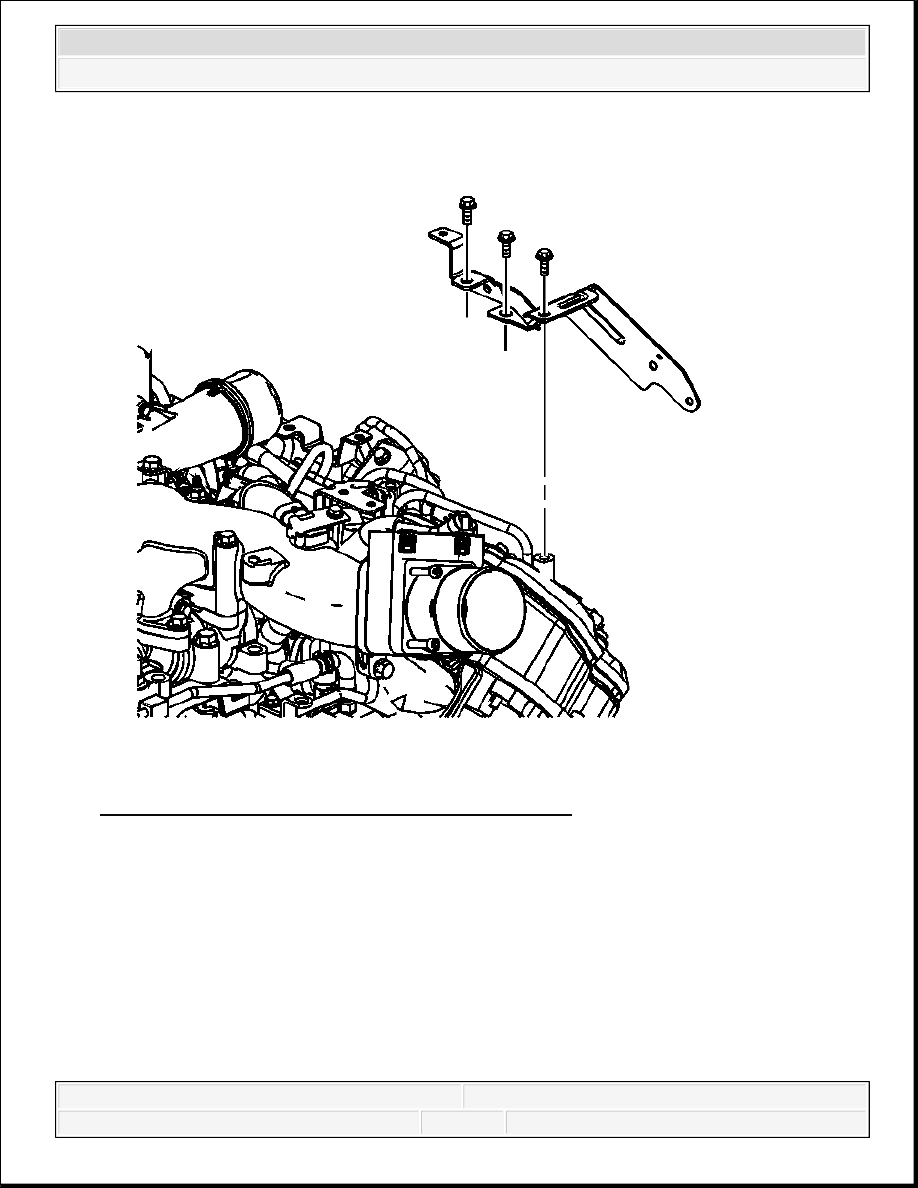

Fig. 76: Identifying Engine Harness Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
29. Remove the engine harness bracket bolts.
30. Remove the engine harness bracket.
EXHAUST GAS RECIRCULATION AND COOLER REMOVAL
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

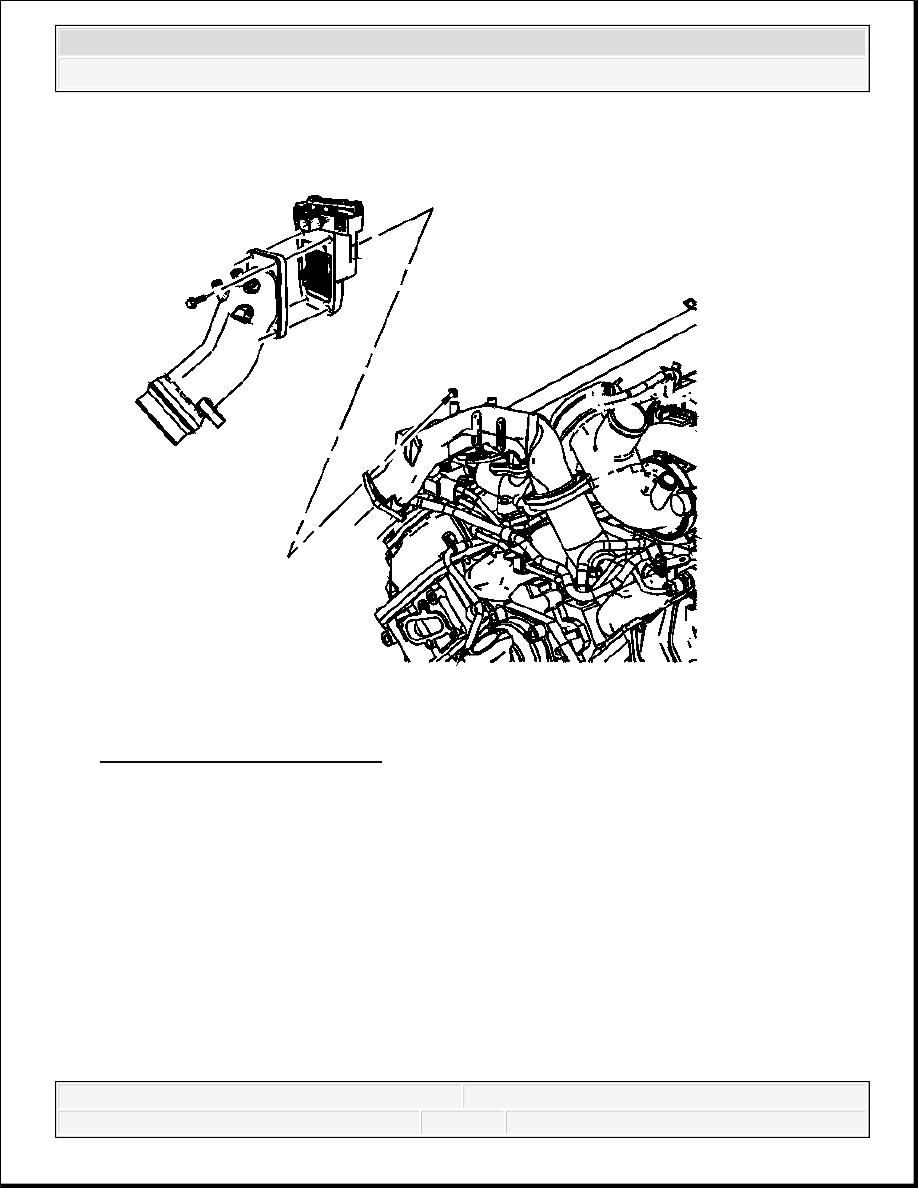

Fig. 77: Identifying Intake Pipe
Courtesy of GENERAL MOTORS CORP.
1. Remove the intake pipe to air inlet tube bolts.
2. Remove the intake pipe.
3. Remove the intake heater.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

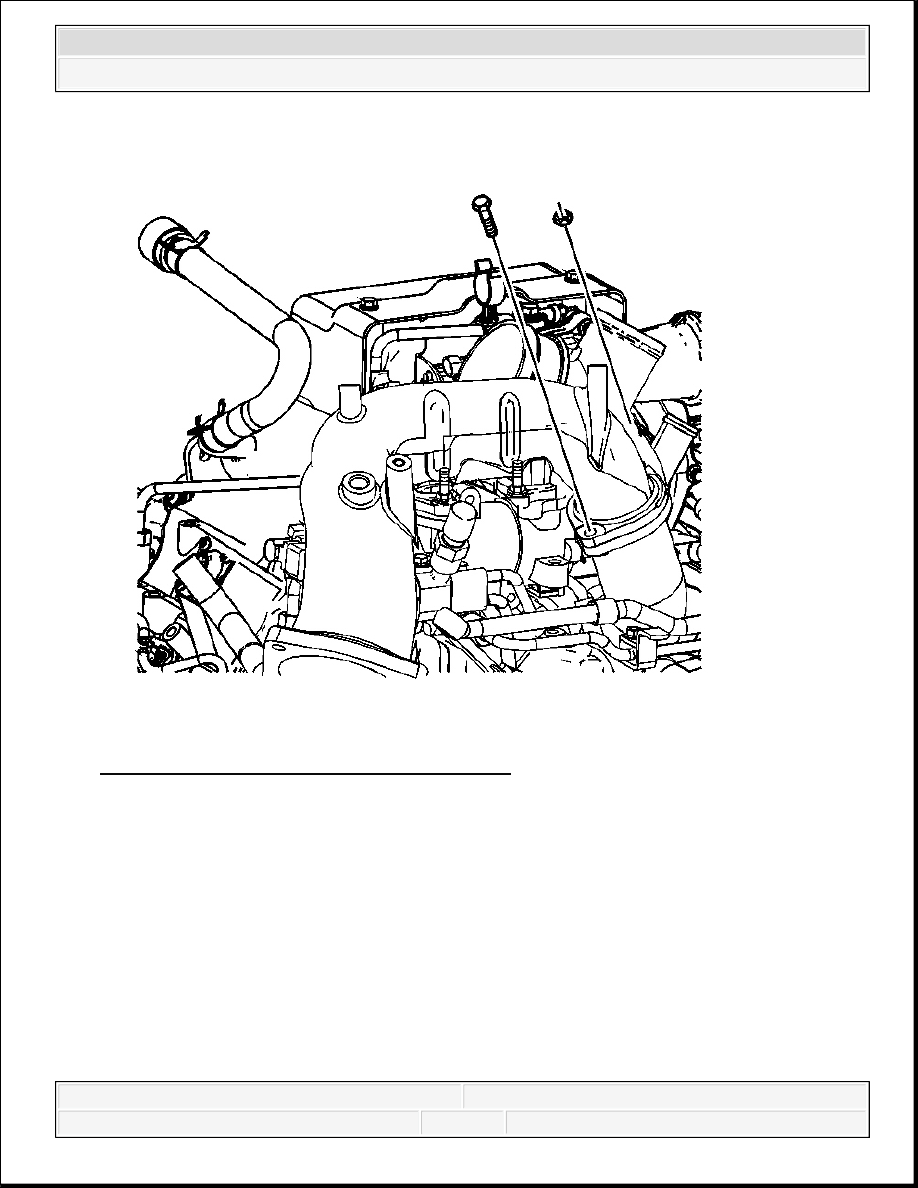

Fig. 78: View Of Air Inlet Tube Bolt And Nut
Courtesy of GENERAL MOTORS CORP.
4. Remove the air inlet tube to intake manifold tube bolt and nut.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
