Fig. 365: View of Transmission To Engine Stud & Bolts
Courtesy of GENERAL MOTORS CORP.
79. Remove the transmission to engine stud and bolts (automatic transmission shown). Note the
location of the studs and any brackets attached to the studs.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

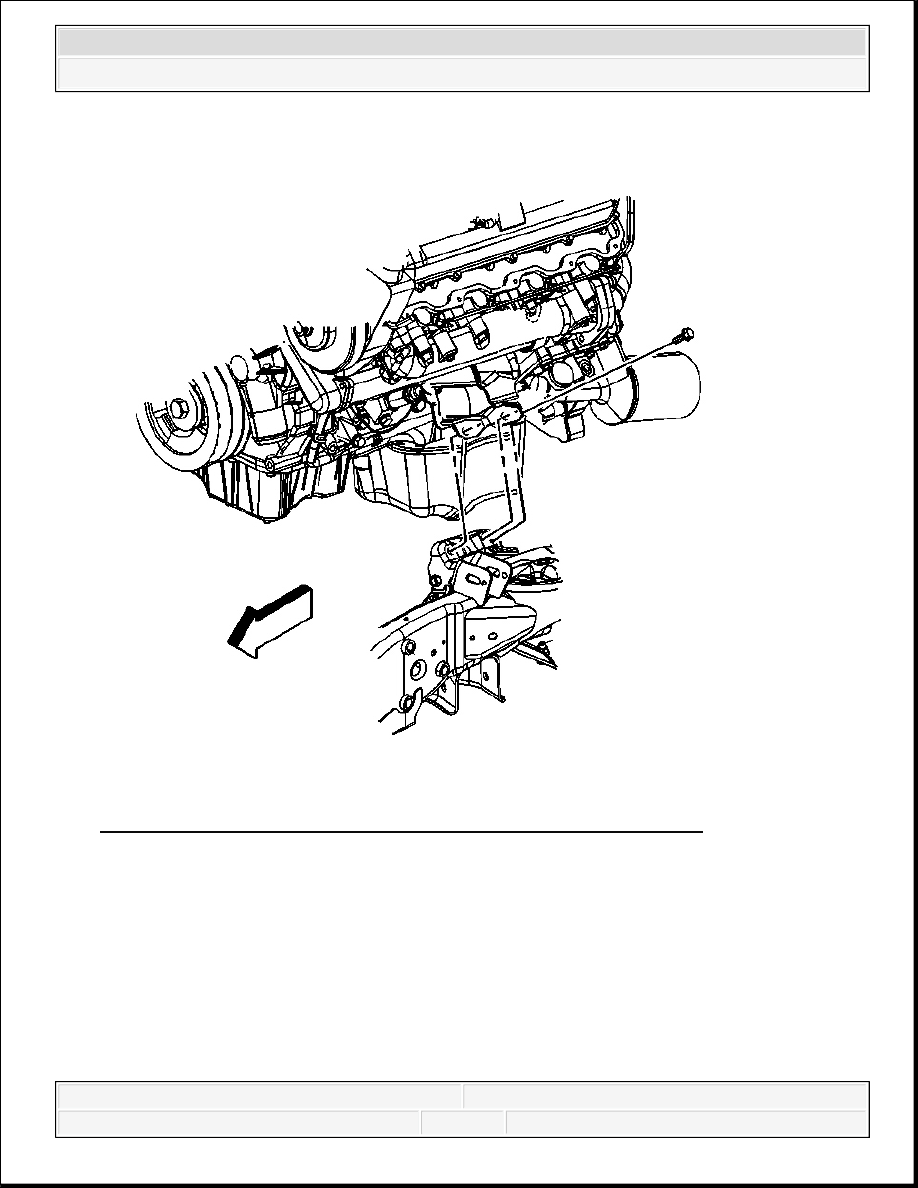

Fig. 366: View Of Engine Mount To Engine Mount Frame Bracket
Courtesy of GENERAL MOTORS CORP.
80. Lower the vehicle to work through the wheelhouse opening.
81. Remove the engine mount to frame bracket bolts (left side shown).
82. Lower the vehicle.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

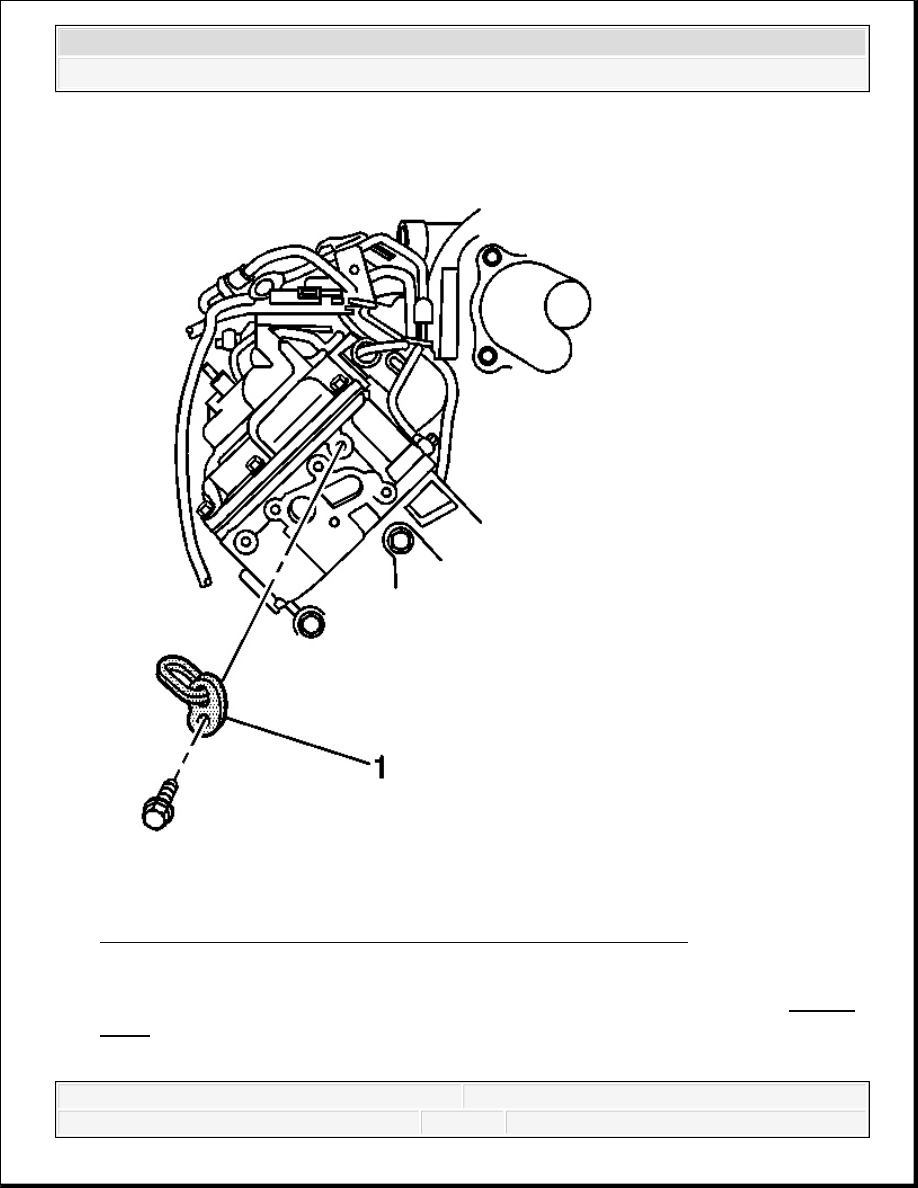

Fig. 367: View Of J 36857 & Bolt At Rear Of Left Cylinder Head
Courtesy of GENERAL MOTORS CORP.
83. Install the J 36857 (1) to the rear of the left cylinder head with a suitable bolt. See Special
Tools .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

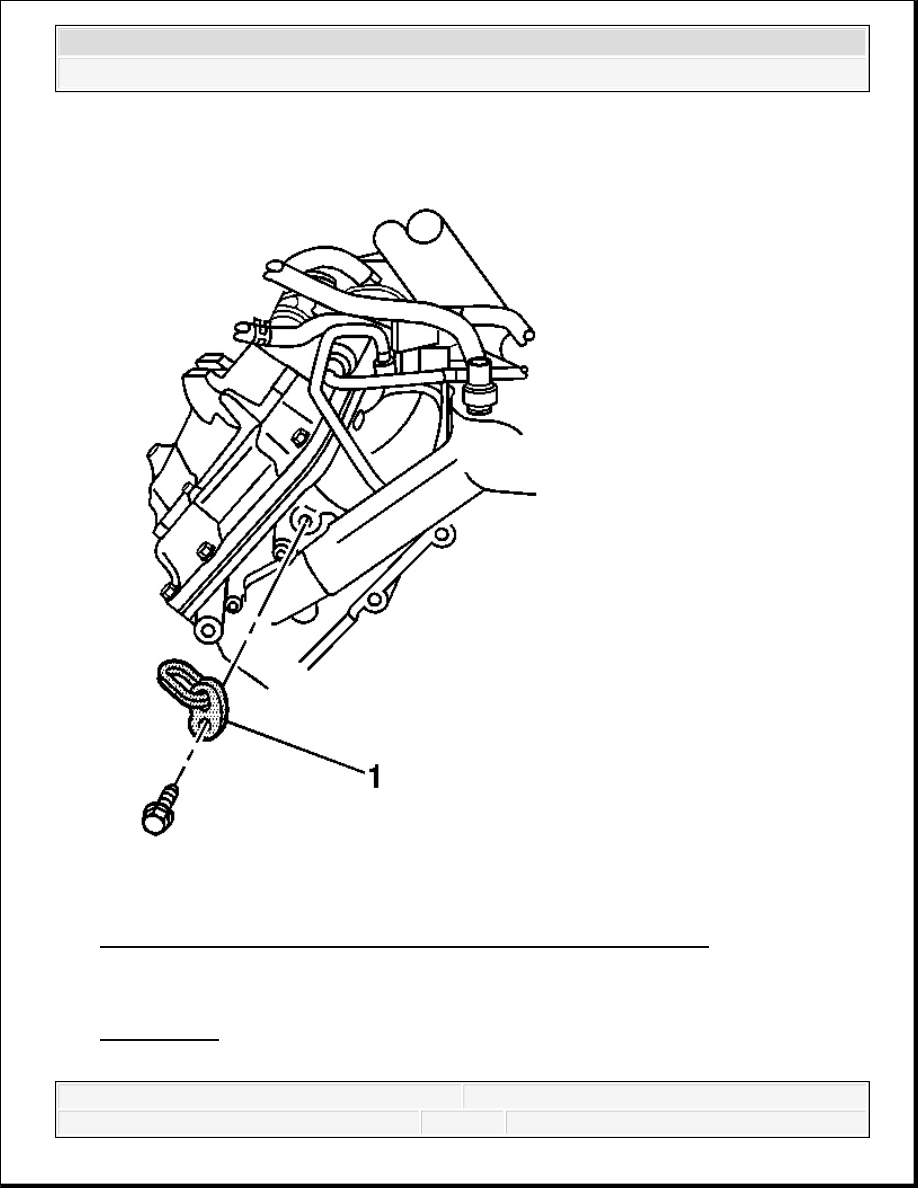

Fig. 368: View Of J 36857 & Bolt At Front Of Right Cylinder Head
Courtesy of GENERAL MOTORS CORP.
84. Install the J 36857 (1) to the front of the right cylinder head with a suitable bolt. See
Special Tools .
85. Install a suitable lifting device. The engine will have to be angled in order to remove. Use a
