20. Remove both fender wheelhouse inner panels. Refer to Front Wheelhouse Liner
Replacement - Right Side (GMC) or Front Wheelhouse Liner Replacement - Right
Side (Chevrolet) and Front Wheelhouse Liner Replacement - Left Side (Chevrolet) or
Front Wheelhouse Liner Replacement - Left Side (GMC) .
21. Lower the vehicle.
22. Remove the charged air cooler pipes. Refer to Charge Air Cooler Inlet Pipe
Replacement and Charge Air Cooler Outlet Pipe Replacement .
23. Remove the radiator inlet hose Radiator Inlet Hose Replacement (Non-HP2) .
24. Remove the upper fan shroud. Refer to Engine Coolant Fan Upper Shroud
Replacement (Mechanical) or Engine Coolant Fan Upper Shroud Replacement
(Automatic Transmission - Diesel) .
25. Remove the lower fan shroud. Refer to Engine Coolant Fan Lower Shroud
Replacement (Mechanical) .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

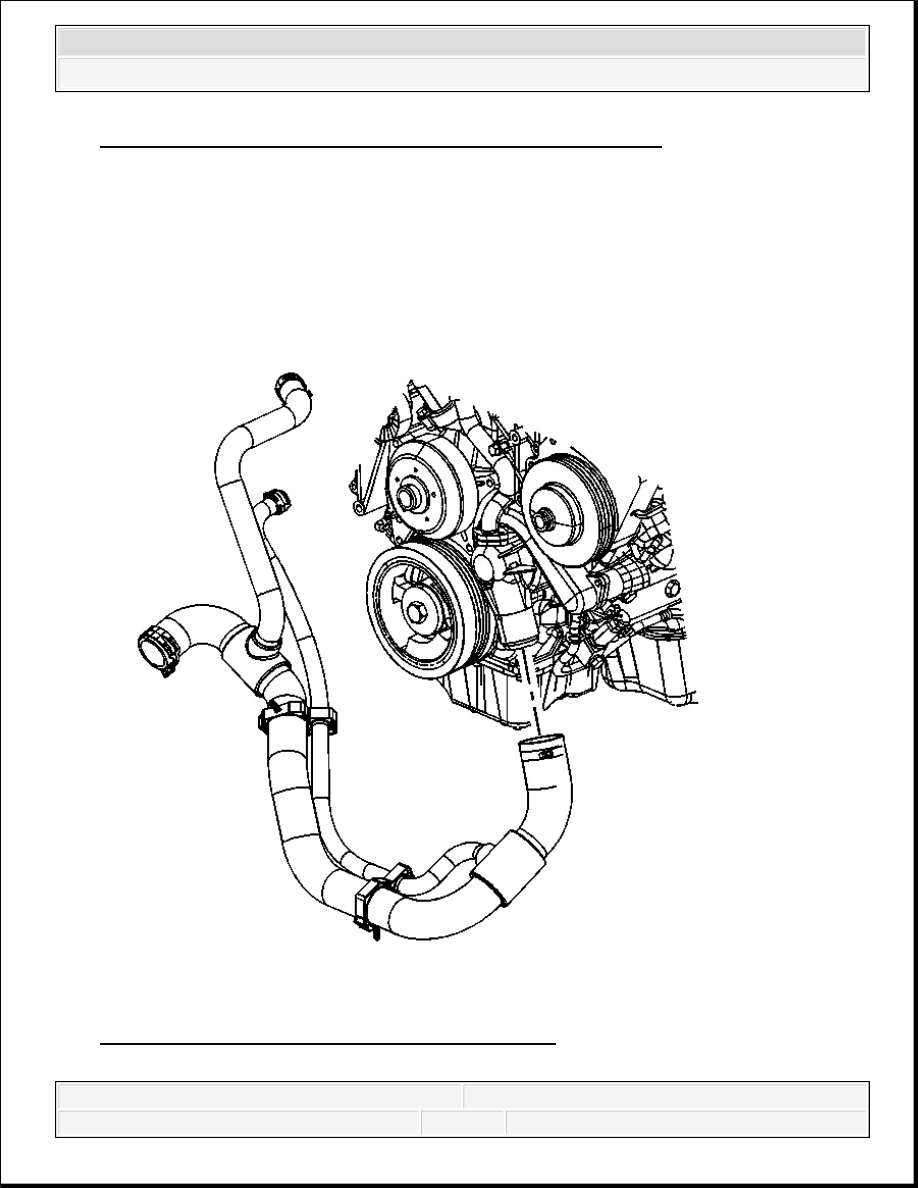

Fig. 346: View Of Radiator Outlet Hose & Outlet Heater Hose
Courtesy of GENERAL MOTORS CORP.
26. Loosen the hose clamp and remove the radiator outlet hose from the radiator.
27. Disconnect the outlet heater hose from the outlet radiator hose.
28. Remove the hose clips from the frame.

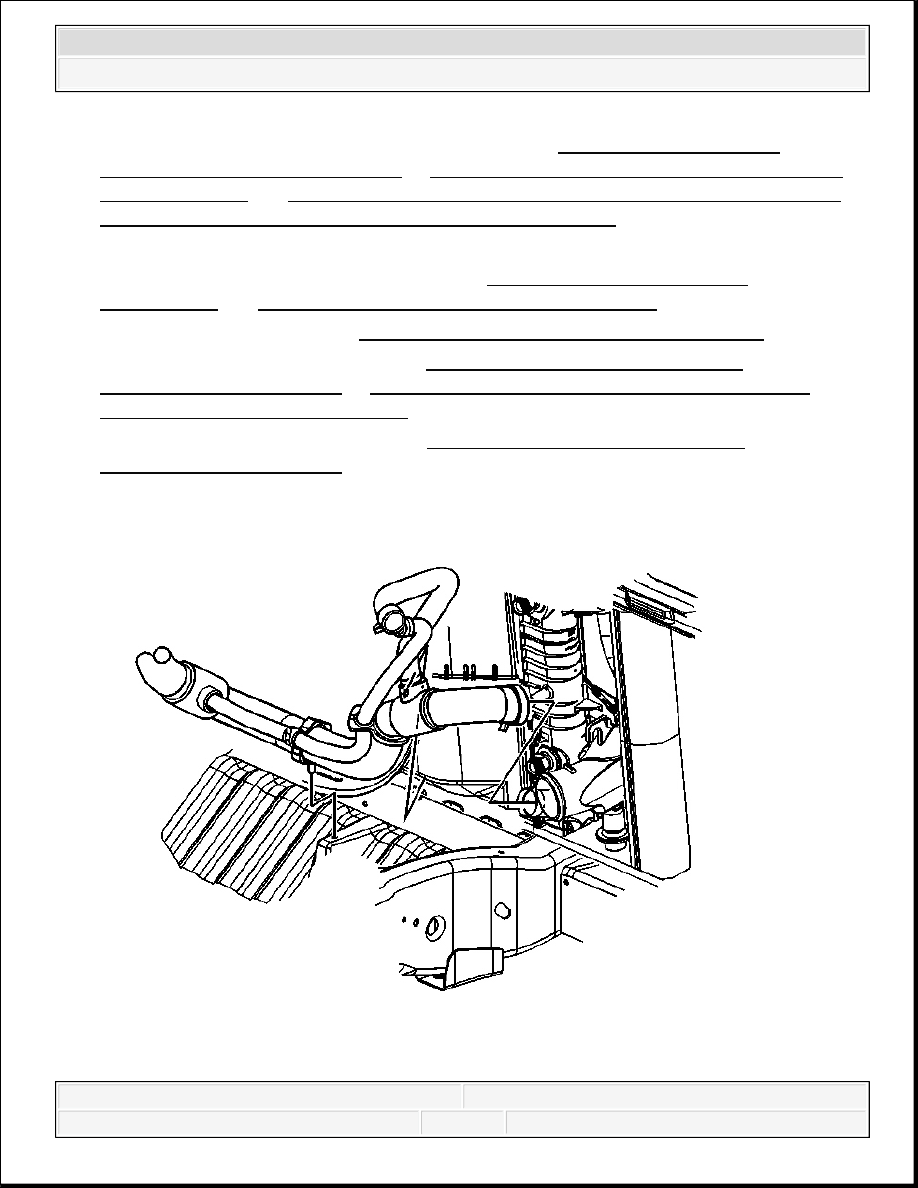

Fig. 347: View Of Radiator Outlet Hose At Engine
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
29. Loosen the hose clamp and remove the radiator outlet hose from the engine.
30. Remove the outlet heater hose pipe bolt from the bracket.
31. Remove the outlet heater hose pipe nut.
32. Move the heater hose and secure aside.
33. Remove the upper radiator support. Refer to Radiator Support Replacement .
34. Remove the radiator. Refer to Radiator Replacement (LLM) .
35. Remove the charged air cooler. Refer to Charge Air Cooler Replacement .
36. Remove the A/C condenser. Refer to Condenser Replacement .

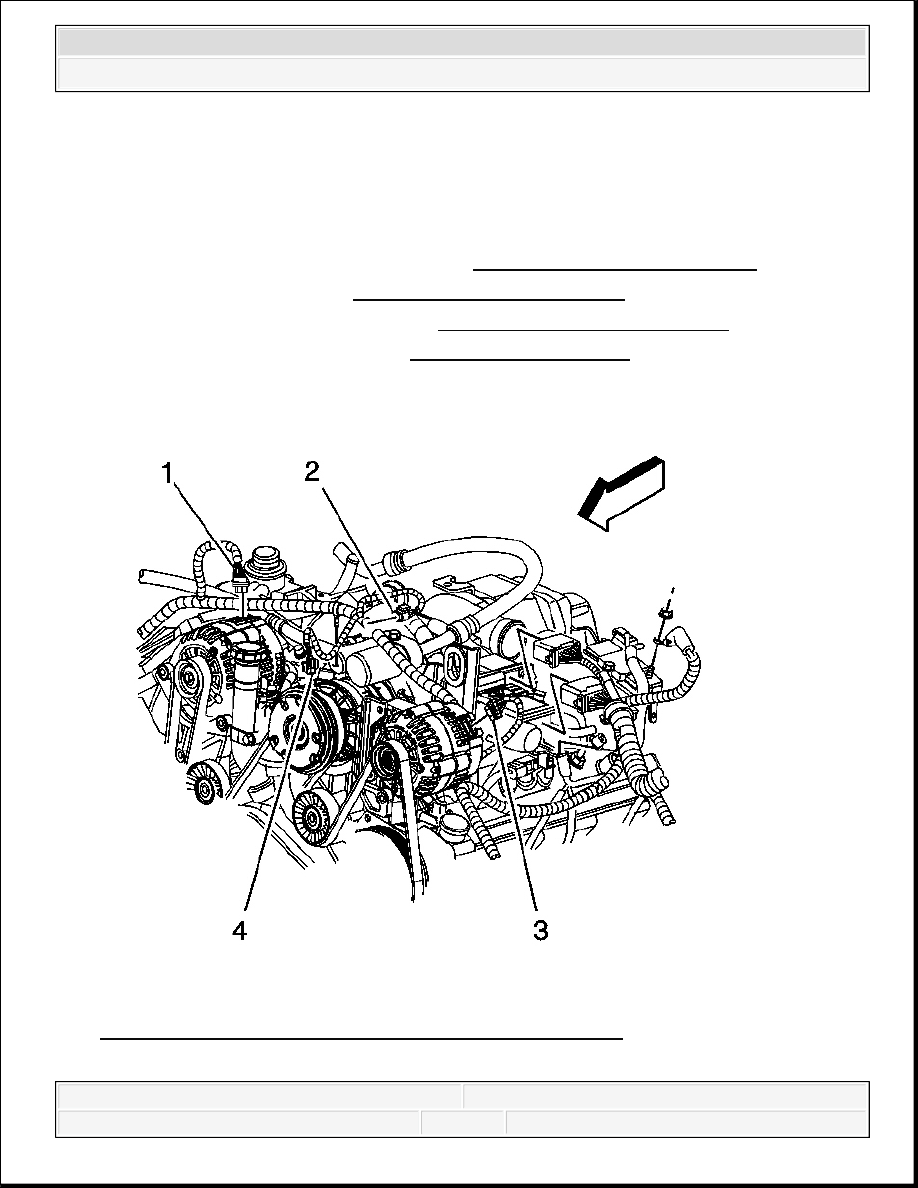

Fig. 348: View Of A/C & Generator Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
37. Disconnect the following electrical connectors:
Generator connector (1)
A/C refrigerant switch (2)
Dual generator harness connector (3), if equipped
A/C compressor clutch (4)
38. Remove the harness clip from the A/C compressor bracket.

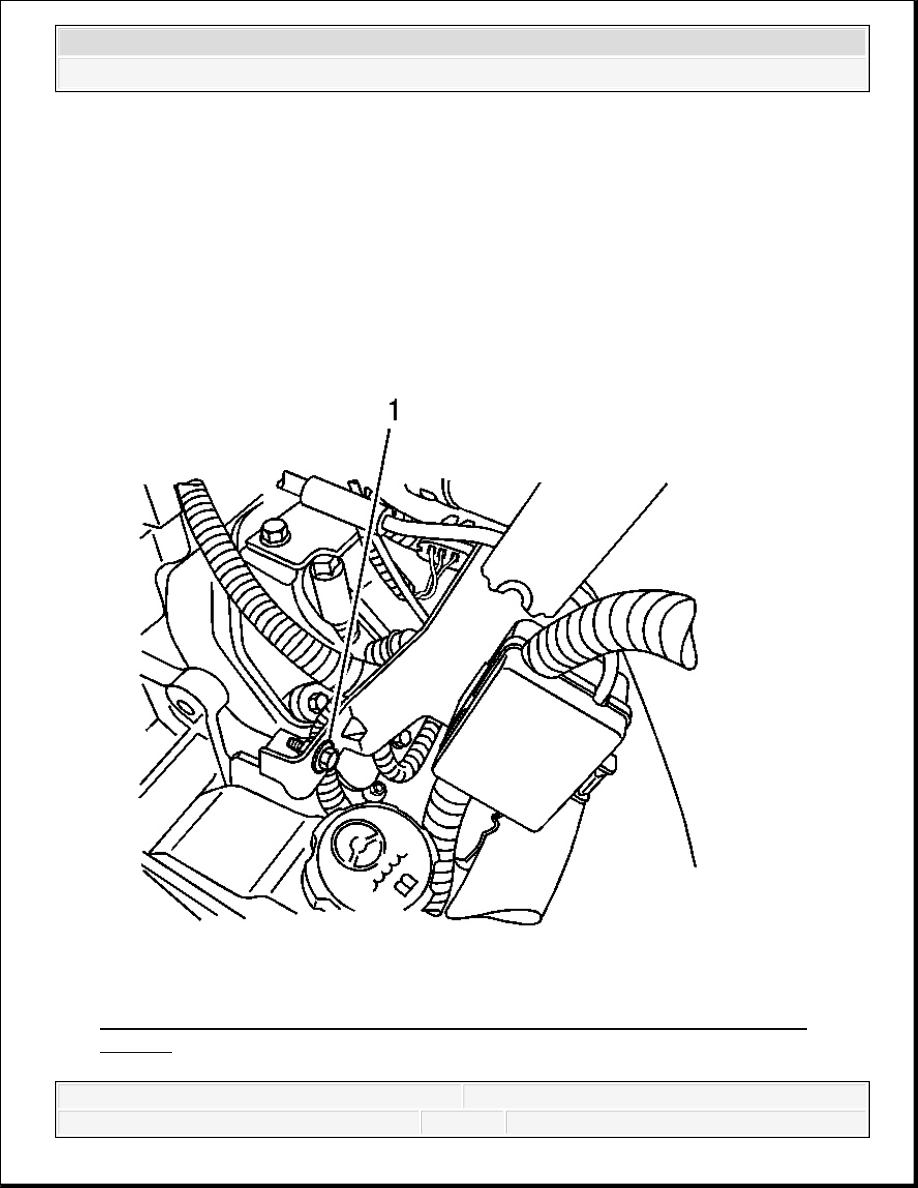

Fig. 349: View Of Battery Cable Junction Block Bolt At Power Steering Pump
Bracket
Courtesy of GENERAL MOTORS CORP.
