Chevrolet Silverado / GMC Sierra. Manual - part 497
Tighten: Tighten the bolts/nuts to 10 N.m (89 lb in).
Fig. 291: View Of Oil Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
5. Connect the oil level sensor electrical connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 292: View Of Crossbar Bolts & Bar (2WD)
Courtesy of GENERAL MOTORS CORP.
6. If equipped with a 2WD, install the crossmember and bolts.
Tighten: Tighten the bolts to 100 N.m (74 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 293: View Of Crossmember Bolts & Bar (4WD Only)
Courtesy of GENERAL MOTORS CORP.
7. If equipped with a 4WD, install the crossmember and bolts.
Tighten: Tighten the bolts to 100 N.m (74 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

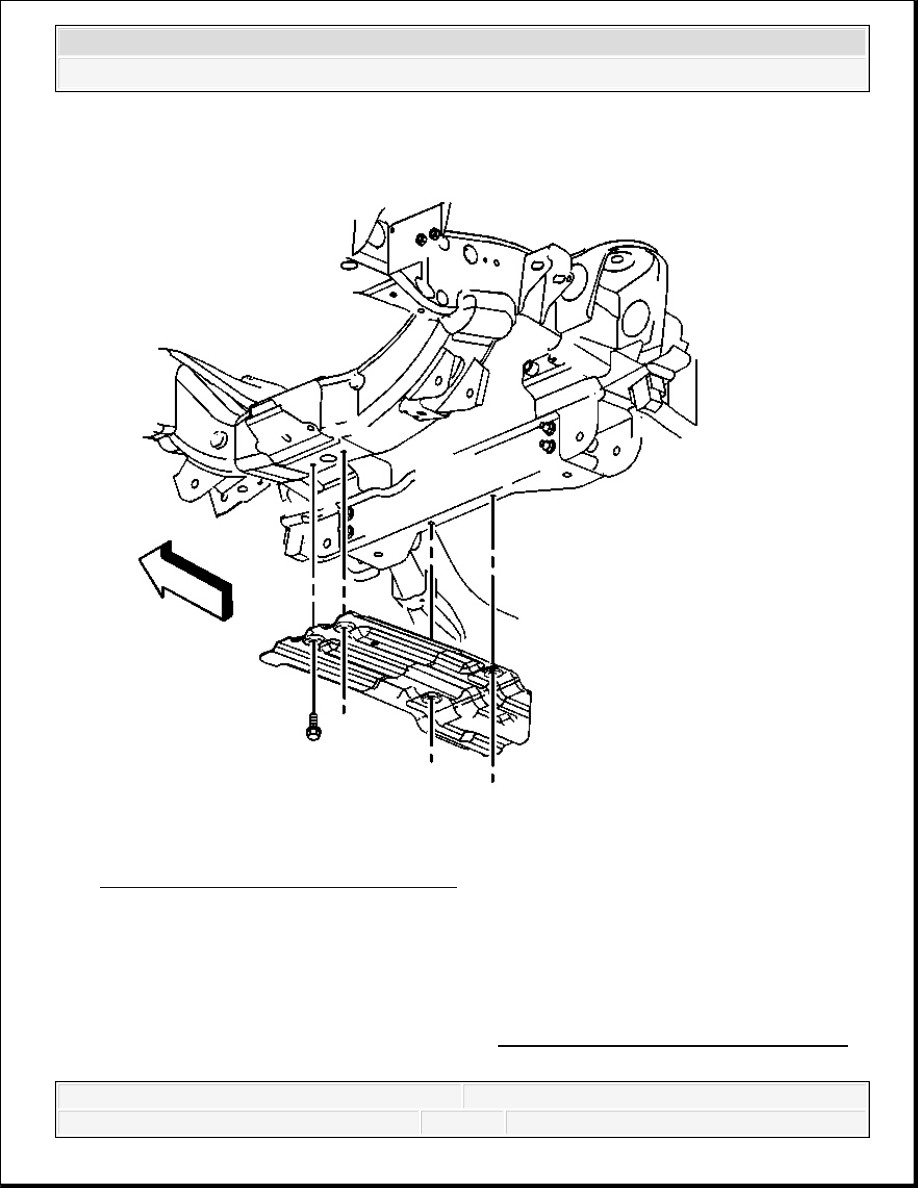

Fig. 294: Identifying Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
8. Install the oil pan skid plate and bolts, if equipped.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).
9. Install NEW engine oil and a oil filter. Refer to Engine Oil and Oil Filter Replacement.
10. Lower the vehicle.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
