3. Install NEW M12 cylinder head bolts.
4. Reuse the M8 cylinder head bolts.
5. Tighten the cylinder head bolts in the following steps using the sequence shown:
Tighten:
1. Tighten the M12 bolts a first pass to 50 N.m (37 lb ft).
2. Tighten the M12 bolts a second pass to 80 N.m (59 lb ft)
3. Tighten the M12 bolts a third pass to 60 degrees, using J 45059 .
4. Tighten the M12 bolts a final pass to 60 degrees, using J 45059 .
5. Tighten the M8 bolts to 25 N.m (18 lb ft).
6. Position the ground straps to the rear of the cylinder head, and install the bolt.
Tighten: Tighten the bolt to 34 N.m (25 lb ft).
7. Install the glow plugs. Refer to Glow Plug Replacement - Bank 2 .
8. Install the valve rocker arm shaft, pushrods, and valve bridges. Refer to Valve Rocker
Arm, Shaft, and Push Rod Replacement.
9. Install the exhaust manifold. Refer to Exhaust Manifold Replacement - Left Side
(6.6L) .
10. Install the intake manifold. Refer to Intake Manifold Replacement - Left Side.
11. Install the thermostat housing crossover. Refer to Thermostat Housing Crossover
Replacement (LMM) .
12. Road test the vehicle for normal operation.
13. Inspect for coolant, oil, or exhaust leaks.
CYLINDER HEAD REPLACEMENT - RIGHT SIDE
Tools Required
J 45059 Angle Meter
Removal Procedure
damage.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

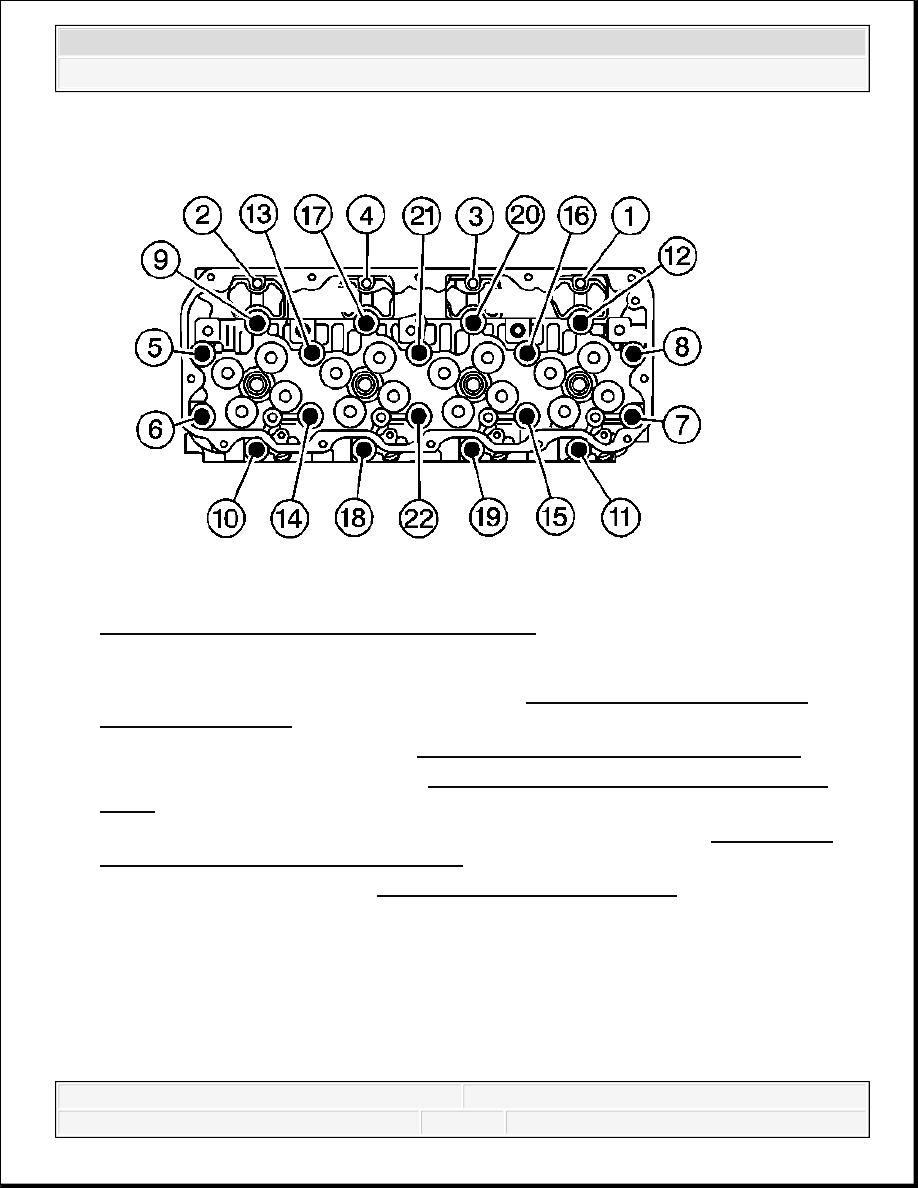

Fig. 203: Cylinder Head Bolt Removal Sequence
Courtesy of GENERAL MOTORS CORP.
1. Remove the thermostat housing crossover. Refer to Thermostat Housing Crossover
Replacement (LMM) .
2. Remove the intake manifold. Refer to Intake Manifold Replacement - Right Side.
3. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side
(6.6L) .
4. Remove the valve rocker arm shaft, pushrods, and valve bridges. Refer to Valve Rocker
Arm, Shaft, and Push Rod Replacement.
5. Remove the glow plugs. Refer to Glow Plug Replacement - Bank 1 .
6. Remove the cylinder head bolts in the sequence shown.
7. Discard the large M12 bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

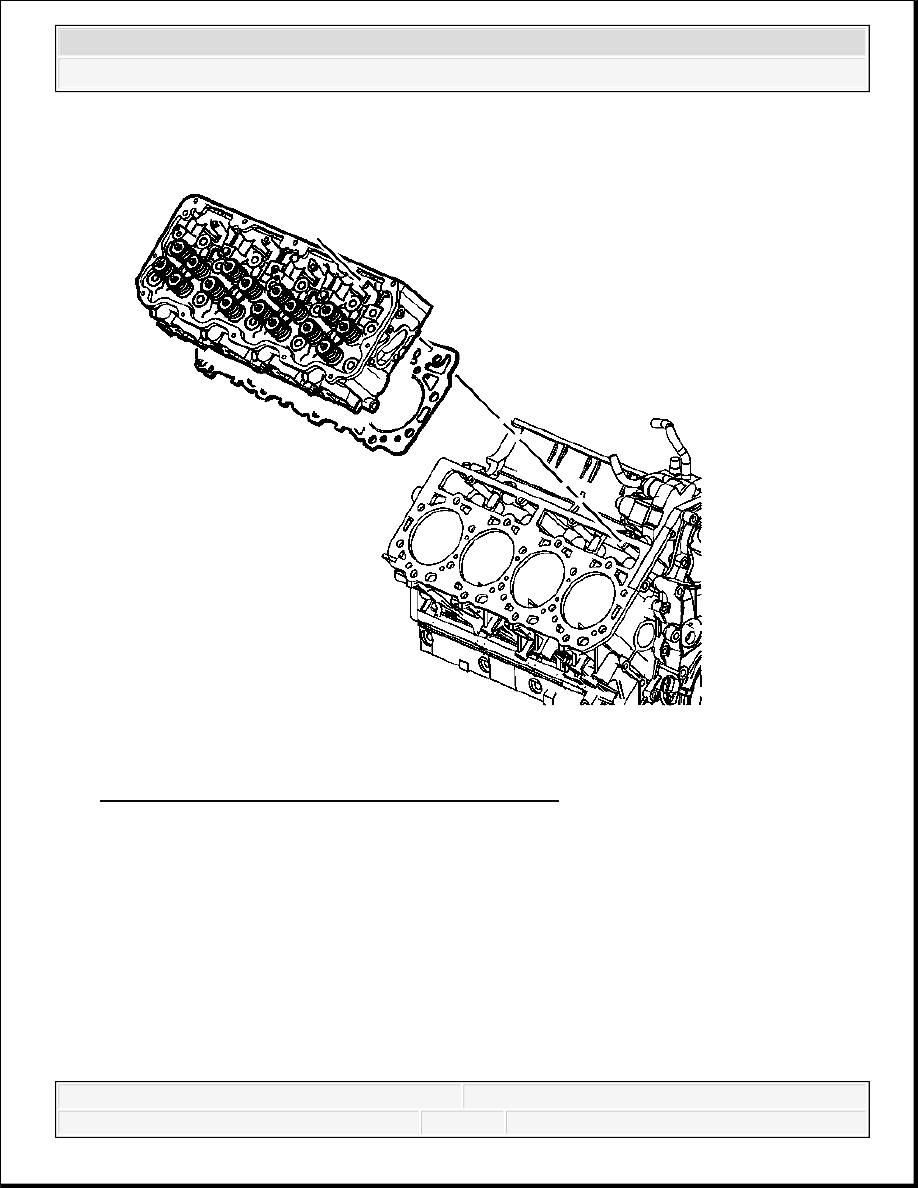

Fig. 204: View Of Cylinder Head & Gasket (Right)
Courtesy of GENERAL MOTORS CORP.
8. Remove the cylinder head.
9. Remove and discard the cylinder head gasket.
10. Clean the sealing surface of the engine block and the cylinder head.
NOTE:
Clean all dirt, debris, and coolant from the engine block
cylinder head bolt holes. Failure to remove all foreign material
may result in damaged threads, improperly tightened fasteners
or damage to components.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
11. Clean the cylinder head bolt holes in the engine block.
12. For service to the cylinder head refer to the following:
Cylinder Head Disassemble
Cylinder Head Cleaning and Inspection
Cylinder Head Assemble
Installation Procedure

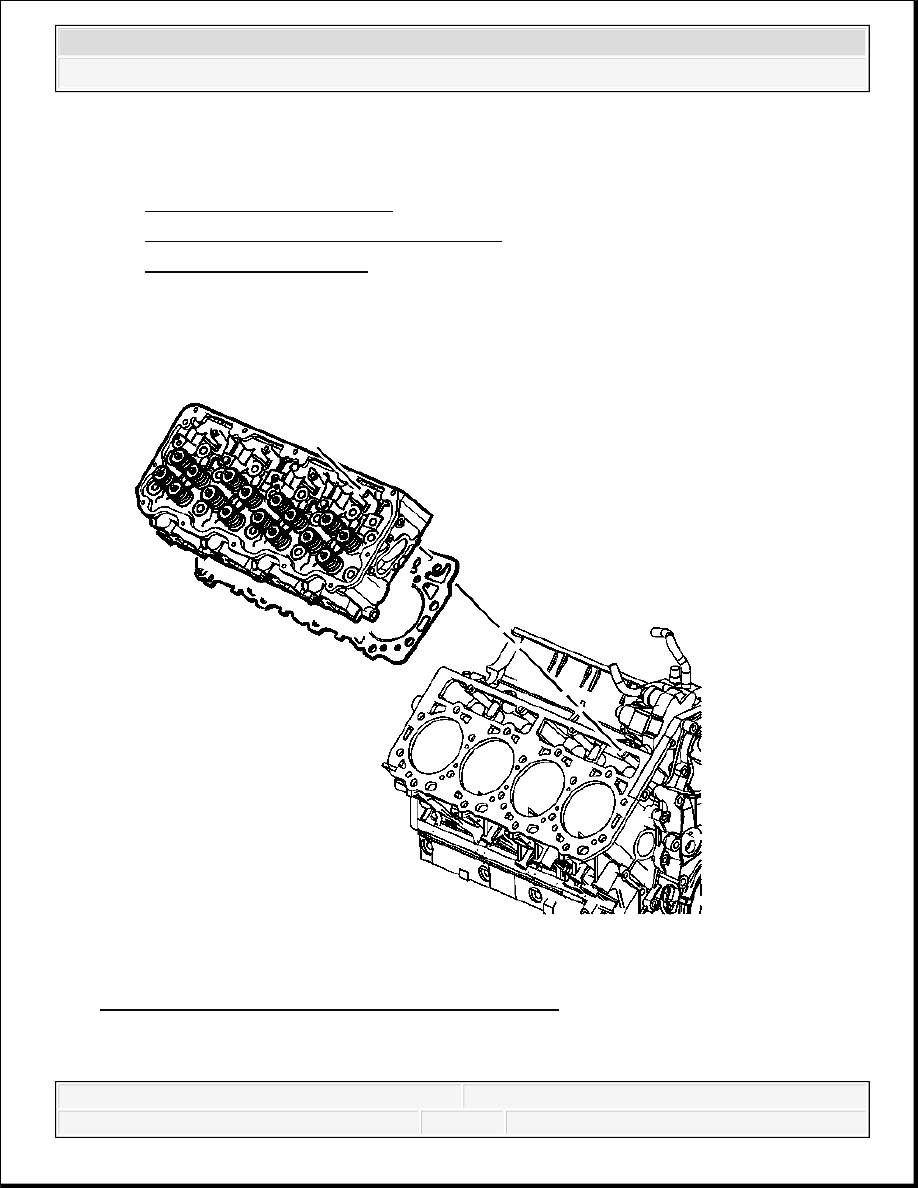

Fig. 205: View Of Cylinder Head & Gasket (Right)
Courtesy of GENERAL MOTORS CORP.
