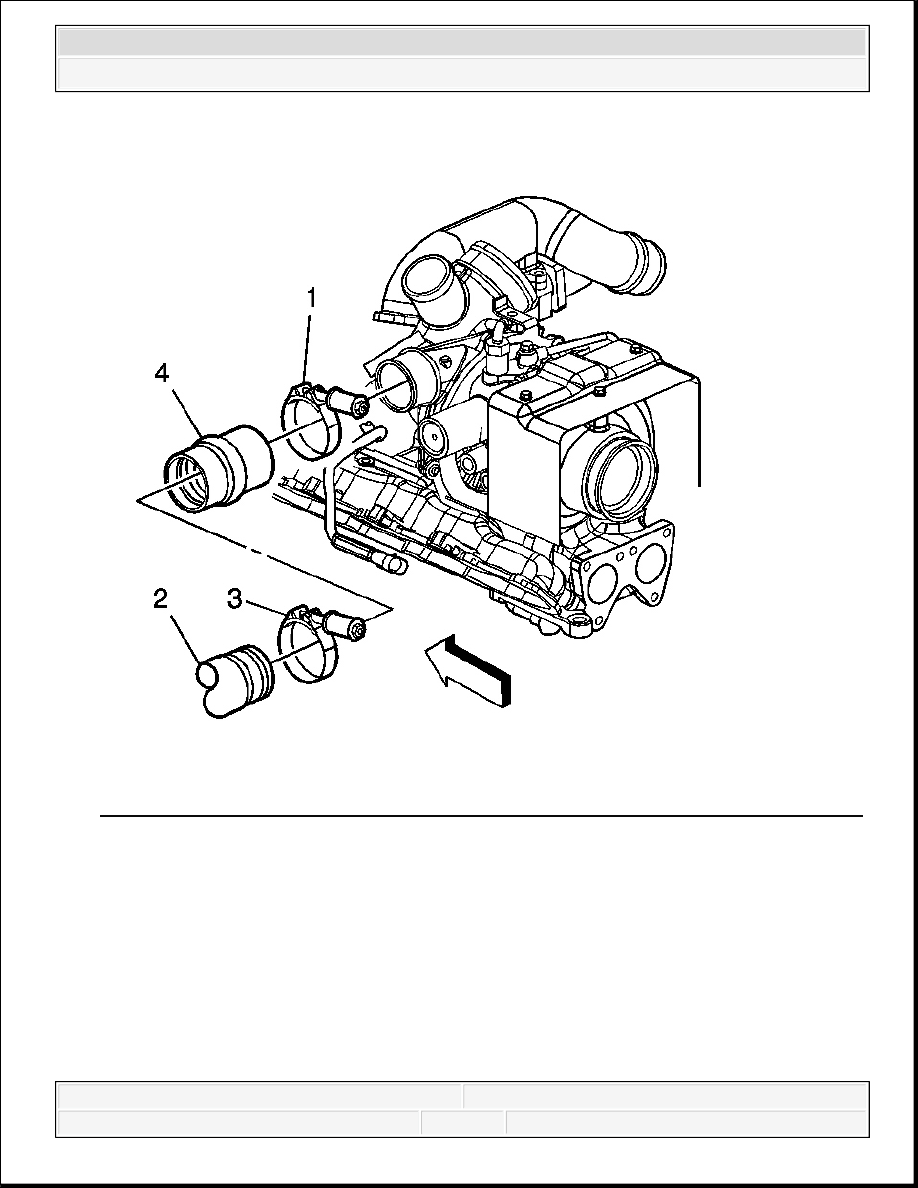

Fig. 178: View Of Turbocharger Clamp & Charged Air Cooler Inlet Duct Connector
Courtesy of GENERAL MOTORS CORP.
28. Remove the tape from the turbocharger openings.
29. Install the charged air cooler inlet duct connector (4) to the turbocharger.
30. Tighten the charged air cooler inlet duct connector to turbocharger clamp (1).
Tighten: Tighten the clamp to 6 N.m (53 lb in).
IMPORTANT: Lubricate the end of the duct prior to installation.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
31. Install the charged air cooler outlet duct. Refer to Charge Air Cooler Outlet Pipe
Replacement .
32. Fill the cooling system. Refer to Cooling System Draining and Filling (Vac-N-Fill) or
Cooling System Draining and Filling (Static Fill) .

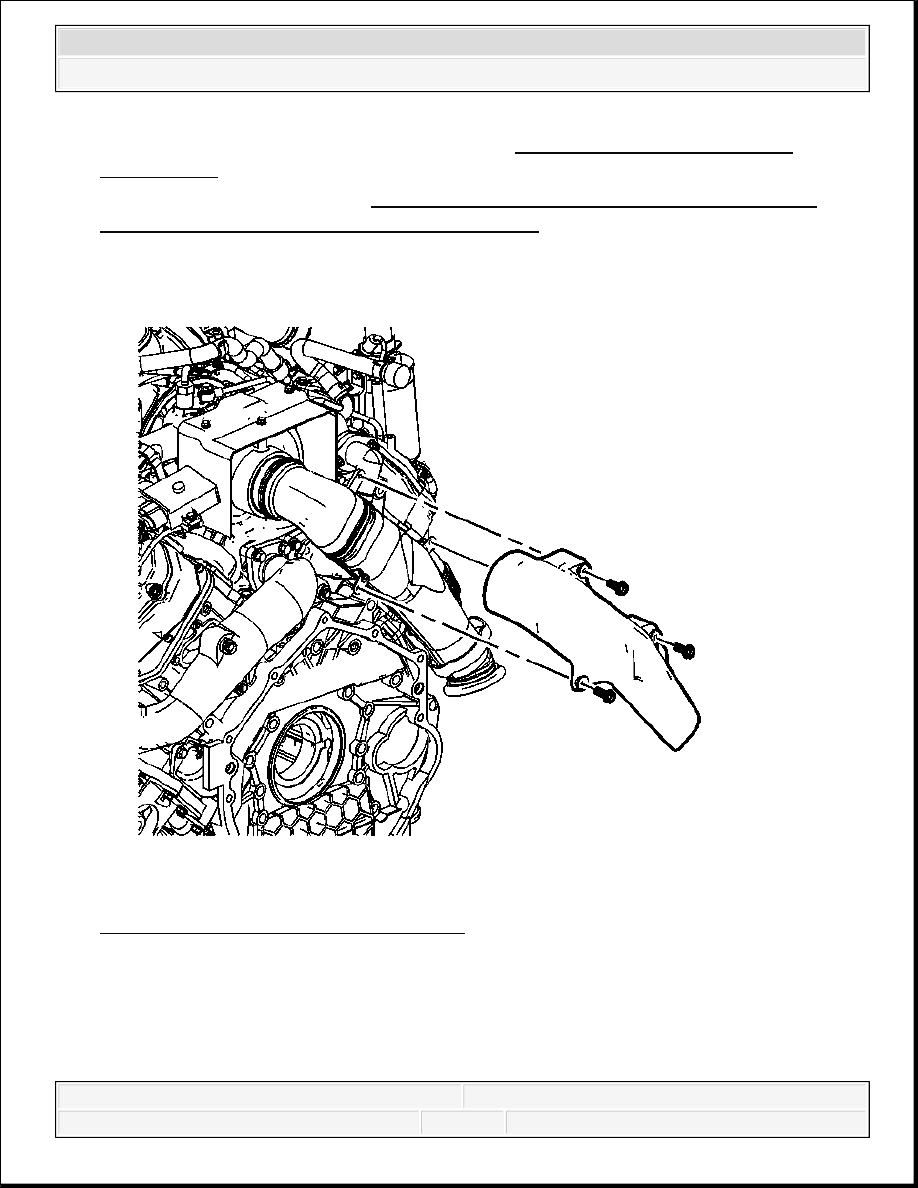

Fig. 179: View Of Exhaust Outlet Shield
Courtesy of GENERAL MOTORS CORP.
33. Install the lower bolt for the exhaust outlet shield.
Tighten: Tighten the bolt to 8 N.m (71 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

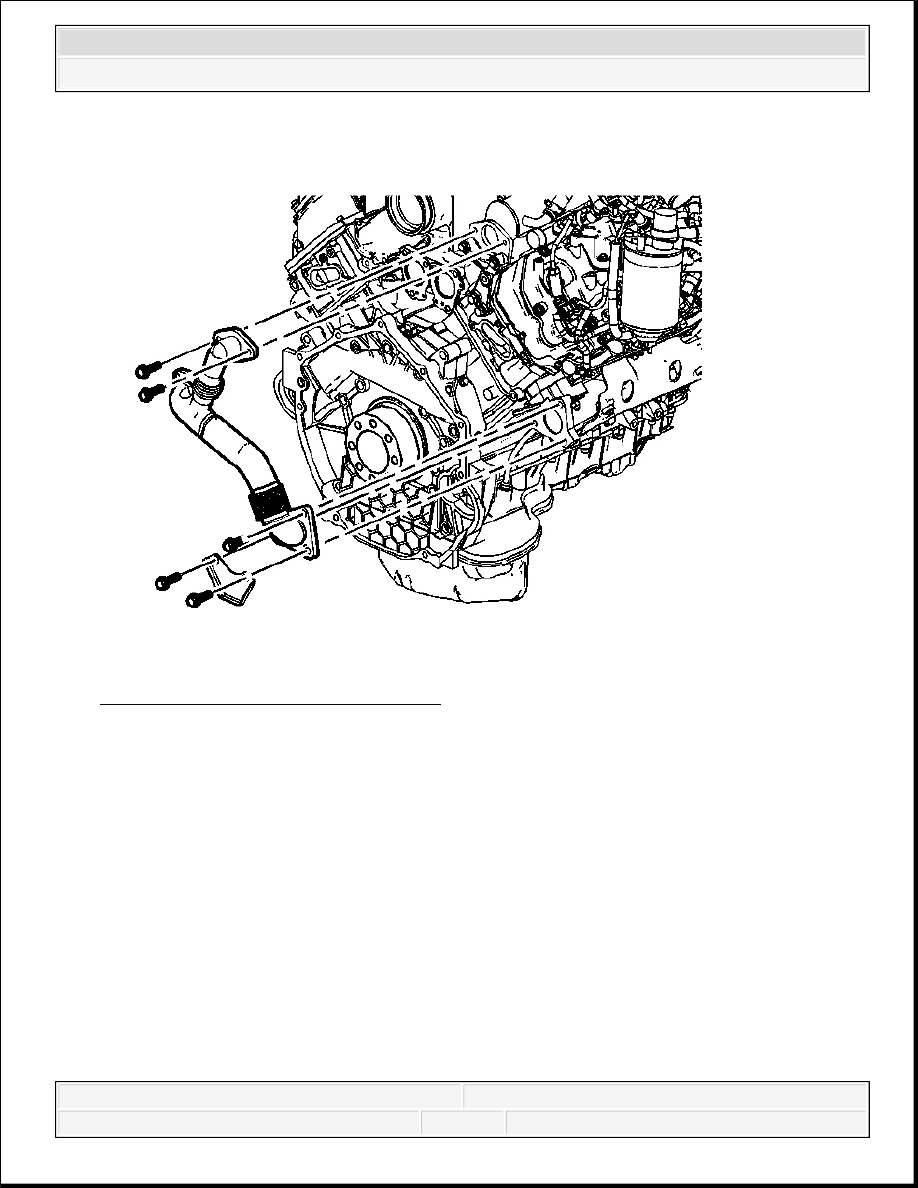

Fig. 180: View Of Right Exhaust Pipe
Courtesy of GENERAL MOTORS CORP.
34. Install a NEW exhaust manifold gasket.
35. Install the right exhaust pipe to exhaust manifold bolts.
Tighten: Tighten the bolts to 53 N.m (39 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

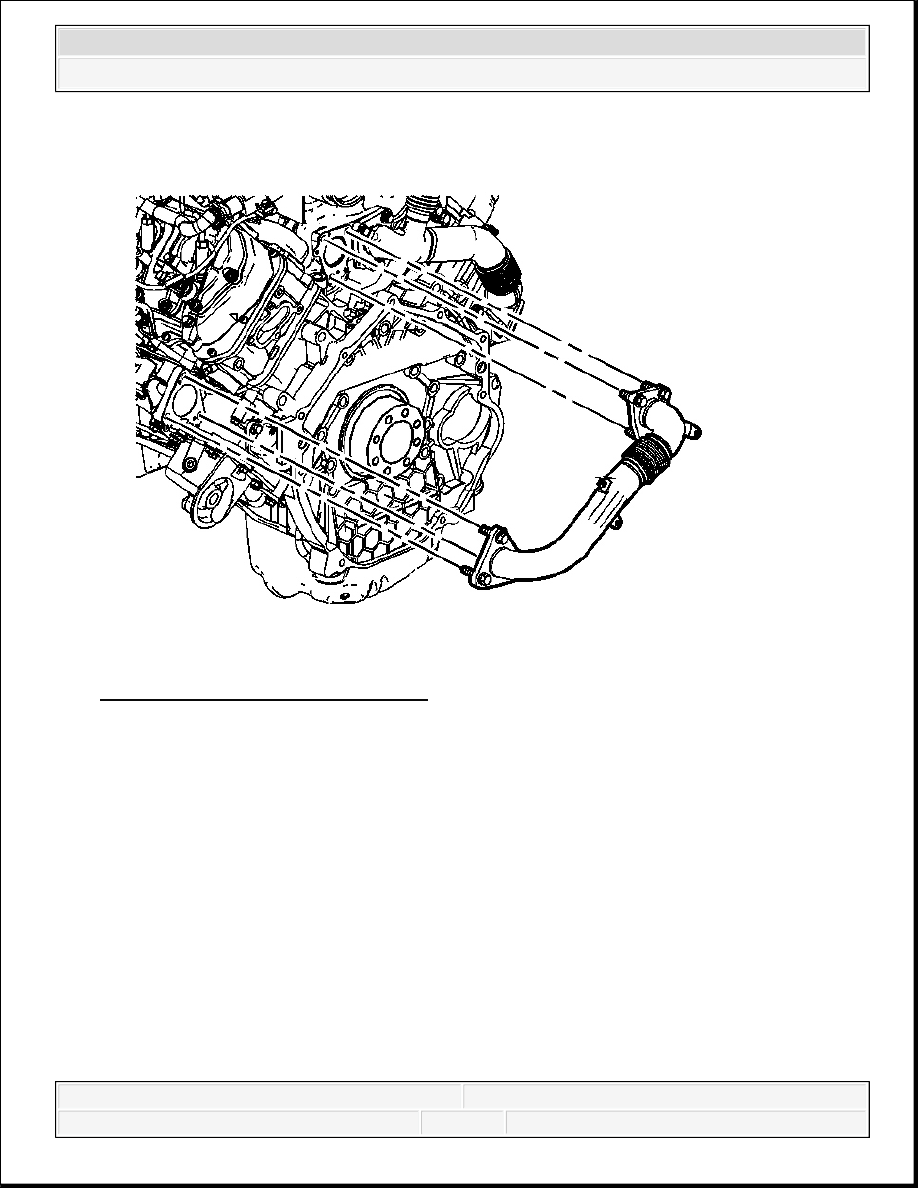

Fig. 181: View Of Left Exhaust Pipe
Courtesy of GENERAL MOTORS CORP.
36. Install a NEW exhaust manifold gasket.
37. Install the left exhaust pipe to exhaust manifold bolts.
Tighten: Tighten the bolts to 53 N.m (39 lb ft).
