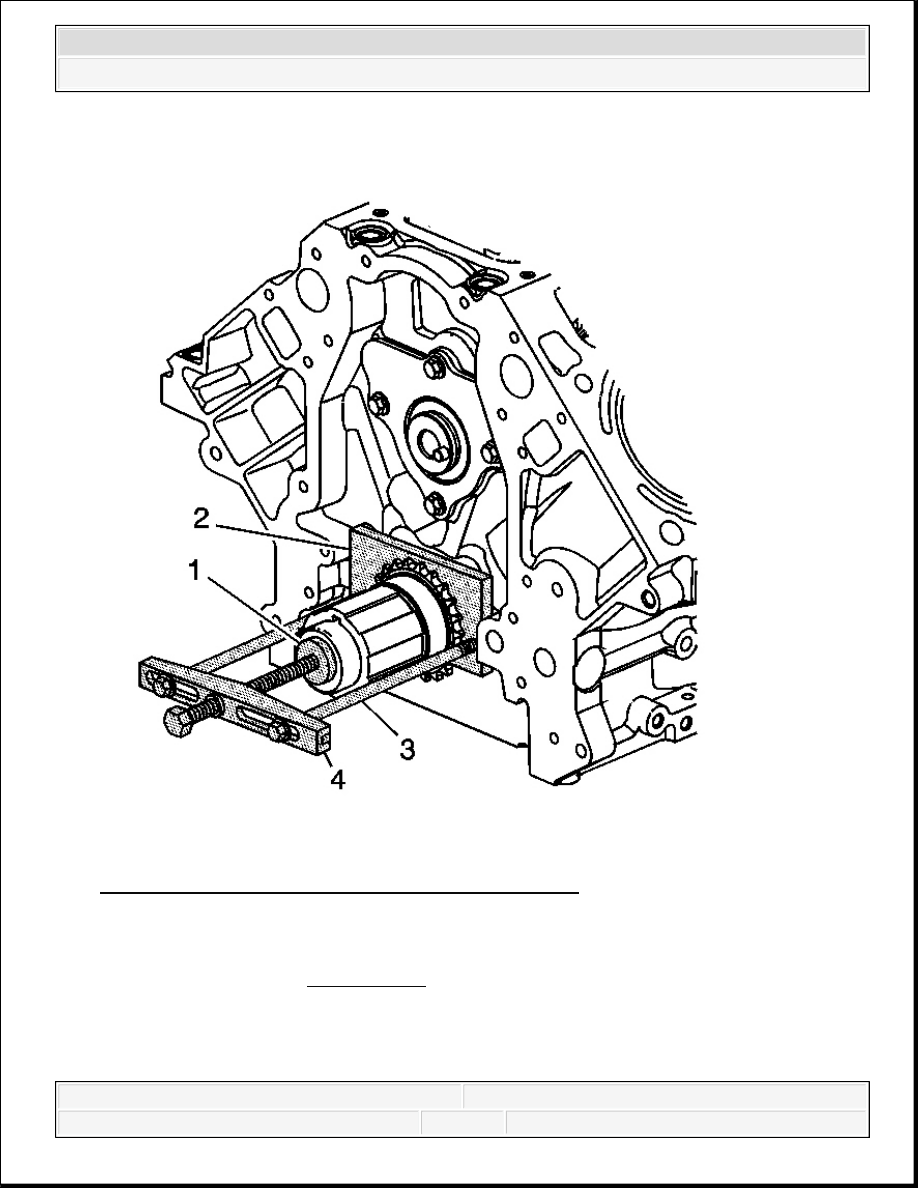

Fig. 364: View Of Crankshaft Sprocket Special Tools
Courtesy of GENERAL MOTORS CORP.
9. Use the J 41816-2 (1), the J 41558 (2), bolts (3), and the J 8433 (4) in order to remove the
crankshaft sprocket. See Special Tools.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

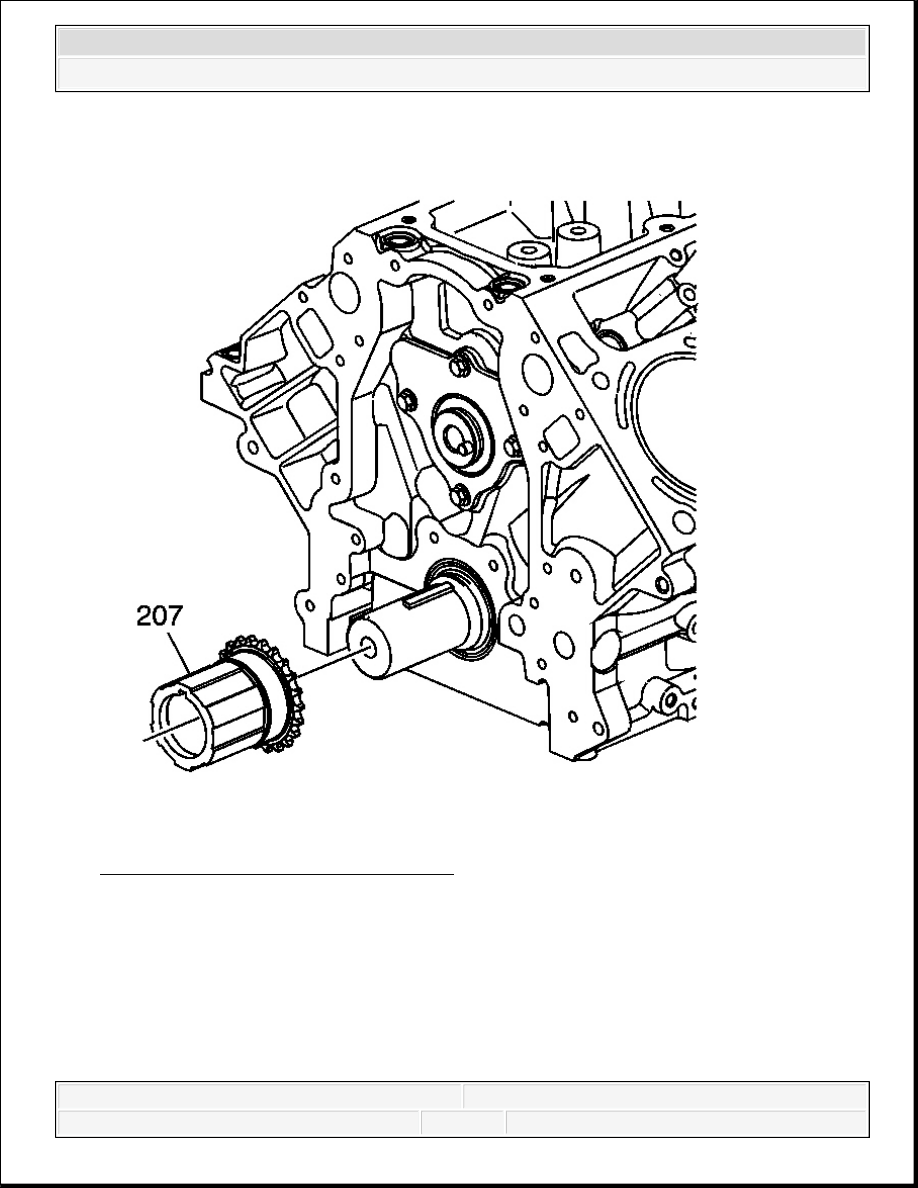

Fig. 365: View Of Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
10. Remove the crankshaft sprocket (207).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

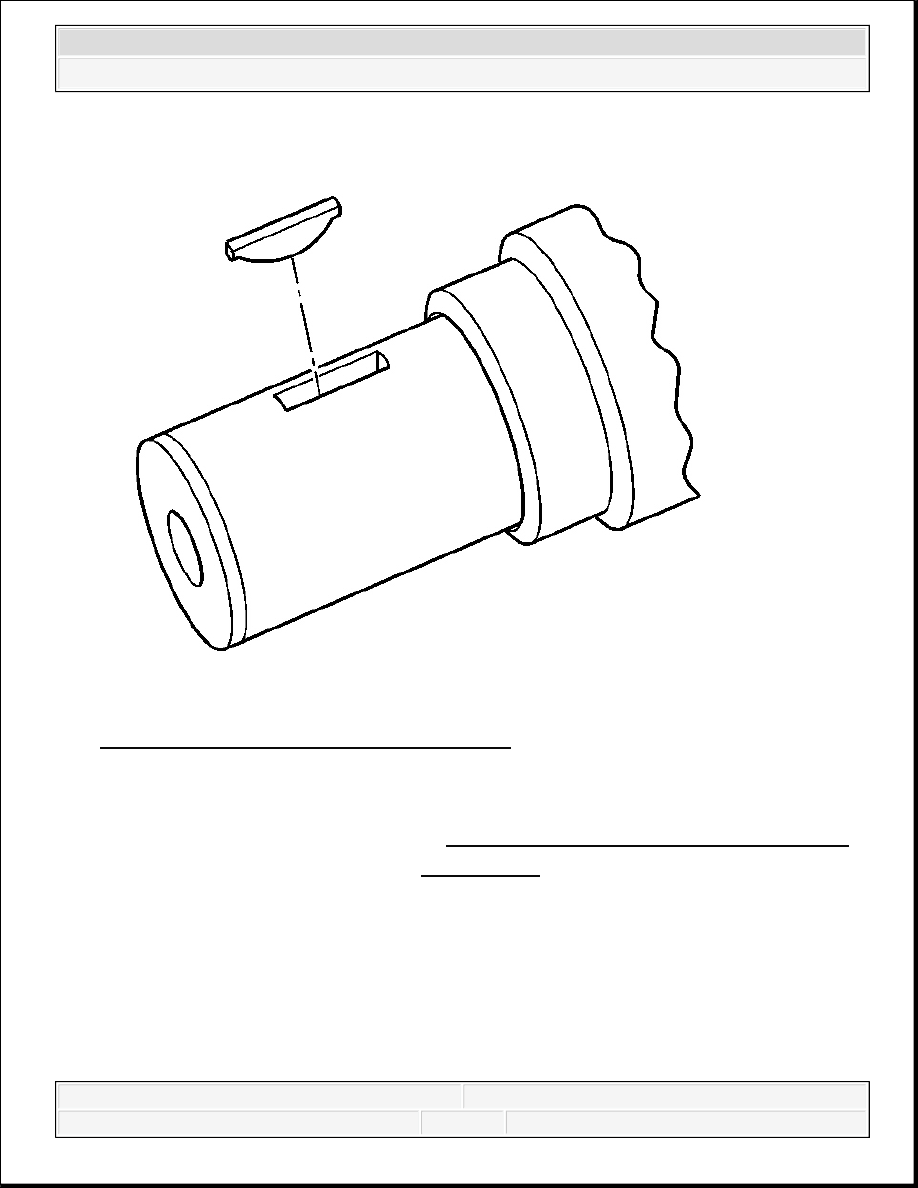

Fig. 366: View Of Crankshaft Key & Keyway
Courtesy of GENERAL MOTORS CORP.
11. Remove the crankshaft sprocket key, as required.
12. Remove the flex plate and bolts. Refer to Automatic Transmission Flex Plate Removal.
13. Remove the J 42386-A and bolts. See Special Tools.
