J 8433 Two Jaw Puller
J 41558 Crankshaft Sprocket Remover. See Special Tools.
J 41816-2 Crankshaft End Protector. See Special Tools.
J 42386-A Flywheel Holding Tool. See Special Tools.
Removal

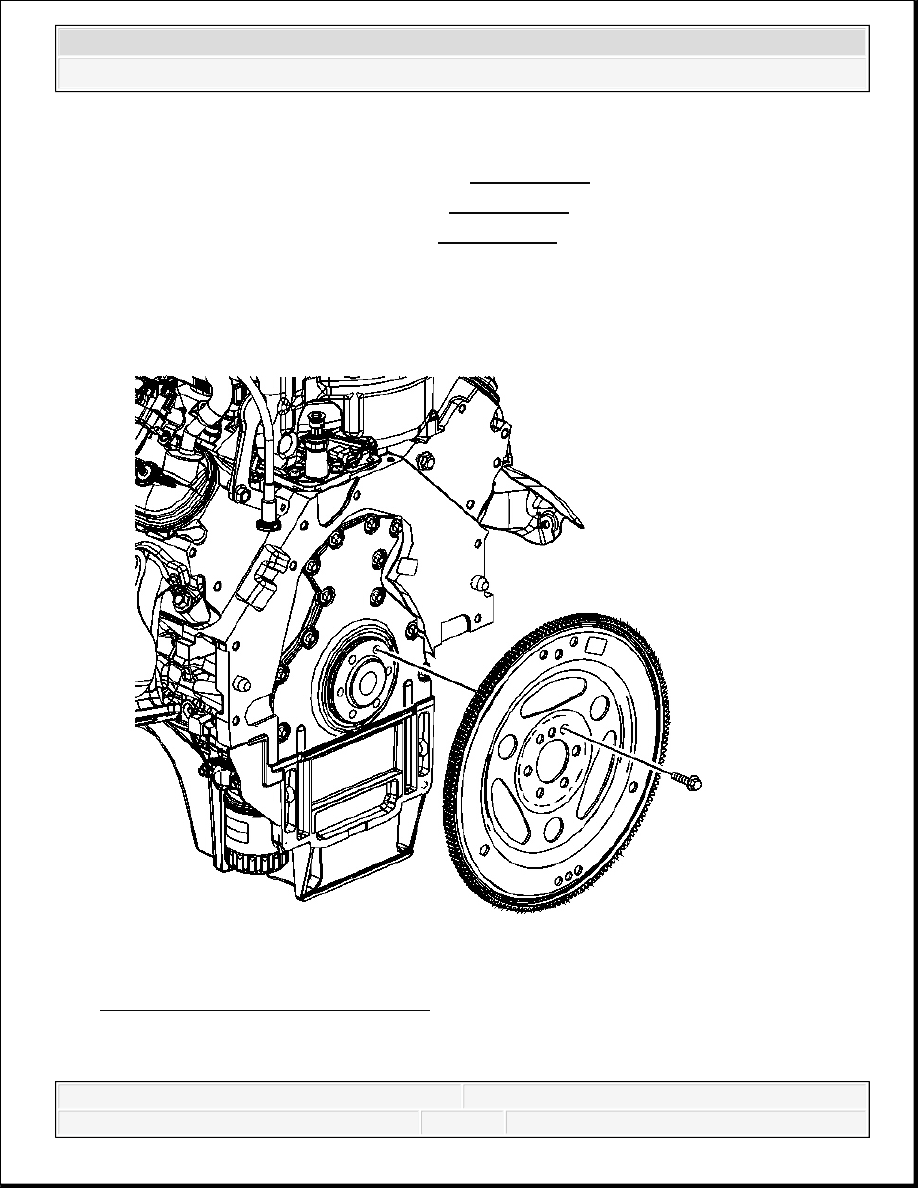

Fig. 357: View Of Flex Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
1. Temporarily install the automatic transmission flex plate and bolts. Refer to Automatic
Transmission Flex Plate Installation.

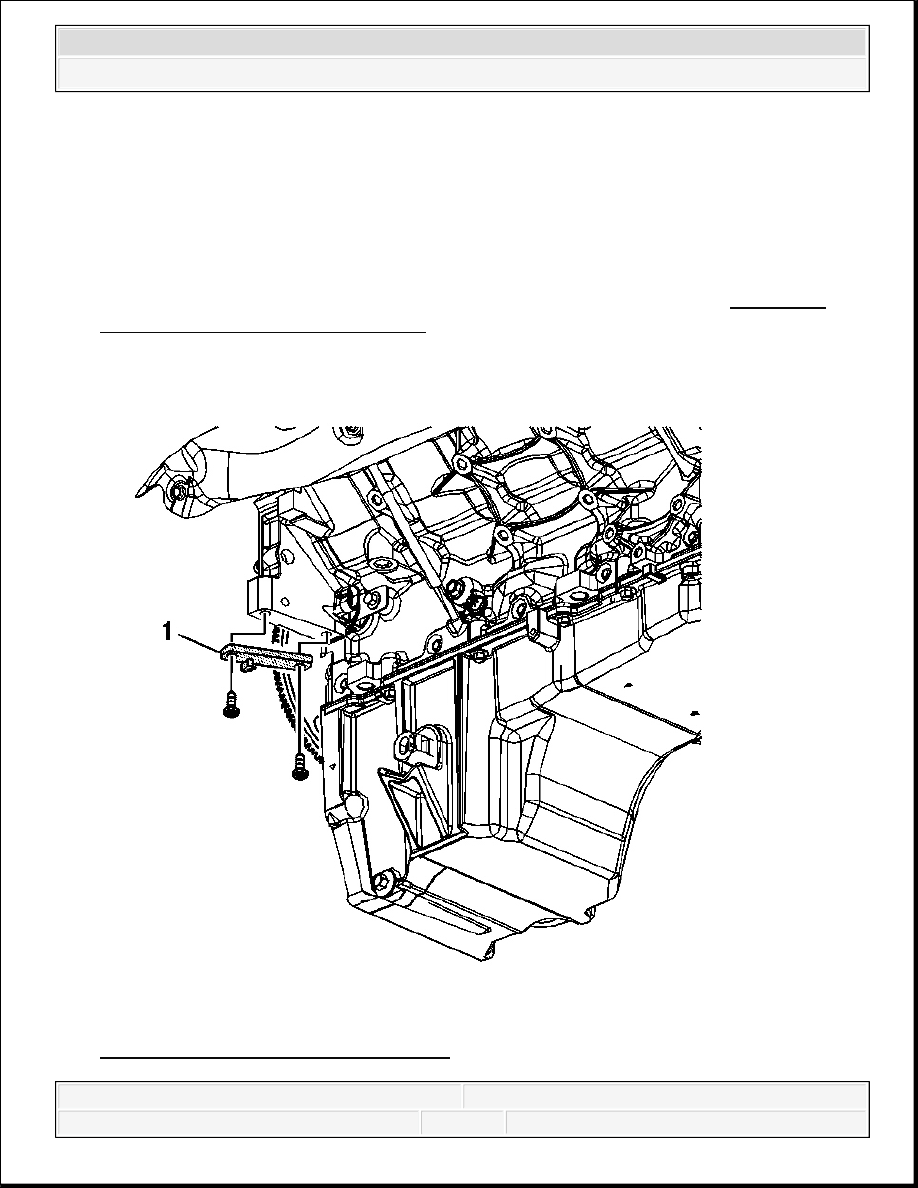

Fig. 358: View Of Special Tool & Bolts
Courtesy of GENERAL MOTORS CORP.

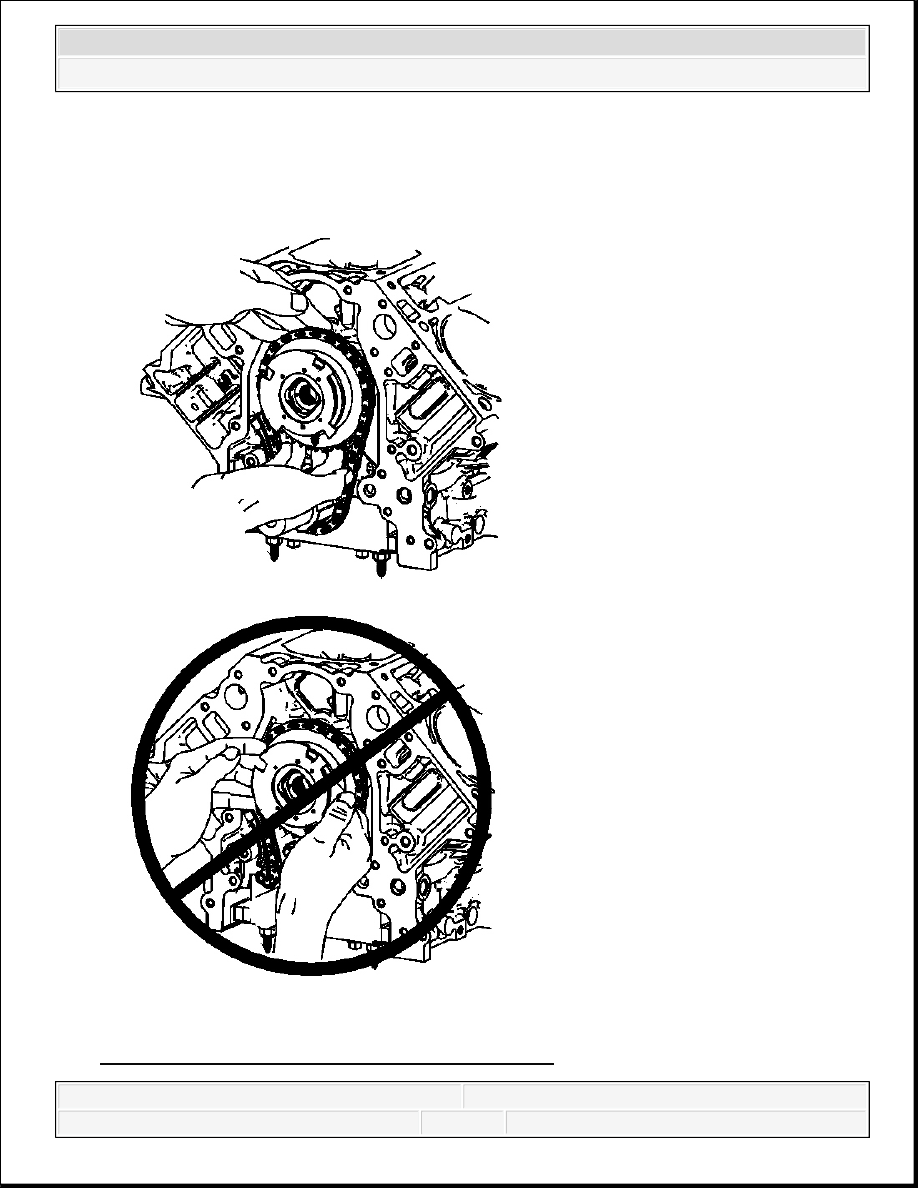

IMPORTANT:
Do not use the camshaft position (CMP) actuator
solenoid valve again. Upon installation of the CMP
actuator and timing chain, install a NEW valve.
Do not apply threadlock to the flex plate bolts at this
time.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
2. Install the J 42386-A (1) and bolts. See Special Tools. Use 1 M10 - 1.5 x 120 mm and 1
M10 - 1.5 x 45 mm bolt for proper tool operation.
Tighten: Tighten the J 42386-A bolts to 50 N. See Special Tools.m (37 lb ft).

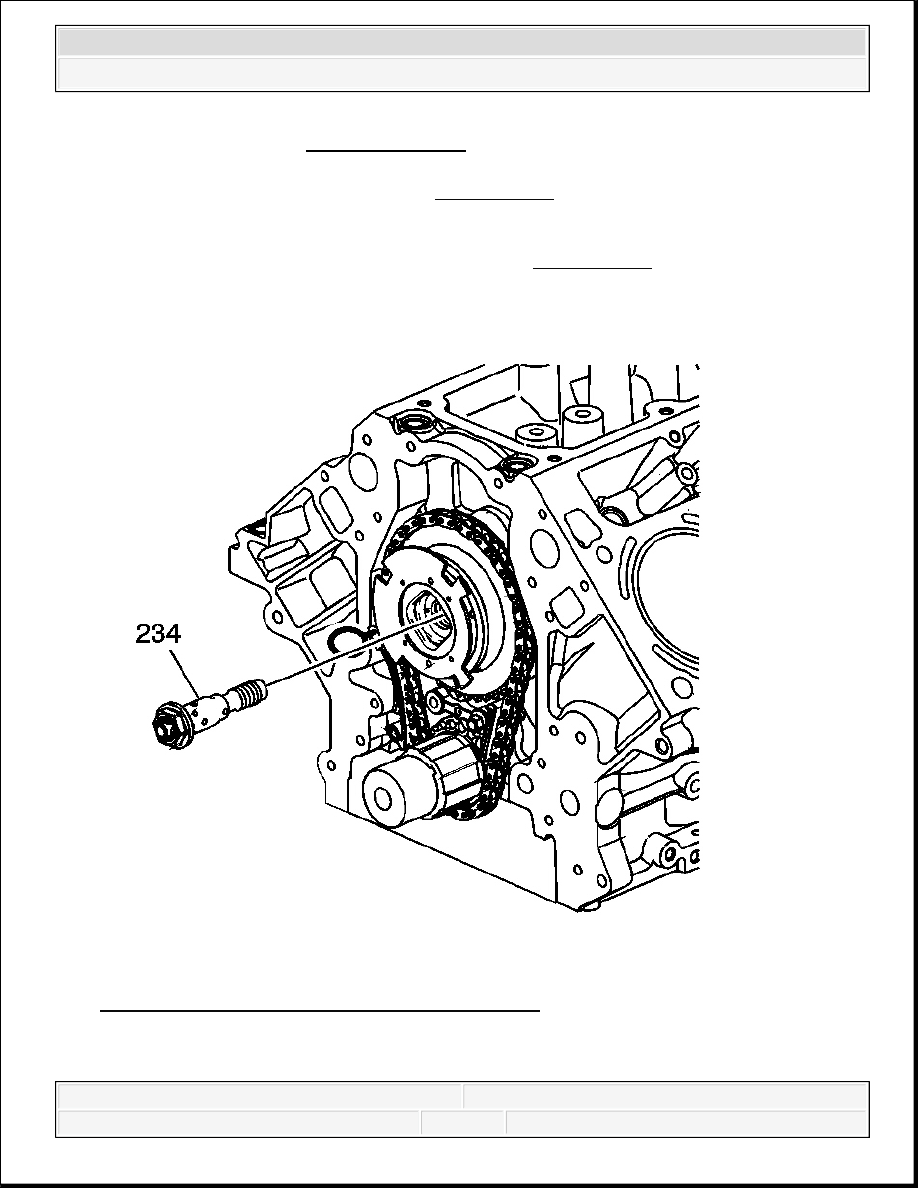

Fig. 359: View Of CMP Actuator Solenoid Valve
Courtesy of GENERAL MOTORS CORP.
3. Remove the CMP actuator solenoid valve (234).
NOTE:
Refer to Fastener Notice .
