8. Discard the gasket and rivets.
ENGINE FRONT COVER REMOVAL

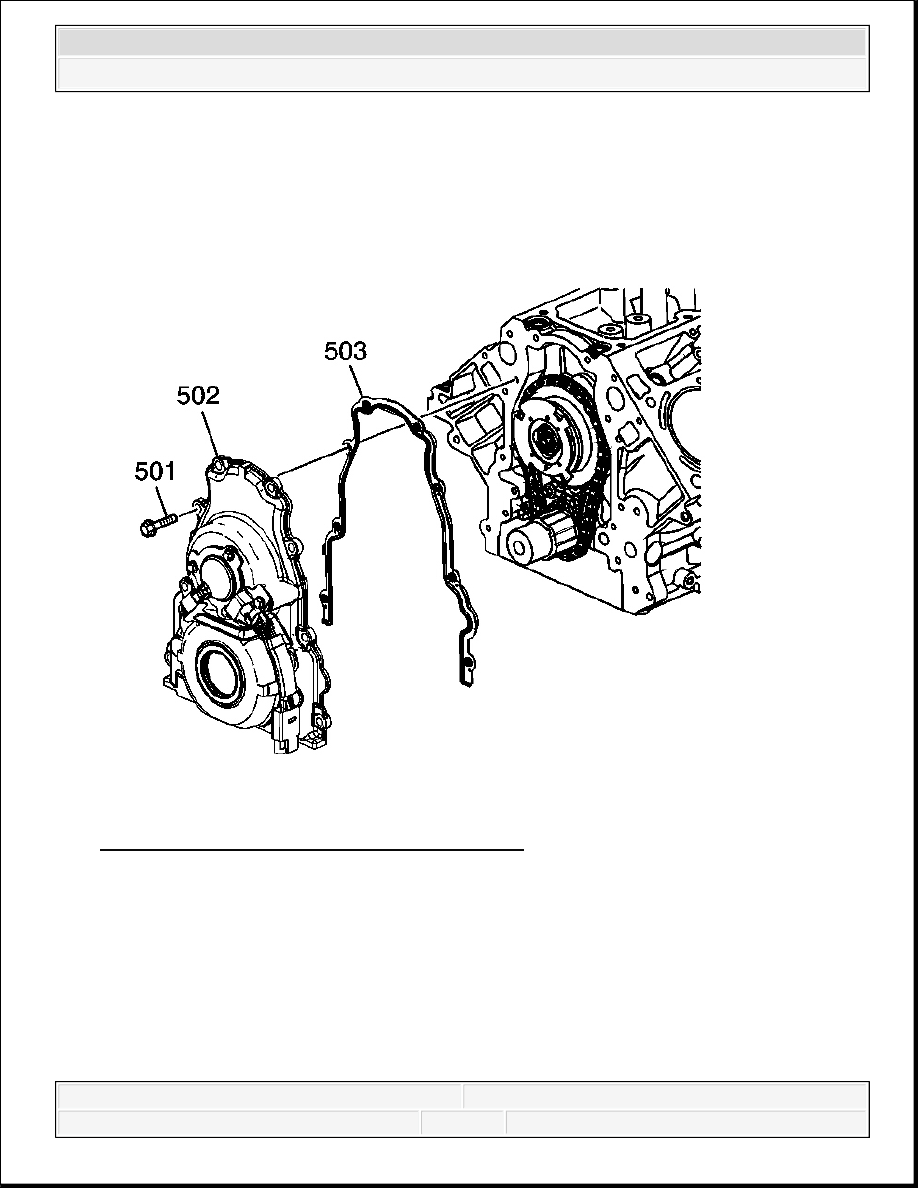

Fig. 349: View Of Front Cover, Bolts & Gasket
Courtesy of GENERAL MOTORS CORP.
1. Remove the front cover bolts (501).
2. Remove the front cover (502) and gasket (503).
3. Discard the front cover gasket.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

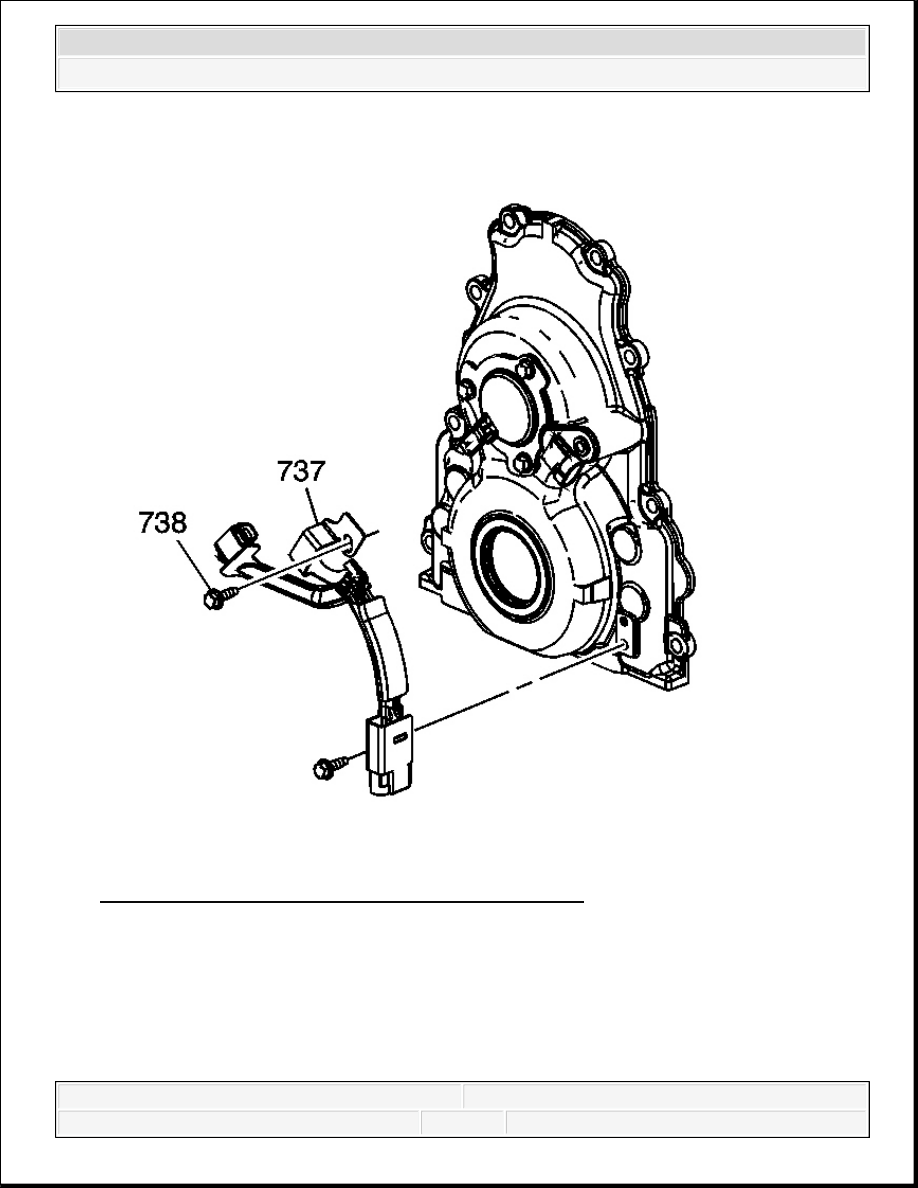

Fig. 350: View Of CMP Sensor Wire Harness & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Remove the camshaft position (CMP) sensor wire harness (737) and bolts (738).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

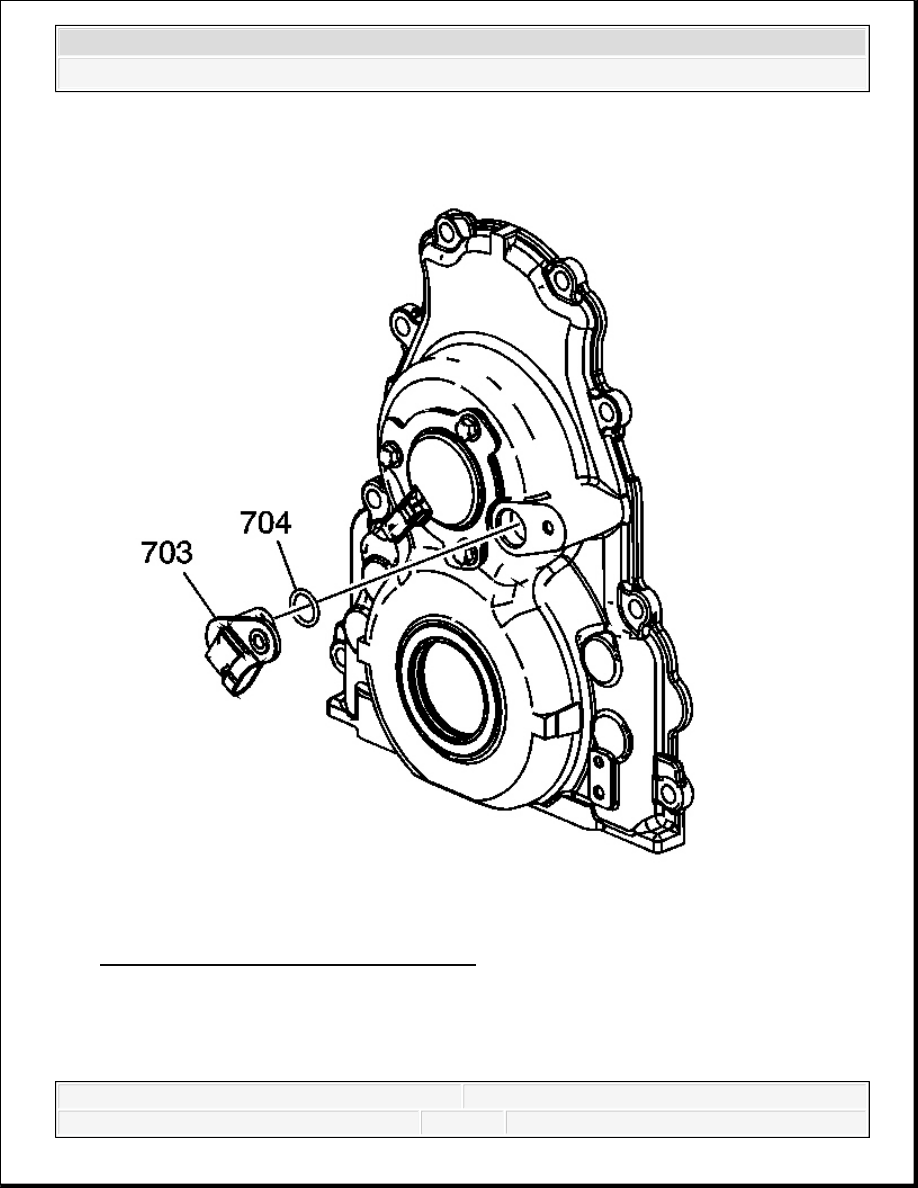

Fig. 351: View Of CMP Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.
5. Remove the CMP sensor (703).
6. Remove the O-ring (704) from the sensor, as required.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

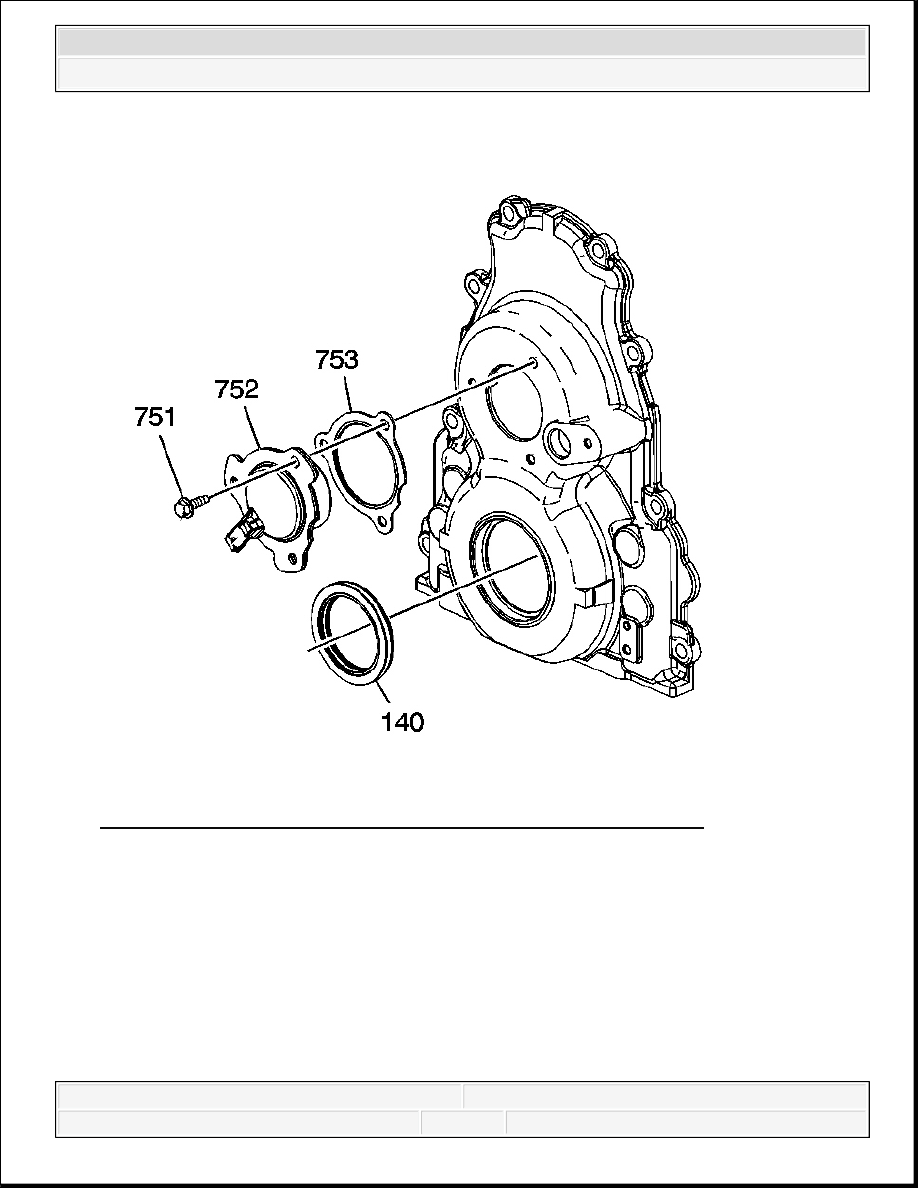

Fig. 352: View Of CMP Actuator Magnet, Bolts, Gasket & Oil Seal
Courtesy of GENERAL MOTORS CORP.
7. Remove the CMP actuator magnet (752), bolts (751), and gasket (753).
8. Remove the oil seal (140).
CRANKSHAFT REAR OIL SEAL HOUSING REMOVAL
