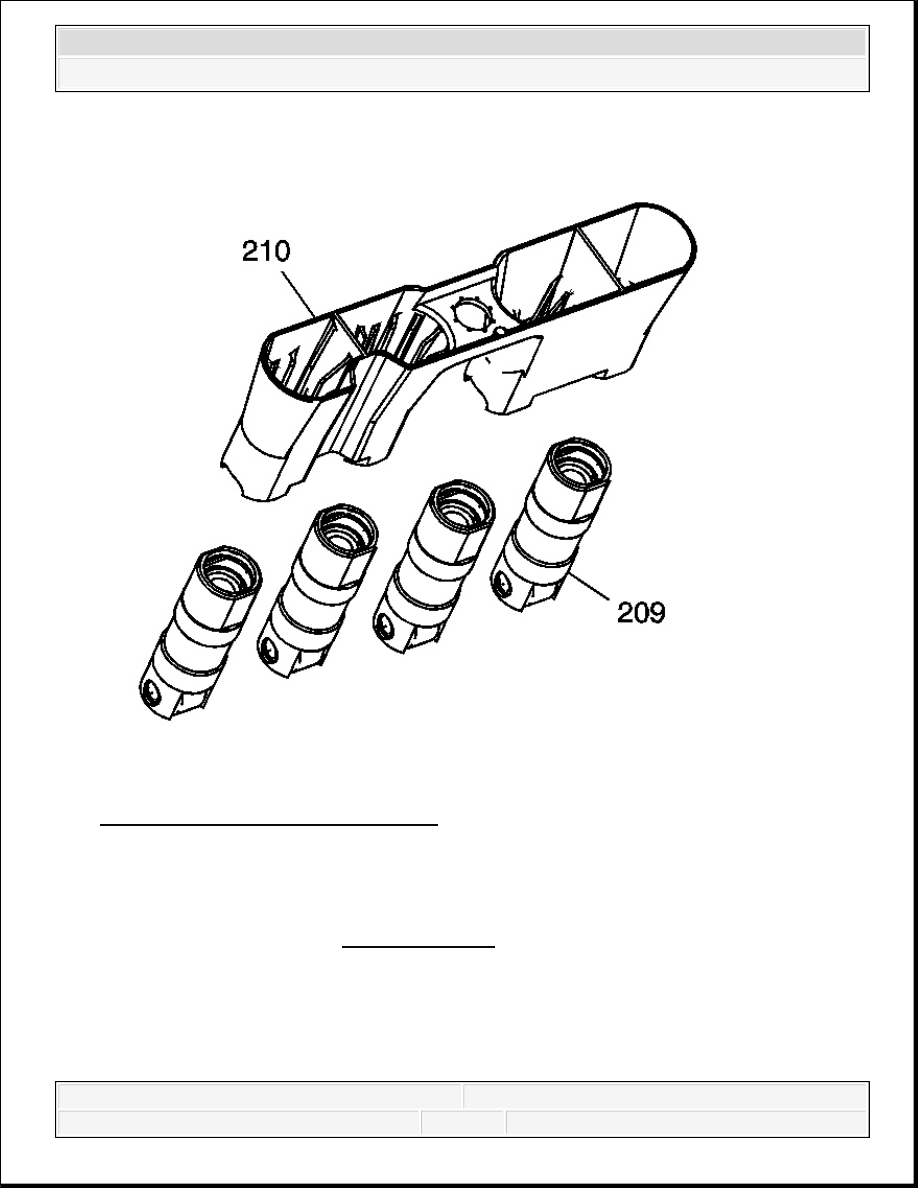

Fig. 341: Valve Lifter Guides & Bolts
Courtesy of GENERAL MOTORS CORP.
3. Remove the valve lifters (209) from the guide (210).
4. Organize or mark the components so they can be installed in the same location from which
they were removed. Refer to Separating Parts.
OIL FILTER REMOVAL
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

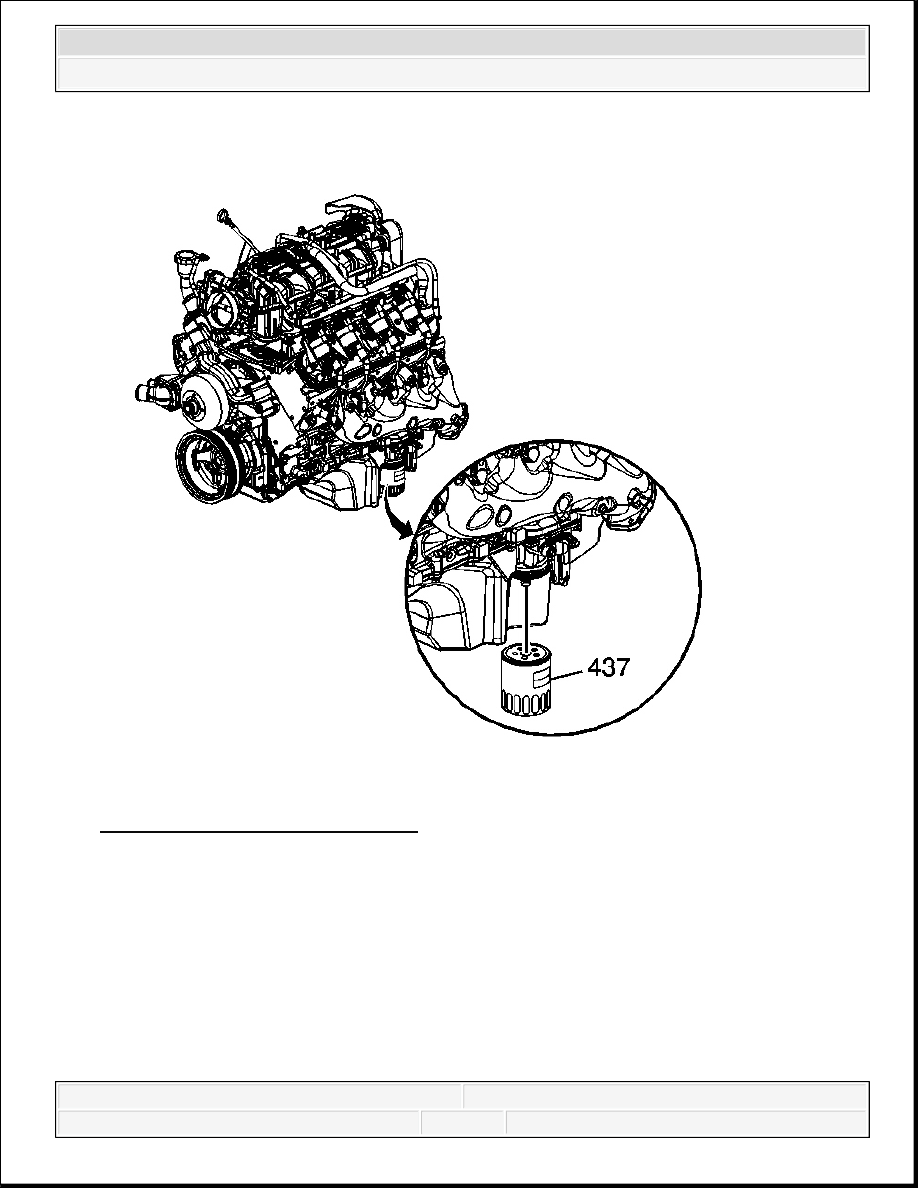

Fig. 342: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.
1. Remove the oil filter (437).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

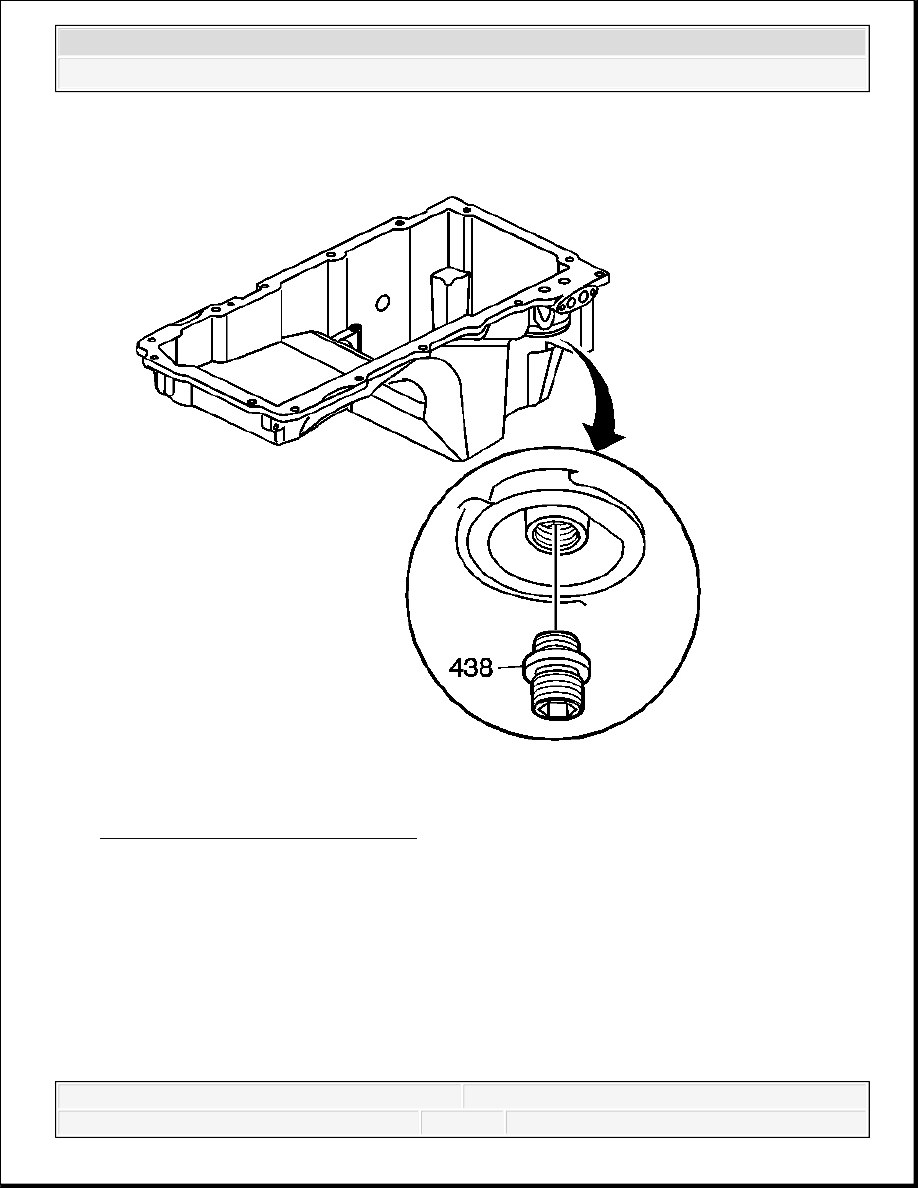

Fig. 343: View Of Oil Filter Fitting
Courtesy of GENERAL MOTORS CORP.
2. Remove the oil filter fitting (438).
OIL PAN REMOVAL
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

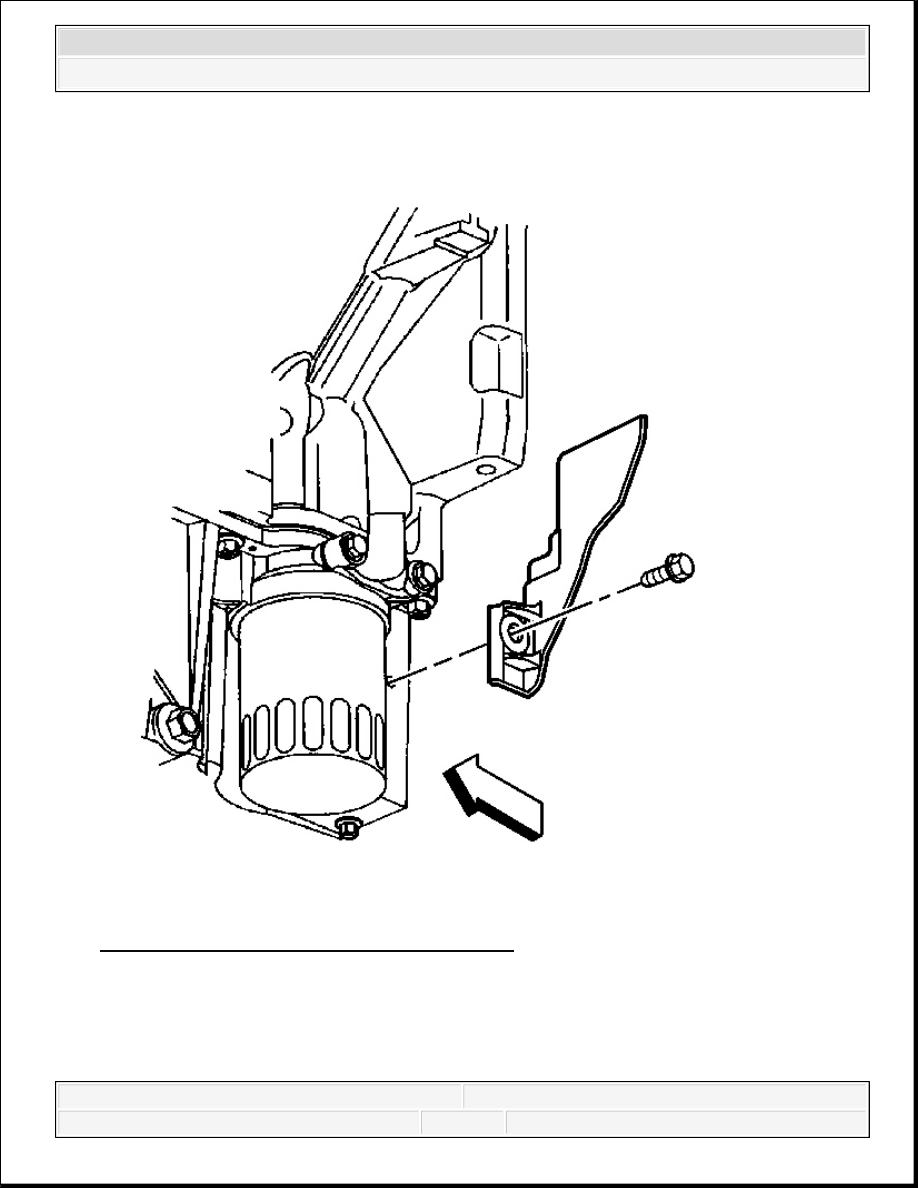

Fig. 344: View Of Left Closeout Cover & Bolt
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
The original oil pan gasket is retained and aligned to the
oil pan by rivets. When installing a new gasket, it is not
necessary to install new oil pan gasket rivets.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
