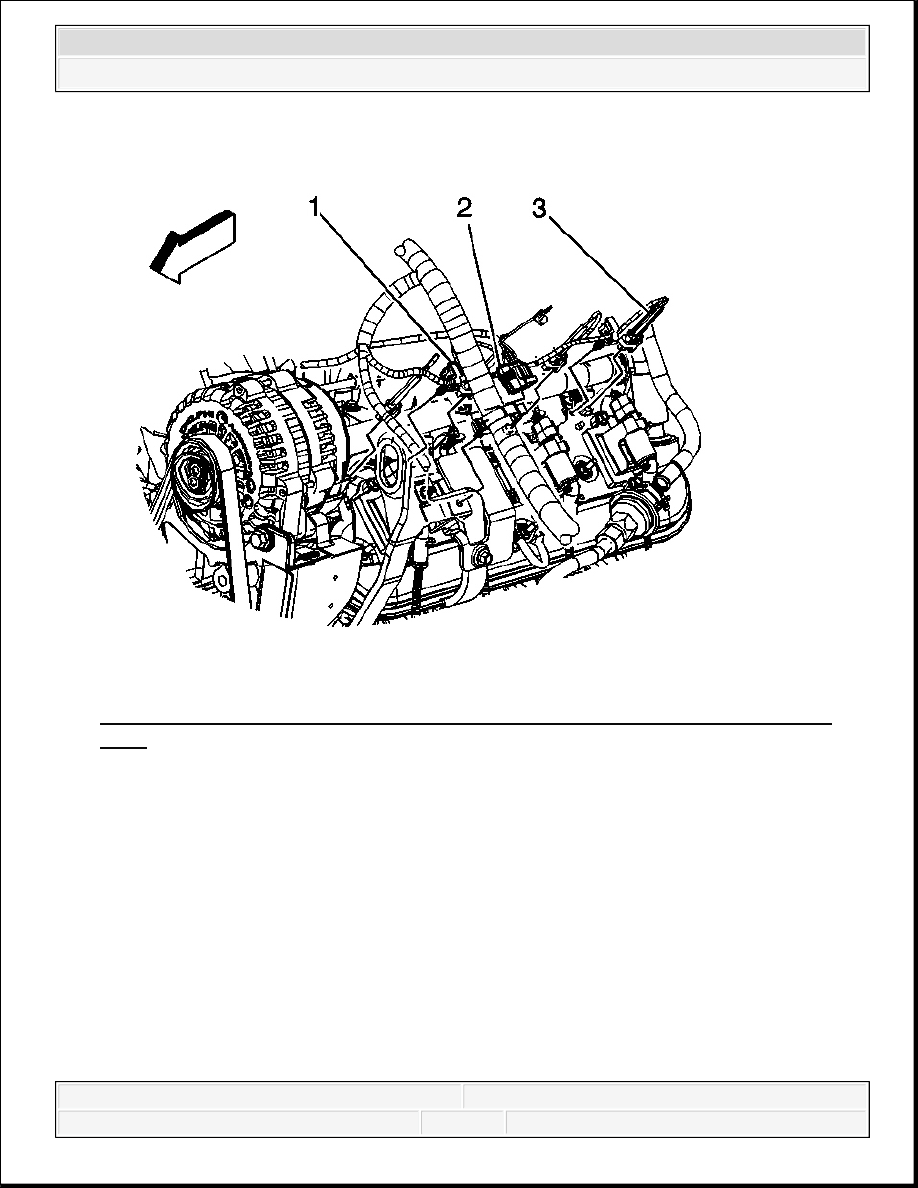

Fig. 283: View Of Main Coil Harness & Fuel Injector Electrical Connectors (Left
Side)
Courtesy of GENERAL MOTORS CORP.
50. Connect the main coil harness (2) and fuel injector (3) electrical connectors on the left side.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

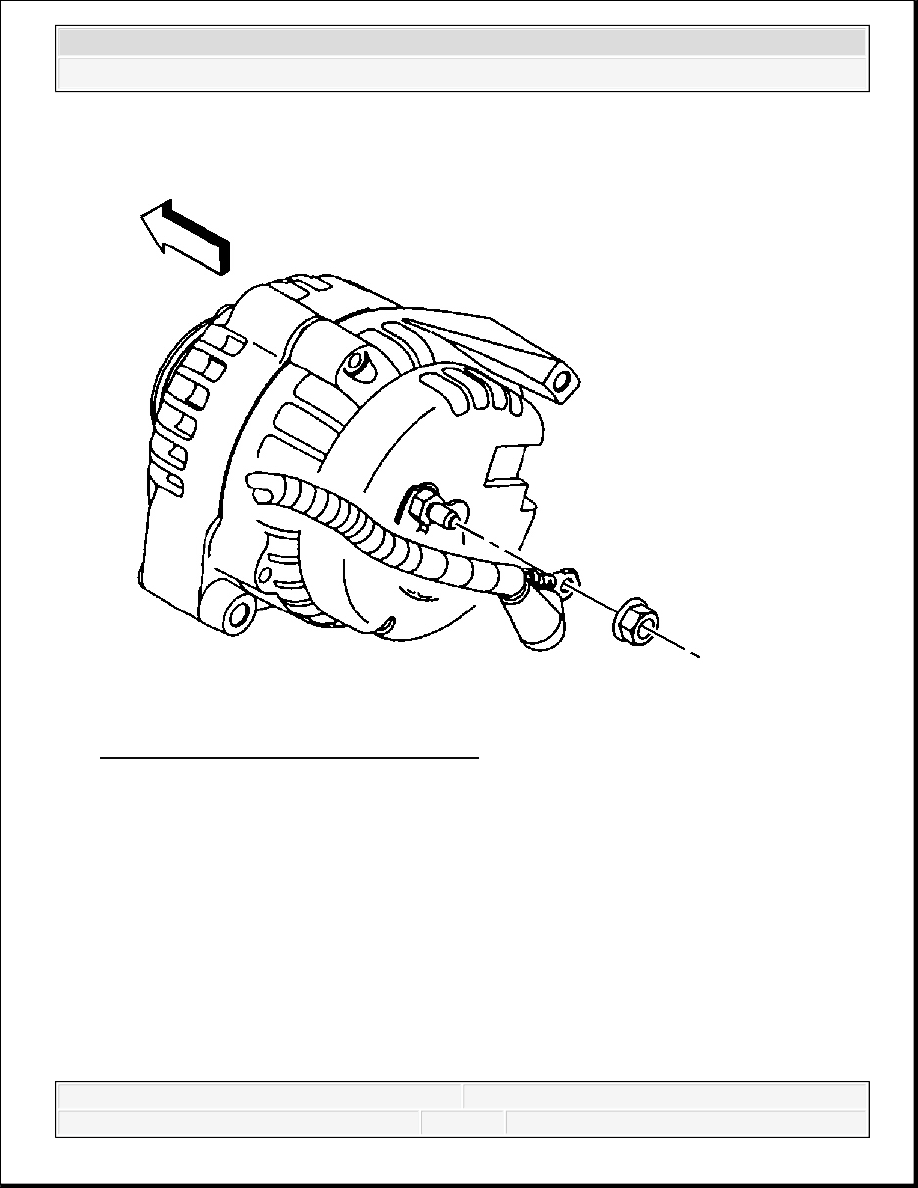

Fig. 284: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.
51. Install the generator cable to the generator, perform the following:
1. Install the generator cable.
2. Install the generator cable nut to the terminal stud.
Tighten: Tighten the generator output terminal nut to 9 N.m (80 lb in).
3. Slide the boot over the terminal stud.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

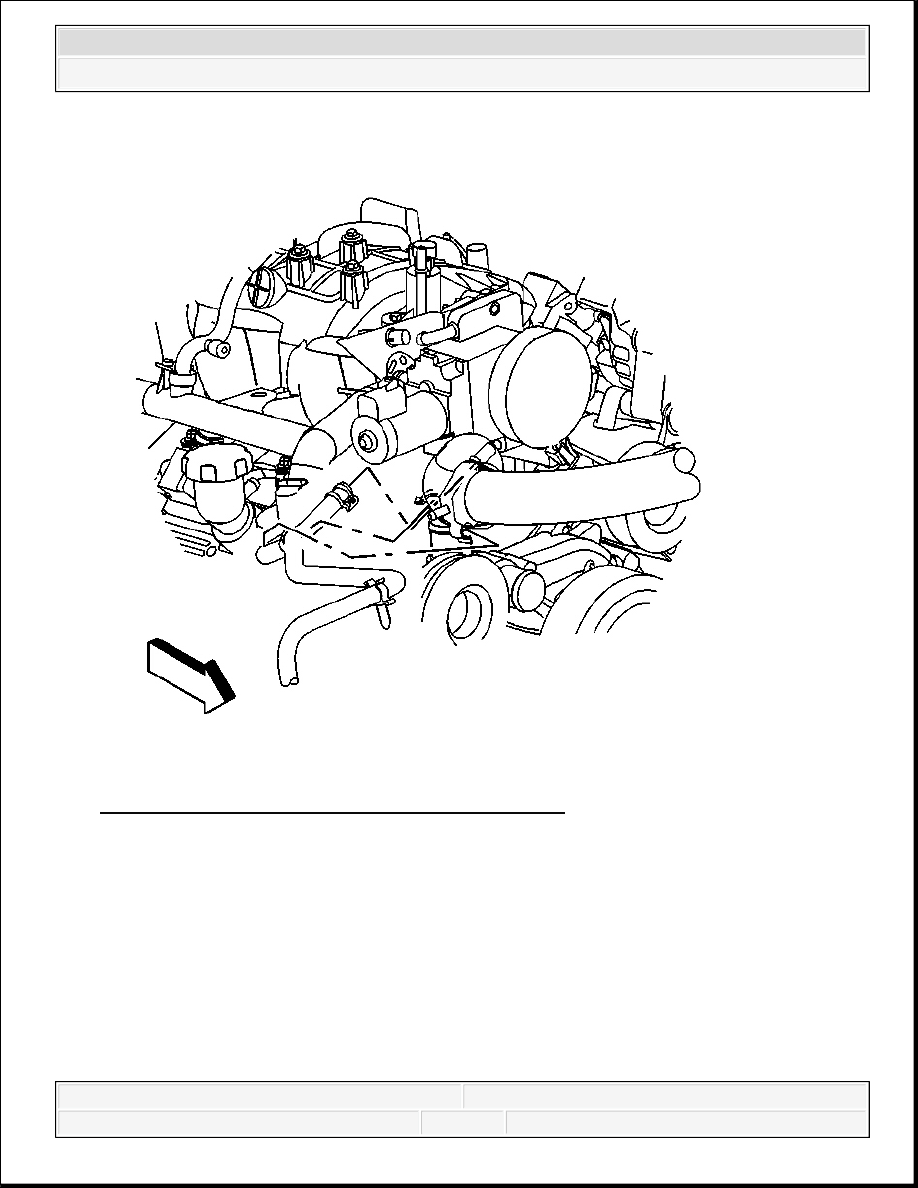

Fig. 285: View Of Vent Inlet Hose At Throttle Body
Courtesy of GENERAL MOTORS CORP.
52. Install the radiator vent inlet hose to the throttle body.
53. Position the vent inlet hose clamp at the throttle body.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

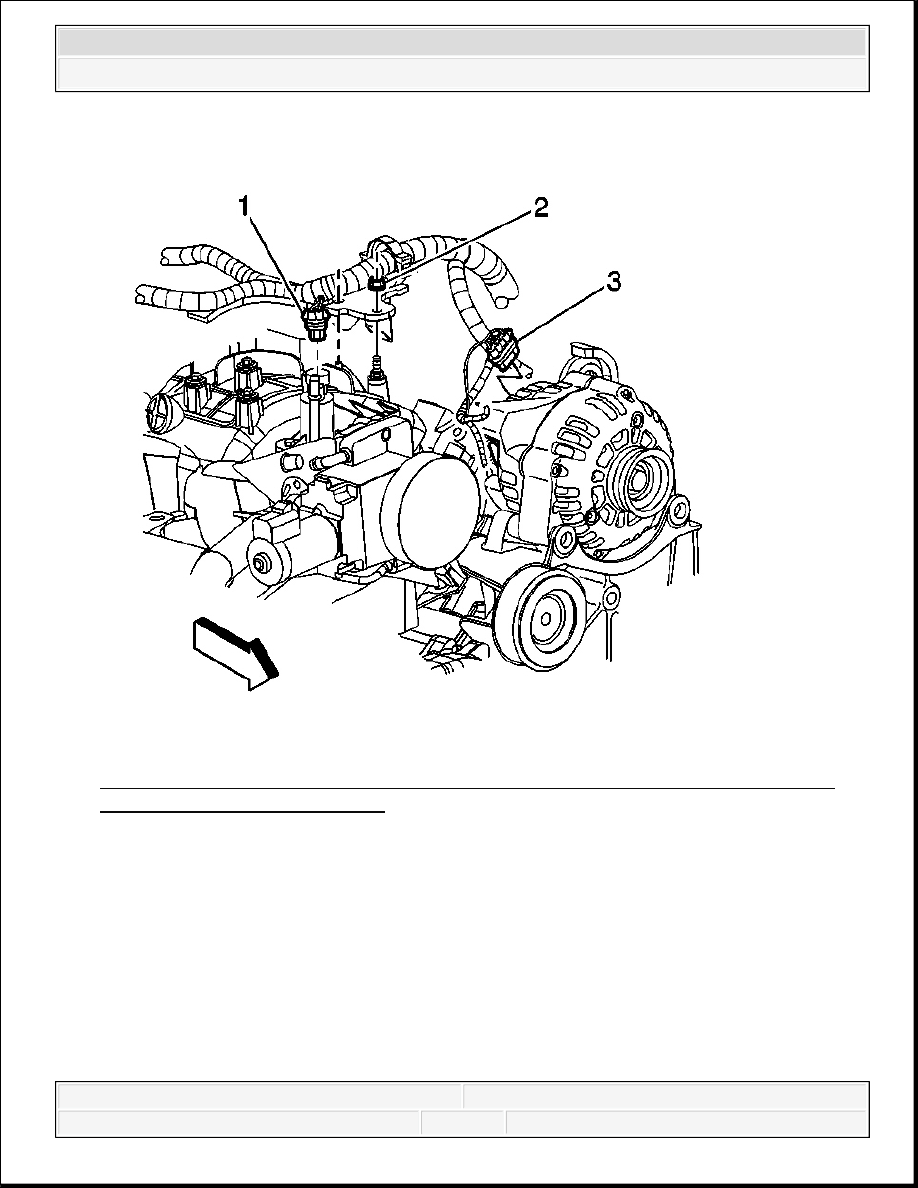

Fig. 286: Identifying Purge Solenoid Electrical Connector, Wiring Harness Nut &
Generator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
54. Install the engine wiring harness bracket and nut (2).
Tighten: Tighten the engine wiring harness bracket nut to 5 N.m (44 lb in).
55. Connect the following electrical connectors:
EVAP canister purge solenoid (1)
Generator (3)
56. Install the engine sight shield retainer and bolts.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
