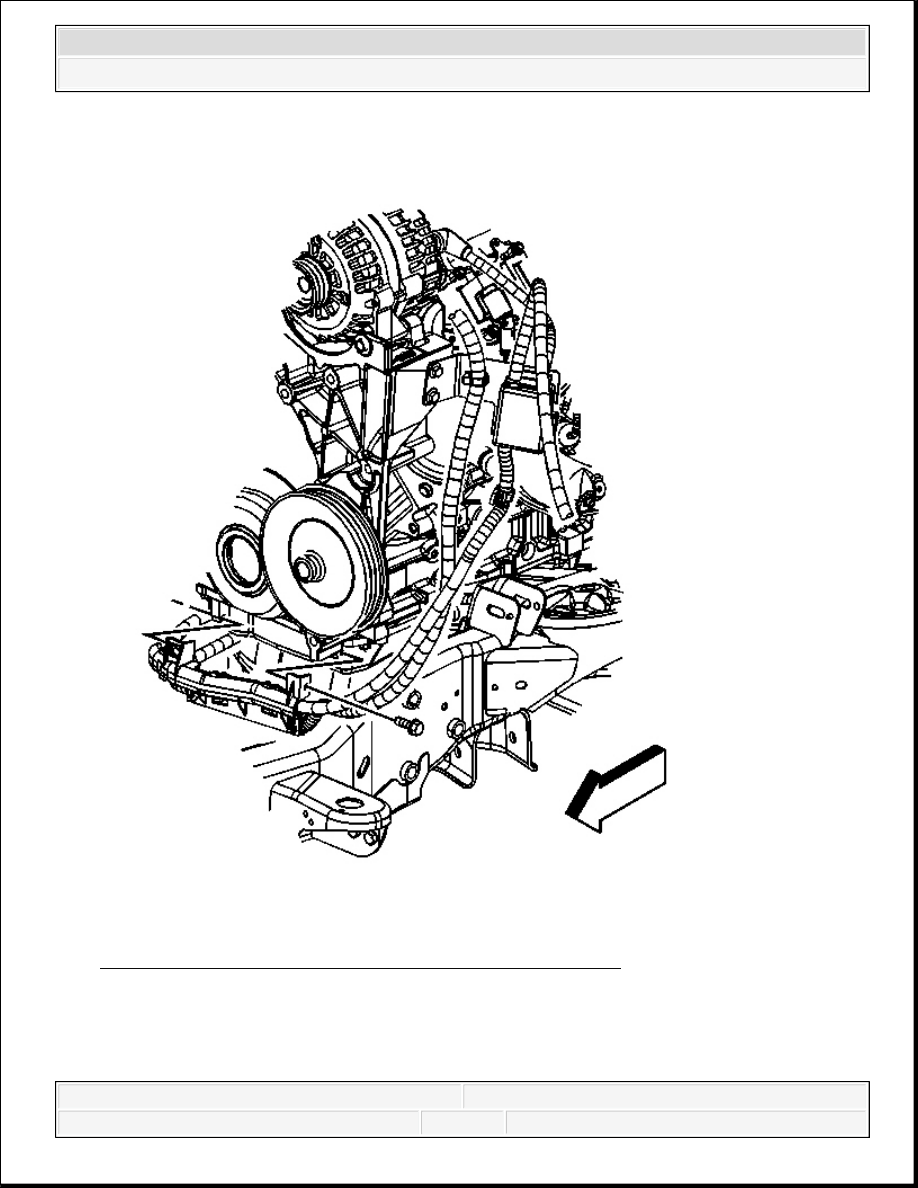

Fig. 275: View Of Positive Battery Cable, Channel & Bolt
Courtesy of GENERAL MOTORS CORP.
31. Slide the channel pin into the oil pan tab.
32. Install the battery cable channel bolt.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Tighten: Tighten the battery cable channel bolt to 12 N.m (106 lb in).

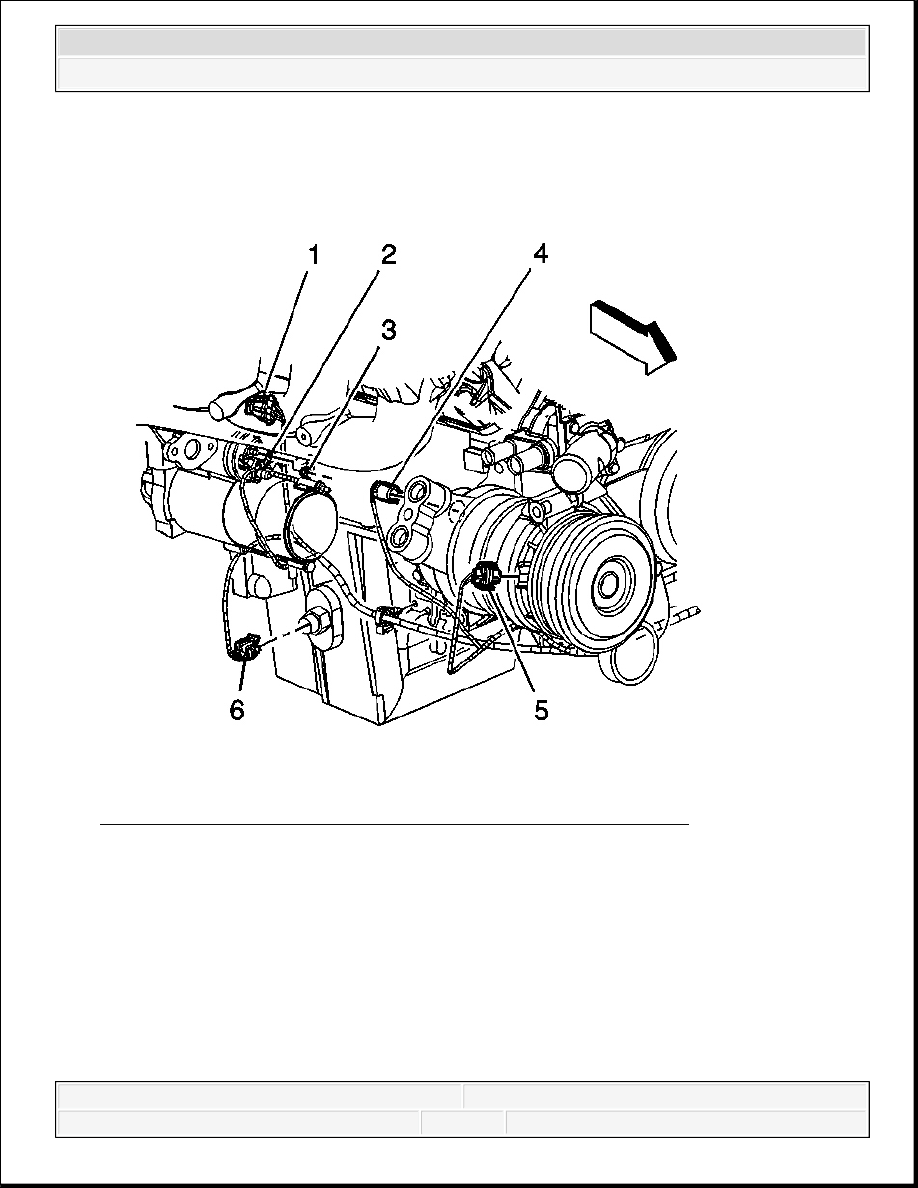

Fig. 276: Identifying Electrical Connector (Right Side Of Engine)
Courtesy of GENERAL MOTORS CORP.
33. Connect the following electrical connectors:
The CKP sensor (1)
The engine oil level sensor (6)
The coolant heater, if equipped
34. Lower the vehicle.
35. Connect the fuel pipes.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

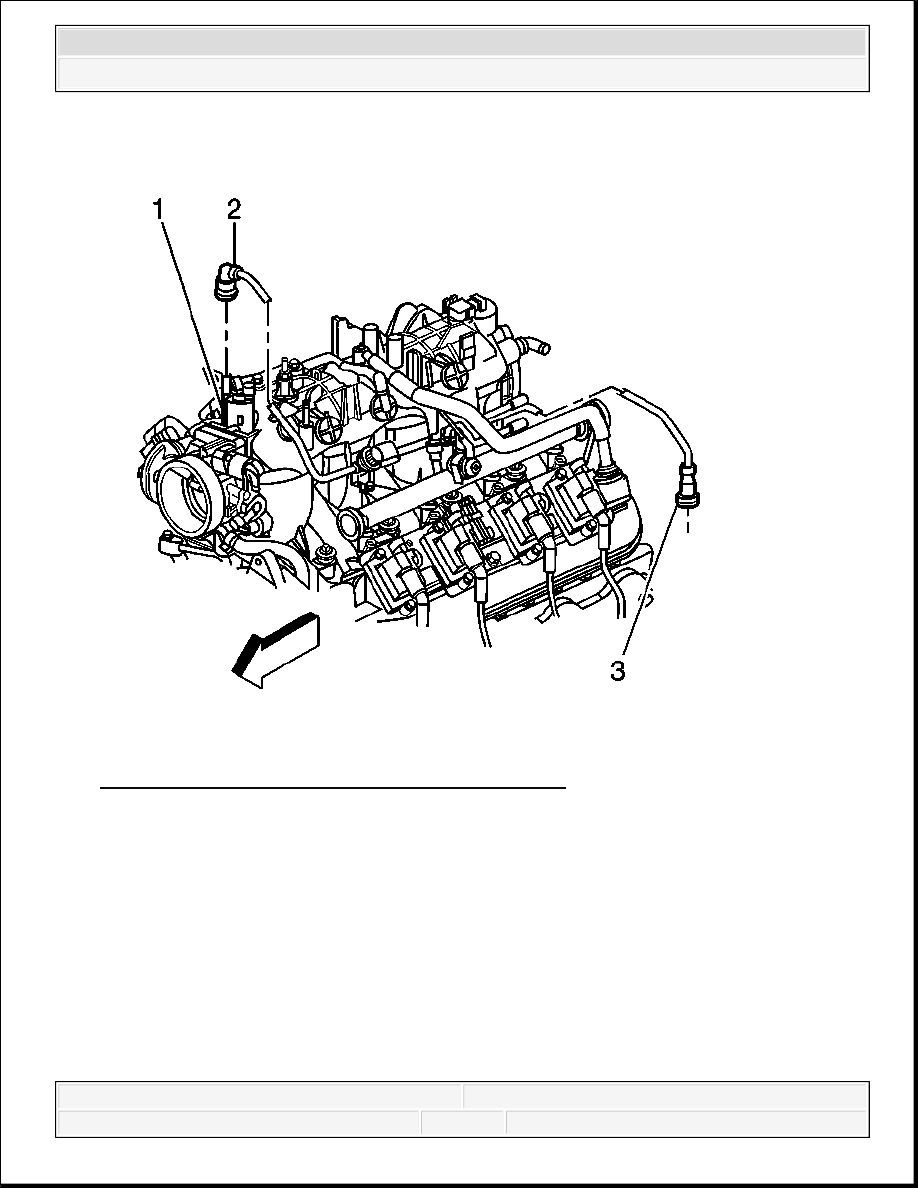

Fig. 277: View Of EVAP Purge Solenoid Vent Tube
Courtesy of GENERAL MOTORS CORP.
36. Install the EVAP purge solenoid vent tube to the solenoid (1).
37. Install the EVAP tube end (3) to the vapor pipe.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

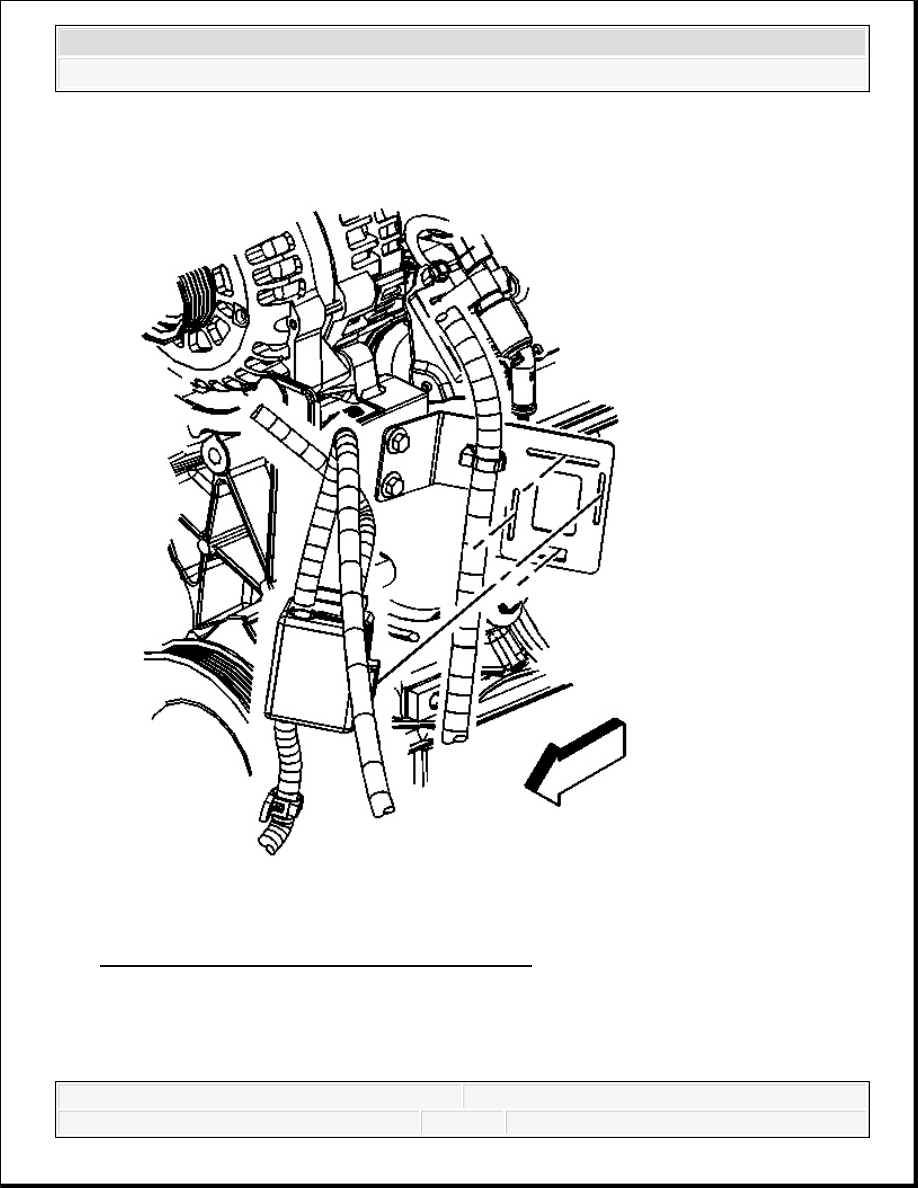

Fig. 278: View Of Battery Cable Junction Block
Courtesy of GENERAL MOTORS CORP.
38. Install the battery cable junction block to the junction block bracket.
39. Clip all of the engine wiring harness clips to their correct location.
