Tighten: Tighten the bolts to 63 N.m (47 lb ft).
20. Install exhaust pipes to the exhaust manifolds.

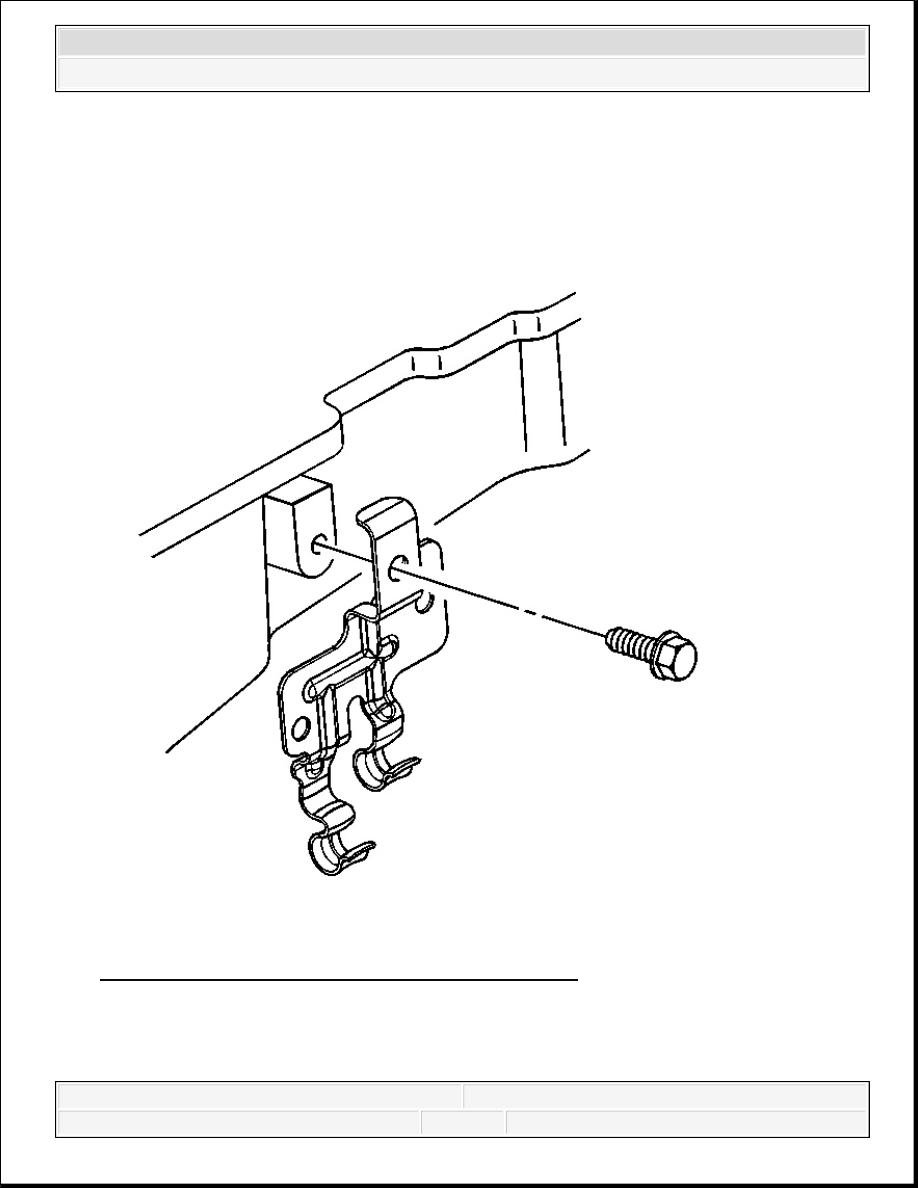

Fig. 273: View Of Positive Battery Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.
21. Install the positive battery cable clip and bolt.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Tighten: Tighten the positive battery cable clip bolt to 9 N.m (80 lb in).
22. Install the starter motor. Refer to Starter Motor Replacement .
23. Install the engine protection shield. Refer to Engine Protection Shield Replacement .
Tighten: Tighten the oil pan skid plate bolts to 20 N.m (15 lb ft).
24. Lower the vehicle.
25. Install the ground cable to the engine block.
Tighten: Tighten the ground cable bolt to 25 N.m (18 lb ft).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

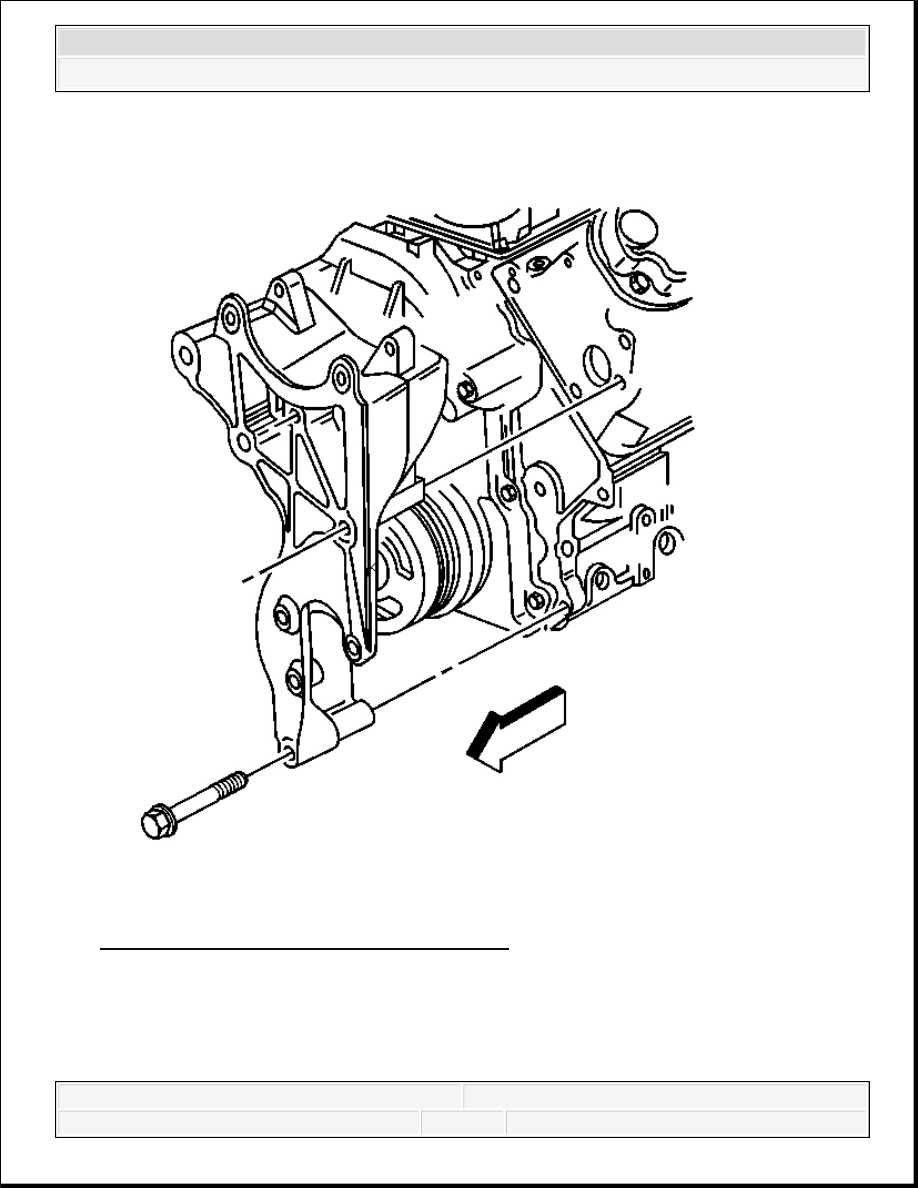

Fig. 274: View Of Generator Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
26. Position the generator bracket to the front of the engine.
27. Install the generator bracket bolts until snug.
28. Install the rear power steering pump-to-engine block bolt until snug.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Tighten:
Tighten the rear power steering pump bolt to 50 N.m (37 lb ft).
Tighten the generator bracket bolts to 50 N.m (37 lb ft).
29. Route the engine wiring harness to the lower engine area.
30. Raise the vehicle.
