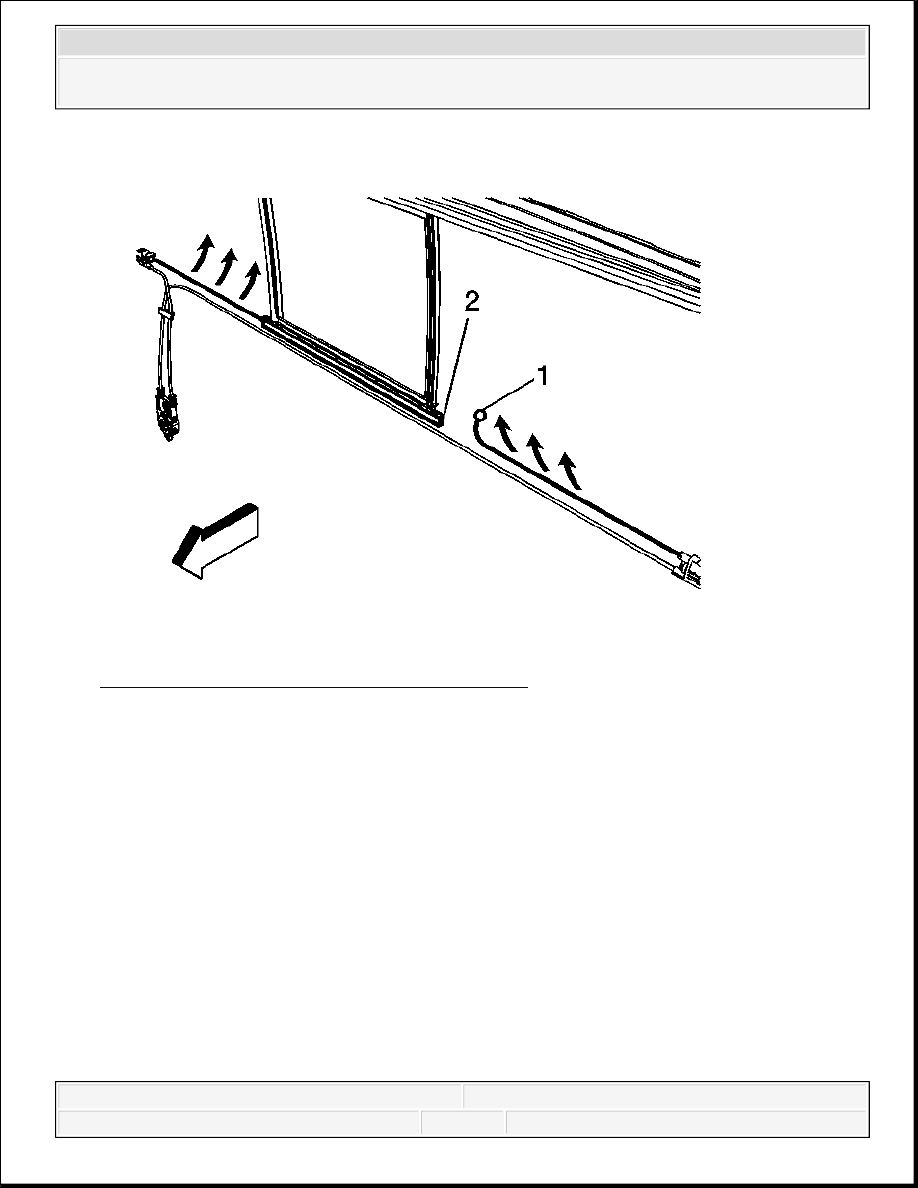

Fig. 38: View Of Cable Ends At Window Guide
Courtesy of GENERAL MOTORS CORP.
8. Install the cable ends (1) to the window guide (2) at each end of the window.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

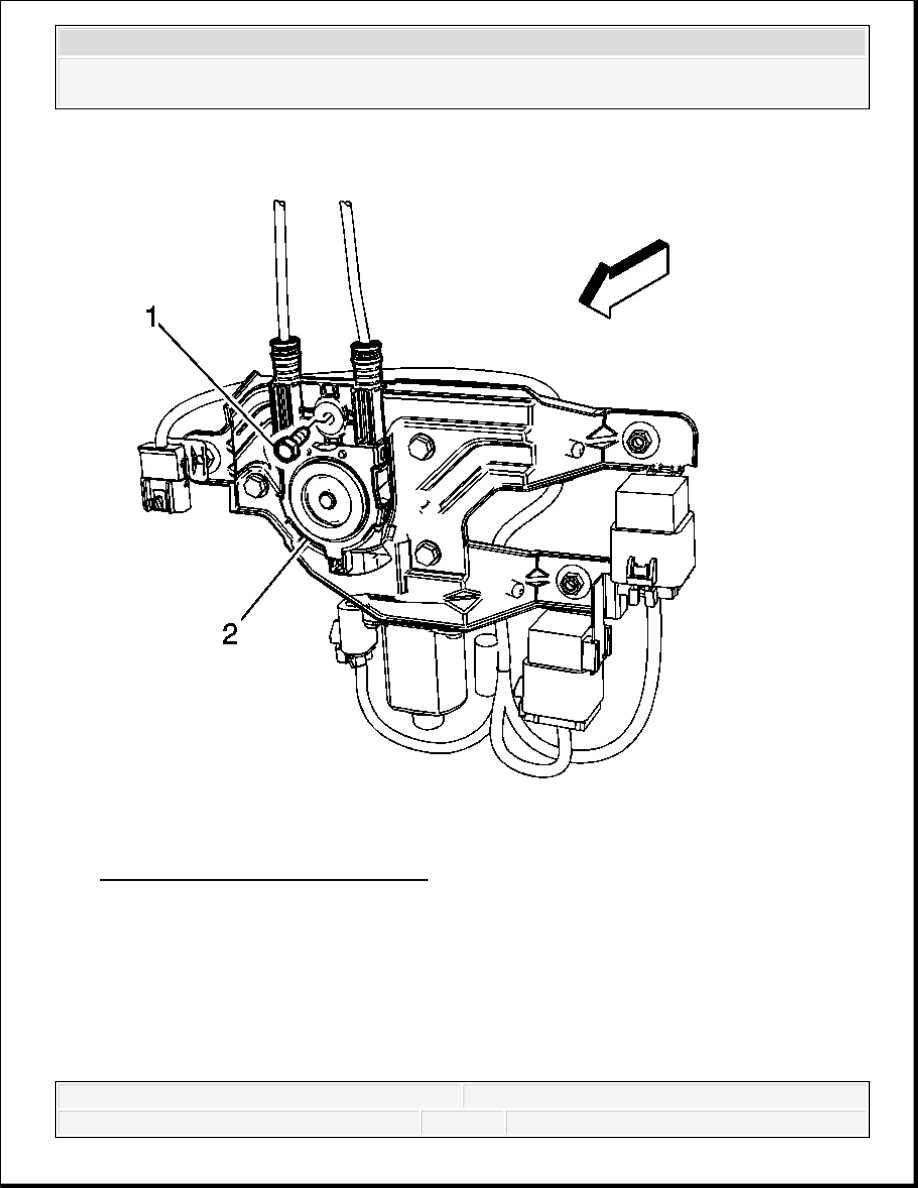

Fig. 39: View Of Regulator & Screw
Courtesy of GENERAL MOTORS CORP.
9. Install the regulator (2) to the motor/module.
10. Install the screw (1) to the motor/module.
IMPORTANT: When installing the regulator (2) align the gear to the motor
drivegear before installing the screw.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Tighten: Tighten nuts to 5 N.m (44 lb in).

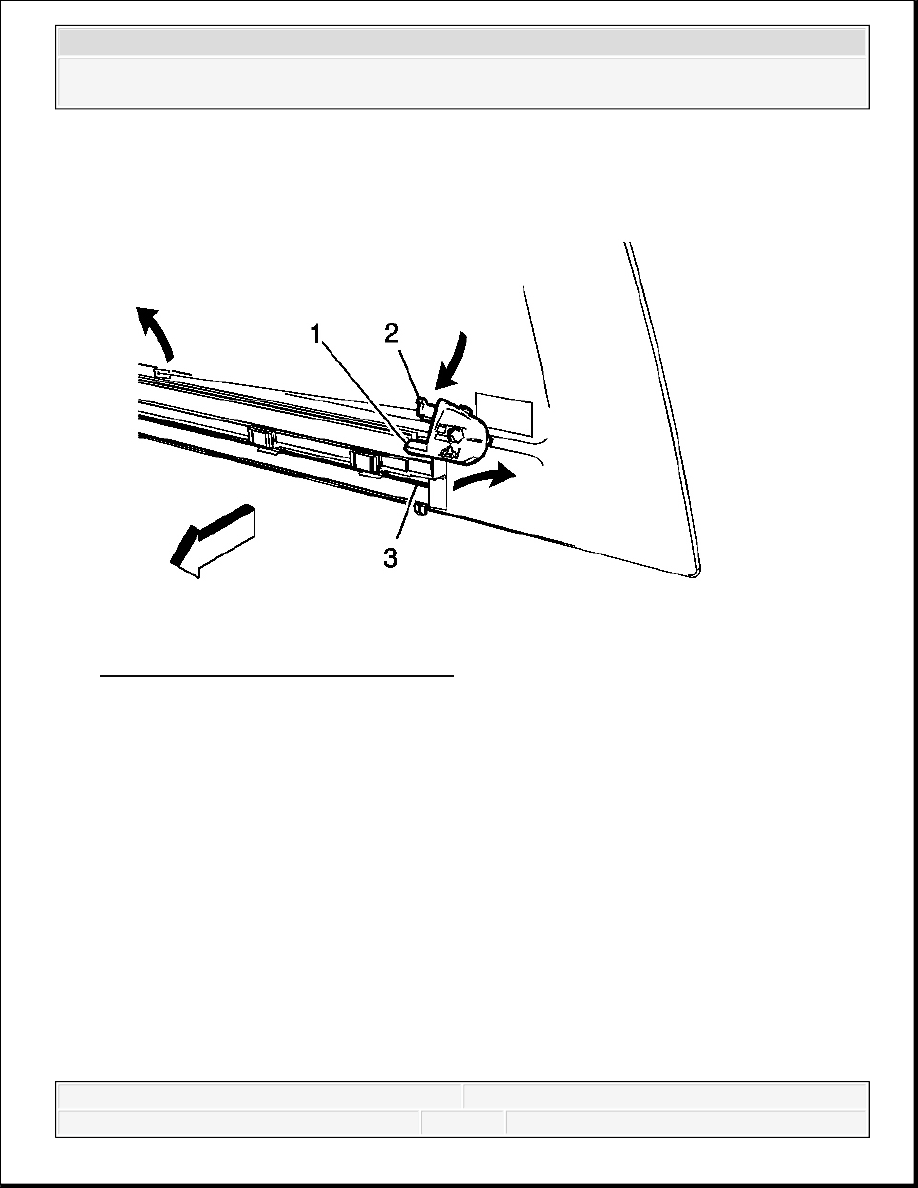

Fig. 40: View Of Pulley, Tabs & Frame
Courtesy of GENERAL MOTORS CORP.
11. Install the rear sliding window pulley (1).
1. Align the tabs (2) on the pulley (1) with the notch in the frame (3).
2. Turn the pulley downward, locking the pulley into the frame (3).
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

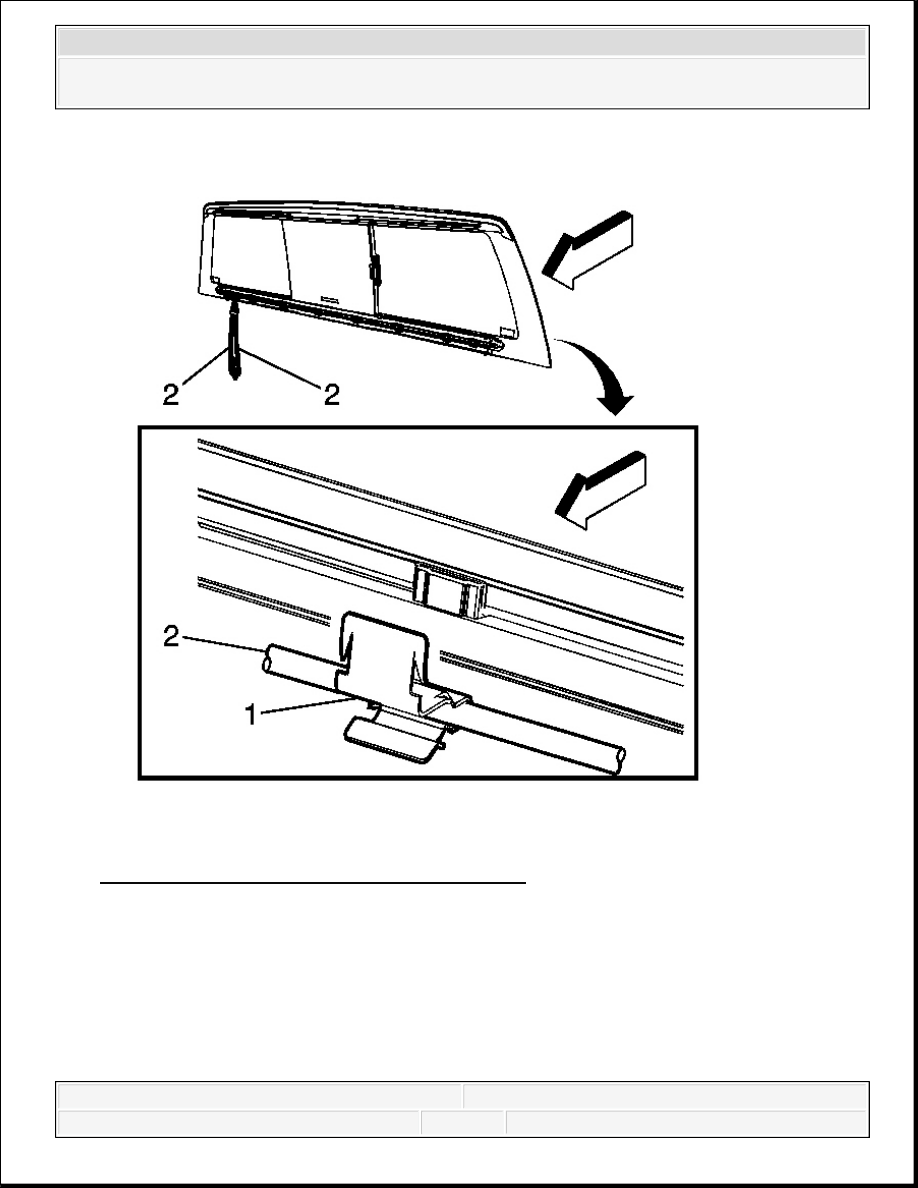

Fig. 41: View Of Regulator Cables & Retainers
Courtesy of GENERAL MOTORS CORP.
12. Install the regulator cables (2) to the retainers (1) across the bottom edge of the window
frame.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
