Fig. 16: Removing/Installing Screws From Window Side Reveal Moldings 3. Install the screws to the left and the right sides of the window side reveal moldings. Tighten: Tighten the screws to 2 N.m (18 lb in). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 17: View Of Front Door Sealing Weatherstrips & Side Reveal Molding Screws 4. Install the front door sealing weatherstrips (1) to the retainer (2). 5. Install the cowl air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . 6. Install the window wiper arms. Refer to Windshield Wiper Arm Replacement (LD) . 7. Install the antenna mast, if equipped. Refer to Radio Antenna Replacement . 8. Install the outside moisture sensor. Refer to Windshield Outside Moisture Sensor Replacement . 9. Install the inside rearview mirror. Refer to Inside Rearview Mirror Replacement . 10. Close the hood. 11. Remove the double layer of masking tape around the perimeter of the painted surfaces and
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
the interior trim. WINDSHIELD UPPER REVEAL MOLDING REPLACEMENT Removal Procedure Fig. 18: Identifying Upper Reveal Molding from Windshield IMPORTANT: The windshield upper reveal molding requires removal of the windshield for proper installation.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

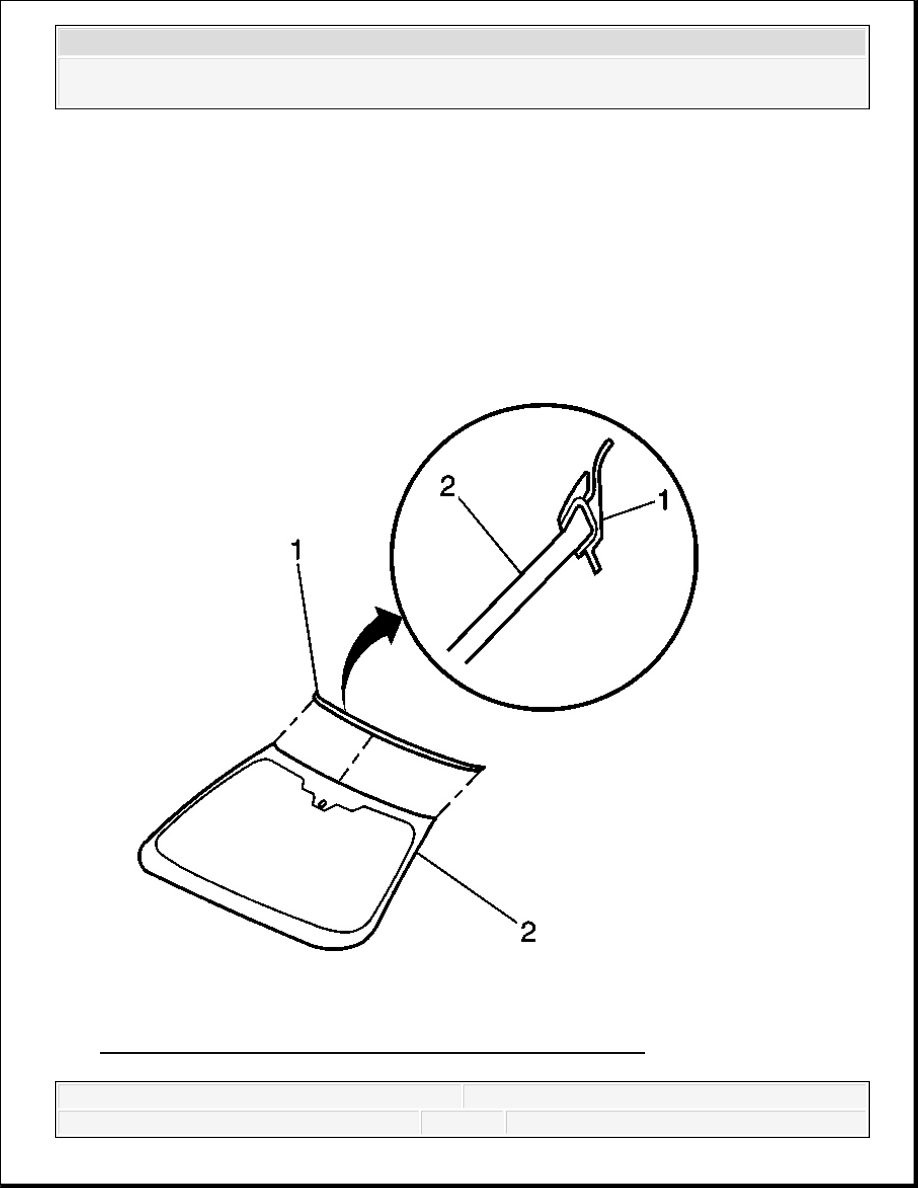

1. Remove the windshield. Refer to Windshield Replacement. 2. Remove the upper reveal molding (1) from the windshield (2) starting at the center and working outboard to both ends. Installation Procedure Fig. 19: Identifying Upper Reveal Molding from Windshield 1. Install the upper reveal molding (1) to the windshield (2).
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
