Chevrolet Silverado / GMC Sierra. Manual - part 2950

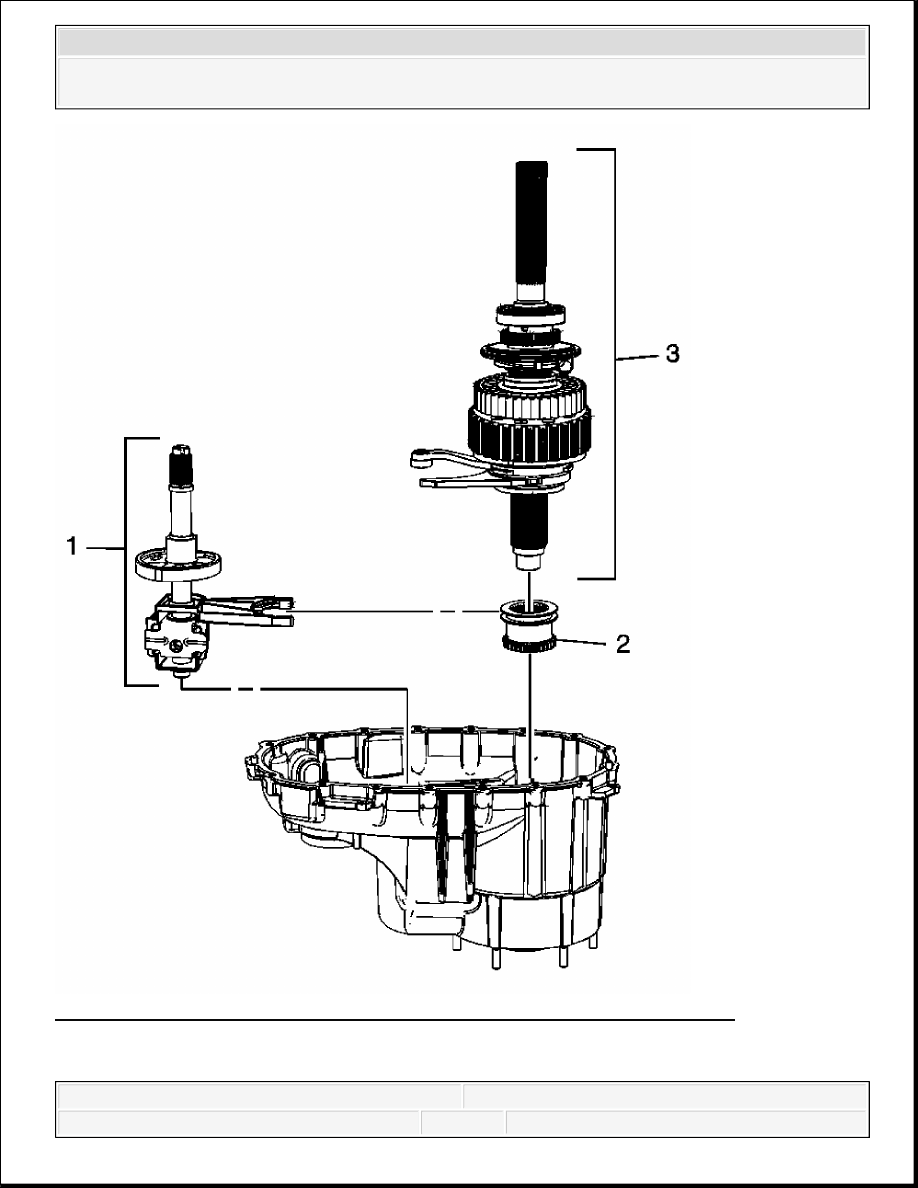

Fig. 52: Shift Fork Assembly, and Rear Output Shaft Assembly Installation
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Shift Fork Assembly, and Rear Output Shaft Assembly Installation
Front Output Shaft Assembly, Drive Chain, Actuator Shaft Gear, and Oil Pump Suction Pipe Installation

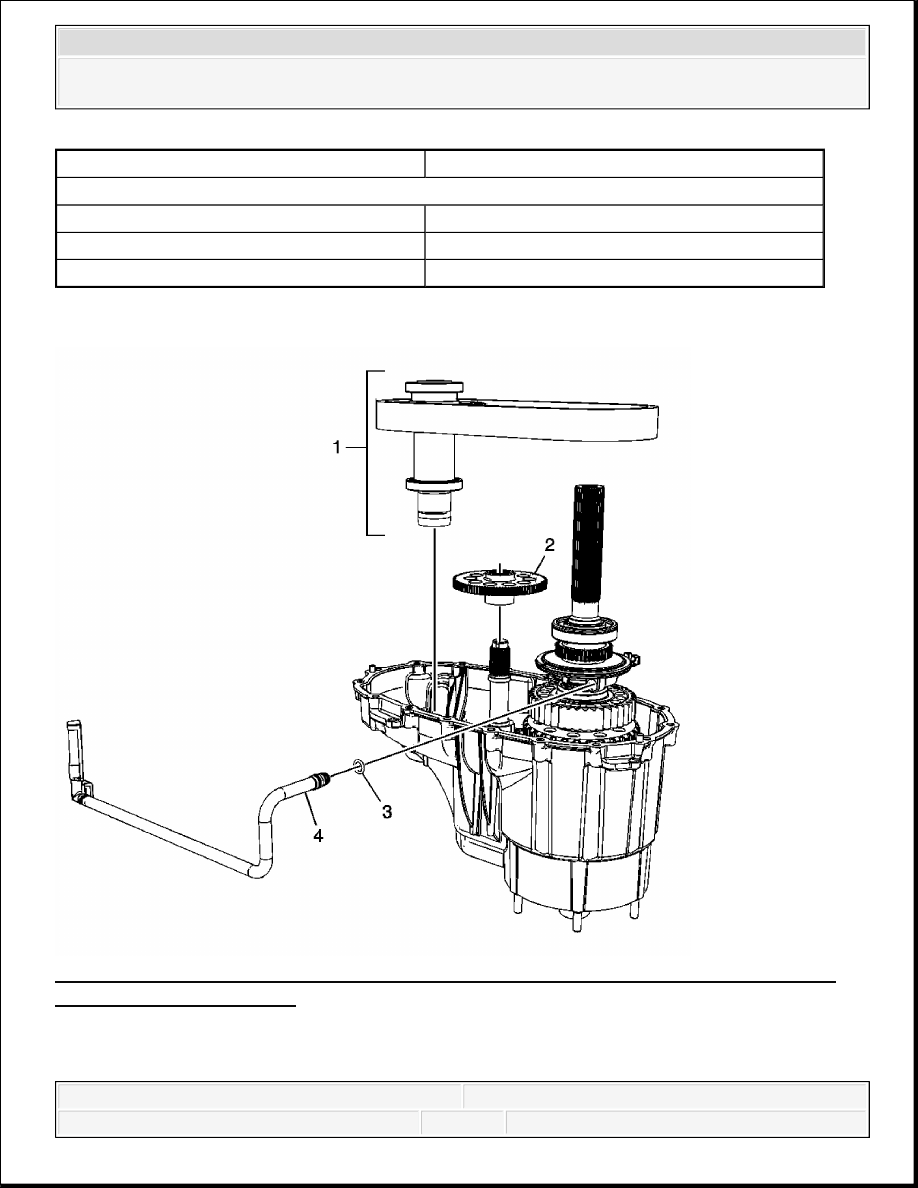

Fig. 53: View Of Front Output Shaft Assembly, Drive Chain, Actuator Shaft Gear, Oil
Pump Suction Pipe & Seal
Courtesy of GENERAL MOTORS CORP.
Front Output Shaft Assembly, Drive Chain, Actuator Shaft Gear, and Oil Pump Suction
Callout
Component Name
Tip: Load all 3 components simultaneously.
1
Transfer Case High/Low Shift Fork Assembly
2
Transfer Case High/Low Clutch
3
Transfer Case Rear Output Shaft Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Pipe Installation
Transfer Case Rear Case Half Installation
Callout
Component Name
1
Transfer Case Front Output Shaft Assembly, Transfer
Case Front Output Shaft Drive Chain Assembly
Tip:
Install the chain with darkened links up.
Install the front output shaft assembly into the
front case half while engaging the chain with the
drive sprocket.
2
Transfer Case Actuator Shaft Gear
3
Transfer Case Oil Pump Suction Pipe Seal
Tip:
Use a NEW seal.
Lubricate the seal to ease installation.
Install the seal to the pipe prior to inserting the
pipe into the pump.
4
Transfer Case Oil Pump Suction Pipe
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

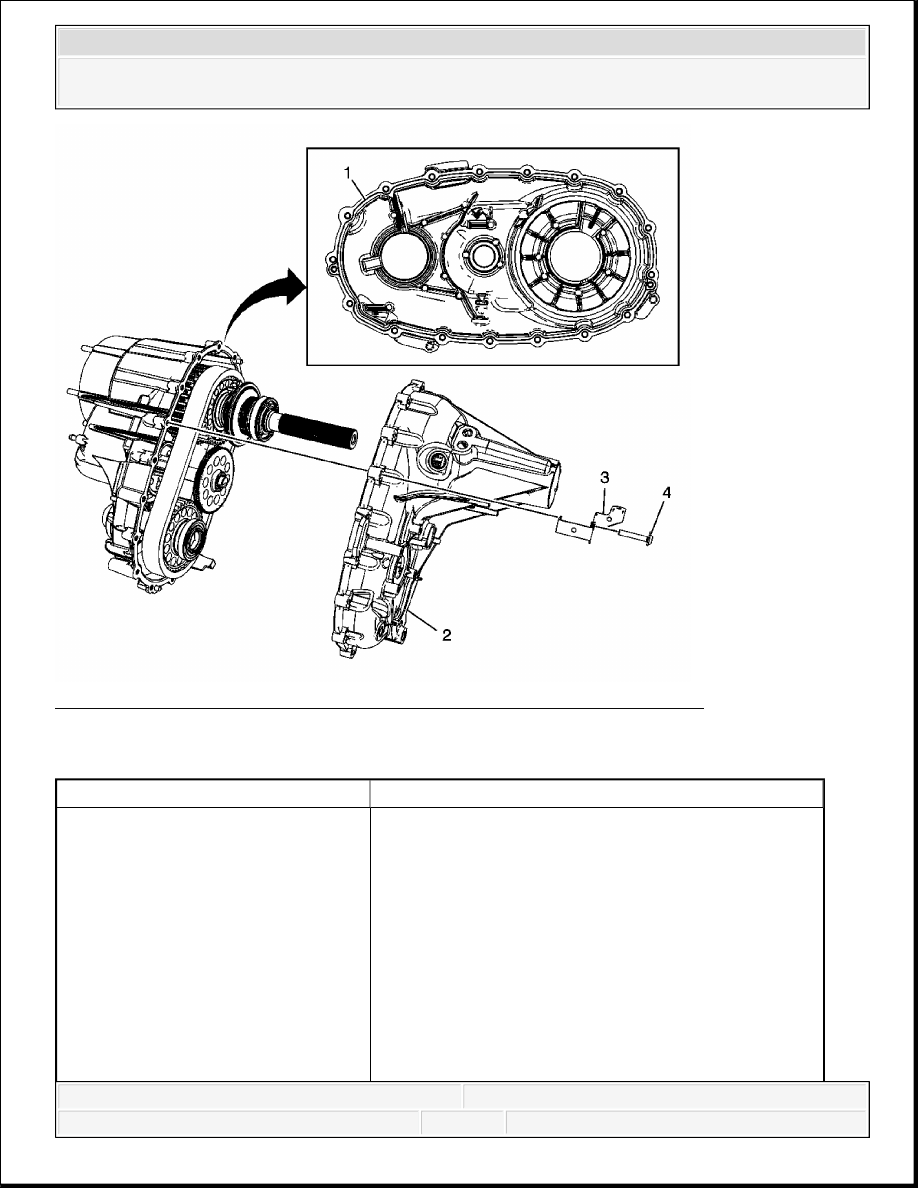

Fig. 54: View Of Transfer Case Rear Case Half, Bracket, Bolts & Sealer
Courtesy of GENERAL MOTORS CORP.
Transfer Case Rear Case Half Installation
Callout
Component Name
1
Sealer GM P/N 12345739 (Canadian P/N
10953541), or equivalent
Tip:
NOTE:
Apply the proper amount of sealant to the flange when
assembling the transfer case. Excessive amounts of
sealant can plug the oil pump screen, resulting in internal
component failure.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
