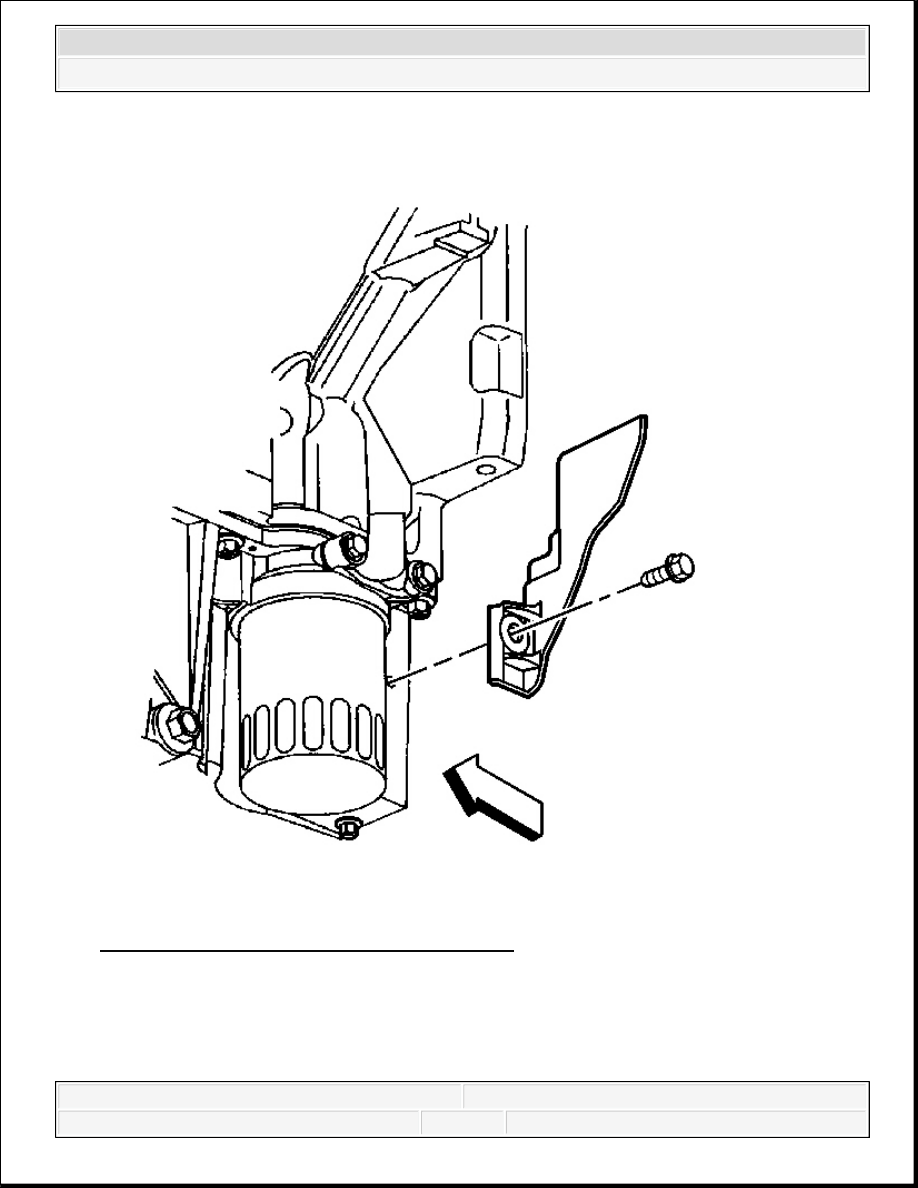

Fig. 198: View Of Left Closeout Cover & Bolt
Courtesy of GENERAL MOTORS CORP.
14. Install the transmission cover and bolt.
Tighten: Tighten the transmission cover bolt to 12 N.m (106 lb in).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

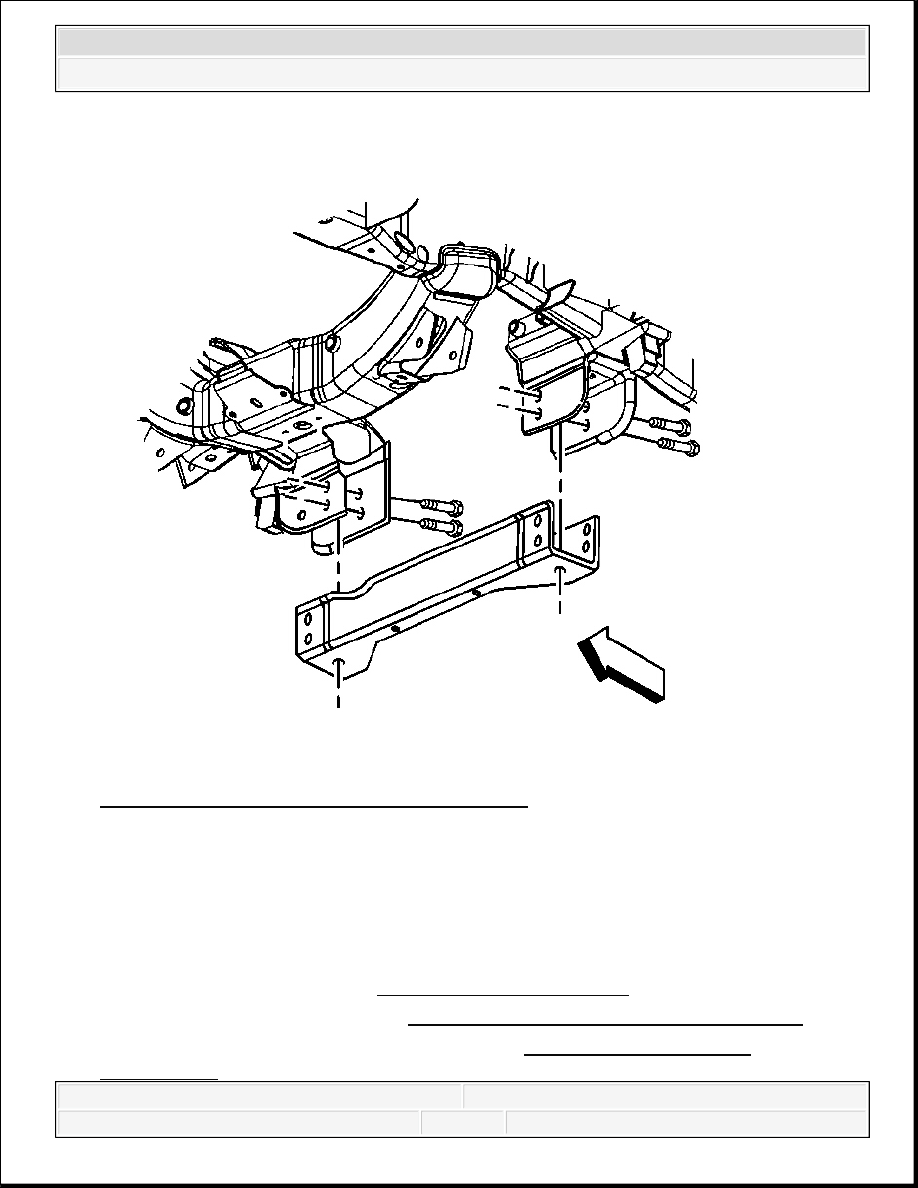

Fig. 199: View Of Crossbar Bolts & Bar (2WD)
Courtesy of GENERAL MOTORS CORP.
15. Install the crossbar.
16. Install the crossbar bolts.
Tighten: Tighten the crossbar bolts to 100 N.m (74 lb ft).
17. Install the starter motor. Refer to Starter Motor Replacement .
18. Install the front differential. Refer to Differential Carrier Assembly Replacement .
19. Install new engine oil and a new oil filter. Refer to Engine Oil and Oil Filter
Replacement.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
ENGINE OIL PRESSURE SENSOR AND/OR SWITCH REPLACEMENT
Special Tools
J 41712 Oil Pressure Sensor Socket. See Special Tools.
Removal Procedure

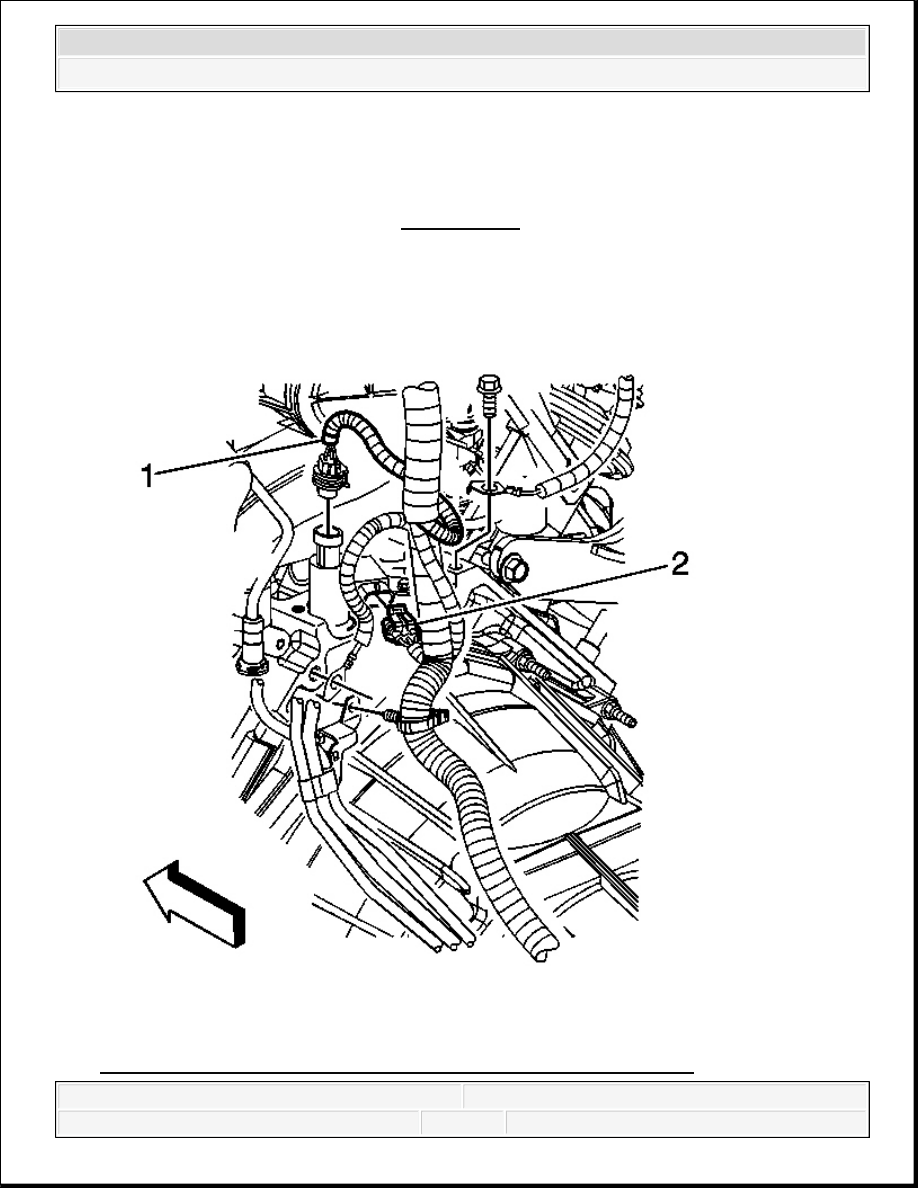

Fig. 200: View Of Oil Pressure Sensor & CMP Sensor Connectors
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Courtesy of GENERAL MOTORS CORP.
1. If necessary, remove the engine sight shield. Refer to Upper Intake Manifold Sight
Shield Replacement (6.0L (LQ4)).
2. Disconnect the oil pressure sensor electrical connector (1).

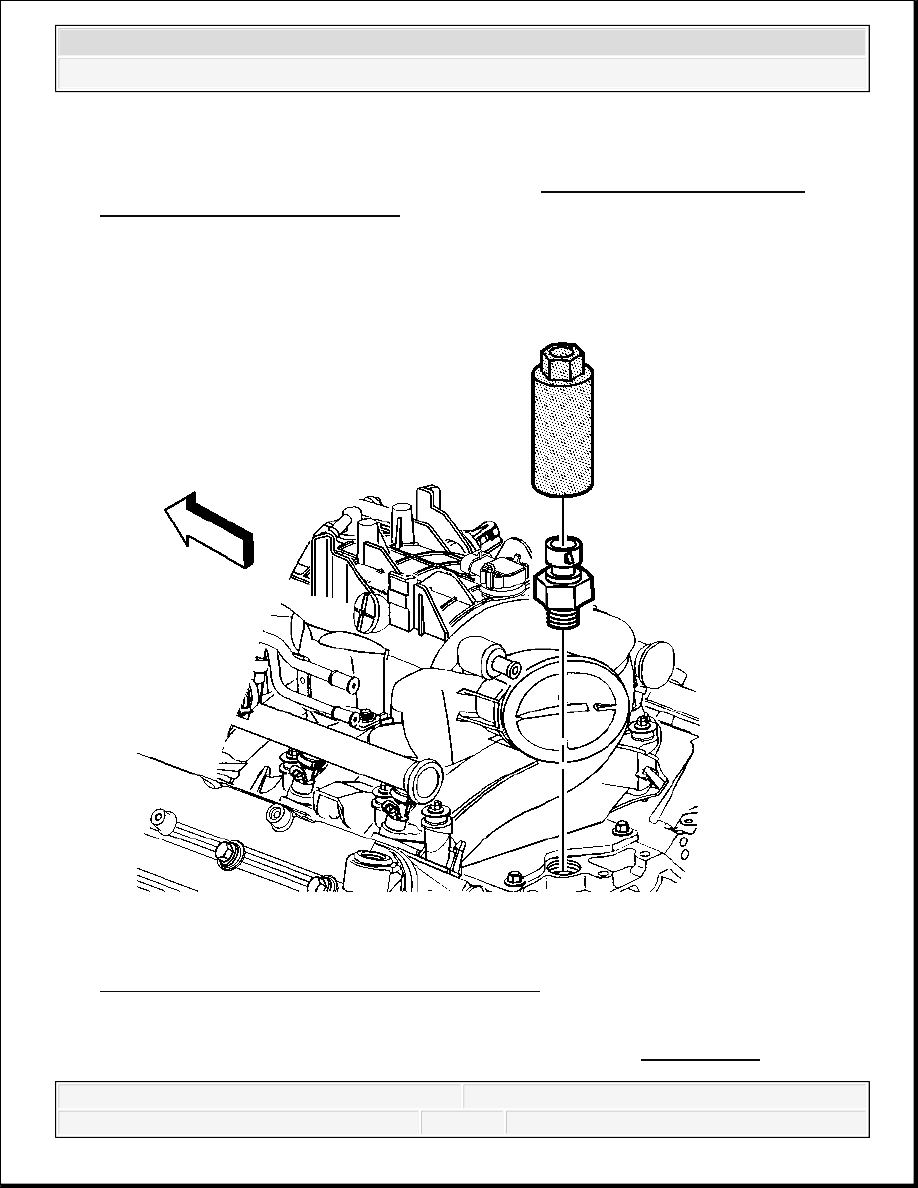

Fig. 201: View Of Oil Pressure Sensor & J 41712
Courtesy of GENERAL MOTORS CORP.
3. Using J 41712 or equivalent, remove the oil pressure sensor. See Special Tools.
