Chevrolet Silverado / GMC Sierra. Manual - part 291

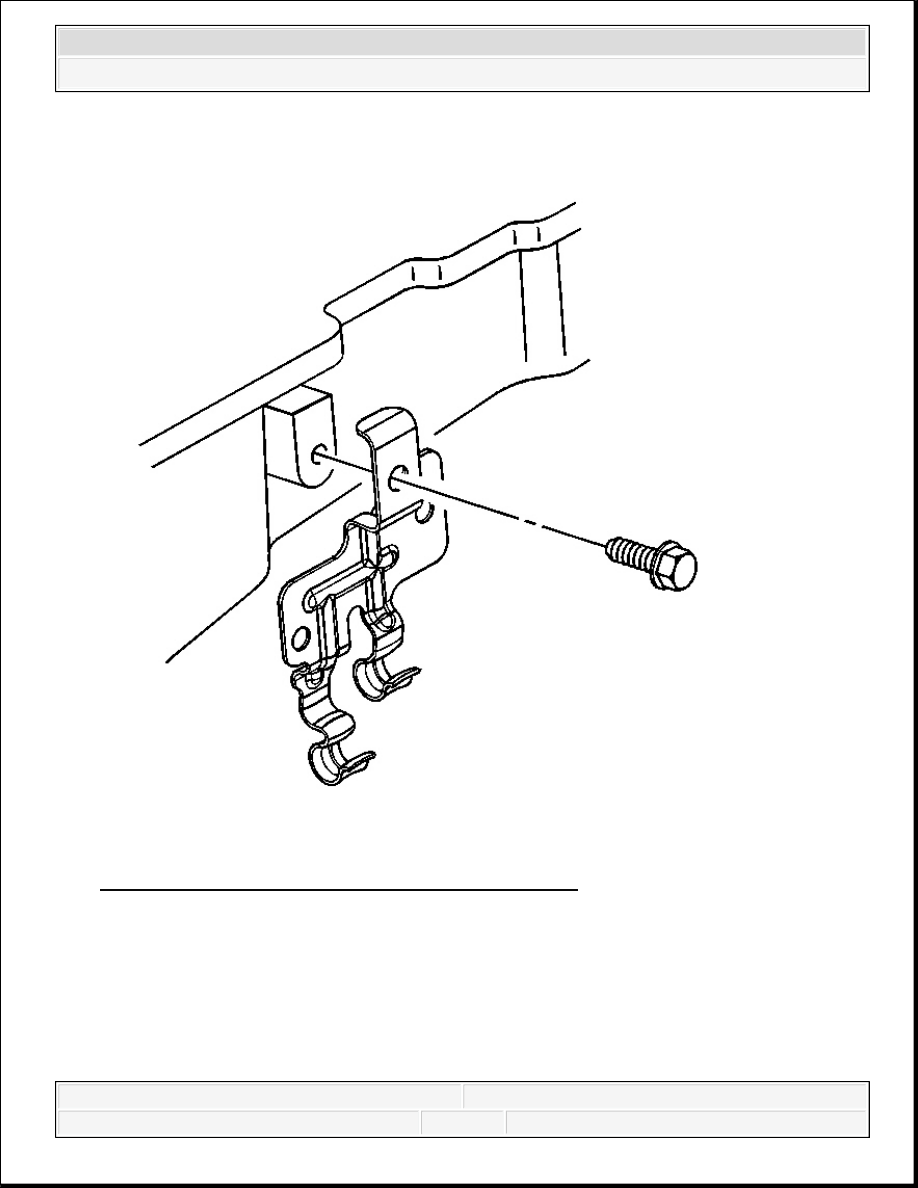

Fig. 194: View Of Positive Battery Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.
8. Install the positive battery cable clip and bolt to the oil pan.
Tighten: Tighten the positive battery cable clip bolt to 9 N.m (80 lb in).
9. Install the engine oil cooler lines to the positive battery cable clip.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

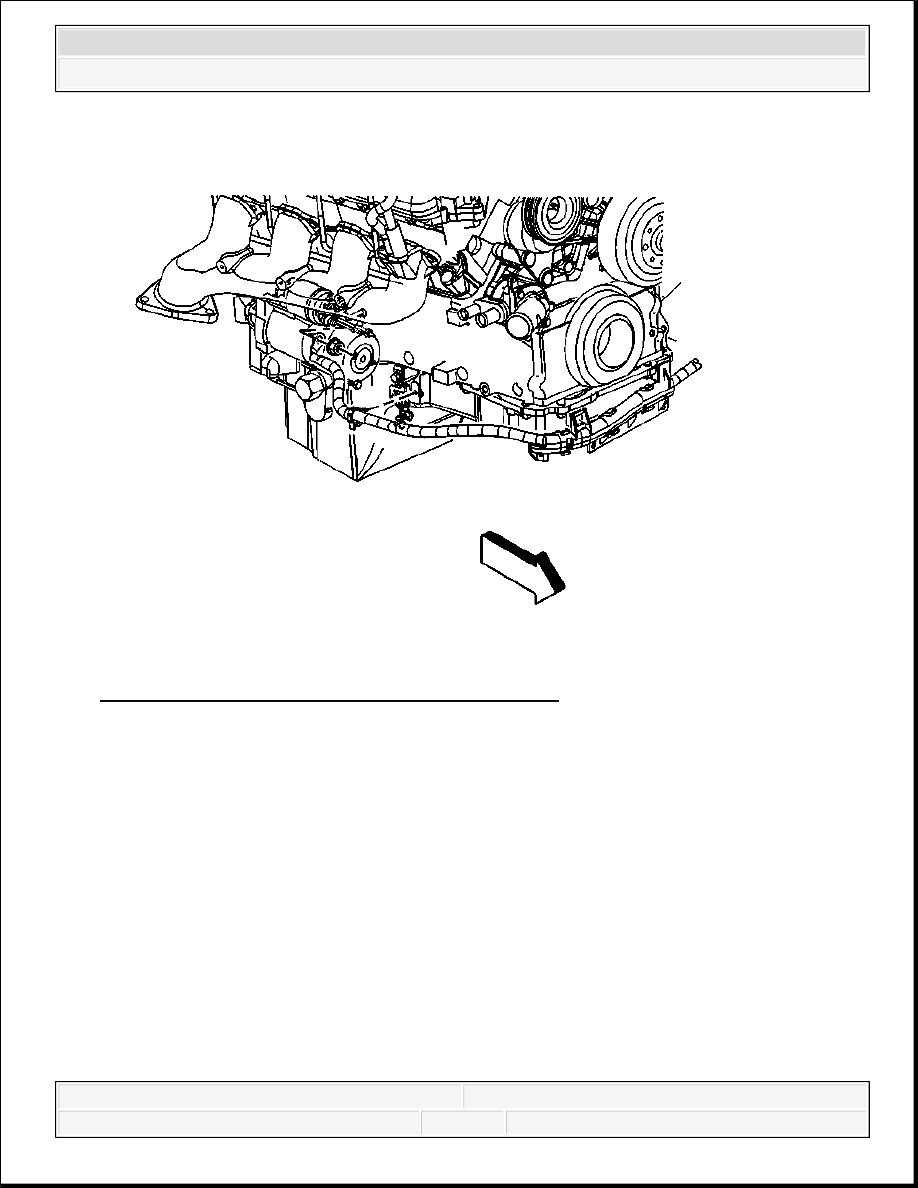

Fig. 195: View Of Positive Battery Cable Fasteners
Courtesy of GENERAL MOTORS CORP.
10. Install the following to the positive battery cable clip:
Engine wiring harness clip
Positive battery cable clip
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

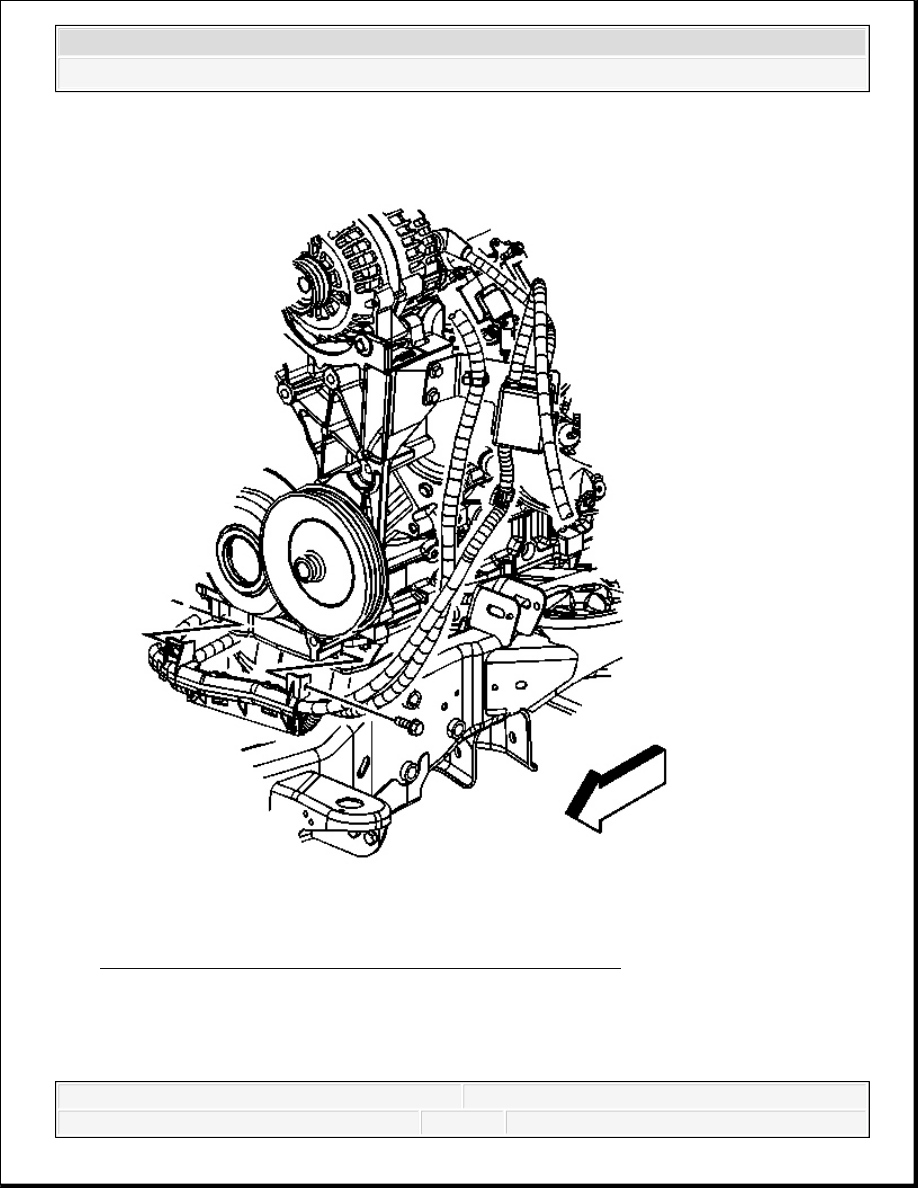

Fig. 196: View Of Positive Battery Cable, Channel & Bolt
Courtesy of GENERAL MOTORS CORP.
11. Slide the channel pin in to the oil pan tab.
12. Install the battery cable channel bolt.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
Tighten: Tighten the battery cable channel bolt to 12 N.m (106 lb in).

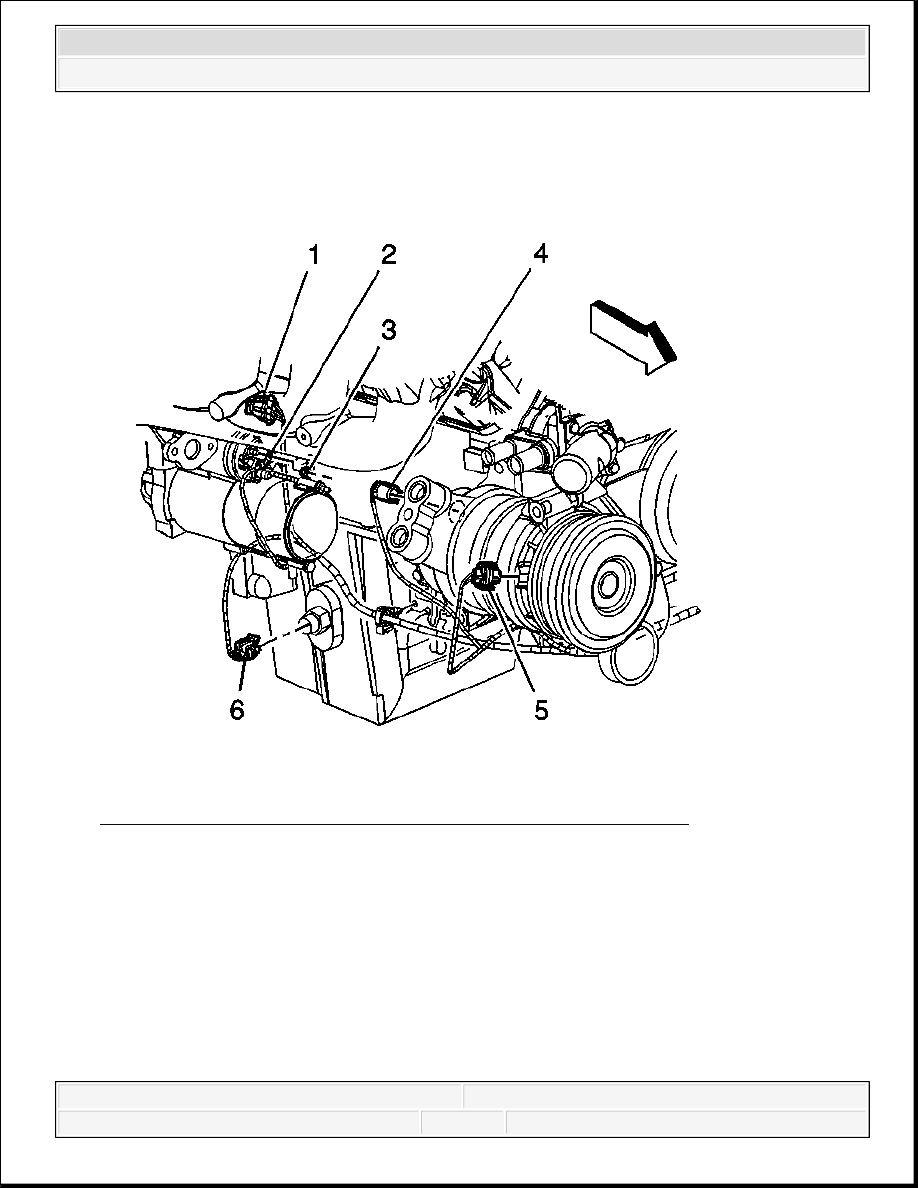

Fig. 197: Identifying Electrical Connector (Right Side Of Engine)
Courtesy of GENERAL MOTORS CORP.
13. Connect the oil level sensor electrical connector (6).
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
