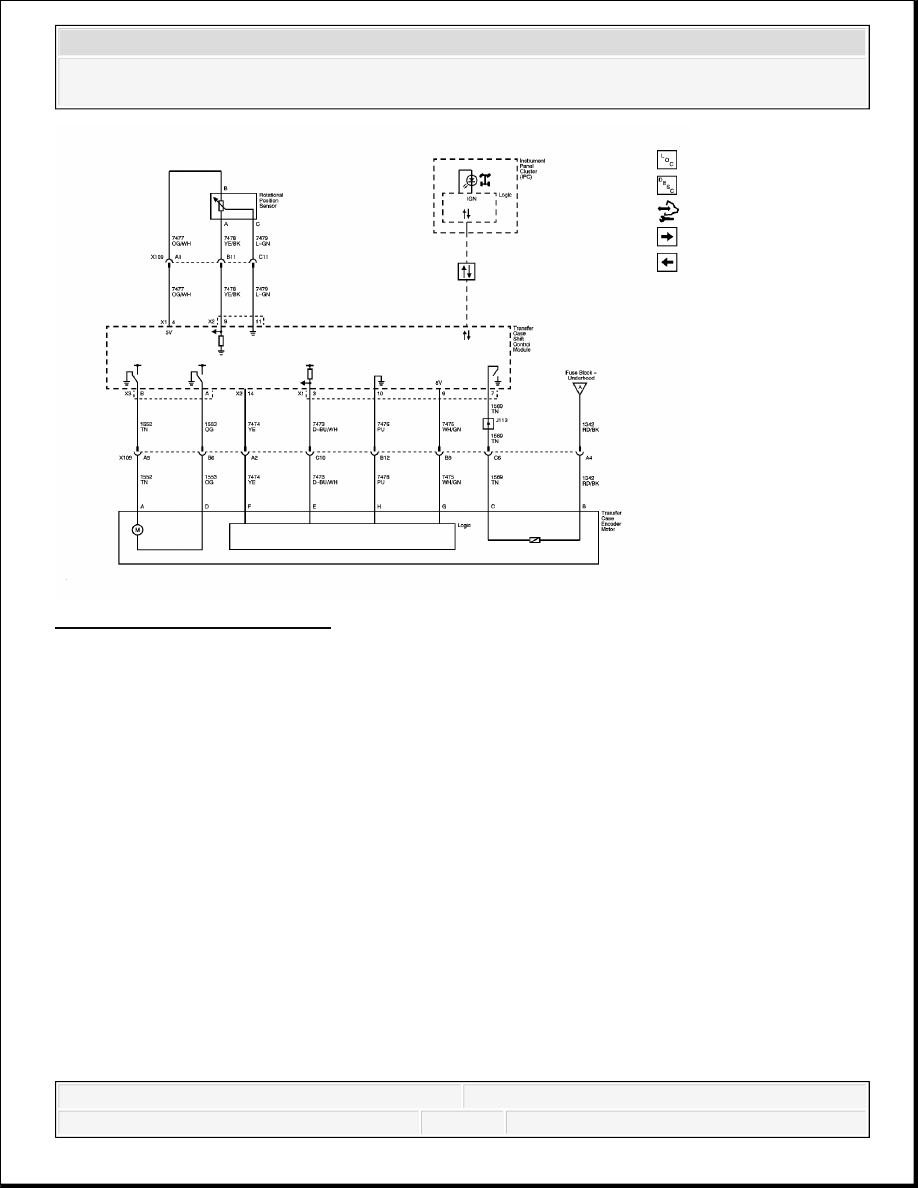

Fig. 2: Transfer Case Controls
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

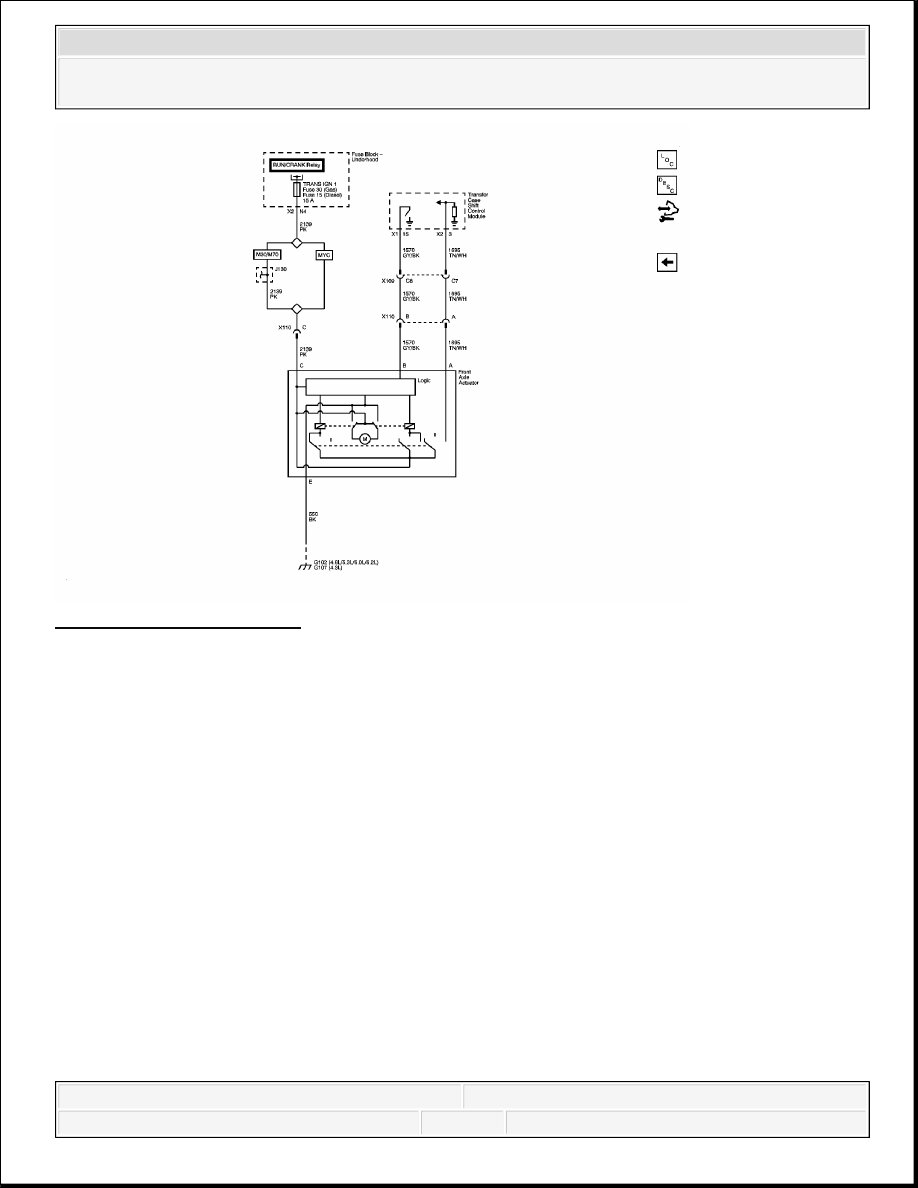

Fig. 3: Front Axle Controls
Courtesy of GENERAL MOTORS CORP.
COMPONENT LOCATOR
TRANSFER CASE DISASSEMBLED VIEW
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

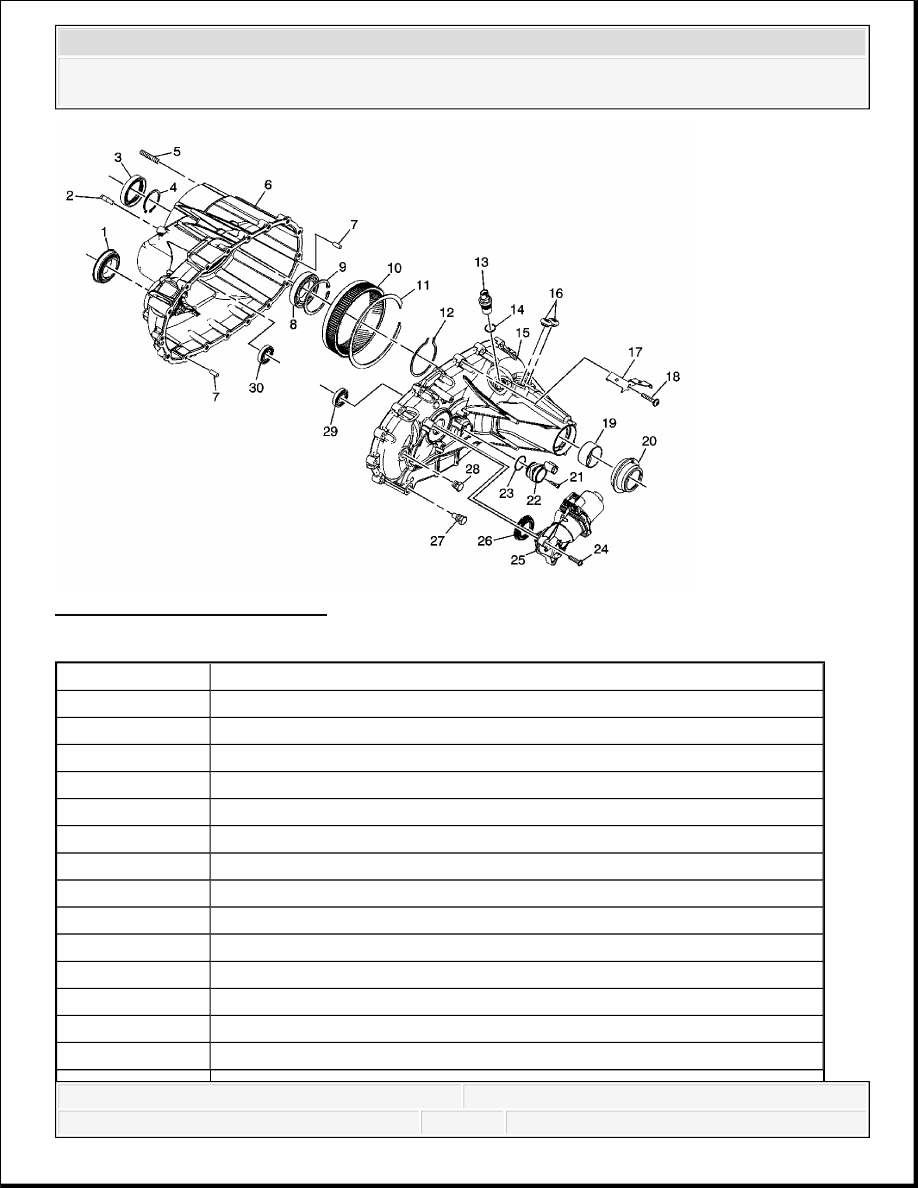

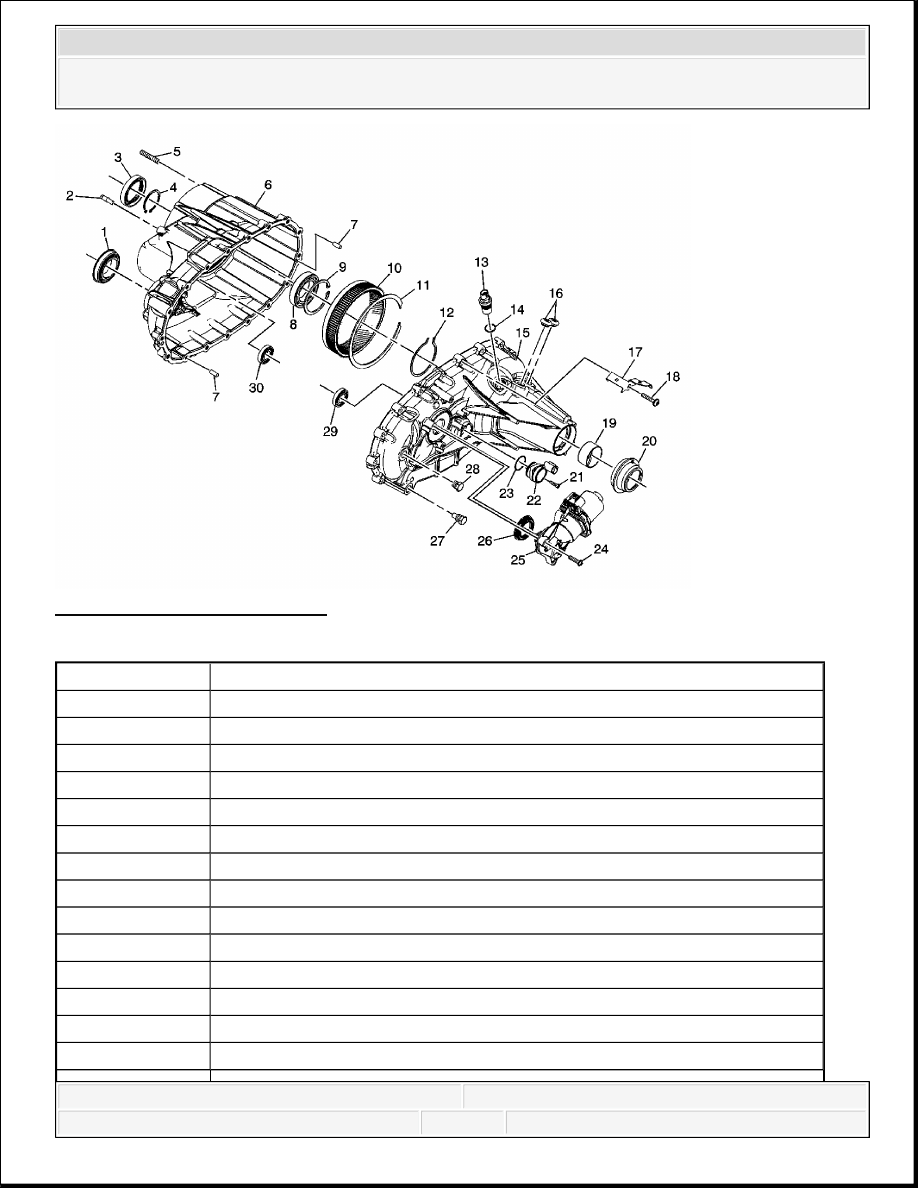

Fig. 4: Case Half Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transfer Case Front Output Shaft Seal
2
Transfer Case Vent
3
Transfer Case Input Shaft Seal
4
Transfer Case Input Shaft Bearing Outer Retaining Ring
5
Transfer Case Stud
6
Transfer Case Front Half
7
Transfer Case Half Locating Pin
7
Transfer Case Half Locating Pin
8
Transfer Case Input Shaft Bearing Assembly
9
Transfer Case Input Shaft Inner Retaining Ring
10
Transfer Case High/Low Internal Gear
11
Transfer Case High/Low Internal Gear Retaining Ring
12
Transfer Case Rear Output Shaft Rear Bearing Outer Retaining Ring
13
Vehicle Speed Sensor Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
14
Vehicle Speed Sensor - O-Ring - Seal
15
Transfer Case Rear Half
16
Transfer Case Access Hole Plug
17
Transfer Case - Harness - Bracket
18
Transfer Case Half Bolt/Screw
19
Transfer Case Rear Output Shaft Bushing
20
Transfer Case Rear Output Shaft Seal
21
Transfer Case Actuator Shaft Position Sensor Bolt/Screw
22
Transfer Case Actuator Shaft Position Sensor Assembly
23
Transfer Case Actuator Shaft Position Sensor - O-Ring - Seal
24
Transfer Case Two/Four Wheel Drive Actuator Bolt/Screw
25
Transfer Case Two/Four Wheel Drive Actuator Assembly
26
Transfer Case Two/Four Wheel Drive Actuator Seal
27
Transfer Case Oil Drain Plug
28
Transfer Case Oil Fill Plug
29
Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly
30
Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Assembly
