Chevrolet Silverado / GMC Sierra. Manual - part 2906

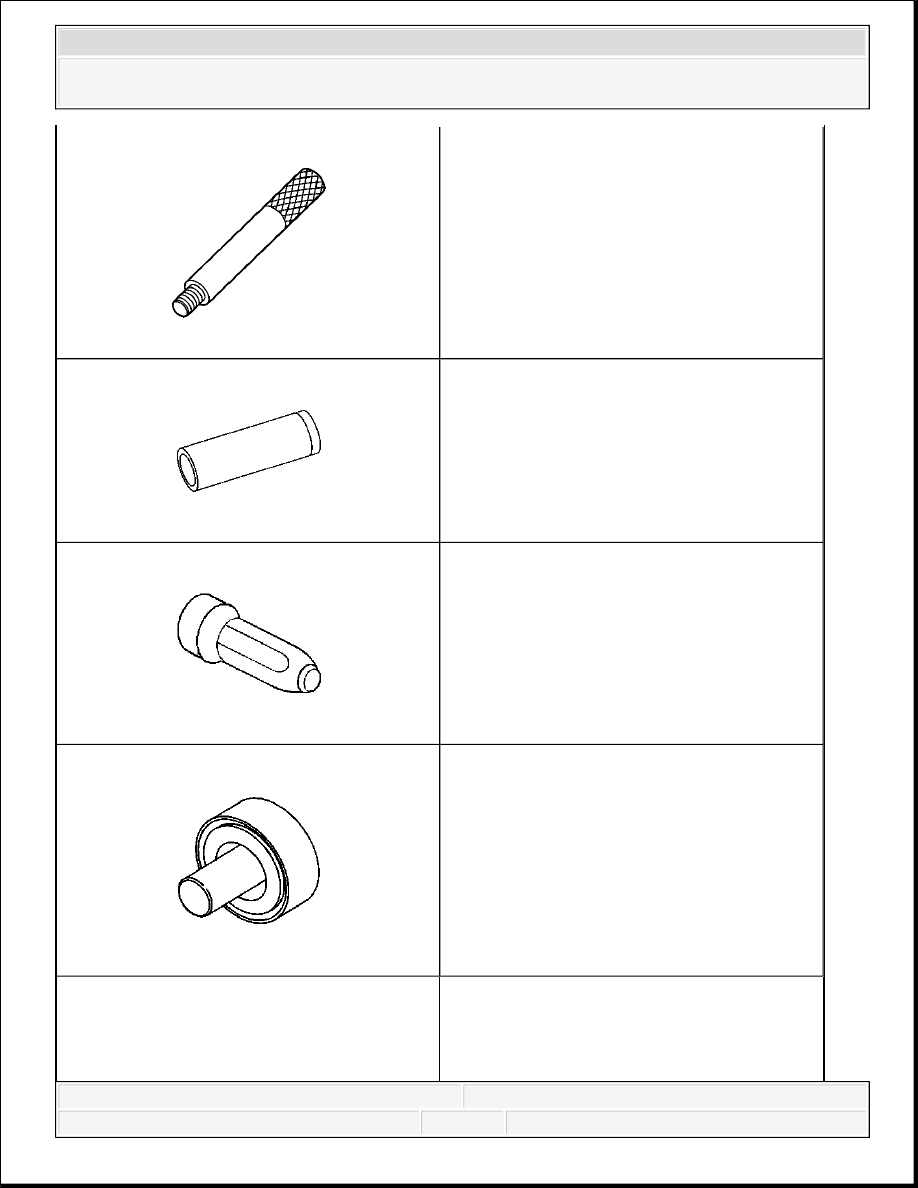

J 35512
Inner Pinion Bearing Installer
J 42738
Seal Installer
J 43484
Front Output Shaft Seal Installer
J 45759
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Assembly Fixture
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
2008 TRANSMISSION
Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
SPECIFICATIONS
APPROXIMATE FLUID CAPACITIES
FASTENER TIGHTENING SPECIFICATIONS
SEALERS, ADHESIVES, AND LUBRICANTS
Application
Specification
Metric
English
DEXRON®VI GM P/N 88861003 (Canadian P/N
88861004)
1.5 liters
1.6 quarts
Application
Specification
Metric
English
Transfer Case Actuator Shaft Position Sensor
Bolt/Screw
9 N.m
80 lb in
Transfer Case Bolts (Qty: 17)
25 N.m
18 lb ft
Transfer Case Oil Drain Plug
18 N.m
13 lb ft
Transfer Case Oil Fill Plug
18 N.m
13 lb ft
Transfer Case Shift Fork Shaft Guide Screw
5 N.m
44 lb in
Transfer Case 2/4 Wheel Drive Actuator Bolt/Screw
18 N.m
13 lb ft
Vehicle Speed Sensor Assembly
17 N.m
13 lb ft
Application
Type of Material
GM Part Number
United
States
Canada
Transfer Case
Transfer Case Fluid
88861003
88861004
Transfer Case Oil Drain Plug
Pipe Sealant
12346004
10953480
Transfer Case Oil Fill Plug
Pipe Sealant
12346004
10953480
Transfer Case Rear Case Half to Transfer
Case Front Half Assembly
RTV Sealant
12345739
10953541
Transfer Case Shift Fork Shaft Guide
Threadlock
12345493
10953488
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

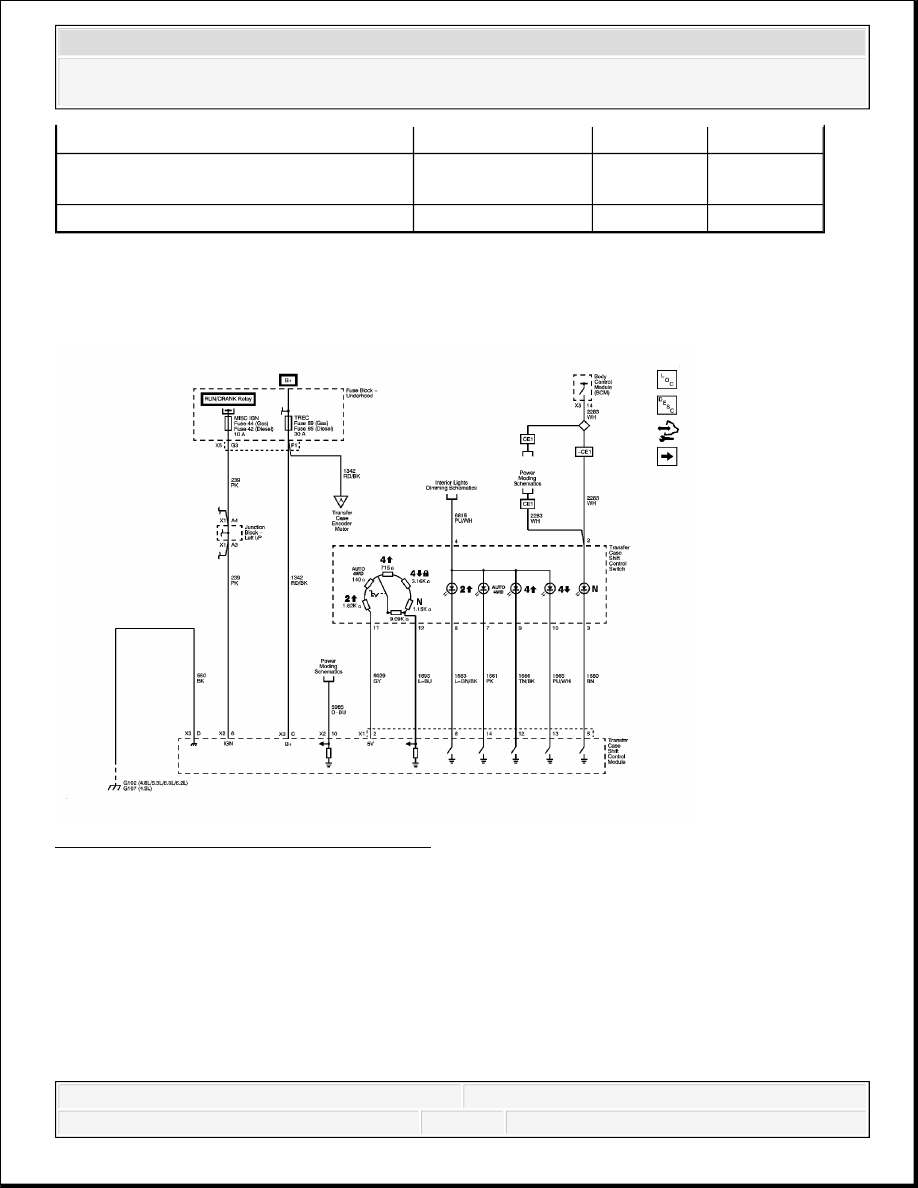

SCHEMATIC AND ROUTING DIAGRAMS
TRANSFER CASE CONTROL SCHEMATICS
Fig. 1: Power, Ground and Shift Controls
Courtesy of GENERAL MOTORS CORP.
Screw
Transfer Case Vent
Retaining
Compound
12377901
10953504
Vehicle Speed Sensor - O-Ring - Seal
Transfer Case Fluid
88861003
88861004
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
