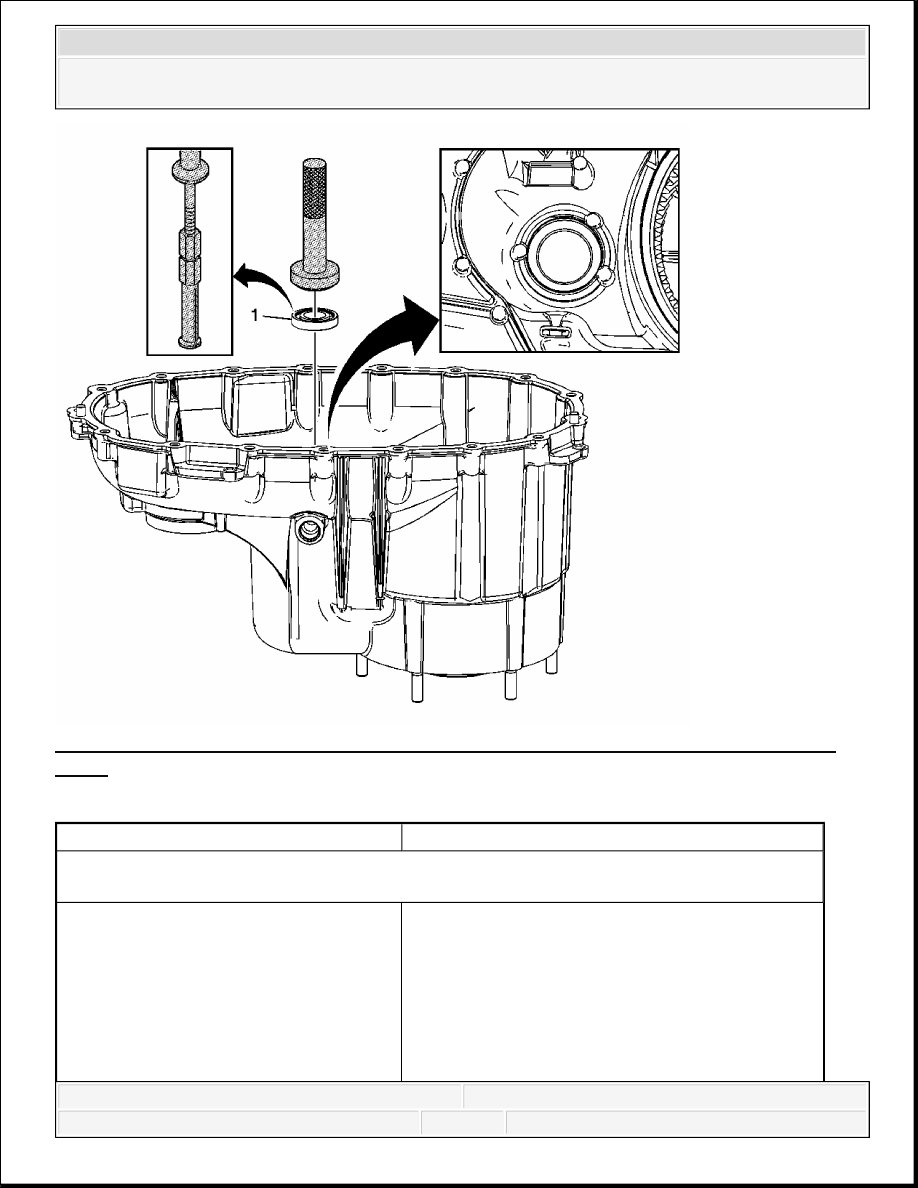

Fig. 38: Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement -
Front
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Ensure the bearing is installed squarely into the bearing bore.
Transfer Case Four Wheel Drive Actuator Lever
Shaft Bearing Assembly
Tip:
Ensure the printing on the bearing is facing
upward.
A suitable adapter is required to use with the
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
TRANSFER CASE FOUR WHEEL DRIVE ACTUATOR LEVER SHAFT BEARING REPLA
REPLACEMENT - REAR
1
J 8092 .
Press the bearing until the bearing bottoms
on the front case half.
Special Tools
J 2619-01 Slide Hammer
J 8092 Driver Handle
J 44737 Shift Rail Bearing Remover
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

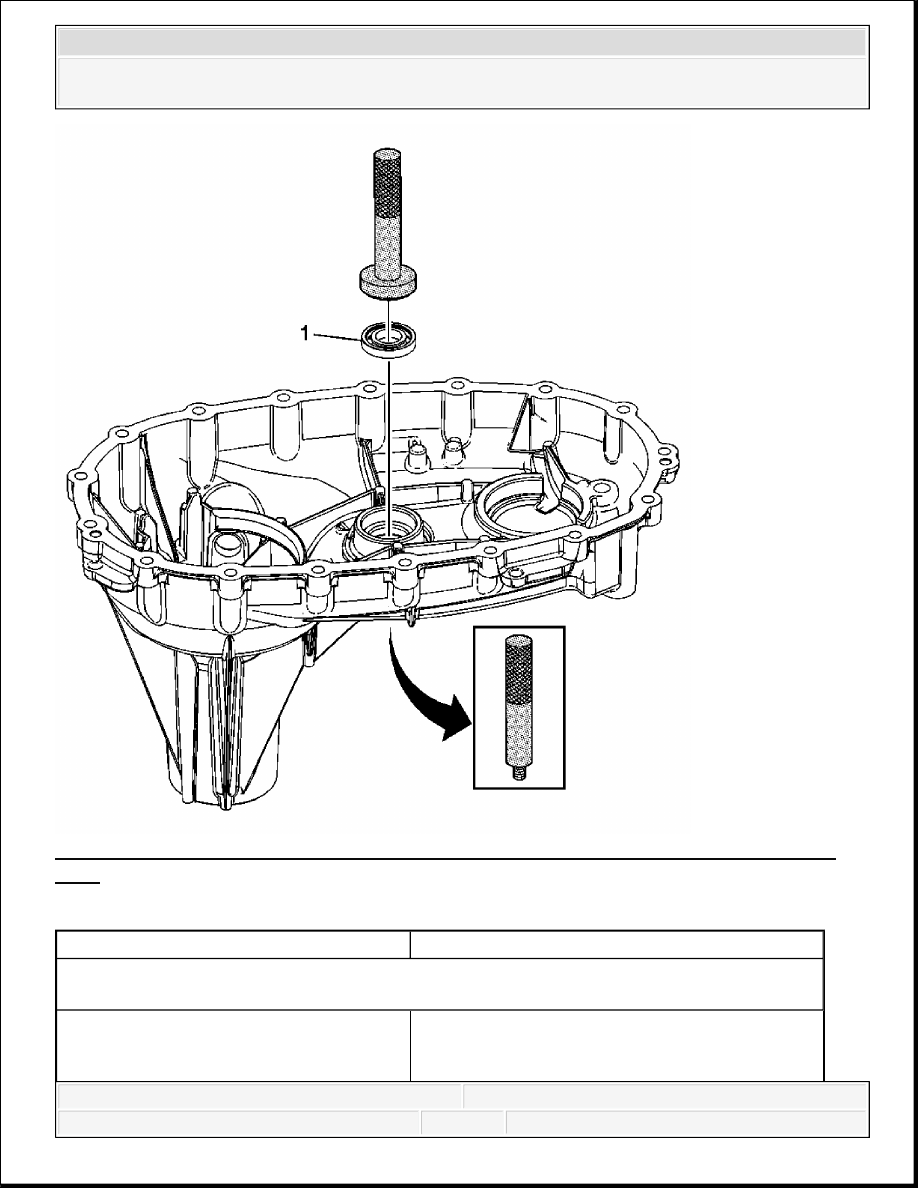

Fig. 39: Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement -
Rear
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Ensure the bearing is installed squarely into the bearing bore.
Transfer Case Four Wheel Drive Actuator Lever
Shaft Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
INPUT SHAFT PILOT BEARING REPLACEMENT (HEAVY DUTY AND SUPER HEAVY DUTY)
DUTY)
1
Tip:
Ensure the printing on the bearing is facing
upward.
A suitable adapter is required to use with
the J 8092 to install.
Press the bearing until the bearing bottoms
on the rear case half.
Special Tools:
J 8092 Driver Handle
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
