HIGH/LOW SHIFT COMPONENTS CLEANING AND INSPECTION
The high/low planetary carrier is only serviced as an assembly.
1
Transfer Case High/Low Clutch Engagement
Teeth
Tip: Inspect the engagement teeth for chips or
excessive wear.
2
Transfer Case Planetary Carrier Sun Gear
Thrust Washer Surface
Tip: Inspect the thrust washer surface for
scoring or excessive wear.
3
Transfer Case High/Low Planetary Carrier
Pinion Gear Thrust Washer
Tip: Inspect for a thrust washer being on each
side of the planetary gears.
4
Transfer Case High/Low Planetary Pinion Gear
Tip: Inspect for broken, damaged, or debris
embedded in the root of the teeth.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

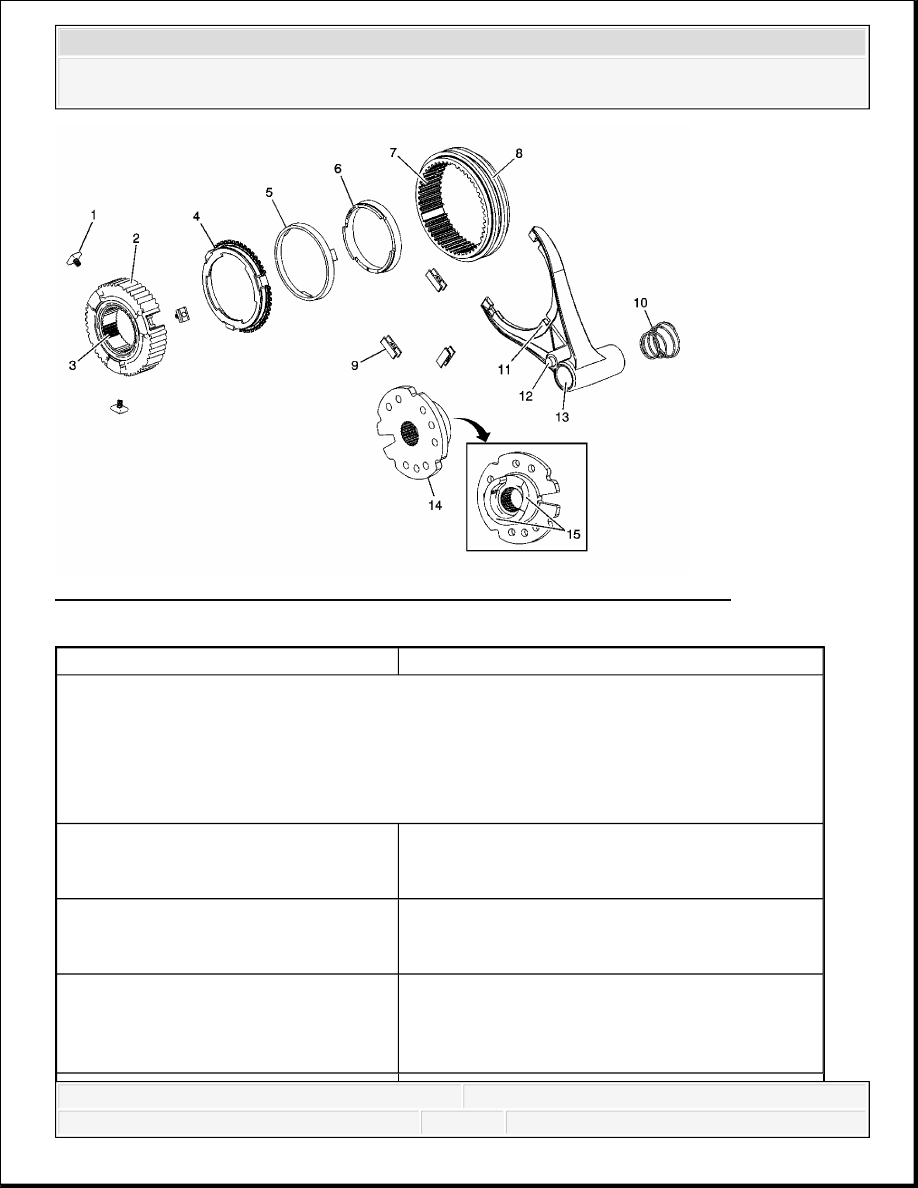

Fig. 35: High/Low Shift Components Cleaning and Inspection
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
Inspect all components or sub-components and perform any repair procedure
necessary to fix the damage. If the damage cannot be repaired, replace the component
or sub-component as indicated.
Clean all components in cleaning solvent and air dry.
1
Transfer Case High/Low Clutch Inner Splines
Tip: Inspect the inner splines for excessive
looseness on the rear output shaft.
2
Transfer Case High/Low Clutch Teeth
Tip: Inspect the engagement teeth for chips or
excessive wear.
3
Transfer Case High/Low Shift Fork Collar
Tip: Inspect the shift fork collar for wear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
TWO/FOUR WHEEL DRIVE SHIFT COMPONENTS CLEANING AND INSPECTION
4
Transfer Case High/Low Shift Fork Pads
Tip: Inspect the pads for wear.
5
Transfer Case High/Low Shift Fork
Tip: Inspect for cracks, broken areas, or other
damage. The component must be replaced if
damage is found. Refer to High/Low Shift Fork
Replacement.
6
Transfer Case Control Actuator Shaft
Tip: Inspect the shaft splines for excessive wear.
The component must be replaced if damage is
found. Refer to High/Low Shift Fork
Replacement.
7
Transfer Case High/Low Shift Fork Pin
Tip: Inspect the pin for wear. The component
must be replaced if damage is found. Refer to
High/Low Shift Fork Replacement.
8
Transfer Case High/Low Shift Fork Spring
Assembly
Tip: Inspect the cam lobes for wear or roughness.
The component must be replaced if damage is
found. Refer to High/Low Shift Fork
Replacement.
9
Transfer Case Shift Fork Spring
Tip: Inspect the spring for breakage. The
component must be replaced if damage is found.
Refer to High/Low Shift Fork Replacement.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

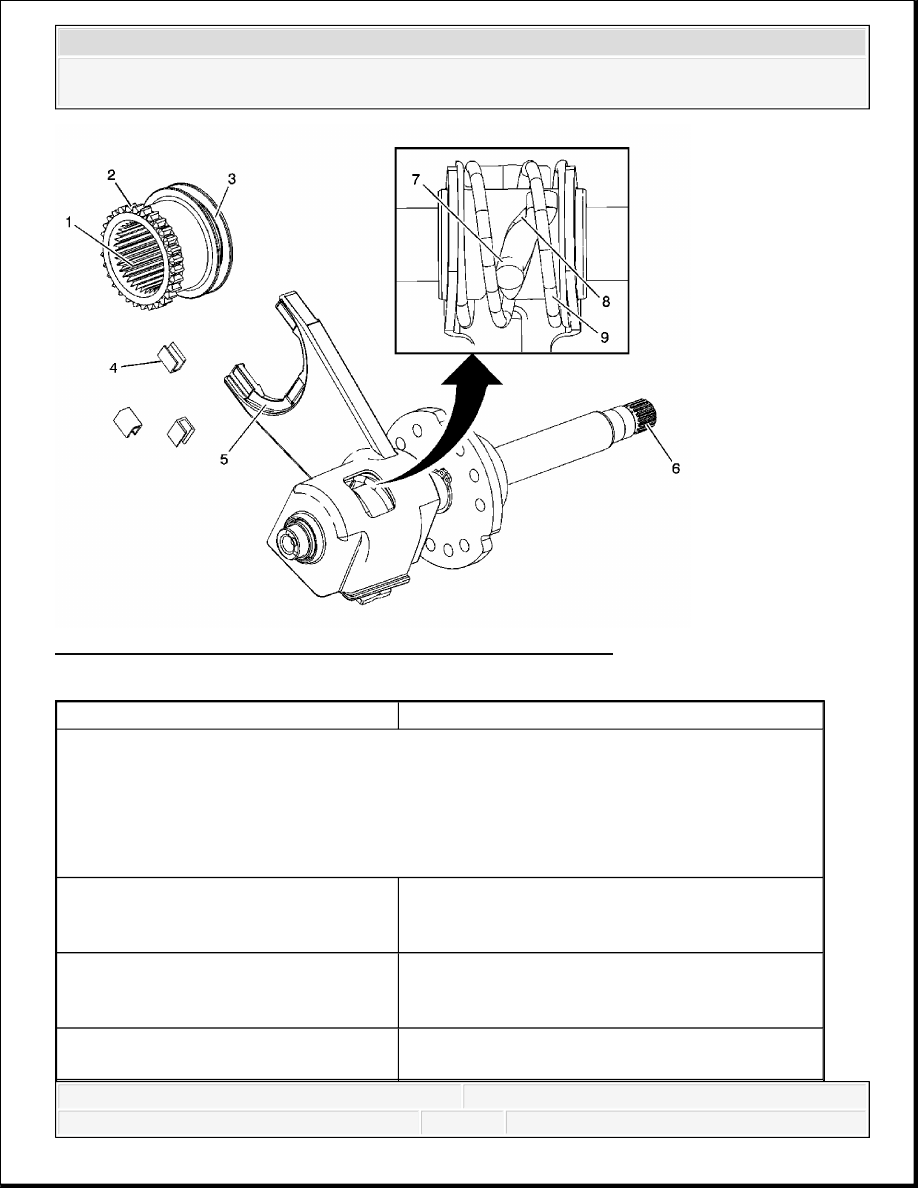

Fig. 36: Two/Four Wheel Drive Shift Components Cleaning and Inspection
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
Inspect all components or sub-components and perform any repair procedure
necessary to fix the damage. If the damage cannot be repaired, replace the component
or sub-component as indicated.
Clean all components in cleaning solvent and air dry.
1
Transfer Case Two/Four Wheel Drive
Synchronizer Insert
Tip: Inspect the inserts for wear.
2
Transfer Case Two/Four Wheel Drive
Synchronizer Hub Engagement Teeth
Tip: Inspect the engagement teeth for wear.
3
Transfer Case Two/Four Wheel Drive
Synchronizer Hub Splines
Tip: Inspect the splines for loose fit on the rear
output shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1625/1626-NQF - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
