Input Shaft Seal and Front Output Shaft Seal Installation
Tighten: 27 N.m (20 lb ft)
10
Vehicle Speed Sensor O-Ring Seal
Tip: Lightly lubricate the O-ring with clean
DEXRON®VI.
11
Vehicle Speed Sensor Assembly
Tighten: 17 N.m (13 lb ft)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

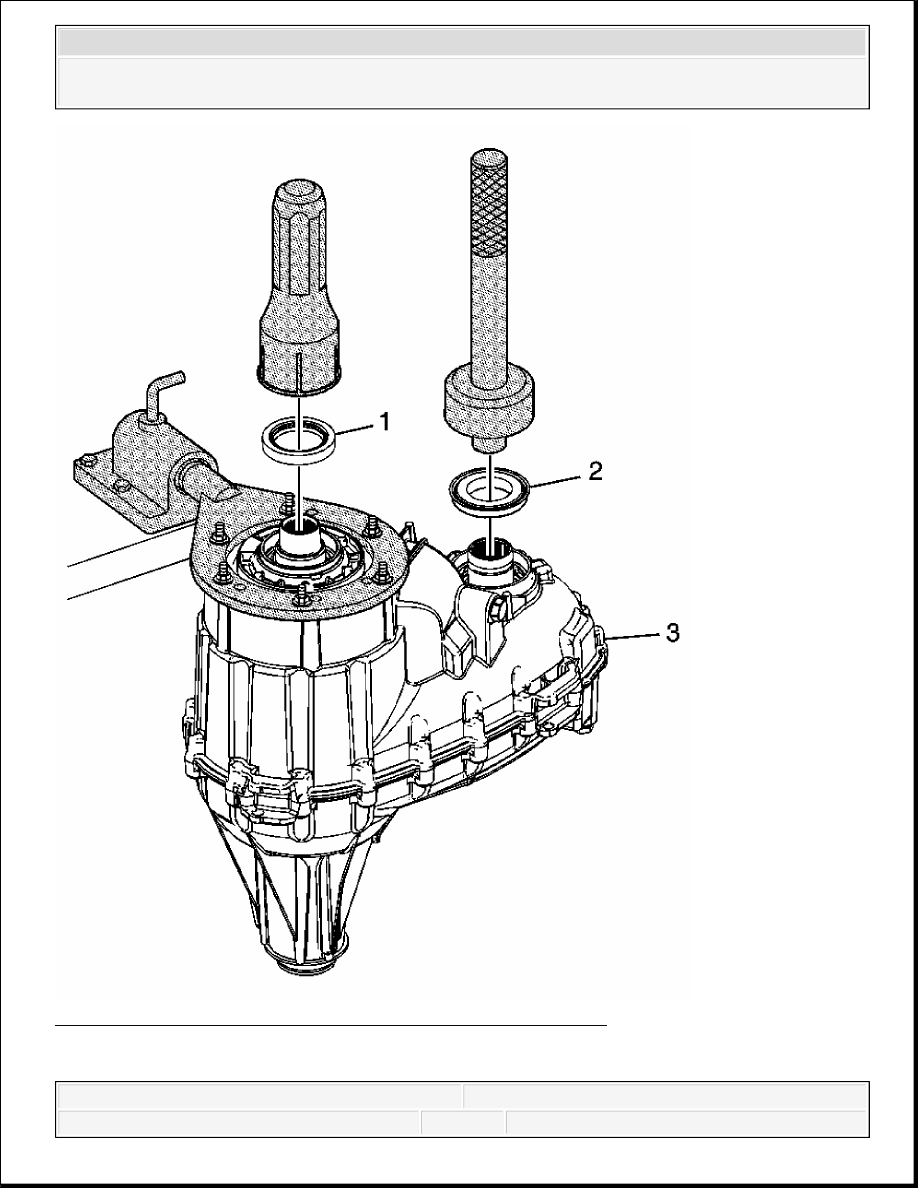

Fig. 50: View Of Input Shaft Seal & Front Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Input Shaft Seal and Front Output Shaft Seal Installation
DESCRIPTION AND OPERATION

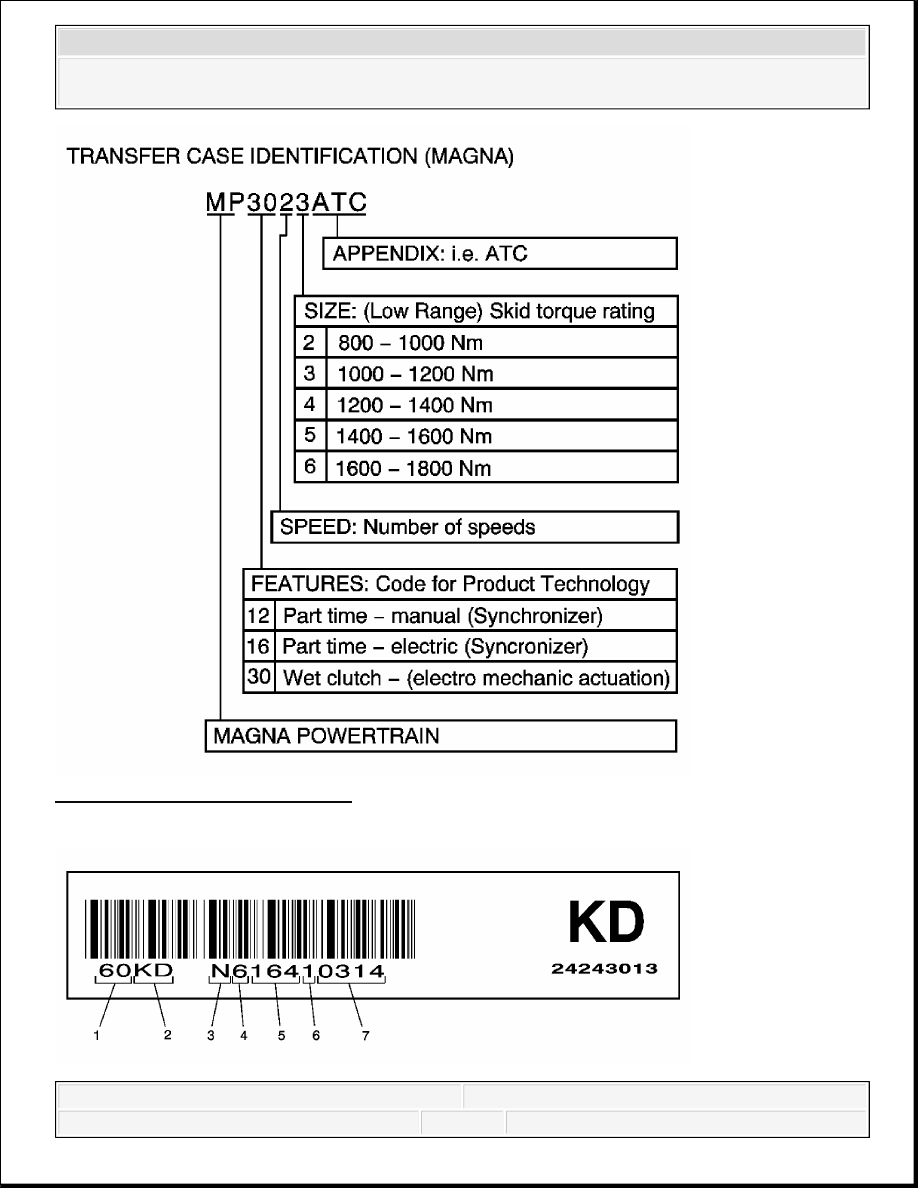

TRANSFER CASE IDENTIFICATION
Callout
Component Name
1
Transfer Case Input Shaft Seal
Tip: Ensure the bore of the front case half is free
of dirt, oil, and cleaning solvent.
Special Tools:
J 42738 Seal Installer
2
Transfer Case Front Output Shaft Seal
Special Tools
J 8092 Driver Handle
J 43484 Front Output Shaft Seal Installer
3
Transfer Case Assembly
Tip: Remove from J 3289-20 and remove the J
45759 from the transfer case.
Special Tools
J 3289-20 Holding Fixture
J 45759 Assembly Fixture
