Rear Output Shaft Seal and Bushing Removal

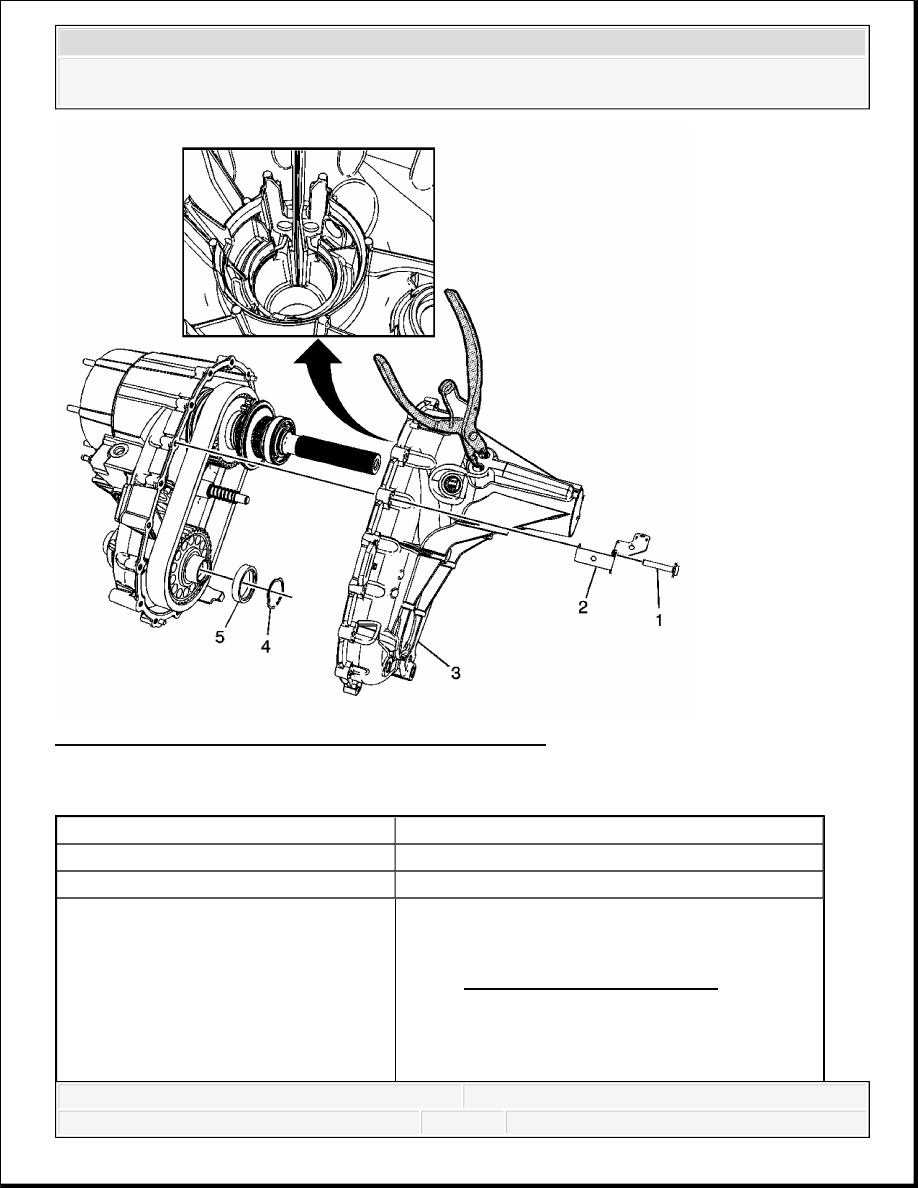

Transfer Case Rear Case Half Removal
Callout
Component Name
1
Transfer Case Rear Output Shaft Seal
NOTE:
Refer to Transfer Case Seal Removal Notice .
2
Transfer Case Rear Output Shaft Bushing
Tip:
Only remove the bushing if faulty. Refer to
Transfer Case Rear Half Cleaning and
Inspection.
Follow the steps below for use of the J 45380 .
1. Install the finger section of the J 45380 in
front of the bushing.
2. Install the tube and forcing tube assembly into
the finger section. Ensure the forcing screw is
backed out.
3. Using a wrench on the forcing screw, remove
the bushing.
Special Tools:
J 45380 Transfer Case Rear Bushing Remover and
Installer
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 22: View Of Transfer Case Halves & Components
Courtesy of GENERAL MOTORS CORP.
Transfer Case Rear Case Half Removal
Callout
Component Name
1
Transfer Case Bolts (Qty: 17)
2
Transfer Case Bracket
3
Transfer Case Rear Case Half
Tip:
NOTE:
Refer to Machined Surface Damage Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

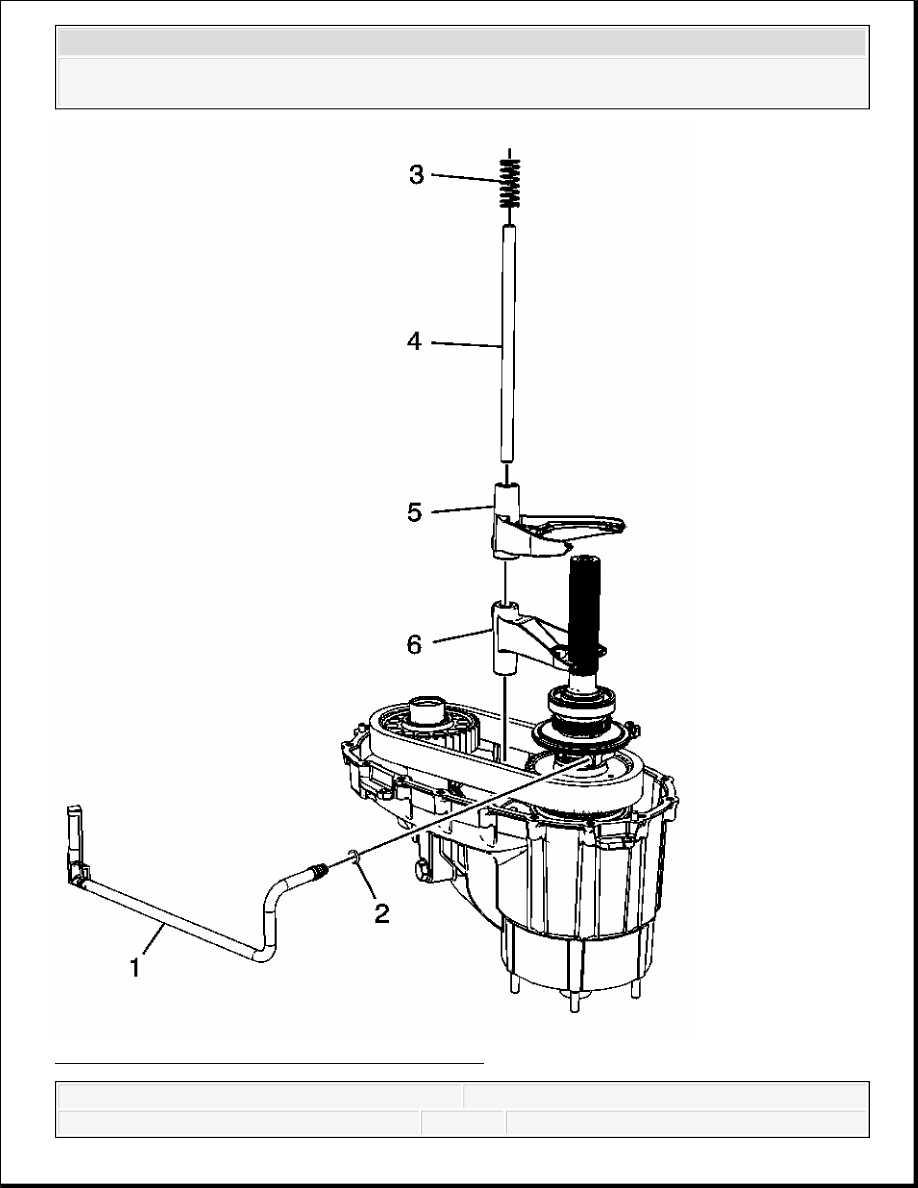

Oil Pump Suction Pipe and Shift Forks Removal
Use opposing pry bars at casting bosses to
spread case.
Use snap ring pliers to release the transfer
case rear output shaft outer retaining ring
from the transfer case rear output shaft rear
bearing assembly.
4
Transfer Case Front Output Shaft Driven Sprocket
Spacer Spring
5
Transfer Case Front Output Shaft Driven Sprocket
Spacer
