Chevrolet Silverado / GMC Sierra. Manual - part 2846
Access Hole Plugs, Fill and Drain Plug, Lever, Vent, Shift Control Switch, and Vehicle Speed Sensor Removal
J 45759 Assembly Fixture
2
Transfer Case
Special Tools:
J 3289-20 Holding Fixture
3
Pivot Pin
Tip:
Always secure with the pivot pin after
rotating.
The transfer case can be rotated 360 degrees
to facilitate repair.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

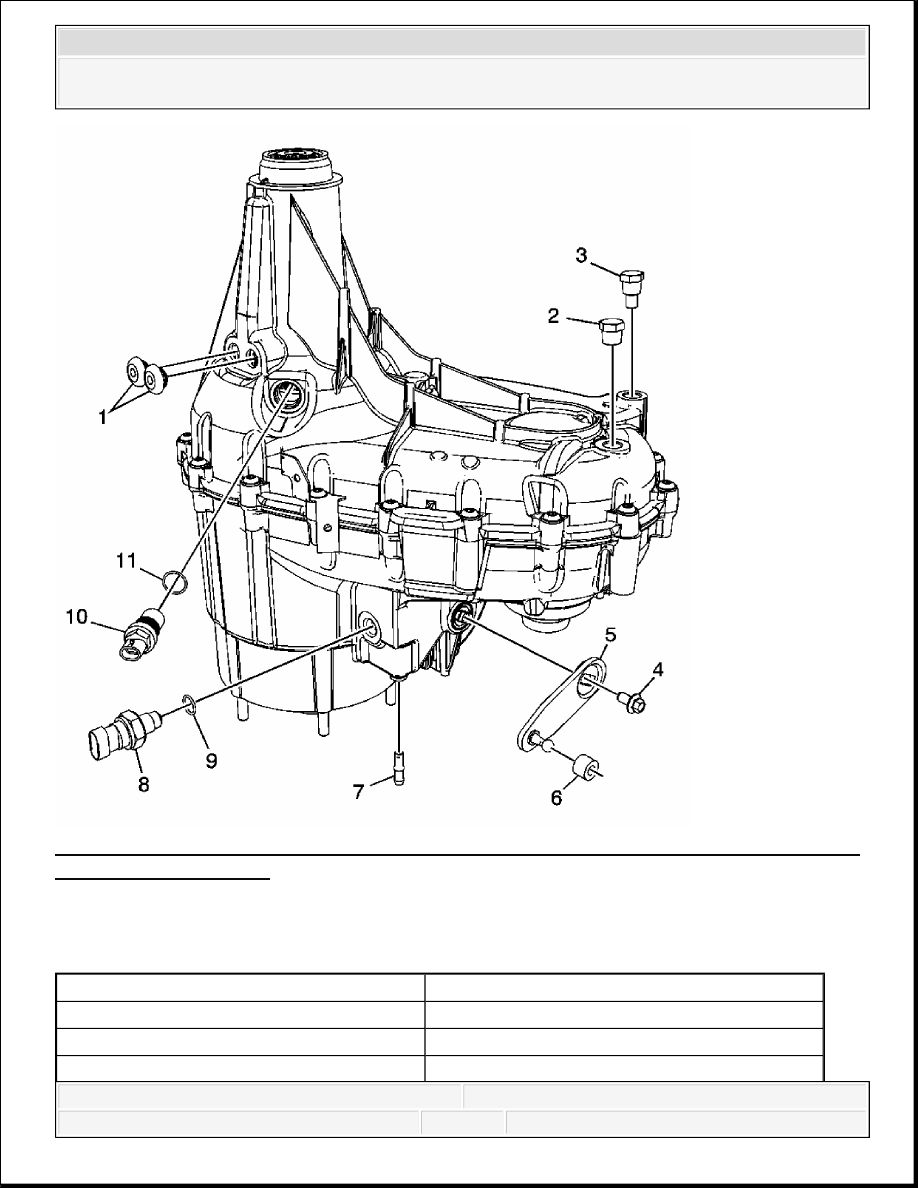

Fig. 20: View Of Access Hole Plugs, Fill & Drain Plug, Lever, Vent, Shift Control Switch,
& Vehicle Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Access Hole Plugs, Fill and Drain Plug, Lever, Vent, Shift Control Switch, and Vehicle
Speed Sensor Removal
Callout
Component Name
1
Transfer Case Access Hole Plugs (Qty: 2)
2
Transfer Case Oil Fill Plug
3
Transfer Case Oil Drain Plug
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

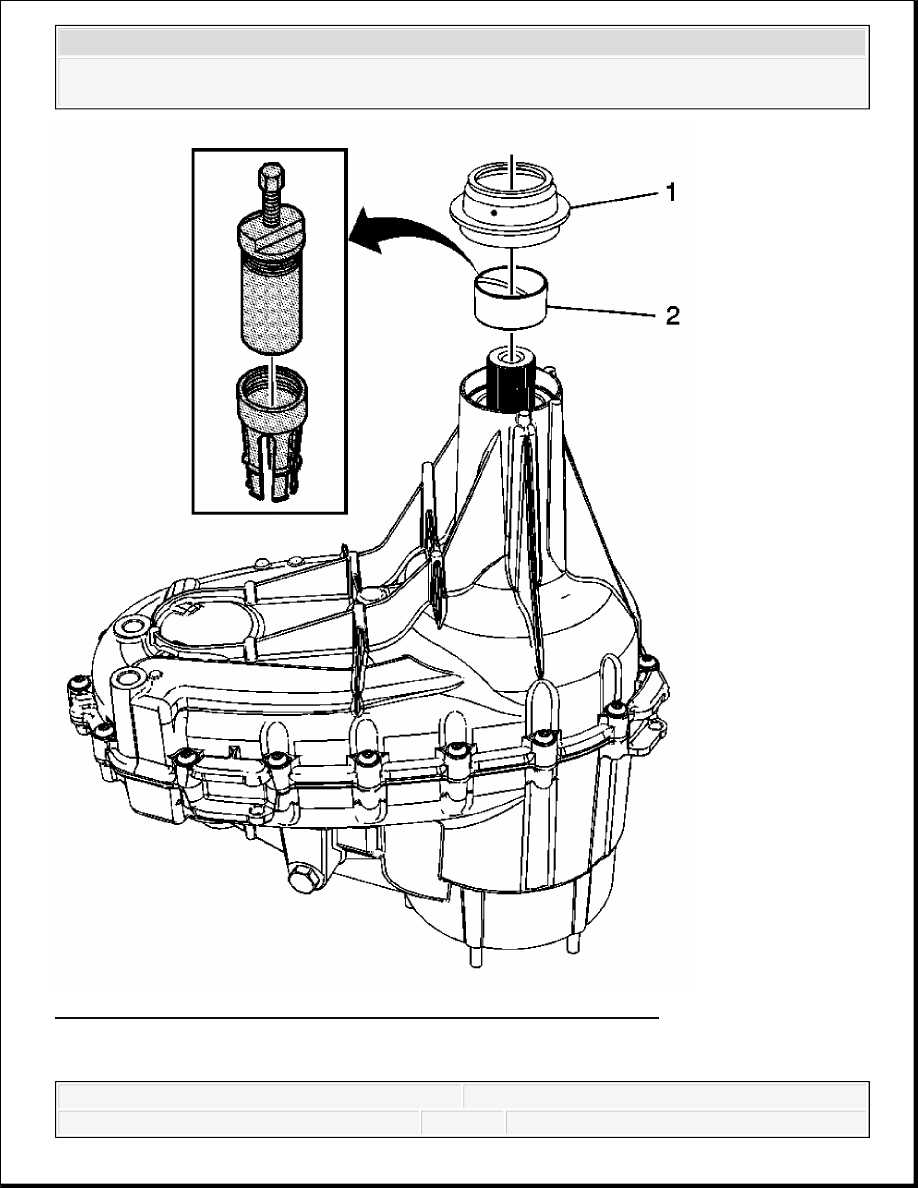

Rear Output Shaft Seal and Bushing Removal
4
Transfer Case Control Lever Bolt/Screw
5
Transfer Case Lever
6
Transfer Case Shift Lever Washer
7
Transfer Case Vent
Tip: Remove ONLY if the vent pipe is
damaged.
8
Transfer Case Shift Control Switch Assembly
9
Transfer Case Selector Switch - O-ring - Seal
10
Vehicle Speed Sensor Assembly
11
Vehicle Speed Sensor O-Ring Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
