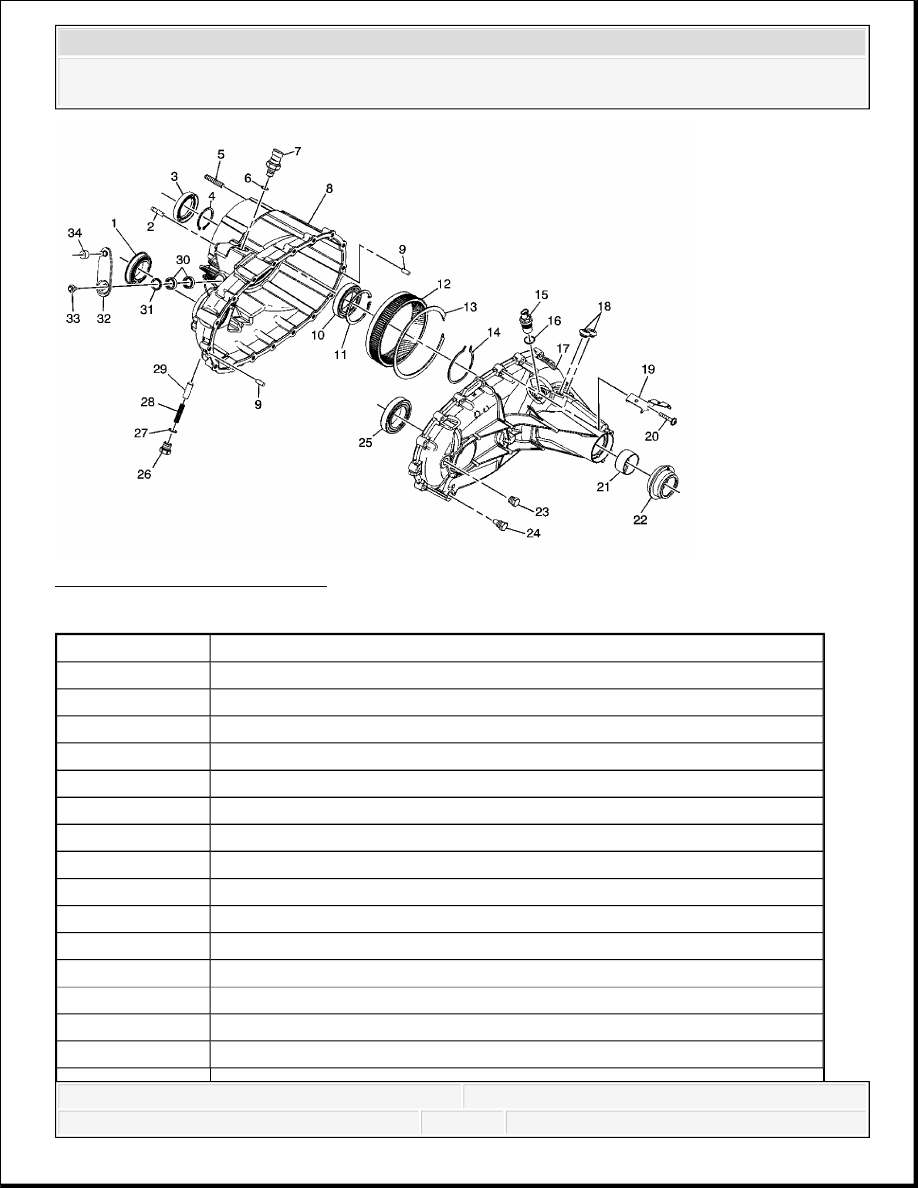

Fig. 2: Case Half Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transfer Case Front Output Shaft Seal
2
Transfer Case Vent
3
Transfer Case Input Shaft Seal
4
Transfer Case Input Shaft Bearing Outer Retaining Ring
5
Transfer Case Stud
6
Transfer Case Selector Switch - O-Ring - Seal
7
Transfer Case Shift Control Switch Assembly
8
Transfer Case Front Half
9
Transfer Case Half Locating Pin
9
Transfer Case Half Locating Pin
10
Transfer Case Input Shaft Bearing Assembly
11
Transfer Case Input Shaft Inner Retaining Ring
12
Transfer Case High/Low Internal Gear
13
Transfer Case High/Low Internal Gear Retaining Ring
14
Transfer Case Rear Output Shaft Rear Bearing Outer Retaining Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
15
Vehicle Speed Sensor Assembly
16
Vehicle Speed Sensor - O-Ring - Seal
17
Transfer Case Rear Half
18
Transfer Case Access Hole Plug
19
Transfer Case - Harness - Bracket
20
Transfer Case Half Bolt/Screw (Qty: 17)
21
Transfer Case Rear Output Shaft Bushing
22
Transfer Case Rear Output Shaft Seal
23
Transfer Case Oil Fill Plug
24
Transfer Case Oil Drain Plug
25
Transfer Case Front Output Shaft Rear Bearing Assembly
26
Transfer Case Shift Detent Plunger Plug
27
Transfer Case Shift Detent Plunger Plug - O-Ring - Seal
28
Transfer Case Shift Detent Spring
29
Transfer Case Shift Detent Plunger
30
Transfer Case Shift Detent Lever Bearing Assembly
31
Transfer Case Shift Lever Seal
32
Transfer Case Shift Lever
33
Transfer Case Control Lever Bolt/Screw
34
Transfer Case Shift Lever - Rubber - Seal
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

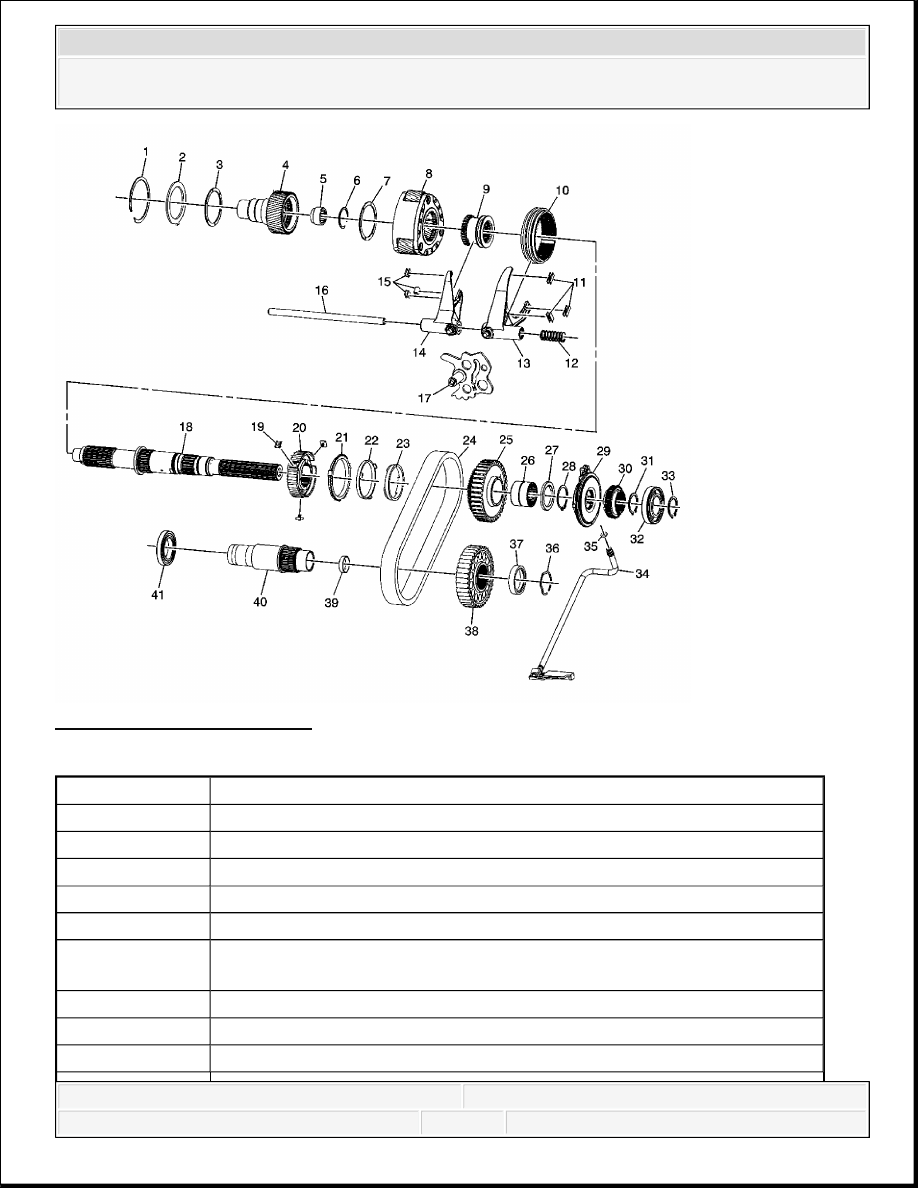

Fig. 3: Internal Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Transfer Case High/Low Planetary Carrier Retaining Ring
2
Transfer Case High/Low Locking Plate
3
Transfer Case Planetary Carrier Sun Gear Thrust Washer
4
Transfer Case Input Shaft
5
Transfer Case Input Shaft Pilot Bearing Assembly
6
Transfer Case Input Shaft Pilot Bearing Retaining Ring - HD and SHD
Only
7
Transfer Case Planetary Carrier Sun Gear Thrust Washer
8
Transfer Case High/Low Planetary Carrier Assembly
9
Transfer Case High/Low Clutch
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
10
Transfer Case Two/Four Wheel Drive Synchronizer Sleeve
11
Transfer Case Two/Four Wheel Drive Shift Fork Inserts
12
Transfer Case Shift Fork Spring
13
Transfer Case Two/Four Wheel Drive Shift Fork Assembly
14
Transfer Case High/Low Shift Fork
15
Transfer Case High/Low Shift Fork Inserts
16
Transfer Case Control Actuator Shaft
17
Transfer Case Shift Detent Lever Assembly
18
Transfer Case Rear Output Shaft
19
Transfer Case Two/Four Wheel Drive Synchronizer Inserts
20
Transfer Case Two/Four Wheel Drive Synchronizer Hub
21
Transfer Case Two/Four Wheel Drive Synchronizer Assembly
22
Transfer Case Two/Four Wheel Drive Synchronizer Blocking Ring -
Outer
23
Transfer Case Two/Four Wheel Drive Synchronizer Blocking Ring -
Inner
24
Transfer Case Front Output Shaft Drive Chain Assembly
25
Transfer Case Front Output Shaft Drive Sprocket
26
Transfer Case Front Output Shaft Drive Sprocket Bearing Assembly
27
Transfer Case Front Output Shaft Drive Sprocket Spacer - Rear
28
Transfer Case Front Output Shaft Drive Sprocket Retaining Ring
29
Transfer Case Oil Pump Assembly
30
Transfer Case Rear Output Shaft Speed Reluctor Wheel
31
Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
32
Transfer Case Rear Output Shaft Rear Bearing Assembly
33
Transfer Case Rear Output Shaft Rear Bearing Retaining Ring
34
Transfer Case Oil Pump Suction Pipe
35
Transfer Case Oil Pump Suction Pipe Seal
36
Transfer Case Front Output Shaft Driven Sprocket Spacer Spring
37
Transfer Case Front Output Shaft Driven Sprocket Spacer
38
Transfer Case Front Output Shaft Driven Sprocket
39
Transfer Case Front Output Shaft Hole Plug
40
Transfer Case Front Output Shaft
41
Transfer Case Front Output Shaft Front Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
