Chevrolet Silverado / GMC Sierra. Manual - part 2832

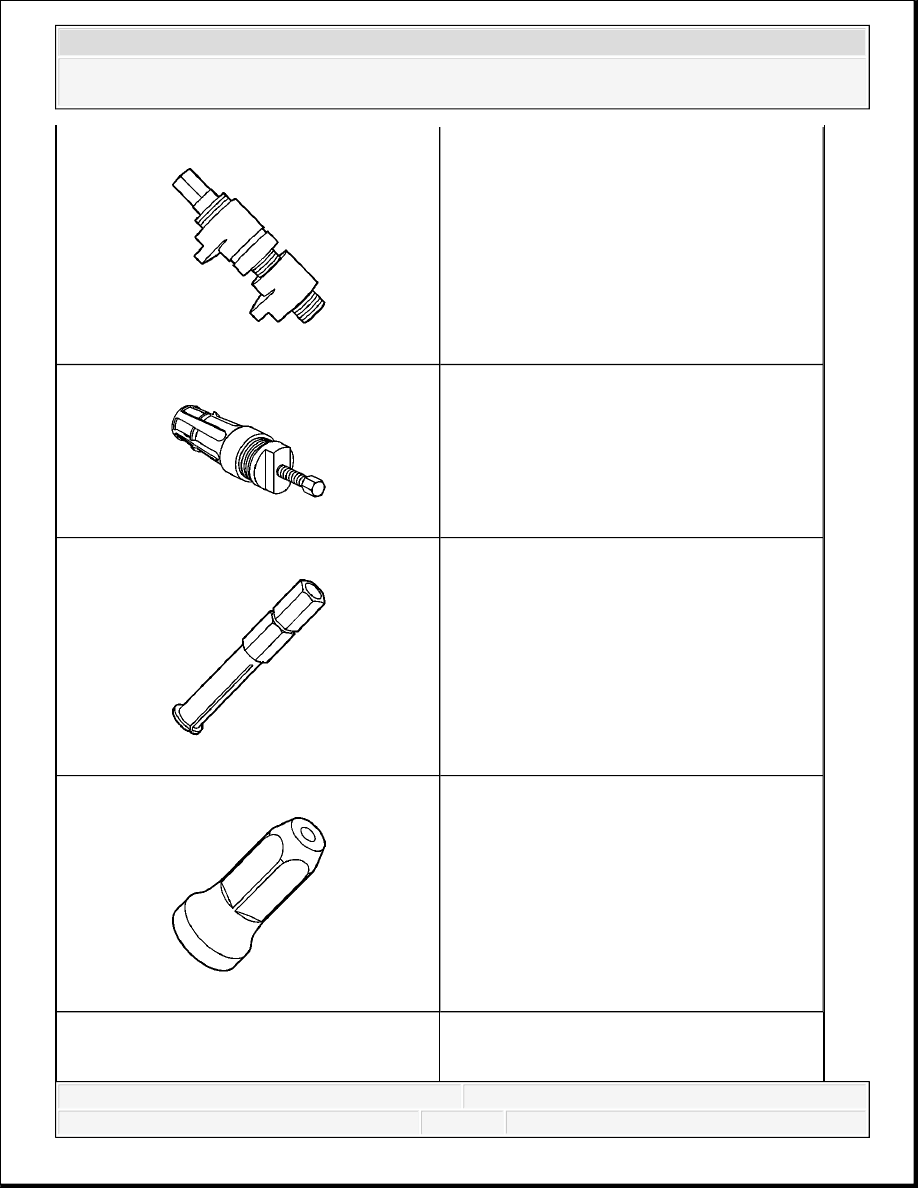

J 45358
Case Spreader
J 45380
Transfer Case Rear Bushing Remover and
Installer
J 45548
Mainshaft Support Bushing/Bearing Remover
J 45756
Rear Output Shaft Seal Installer
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

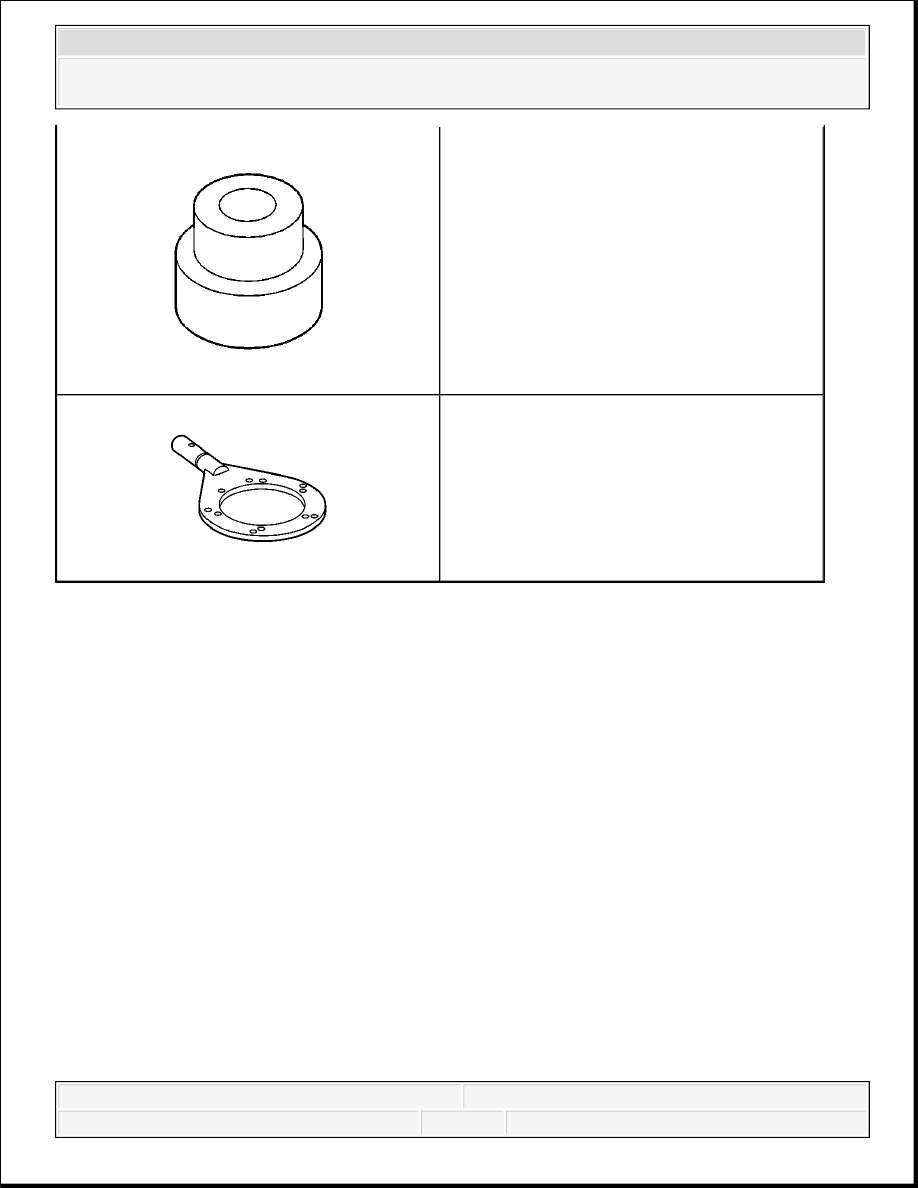

J 45757
Mainshaft Support Bushing and Bearing
Installer
J 45759
Assembly Fixture
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
2008 TRANSMISSION
Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
SPECIFICATIONS
APPROXIMATE FLUID CAPACITIES
FASTENER TIGHTENING SPECIFICATIONS
SEALERS, ADHESIVES, AND LUBRICANTS
Application
Specification
Metric
English
DEXRON®VI GM P/N 88861003 (Canadian P/N
88861004)
1.5 liters
1.6 quarts
Application
Specification
Metric
English
Transfer Case Bolts (Qty: 17)
25 N.m
18 lb ft
Transfer Case Control Lever Bolt/Screw
27 N.m
20 lb ft
Transfer Case Oil Drain Plug
18 N.m
13 lb ft
Transfer Case Oil Fill Plug
18 N.m
13 lb ft
Transfer Case Shift Detent Plunger Plug
20 N.m
15 lb ft
Transfer Case Shift Control Switch Assembly
27 N.m
20 lb ft
Vehicle Speed Sensor Assembly
17 N.m
13 lb ft
Application
Type of Material
GM Part Number
United
States
Canada
Transfer Case
Transfer Case Fluid
88861003
88861004
Transfer Case Control Lever Bolt/Screw
Threadlock
12345382
10953489
Transfer Case Oil Drain Plug
Pipe Sealant
12346004
10953480
Transfer Case Oil Fill Plug
Pipe Sealant
12346004
10953480
Transfer Case Rear Case Half to Transfer
Case Front Half Assembly
RTV Sealant
12345739
10953541
Transfer Case Selector Switch - O-Ring - Transfer Case Fluid
88861003
88861004
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

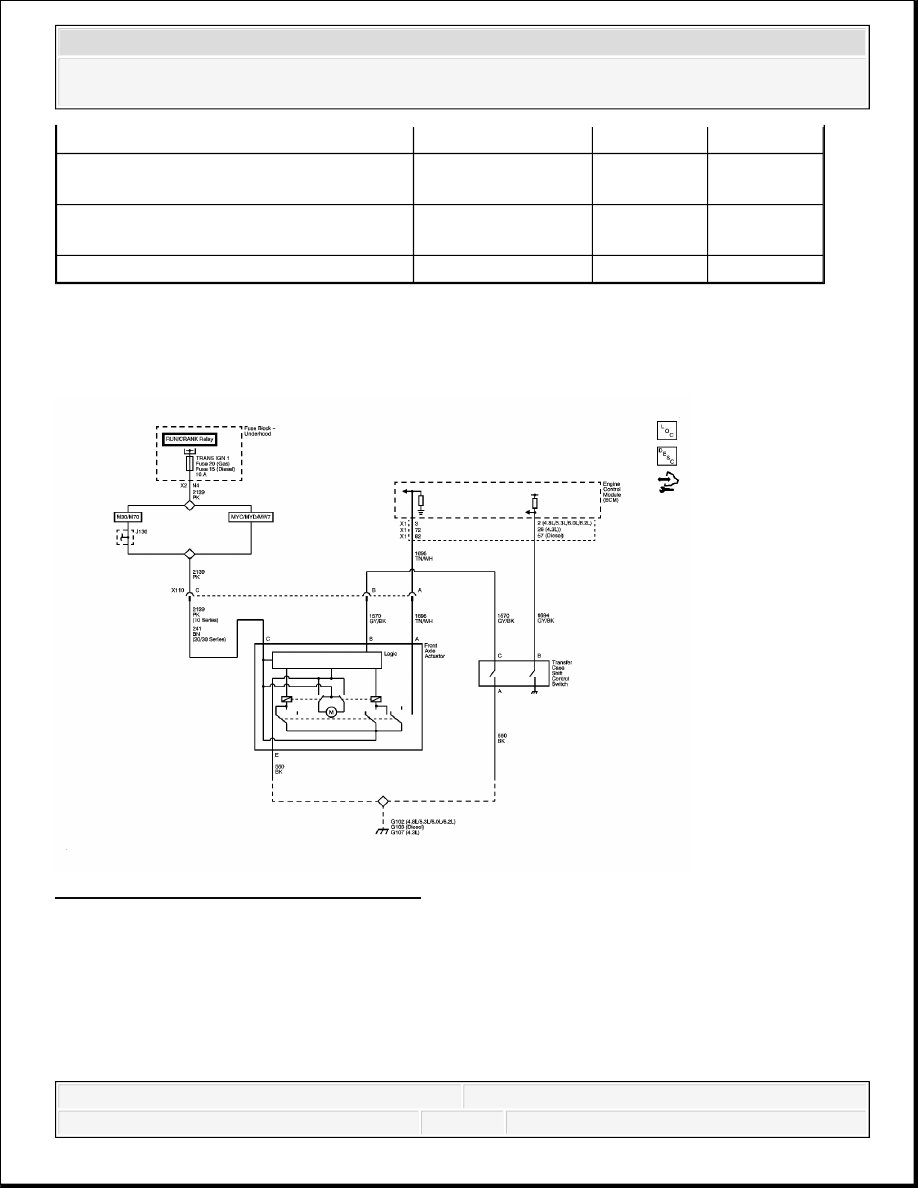

SCHEMATIC AND ROUTING DIAGRAMS
TRANSFER CASE CONTROL SCHEMATICS
Fig. 1: Transfer Case Control Schematic
Courtesy of GENERAL MOTORS CORP.
COMPONENT LOCATOR
TRANSFER CASE DISASSEMBLED VIEW
Seal
Transfer Case Shift Detent Plunger Plug
Seal
Transfer Case Fluid
88861003
88861004
Transfer Case Vent
Retaining
Compound
12377901
10953504
Vehicle Speed Sensor - O-Ring - Seal
Transfer Case Fluid
88861003
88861004
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
