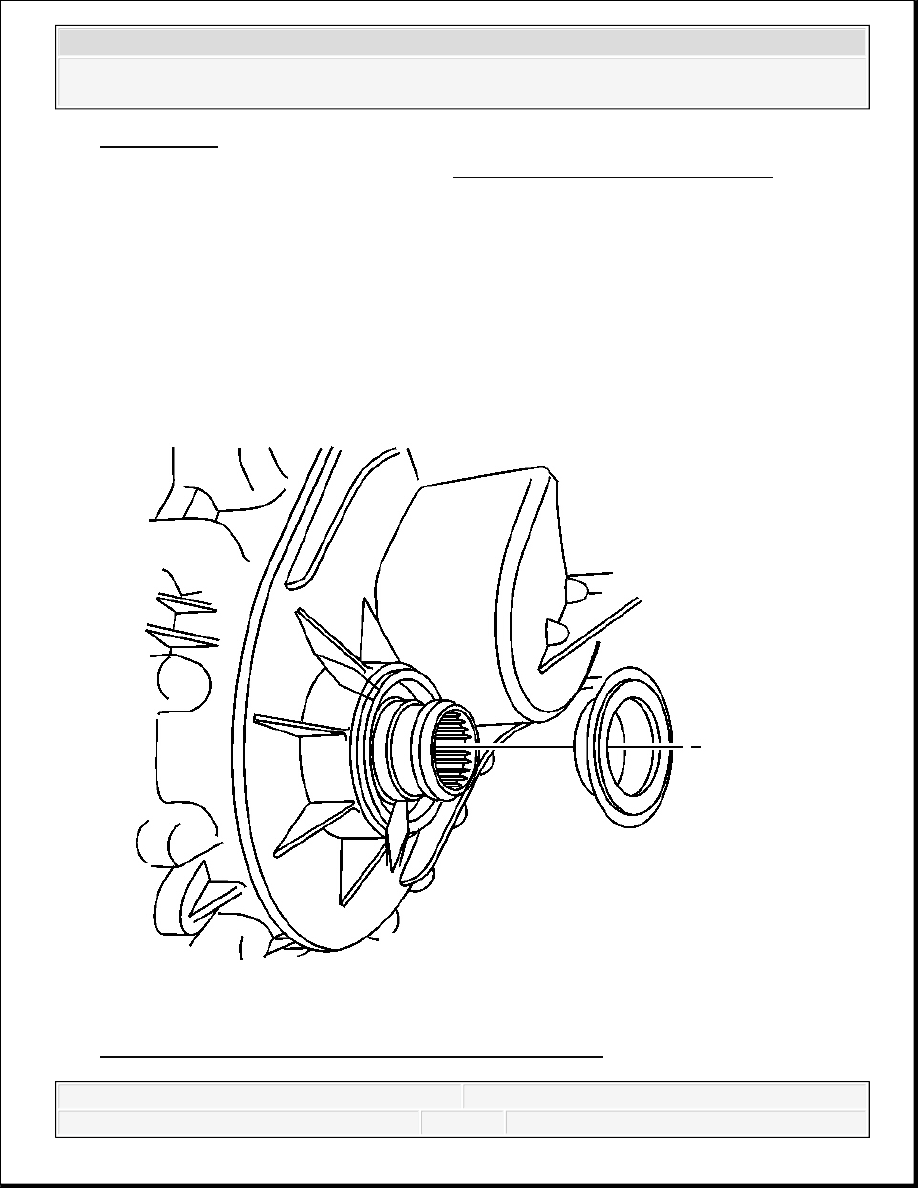

Replacement. 3. Remove the front propeller shaft. Refer to Front Propeller Shaft Replacement . 4. Remove the front output shaft seal by inserting a flat-tipped screwdriver behind the inner race of the seal. 5. Pry the inner seal race forward. Fig. 13: View Of Inner Seal Race & Front Output Shaft IMPORTANT: The front output shaft seal is a two piece internal seal. The inner seal race is a force fit on the front output shaft.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

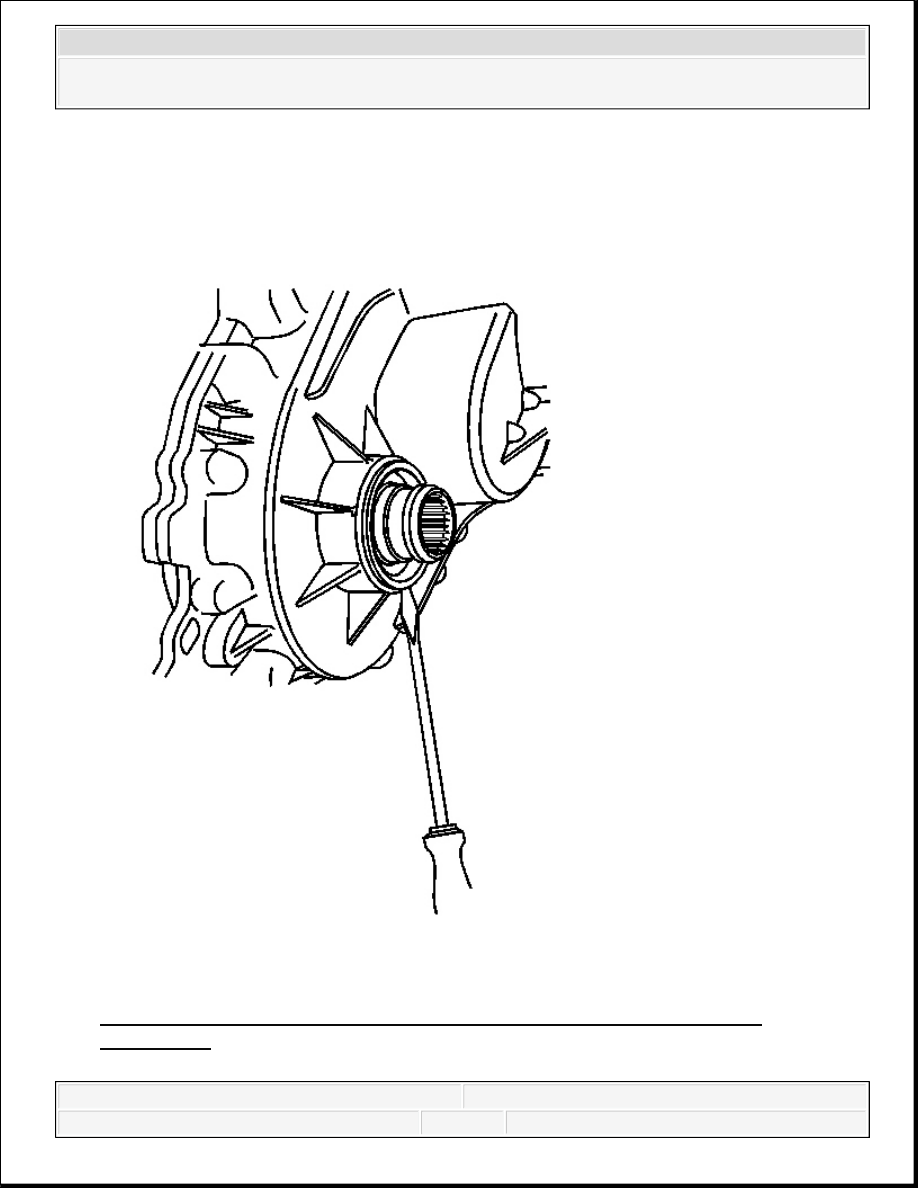

6. Using a small pry bar, move the inner seal race forward on the front output shaft. 7. Remove the inner seal race from the front output shaft. Fig. 14: Removing Output Shaft Seal From Transfer Case With Flathead
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

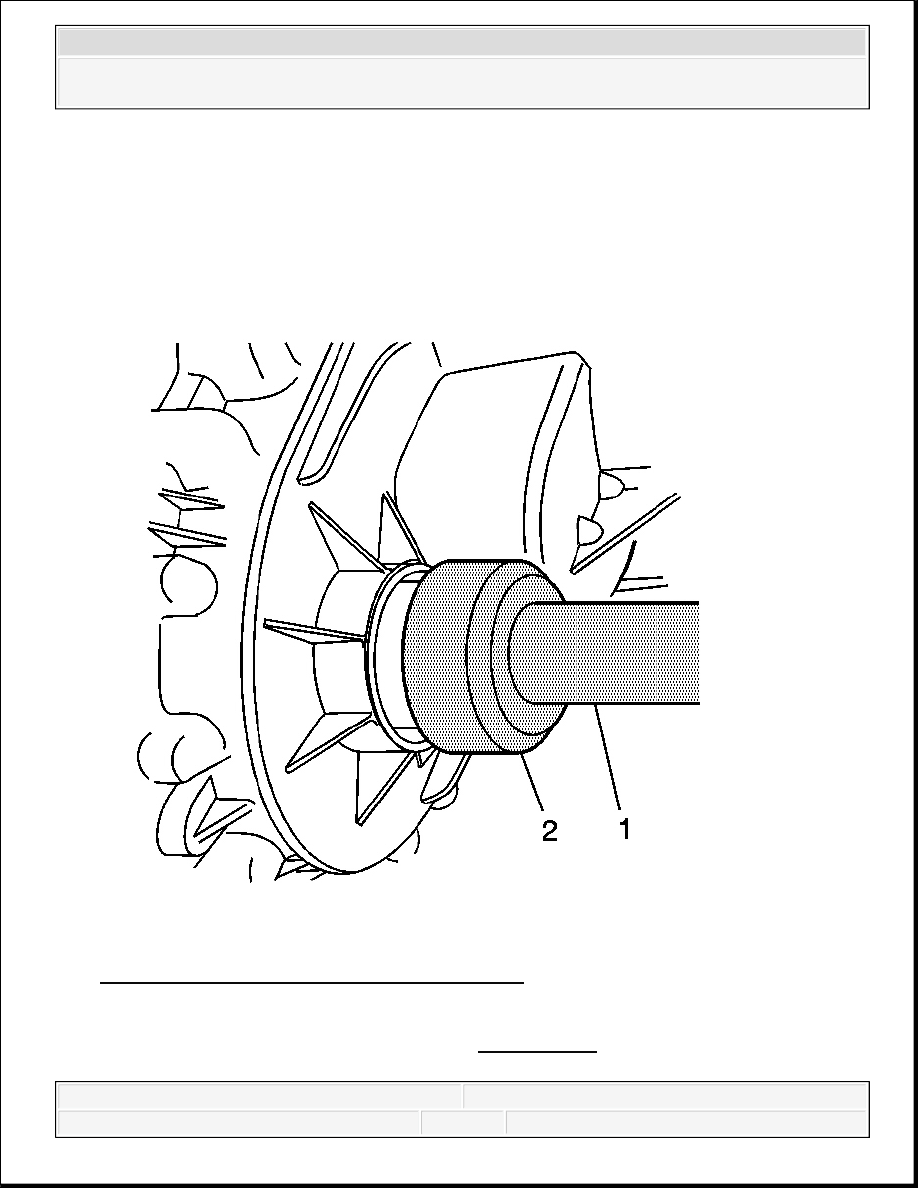

8. Insert a flat-tipped screwdriver or small pry bar into the space between the lip of the outer race of the seal and the transfer case. 9. Remove the remaining part of the output shaft seal from the transfer case. Installation Procedure Fig. 15: View Of Seal Installation Special Tools 1. Install the J 43484 (2) to the J 8092 (1). See Special Tools. 2. Install a NEW seal onto J 43484 . See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
3. Using J 43484 (2), and J 8092 (1), install the seal. See Special Tools. 4. Install the front propeller shaft. Refer to Front Propeller Shaft Replacement . 5. Check the fluid level. Add fluid, if necessary. 6. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement. 7. Lower the vehicle. REAR OUTPUT SHAFT SEAL REPLACEMENT Tools Required J 45756 Output Shaft Seal Installer. See Special Tools. Removal Procedure
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
