Chevrolet Silverado / GMC Sierra. Manual - part 2778

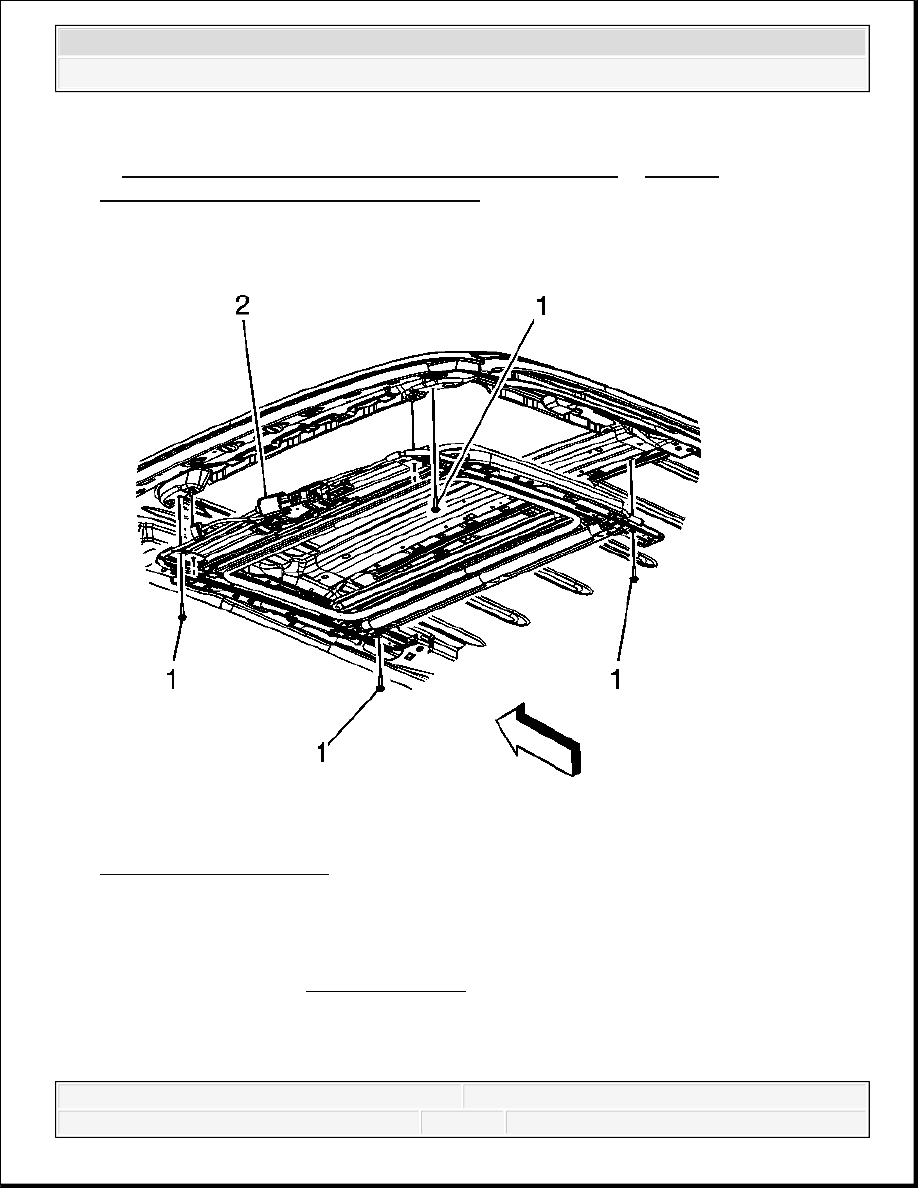

Fig. 24: Locating Module
Courtesy of GENERAL MOTORS CORP.
8. Remove the front to bolts located at the motor base first.
9. With the aid of an assistant, remove the remaining bolts (1) that secure the module (2) to the
roof ring.
Lower and remove the sunroof module assembly out through the passenger side door.
10. If you are replacing the sunroof module assembly, remove the sunroof motor/actuator. Refer
to Sunroof Motor/Actuator Replacement (Extended Cab) or Sunroof
Motor/Actuator Replacement (Crew Cab).
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. If you are replacing the sunroof module assembly, install the sunroof motor/actuator. Refer
to Sunroof Motor/Actuator Replacement (Extended Cab) or Sunroof
Motor/Actuator Replacement (Crew Cab).

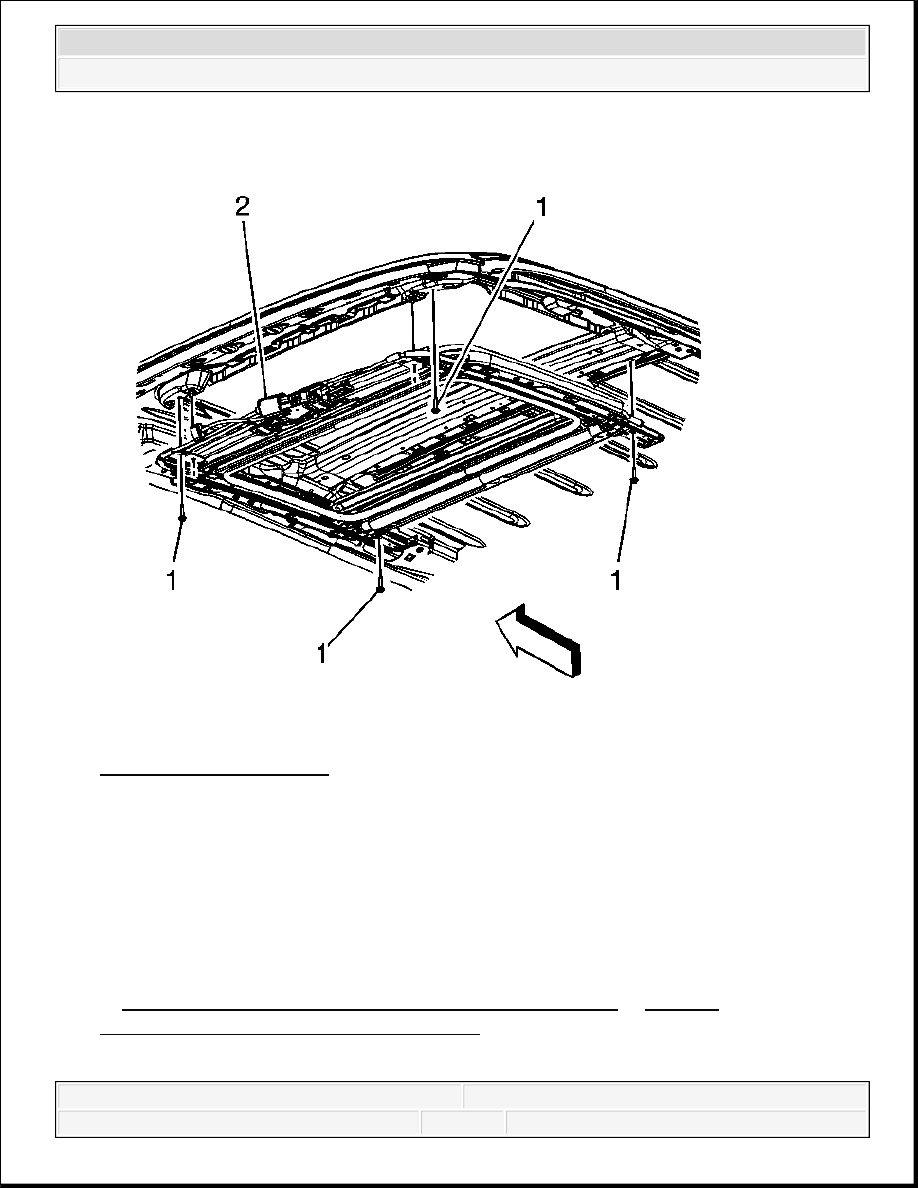

Fig. 25: Locating Module
Courtesy of GENERAL MOTORS CORP.
2. With the aid of an assistant, position the sunroof module assembly to the roof ring.
3. Install the 4 bolts (1) that secure the module (2) to the roof ring.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the bolts to 10 N.m (89 lb in).
4. Install the remaining bolts at the motor base.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

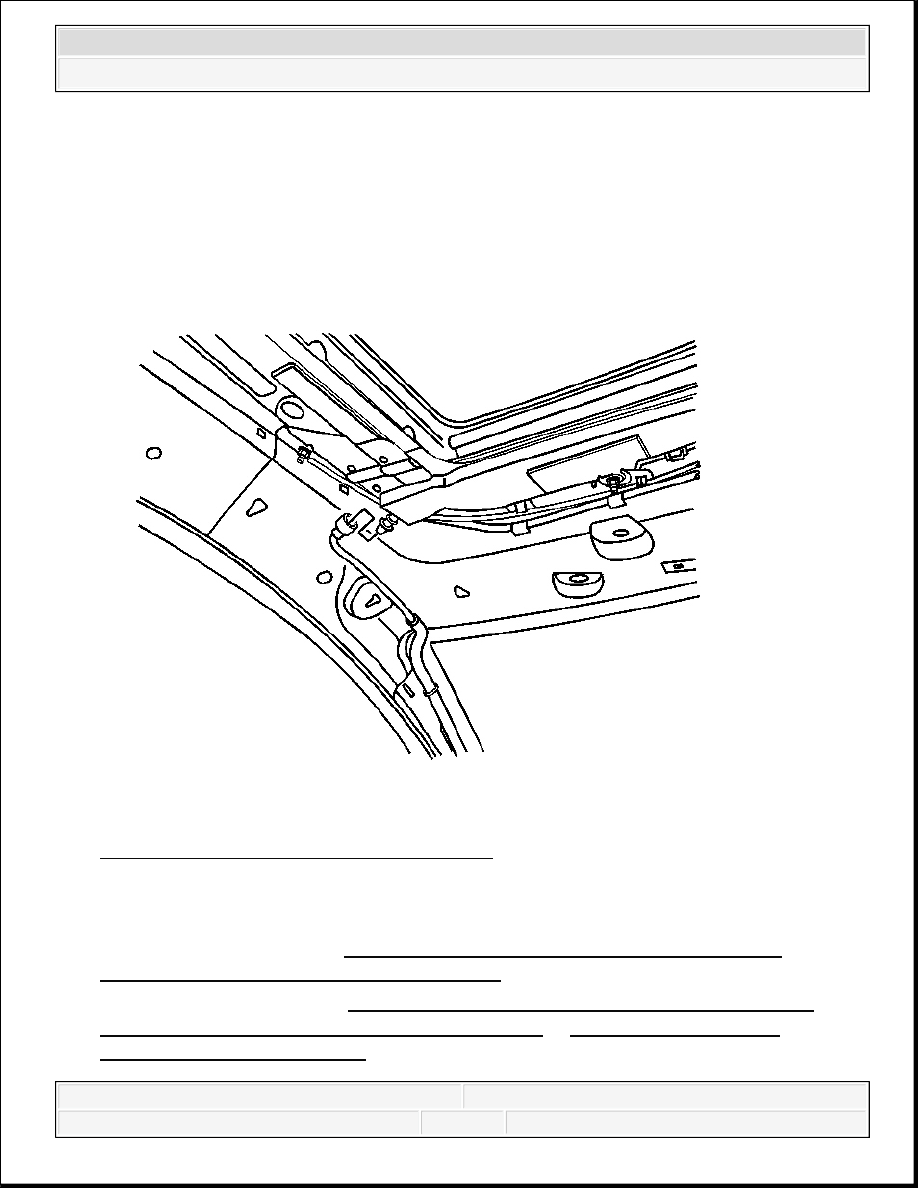

Fig. 26: View Of Sunroof Front Drain Hose
Courtesy of GENERAL MOTORS CORP.
5. Connect the front and rear drain hoses to the drain spigots.
6. Install the sunshade. Refer to Sunroof Sunshade Replacement (Extended Cab) or
Sunroof Sunshade Replacement (Crew Cab).
7. Install the headliner. Refer to Headlining Trim Panel Replacement (Regular Cab) or
Headlining Trim Panel Replacement (Crew Cab) or Headlining Trim Panel
Replacement (Extended Cab) .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Verify that the electrical connector is connected to the sunroof motor/actuator.
8. Install the sunroof window. Adjust as necessary. Refer to Sunroof Window Height and
Opening Fit Adjustment.
9. Initialize the sunroof motor/actuator. Refer to Sunroof Motor/Actuator
Initialization/Teach Process (Extended Cab New Motor) or Sunroof Motor/Actuator
Initialization/Teach Process (Extended Cab Existing Motor) or Sunroof
Motor/Actuator Initialization/Teach Process (Crew Cab Existing Motor) or
Sunroof
Motor/Actuator Initialization/Teach Process (Crew Cab New Motor)
.
10. Install the air deflector. Refer to Sunroof Air Deflector Replacement (Extended Cab)
or Sunroof Air Deflector Replacement (Crew Cab).
11. Install the sunroof finish lace. Refer to Sunroof Opening Trim Finish Lace Replacement
(Extended Cab).
12. Inspect the sunroof for proper operation.
SUNROOF PANEL/WINDOW GARNISH MOLDING REPLACEMENT (CREW CAB)

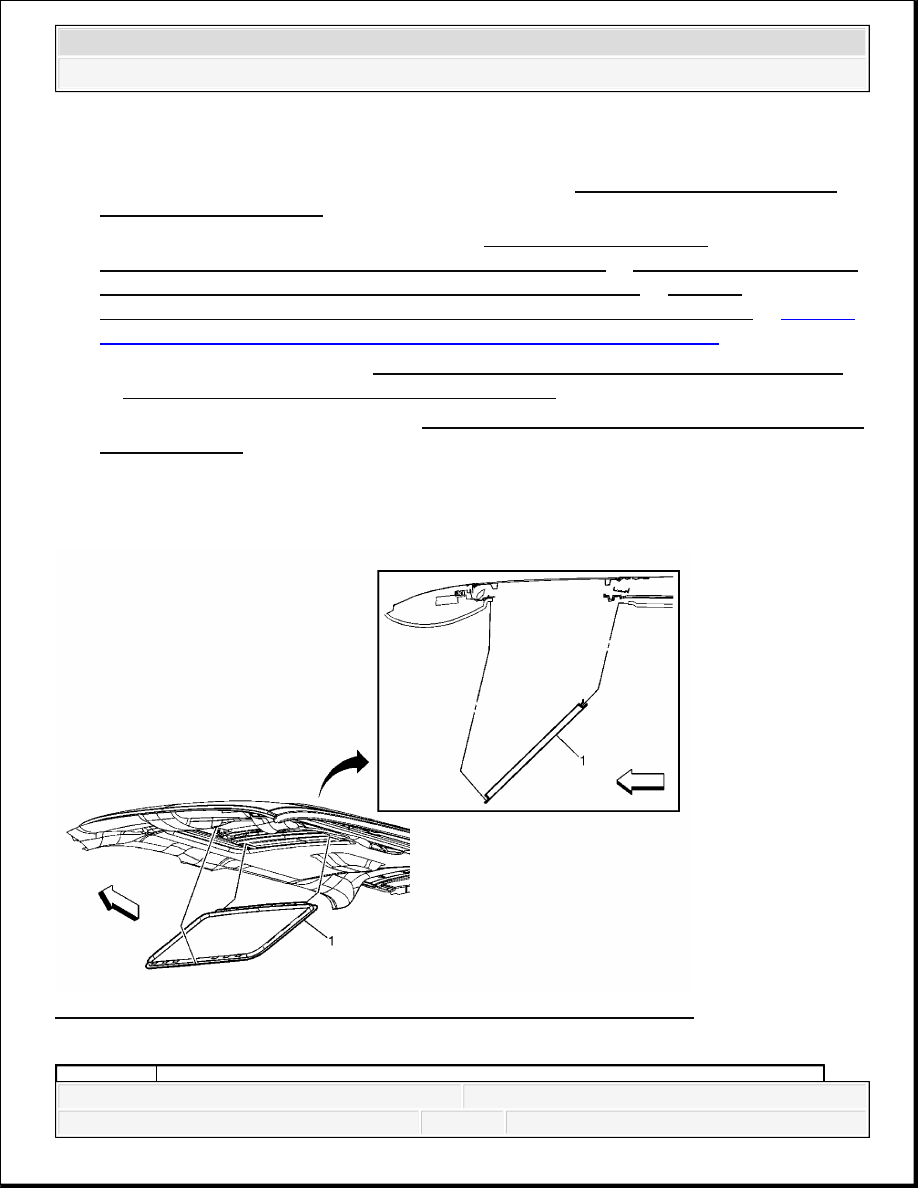

Fig. 27: View Of Sunroof Panel/Window Garnish Molding (Crew Cab)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
