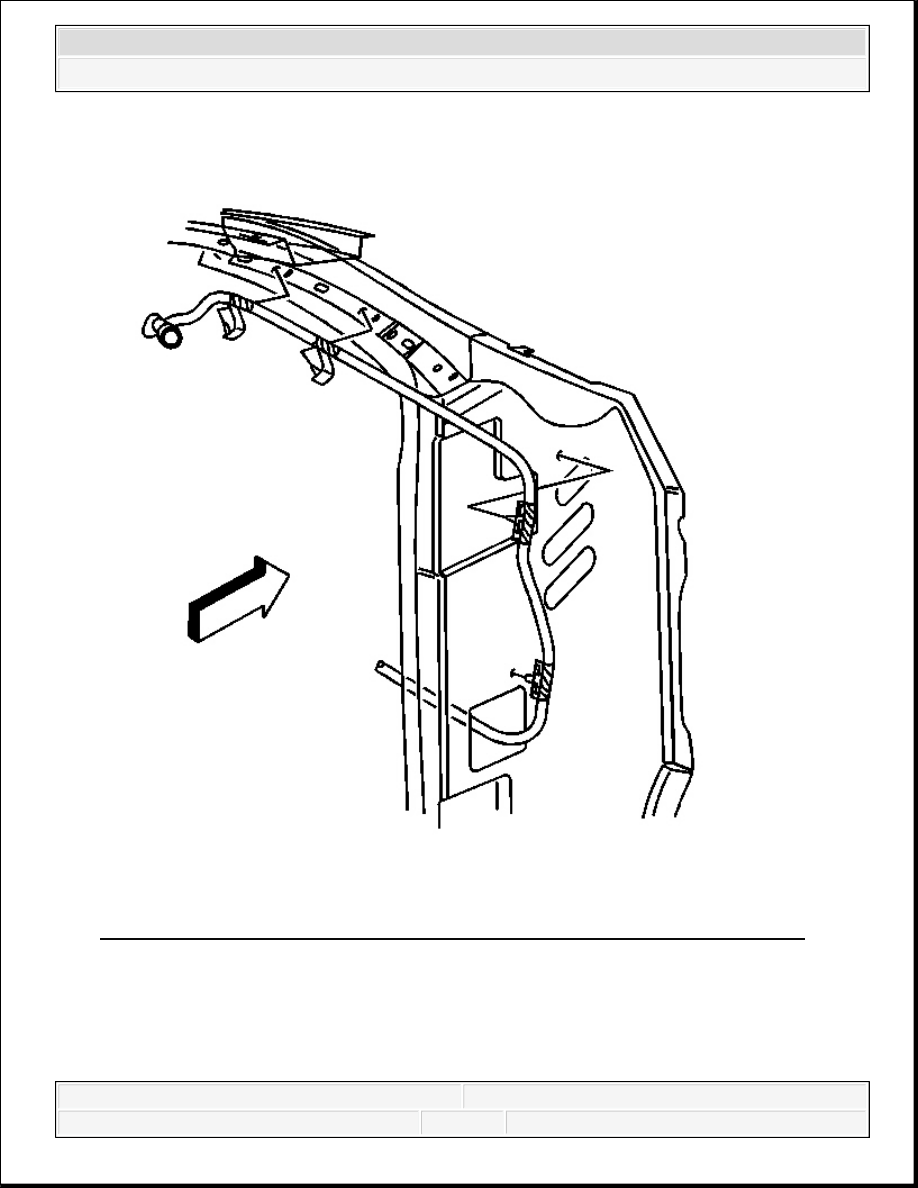

Fig. 12: Hose Clips Securing Drain Hose To Cowl Panel And Side Door Frame
Courtesy of GENERAL MOTORS CORP.
4. Remove the 1 hose clips securing the drain hose to the windshield pillar, right or left side, as
needed.
5. Remove the drain hose from the vehicle, right or left side, as needed.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Installation Procedure

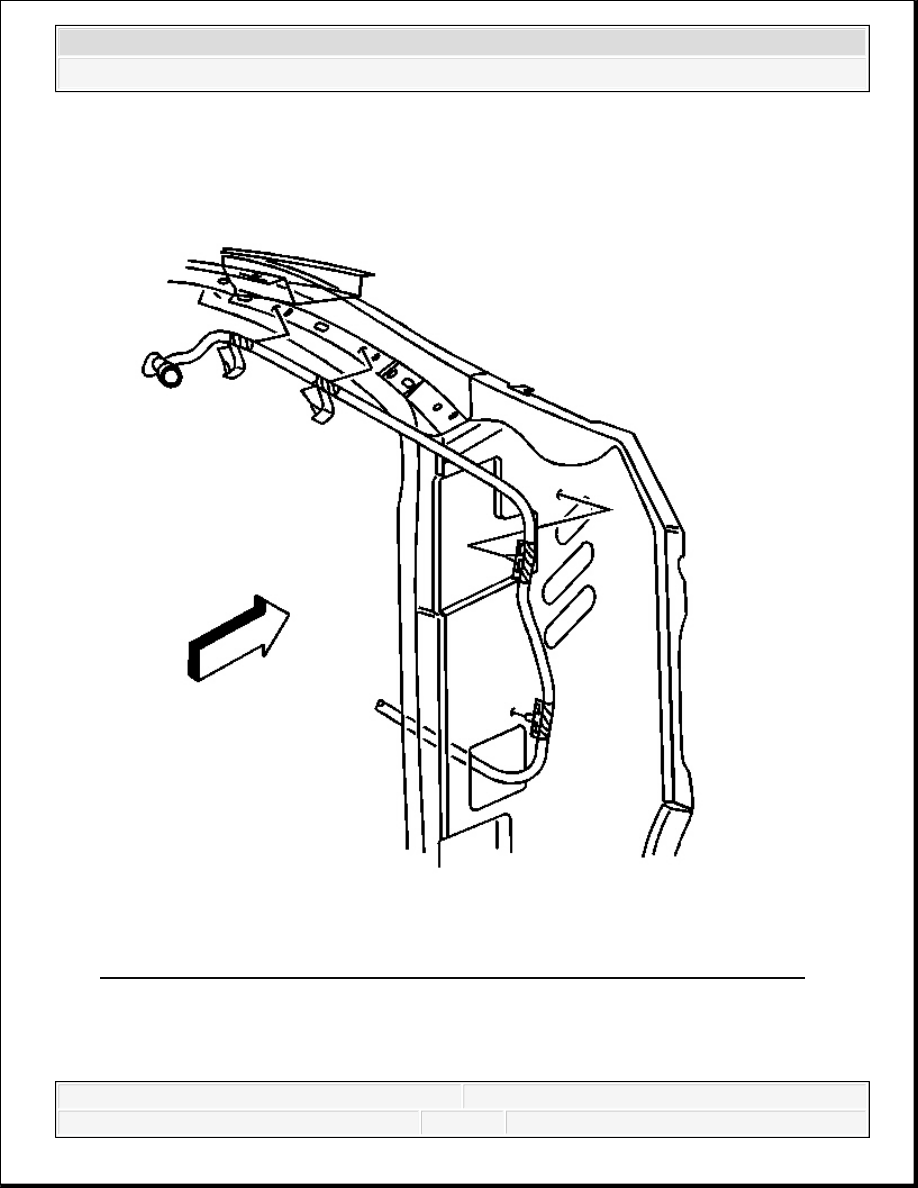

Fig. 13: Hose Clips Securing Drain Hose To Cowl Panel And Side Door Frame
Courtesy of GENERAL MOTORS CORP.
1. Install the drain hose by passing it threw the front of the dash panel.
2. Route the end of the drain hose through side cowl panel until the paint mark is visible, right
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
or left side, as needed.
3. Install the 1 hose clips securing the drain hose to the side door frame, right or left side, as
needed.

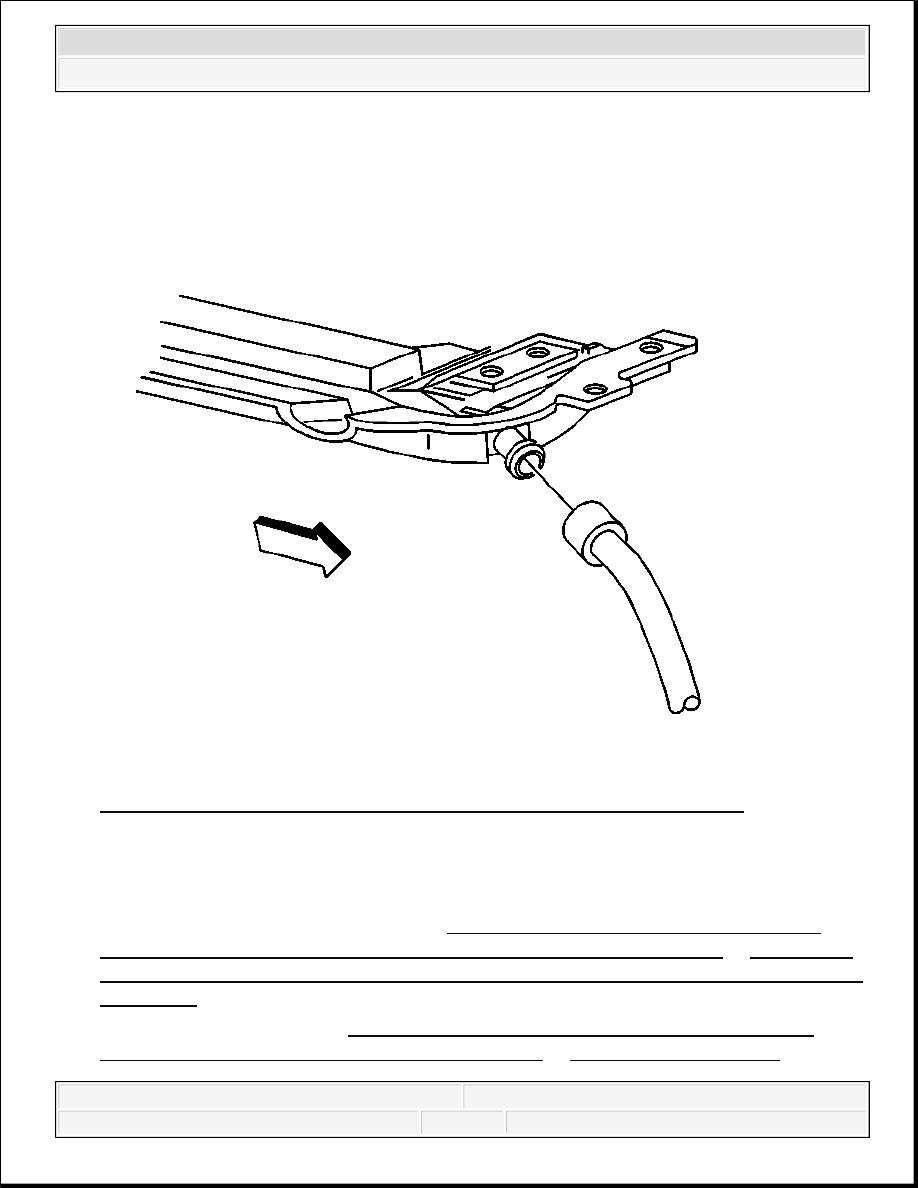

Fig. 14: Front Sunroof Drain Hose From Sunroof Module Front Spigot
Courtesy of GENERAL MOTORS CORP.
4. Connect the front sunroof drain hose to the sunroof module front spigot, right or left side, as
needed.
5. Install the instrument panel trim. Refer to Instrument Panel Upper Trim Panel with
Windshield Defroster Nozzle Grille Replacement (without RPO SLT) or Instrument
Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (with
RPO SLT) .
6. Install the headliner. Refer to Headlining Trim Panel Replacement (Regular Cab) or
Headlining Trim Panel Replacement (Crew Cab) or Headlining Trim Panel
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Sunroof - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Replacement (Extended Cab) .
SUNROOF HOUSING REAR DRAIN HOSE REPLACEMENT
Removal Procedure
1. Lower the headliner. Refer to Headlining Trim Panel Replacement (Regular Cab) or
Headlining Trim Panel Replacement (Crew Cab) or Headlining Trim Panel
Replacement (Extended Cab) .

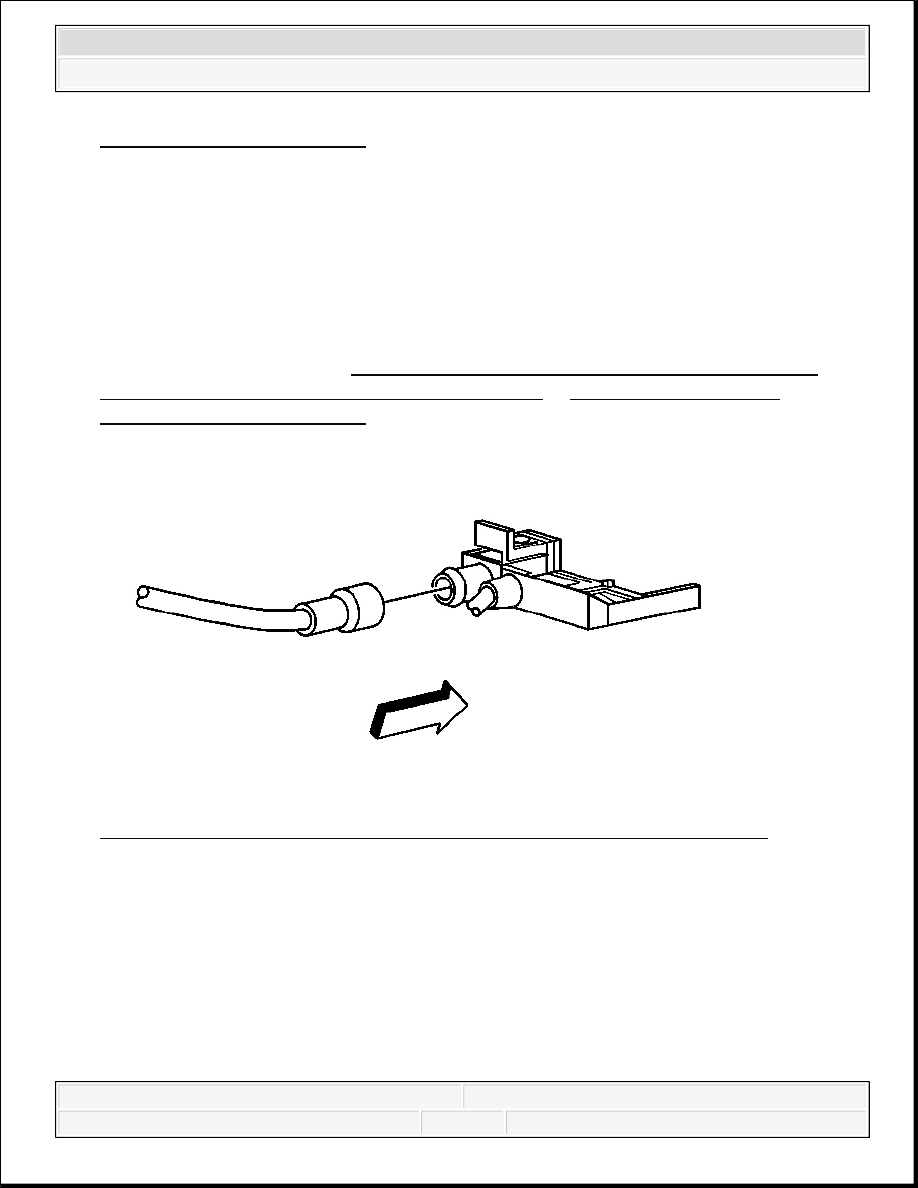

Fig. 15: Rear Sunroof Drain Hose From The Sunroof Module Rear Spigot
Courtesy of GENERAL MOTORS CORP.
2. Disconnect the rear sunroof drain hose from the sunroof module rear spigot, right or left
side, as needed.
IMPORTANT: It is only necessary to lower the headlinder. Only do those
steps in headlinder replacement that will lower the
headlinder enough to grain access.
