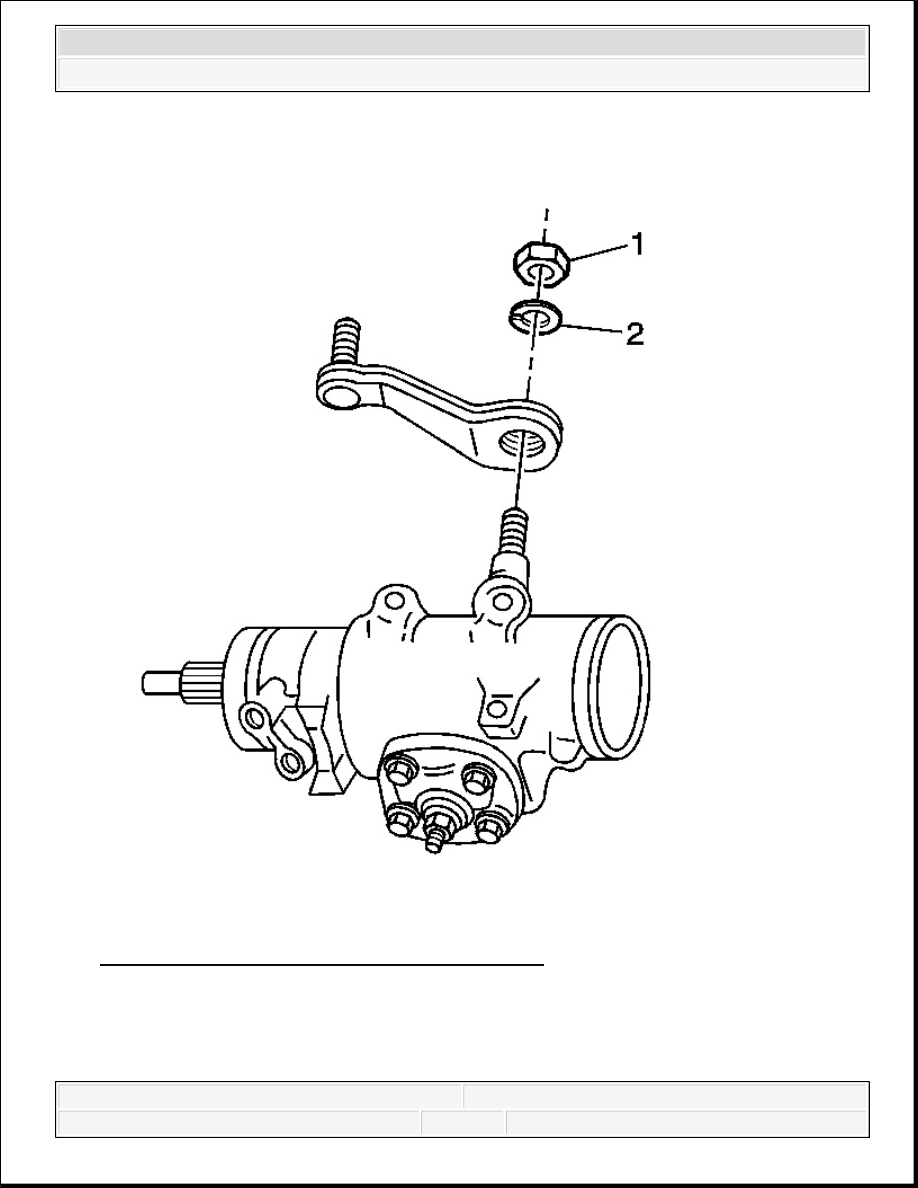

Fig. 33: View Of Steering Gear And Pitman Arm
Courtesy of GENERAL MOTORS CORP.
NOTE:
Refer to Fastener Notice.
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2. Install a new pitman arm washer (2) and nut (1).
Tighten: Tighten the nut to 250 N.m (184 lb ft).
3. Remove the steering gear from the vise.
4. Install the steering gear. Refer to Steering Gear Replacement (Rack and Pinion) or
Steering Gear Replacement (Non-Rack and Pinion) .
5. Adjust the front toe. Refer to Front Toe Adjustment .
DESCRIPTION AND OPERATION
STEERING LINKAGE DESCRIPTION AND OPERATION
The steering linkage consists of the following components:
A pitman arm
An idler arm
A relay rod
2 adjustable tie rods
When you turn the steering wheel, the steering gear rotates the pitman arm which forces the relay
rod to one side. The tie rods connect to the relay rod with the ball studs. The tie rods transfer the
steering force to the wheels. Use the tie rods in toe adjustments. The tie rods are adjustable. The
pitman arm support the relay rod. The idler arm pivots on a support attached to the frame rail and
the ball stud attaches to the relay rod.
The 2 tie rod are threaded into the tube and secured with jam nuts. Right and left hand threads are
used in order to permit the adjustment of toe.

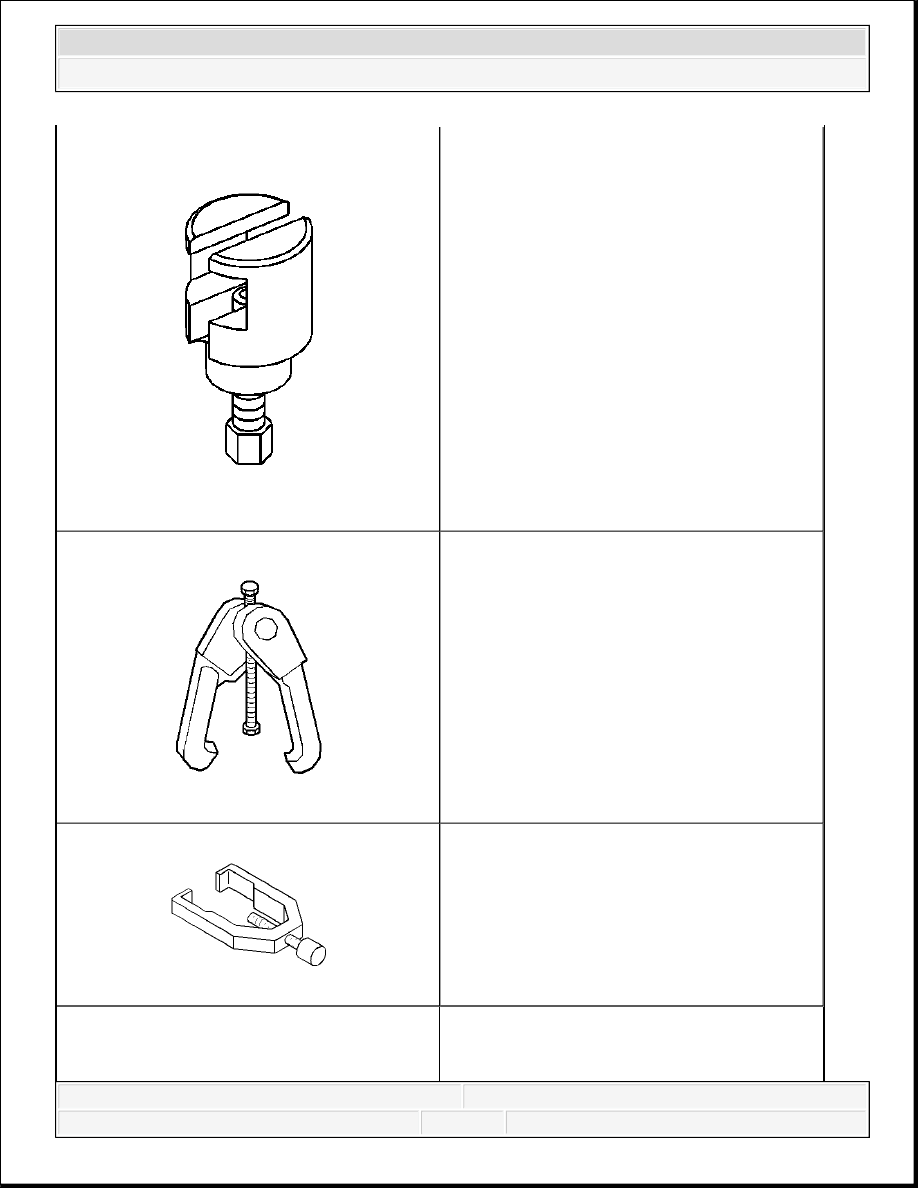

SPECIAL TOOLS AND EQUIPMENT

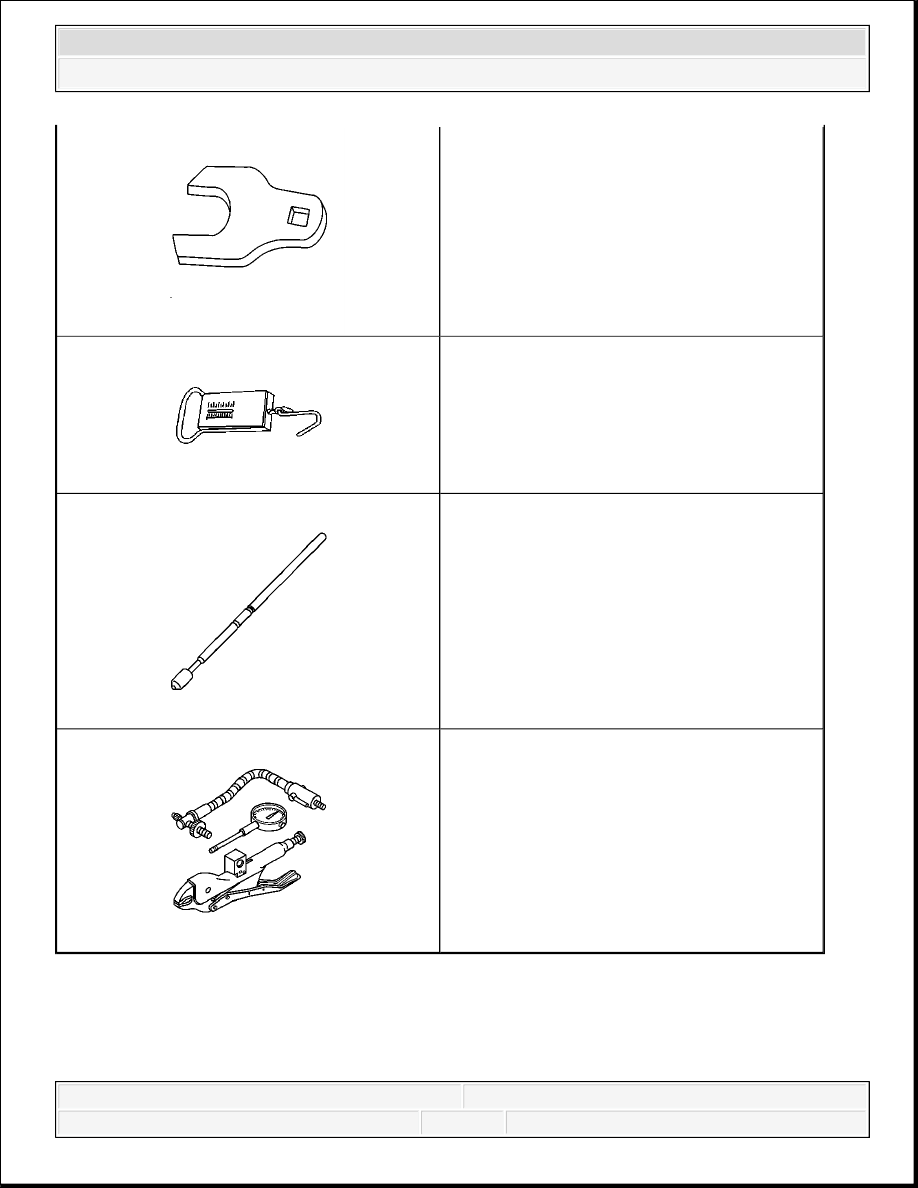

SPECIAL TOOLS
Illustration
Tool Number/ Description
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
J 6632-01
Pitman Arm Puller
J 24319-B
Steering Linkage and Tie Rod Puller
J 29107-A
Pitman Arm Puller
