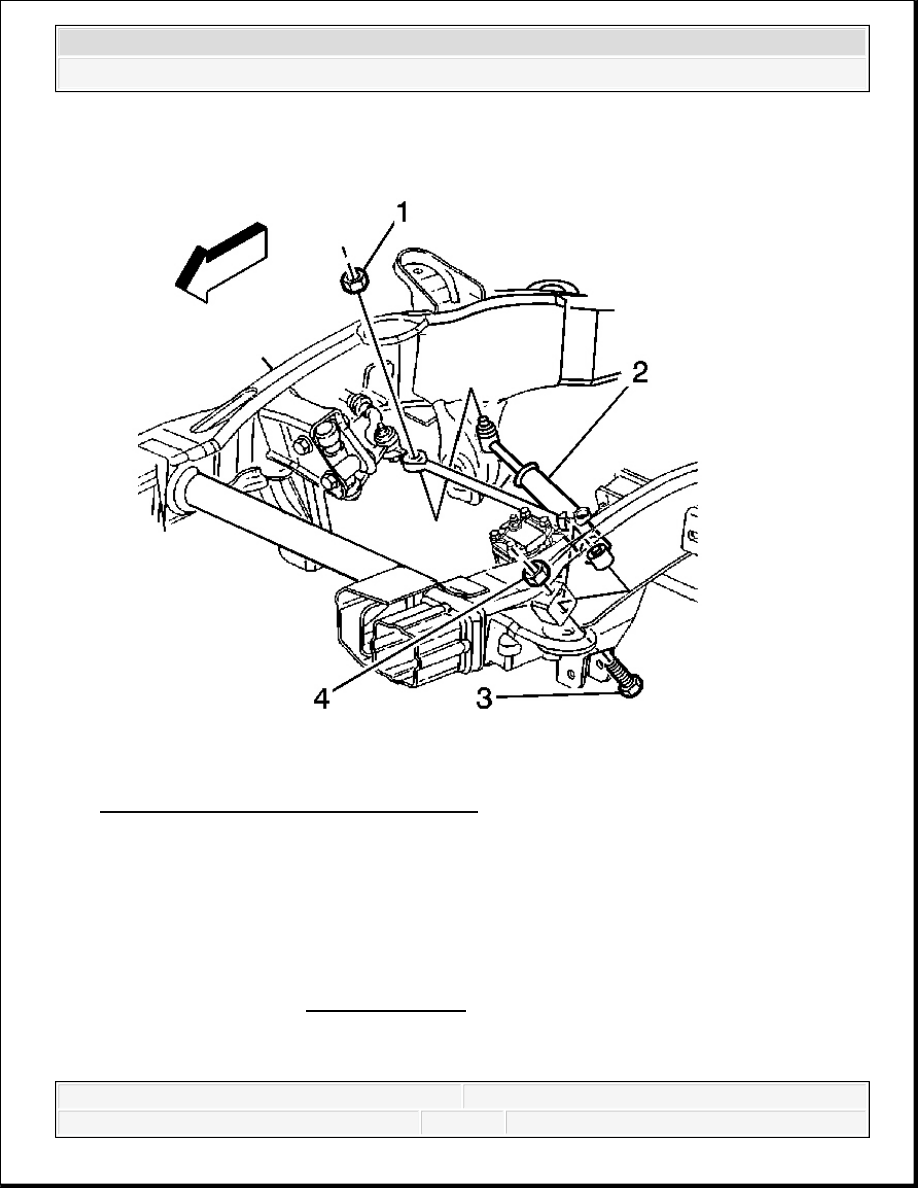

Fig. 30: View Of Linkage Shock Absorber
Courtesy of GENERAL MOTORS CORP.
1. Install the steering linkage shock absorber (2) to the vehicle.
2. Install the steering linkage shock absorber (4) and nuts (1, 3).
3. Tighten the steering linkage shock absorber nuts (1, 3).
IMPORTANT: Use new steering linkage shock absorber nuts.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the nuts to 40 N.m (30 lb ft).
4. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
PITMAN ARM REPLACEMENT
Tools Required
J 6632-01 Pitman Arm Puller. See Special Tools.
J 29107-A Pitman Arm Puller. See Special Tools.
Removal Procedure
1. Remove the steering gear. Refer to Steering Gear Replacement (Rack and Pinion) or
Steering Gear Replacement (Non-Rack and Pinion) .
2. Place the steering gear into a vise.
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

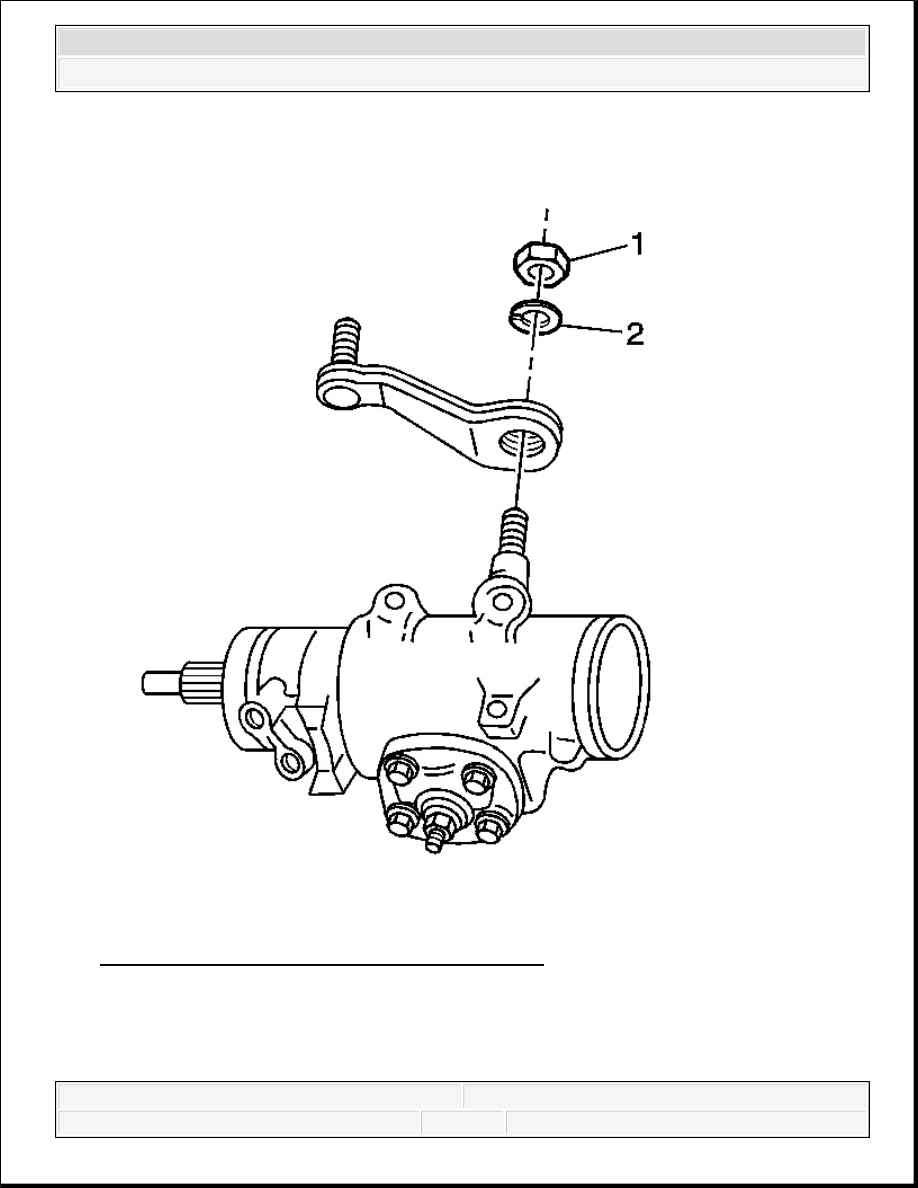

Fig. 31: View Of Steering Gear And Pitman Arm
Courtesy of GENERAL MOTORS CORP.
3. Remove the pitman arm nut (1) and washer (2).
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 32: Remove Pitman Arm From Power Steering Gear (Non Rack and Pinion)
Courtesy of GENERAL MOTORS CORP.

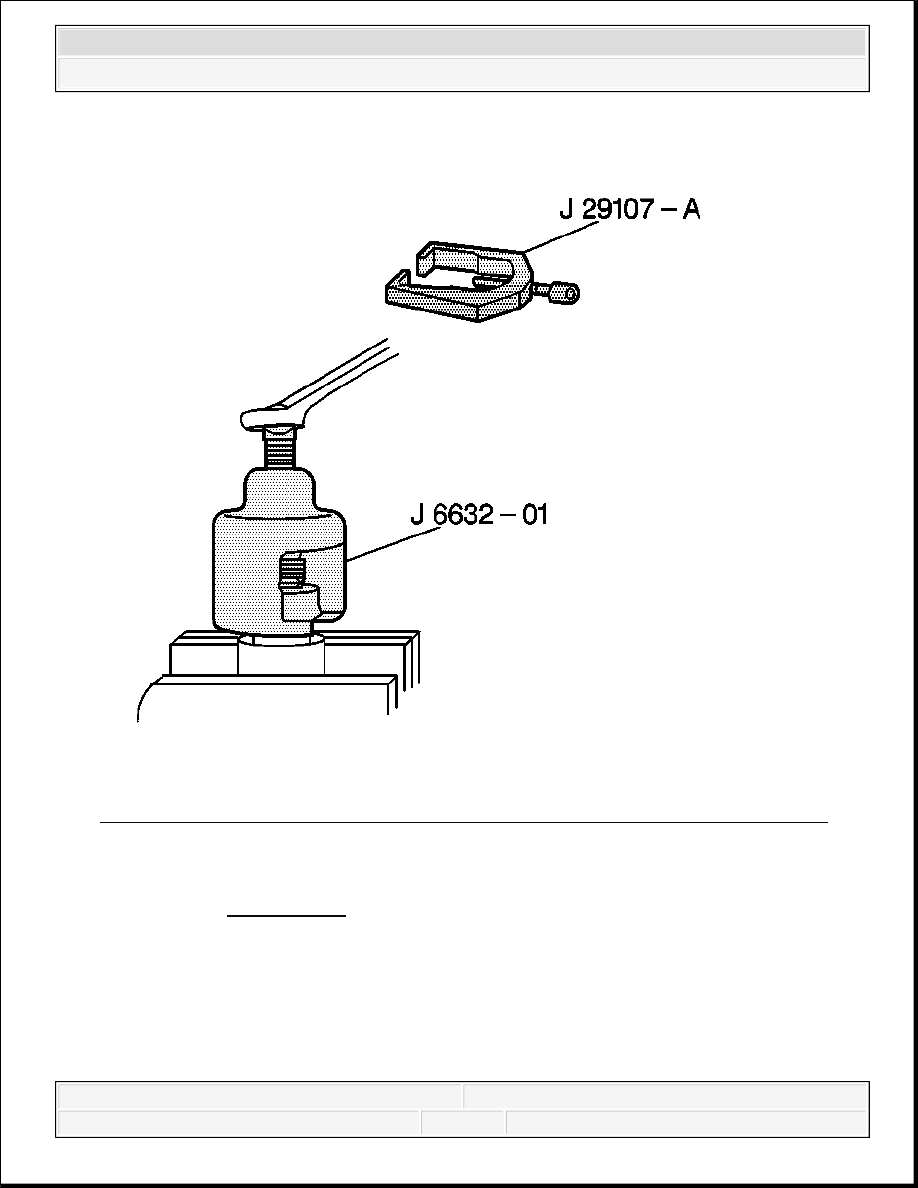

4. Remove the pitman arm from the pitman arm shaft using puller J 6632-01 or puller J
29107-A . See Special Tools.
Installation Procedure
1. Install the pitman arm onto the steering gear.
