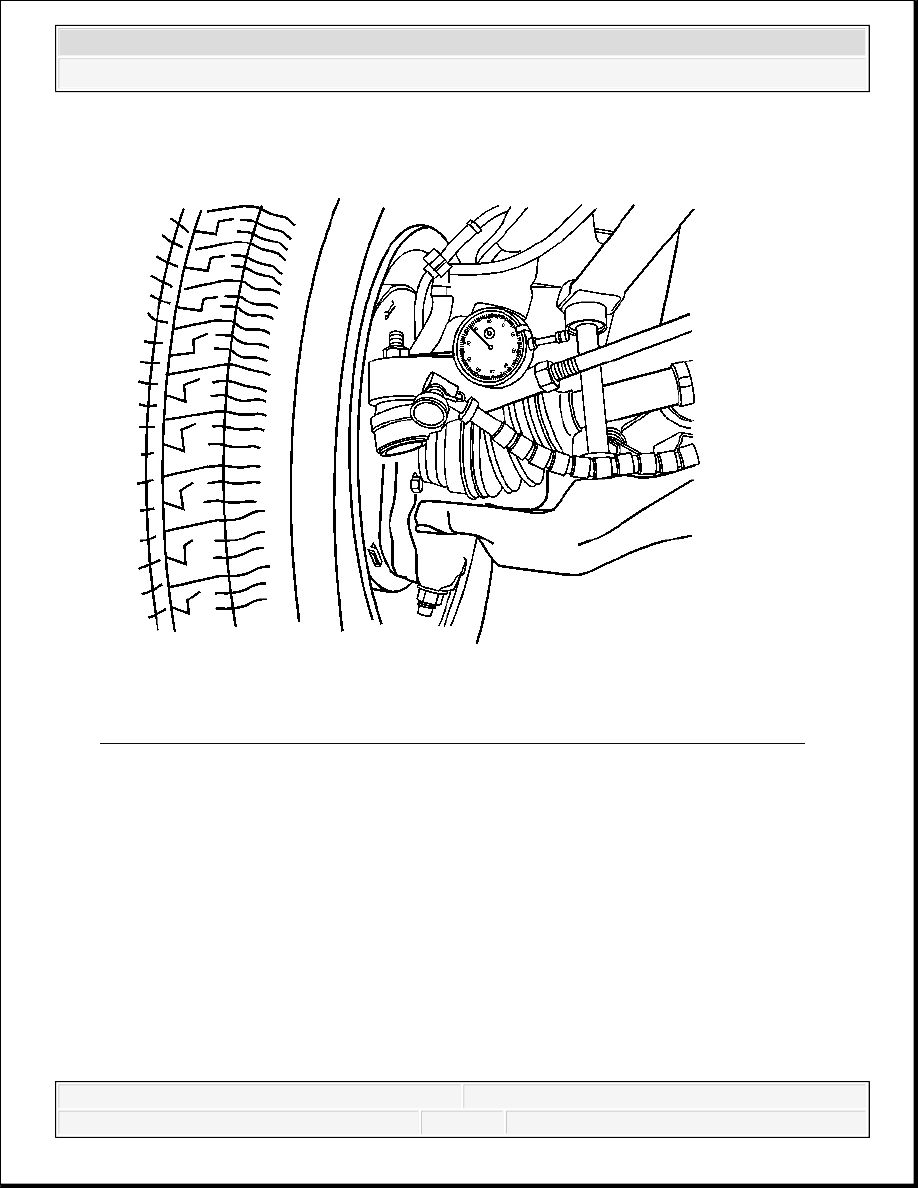

Fig. 7: Installing Dial Indicator Between Outer Tie Rod And Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
10. Install a dial indicator between the steering linkage outer tie rod and the steering knuckle as
shown and push slowly inward with one hand to remove the lash.
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

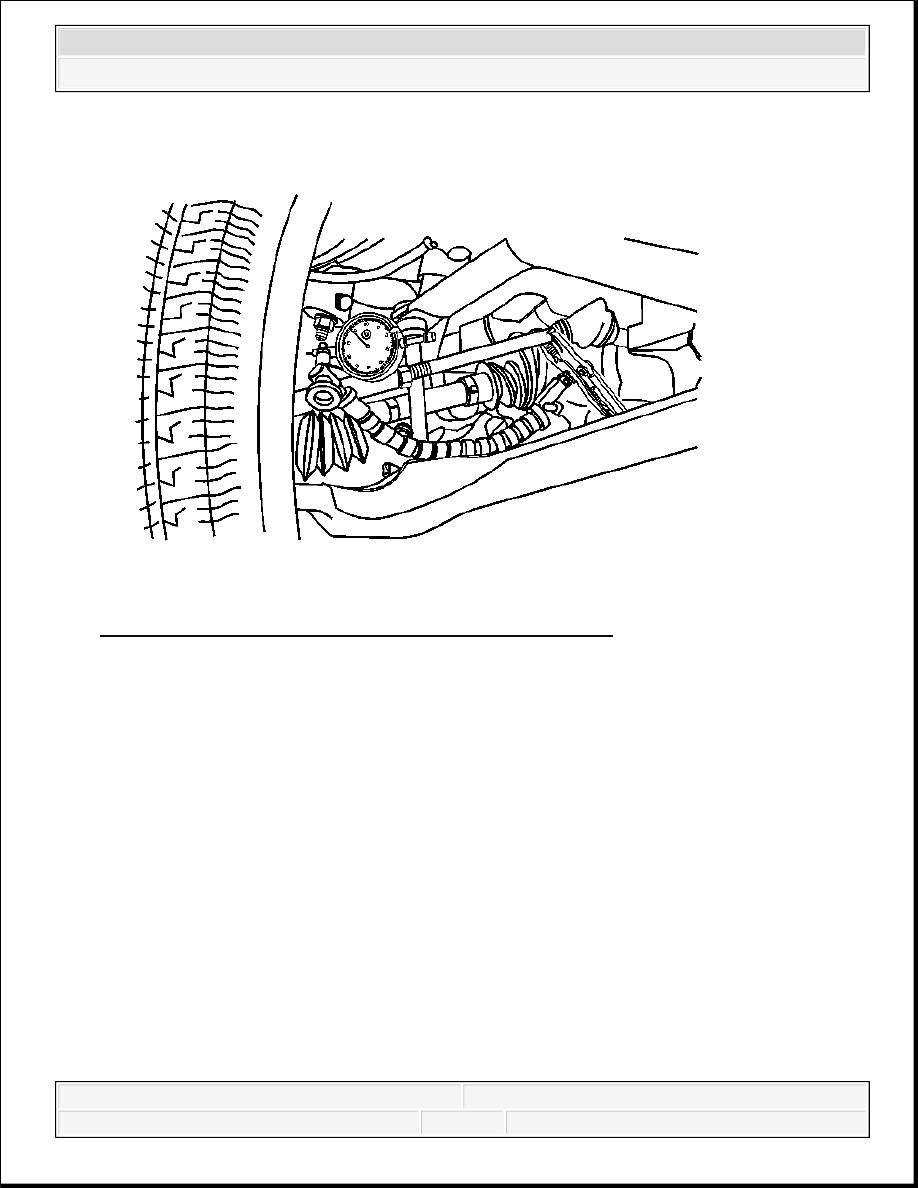

Fig. 8: Noting Amount Of Movement In Right Side Joint
Courtesy of GENERAL MOTORS CORP.
11. Place the dial indicator at zero, pull outward, and note the amount of movement in the joint.
The movement should not exceed 1.0 mm (0.039 in).
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

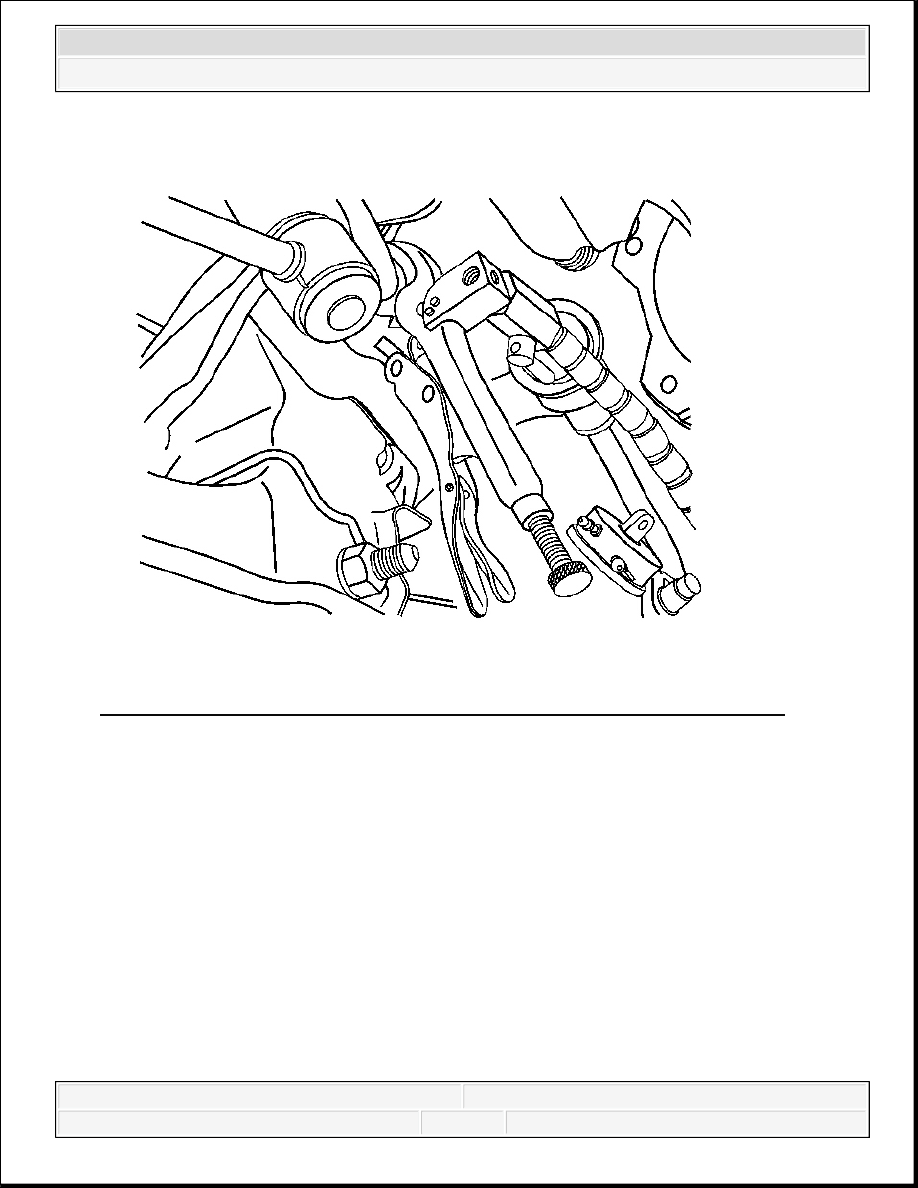

Fig. 9: Installing Dial Indicator Between Outer Tie Rod End And Relay Rod
Courtesy of GENERAL MOTORS CORP.
12. Install the dial indicator between the steering linkage outer tie rod end and the relay rod as
shown and push slowly inward with one hand to remove the lash.
2008 Chevrolet Silverado 1500
2008 STEERING Steering Linkage - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

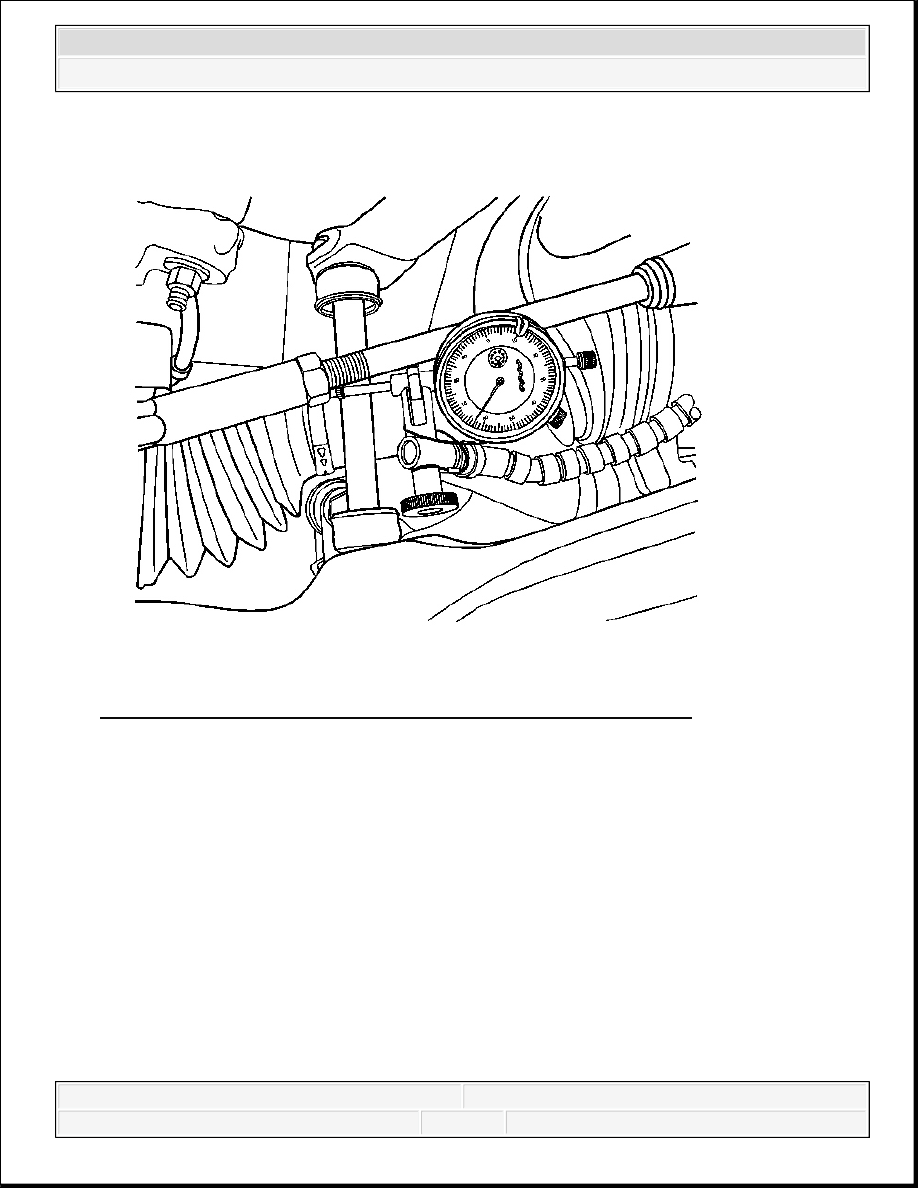

Fig. 10: Noting Amount Of Movement In Right Side Tie Rod End
Courtesy of GENERAL MOTORS CORP.
13. Place the dial indicator at zero, pull outward, and note the amount of movement in the joint.
The movement should not exceed 1.0 mm (0.039 in).
STEERING LINKAGE OUTER TIE ROD REPLACEMENT
