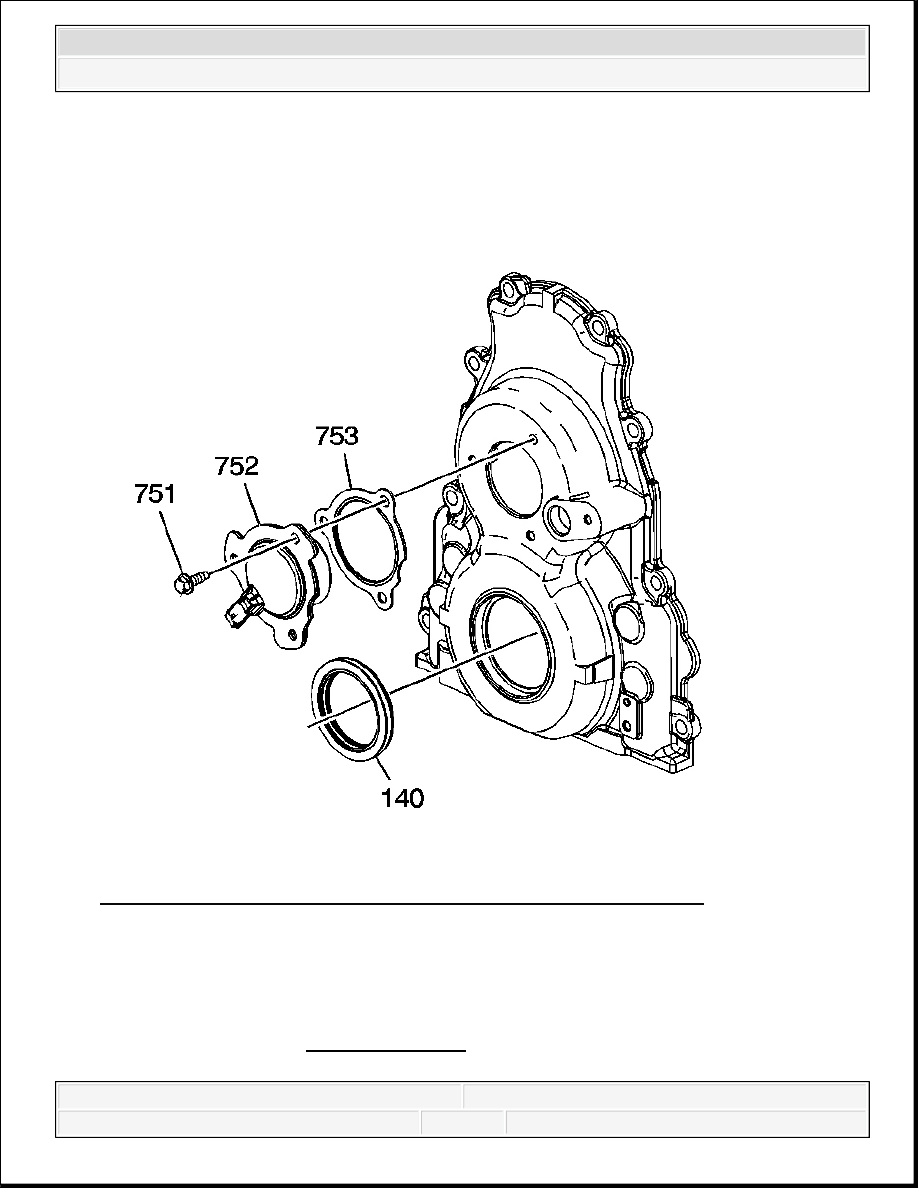

Fig. 142: View Of CMP Actuator Magnet, Bolts, Gasket & Oil Seal 1. Install a NEW CMP actuator magnet gasket (753) onto the CMP actuator magnet. 2. Install the CMP actuator magnet (752) to the front cover. IMPORTANT: The gasket surface should be free of oil or other foreign material during assembly. NOTE: Refer to Fastener Notice .
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

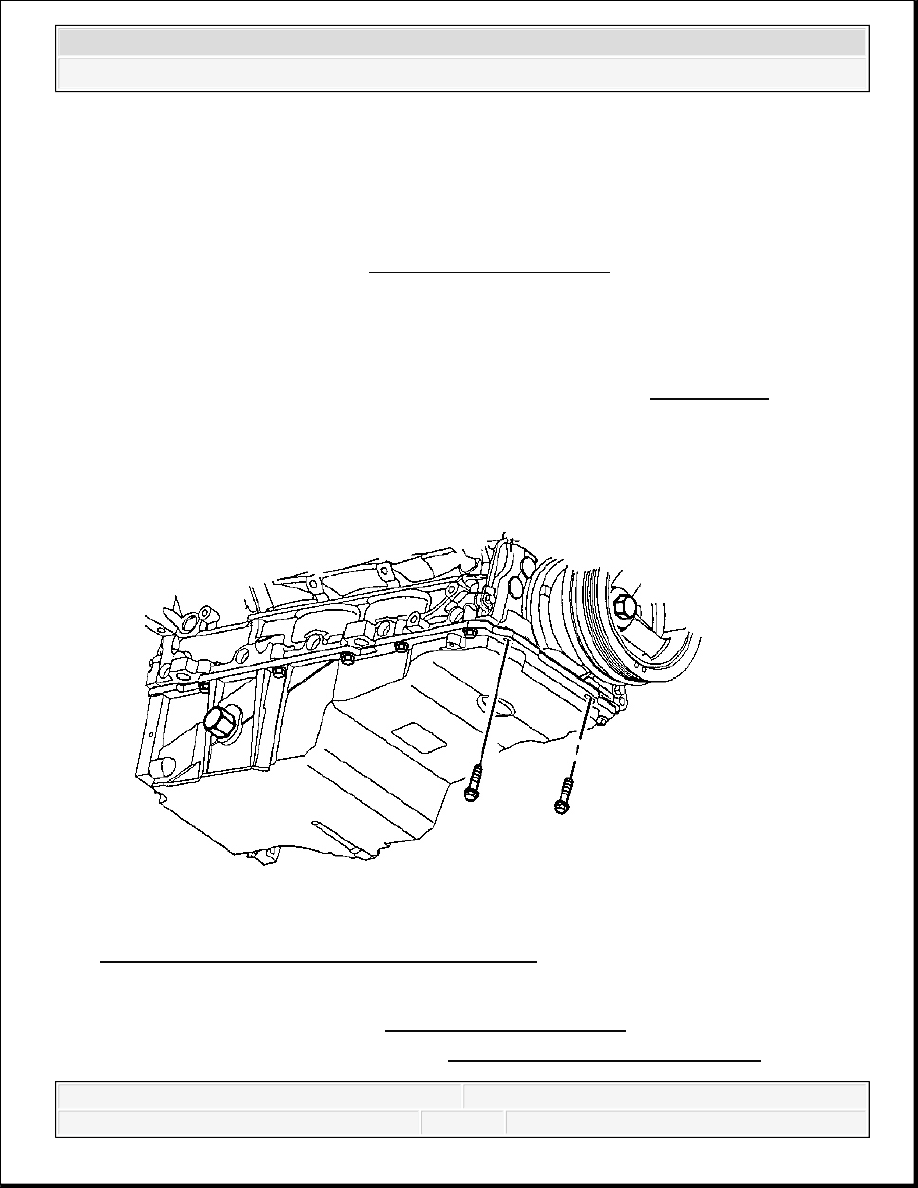

3. Install the CMP actuator magnet bolts (751). Tighten: Tighten the bolts to 12 N.m (106 lb in). 4. Connect the engine harness electrical connector to the CMP actuator magnet. 5. Install the water pump. Refer to Water Pump Replacement . ENGINE FRONT COVER REPLACEMENT Special Tools J 41476 Front and Rear Cover Alignment (at crankshaft seal area). See Special Tools. Removal Procedure Fig. 143: View Of Oil Pan-To-Front Cover Bolts 1. Remove the water pump. Refer to Water Pump Replacement . 2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement.
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

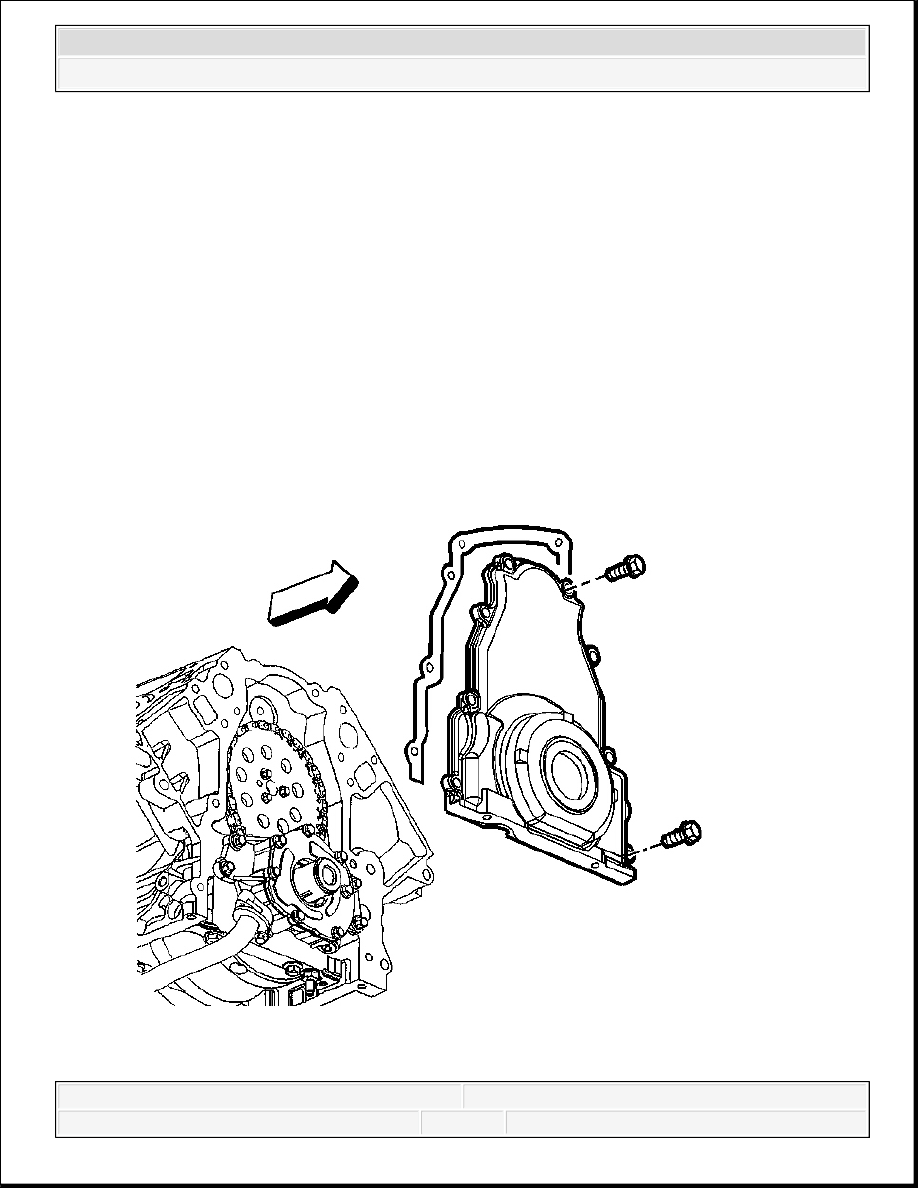

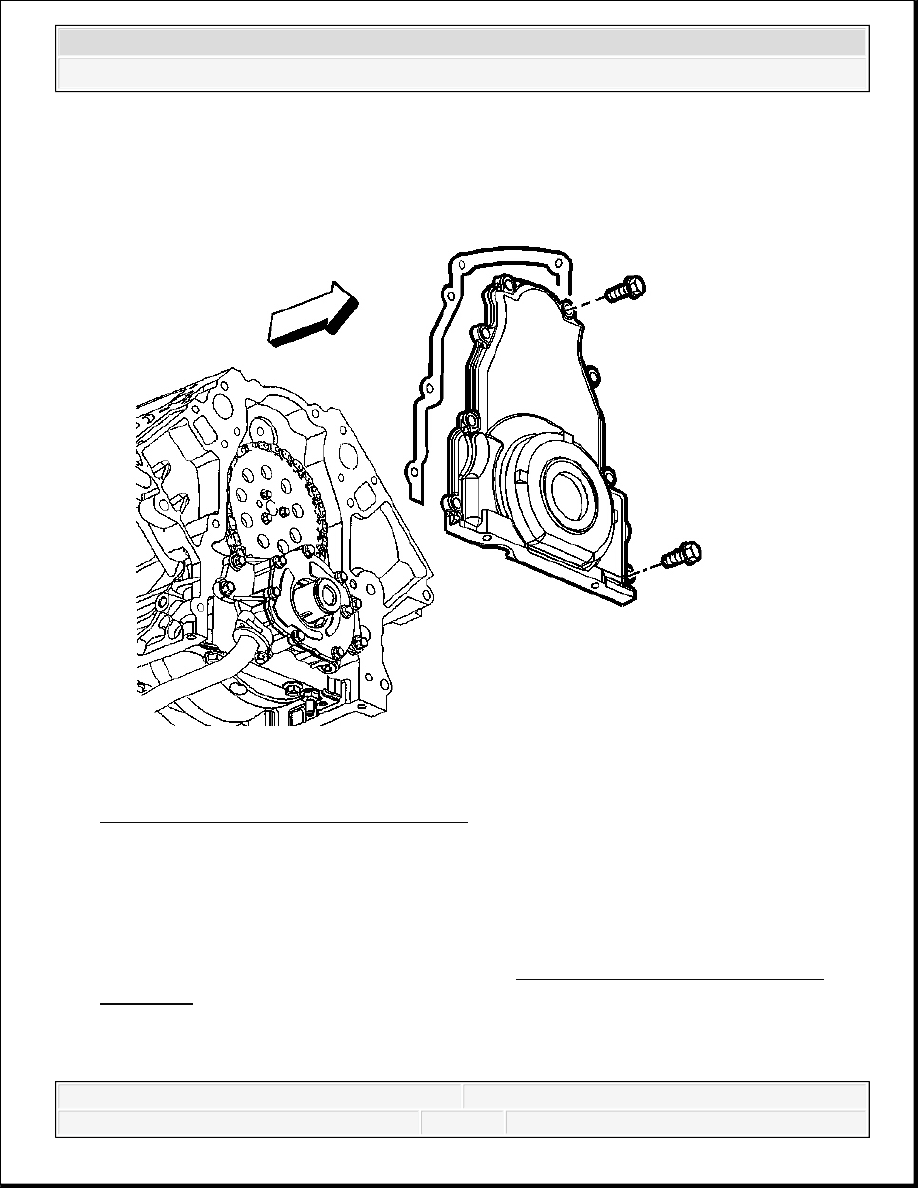

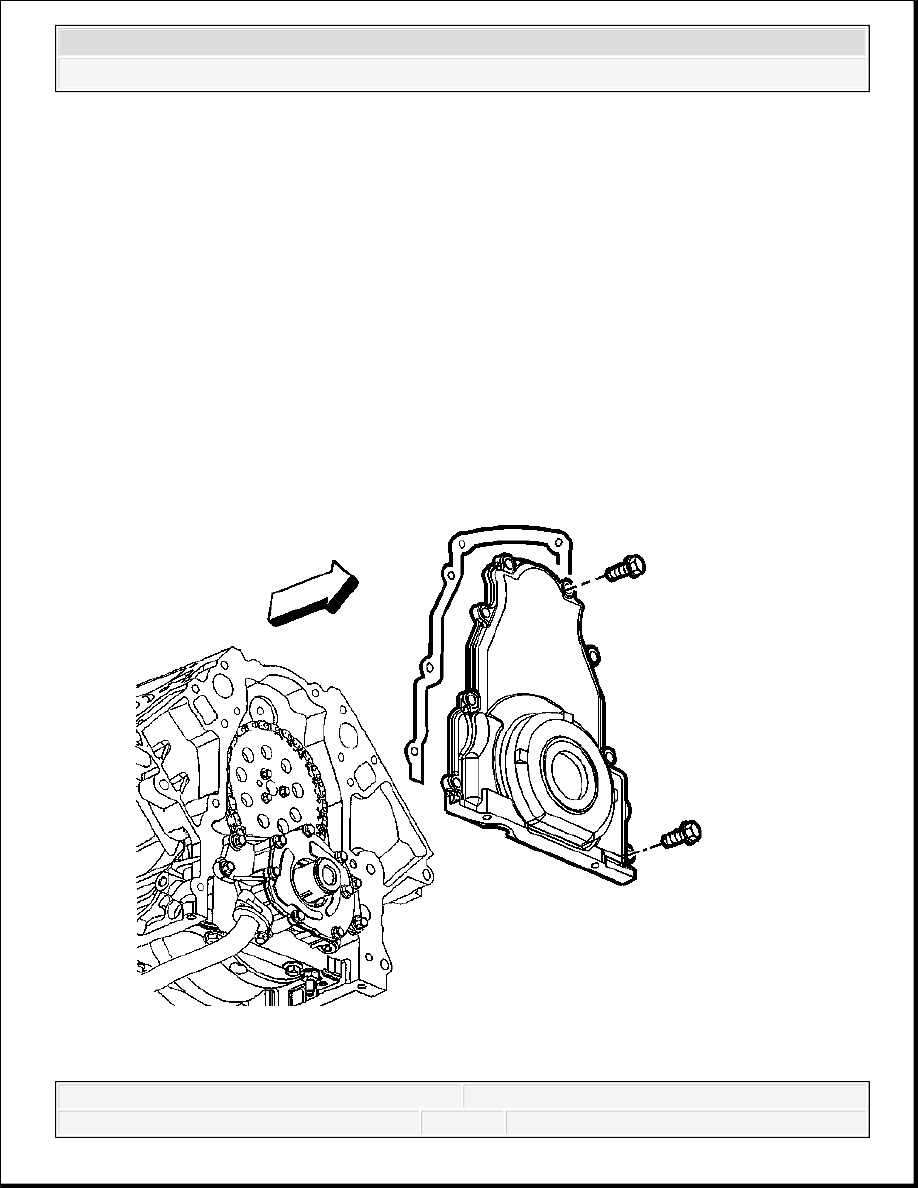

3. Remove the oil pan-to-front cover bolts. Fig. 144: View Of Front Cover & Gasket 4. Remove the front cover bolts. 5. Remove the front cover and gasket. 6. Discard the front cover gasket. 7. Clean and inspect the engine front cover. Refer to Engine Front Cover Cleaning and Inspection. Installation Procedure
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2
IMPORTANT: Do not reuse the crankshaft oil seal or front cover gasket. Do not apply any type of sealant to the front cover gasket, The special tool in this procedure is used to properly center All gasket surfaces should be free of oil or other foreign The crankshaft front oil seal MUST be centered in An improperly aligned front cover may cause premature
