Chevrolet Silverado / GMC Sierra. Manual - part 2703

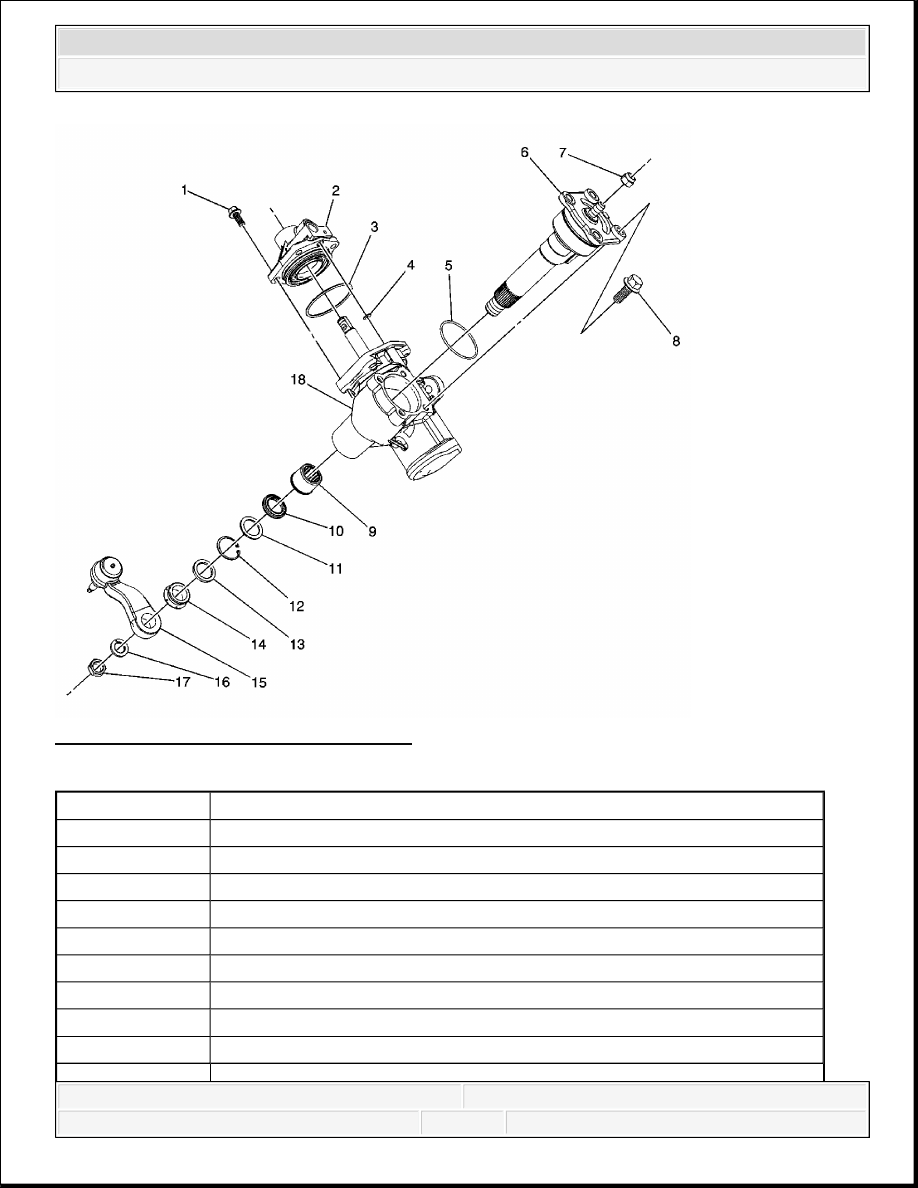

Fig. 1: Identifying Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Stub Shaft Housing Bolt
2
Stub Shaft Housing
3
Stub Shaft Housing O-Ring
4
Stub Shaft Housing O-Ring
5
Steering Gear Pitman Shaft Housing Cover O-Ring
6
Steering Gear Pitman Shaft and Housing Cover
7
Steering Gear Pitman Shaft Lash Adjuster Nut
8
Steering Gear Pitman Shaft Housing Cover Bolt
9
Steering Gear Pitman Shaft Bearing
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
POWER STEERING GEAR DISASSEMBLED VIEW (RACK AND PINION)
10
Steering Gear Pitman Shaft Seal
11
Steering Gear Pitman Shaft Washer
12
Steering Gear Pitman Shaft Seal Retaining Ring
13
Dust Seal
14
Pitman Arm Boot
15
Pitman Arm
16
Pitman Arm Washer
17
Pitman Arm Nut
18
Steering Gear Housing
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

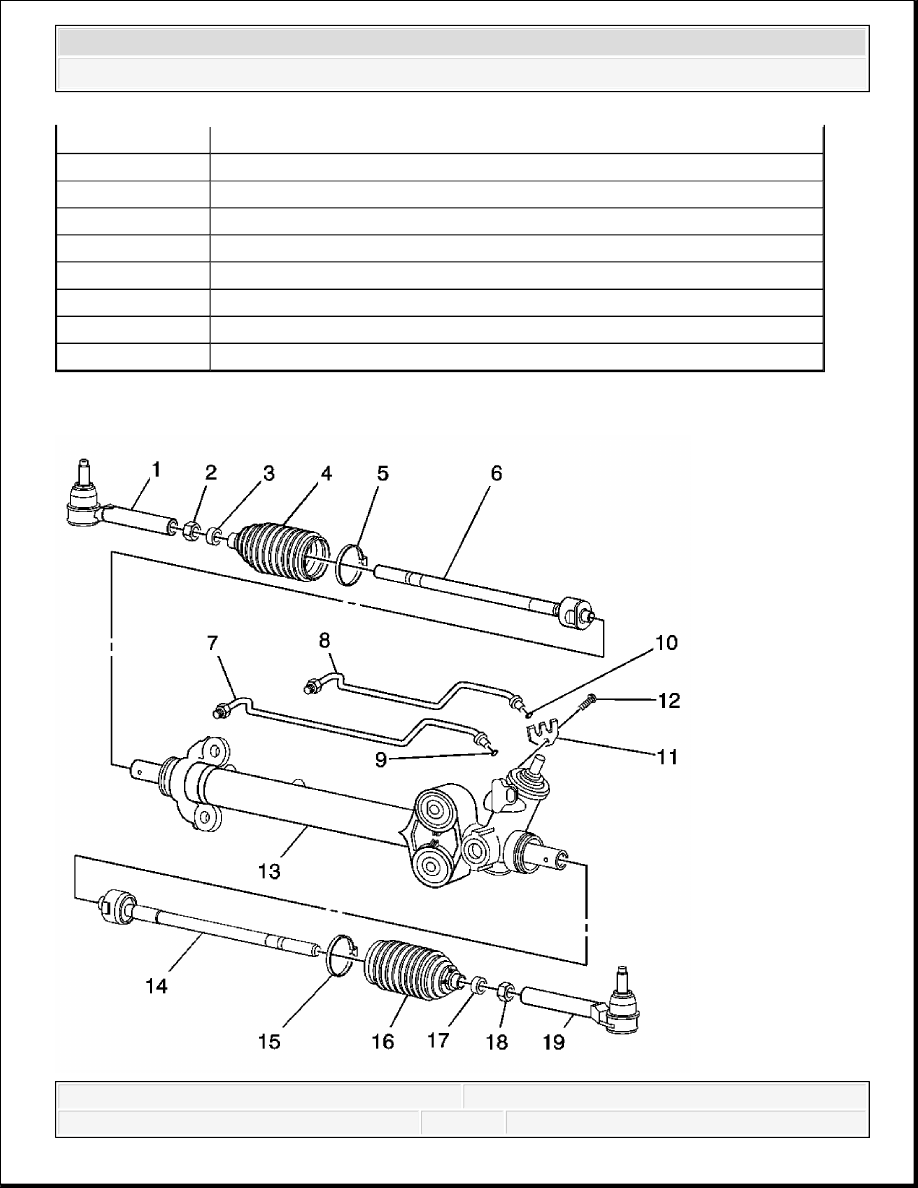

Fig. 2: Power Steering Gear Components
Courtesy of GENERAL MOTORS CORP.
POWER STEERING PUMP DISASSEMBLED VIEW
Callout
Component Name
1
Steering Linkage Outer Tie Rod
2
Steering Linkage Inner Tie Rod Nut
3
Steering Gear Boot Clamp
4
Steering Gear Boot
5
Steering Gear Boot Clamp
6
Steering Linkage Inner Tie Rod
7
Steering Gear Cylinder Pipe
8
Steering Gear Cylinder Pipe
9
Steering Gear Cylinder Pipe Seal
10
Steering Gear Cylinder Pipe Seal
11
Power Steering Gear Inlet Hose Retaining Plate
12
Power Steering Gear Inlet Hose Retaining Plate Bolt
13
Steering Gear
14
Steering Linkage Inner Tie Rod
15
Steering Gear Boot Clamp
16
Steering Gear Boot
17
Steering Gear Boot Clamp
18
Steering Linkage Inner Tie Rod Nut
19
Steering Linkage Outer Tie Rod
2008 Chevrolet Silverado 1500
2008 STEERING Power Steering - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

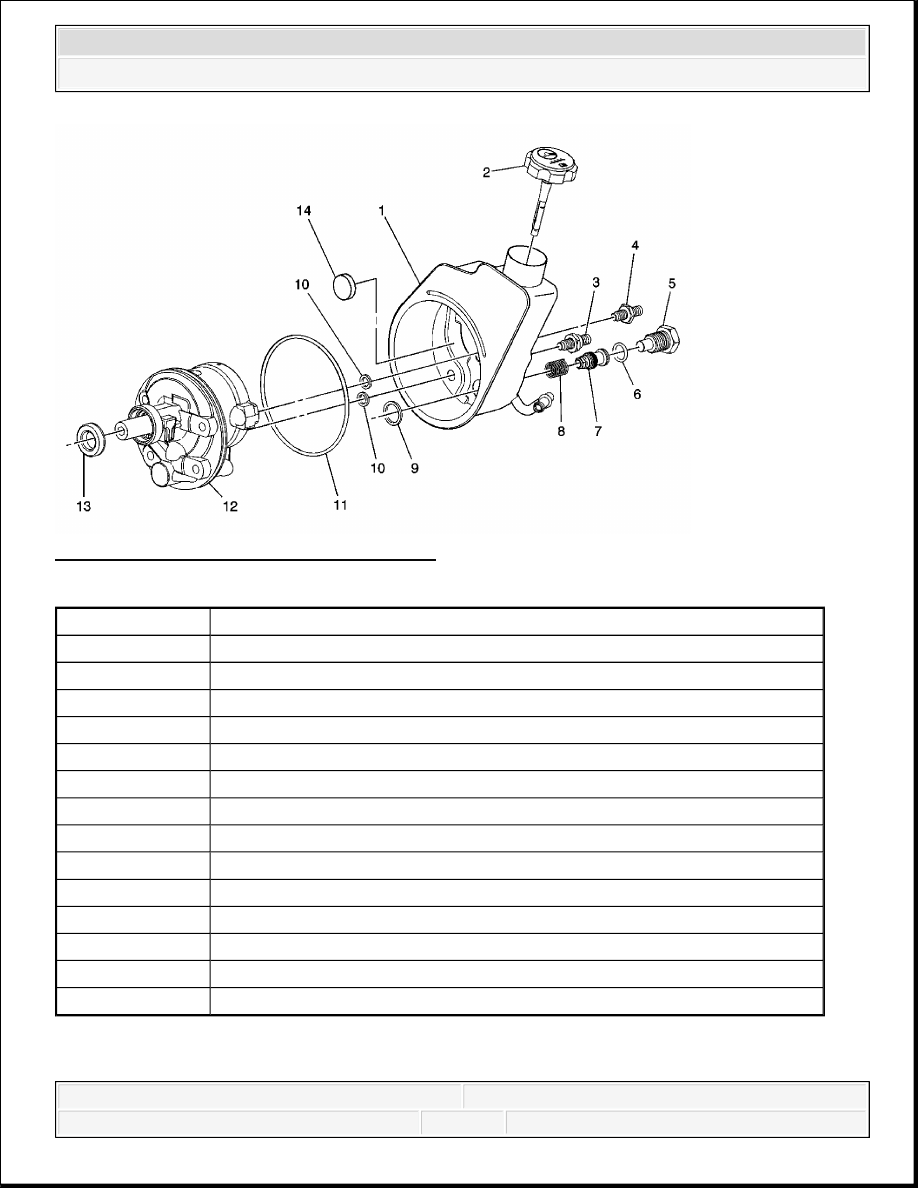

Fig. 3: Power Steering Pump Components
Courtesy of GENERAL MOTORS CORP.
DIAGNOSTIC INFORMATION AND PROCEDURES
Callout
Component Name
1
Power Steering Fluid Reservoir
2
Power Steering Fluid Reservoir Cap
3
Power Steering Fluid Reservoir Stud
4
Power Steering Fluid Reservoir Stud
5
Power Steering Pump Fitting
6
Power Steering Pump Fitting Seal
7
Power Steering Pump Flow Control Valve
8
Power Steering Pump Flow Control Valve Spring
9
Power Steering Pump Housing Seal
10
Power Steering Pump Housing Seals
11
Power Steering Fluid Reservoir Seal
12
Power Steering Pump
13
Power Steering Pump Shaft Seal
14
Power Steering Fluid Reservoir Magnet
