Chevrolet Silverado / GMC Sierra. Manual - part 2701
MEMORY SEAT CONTROL MODULE REPLACEMENT

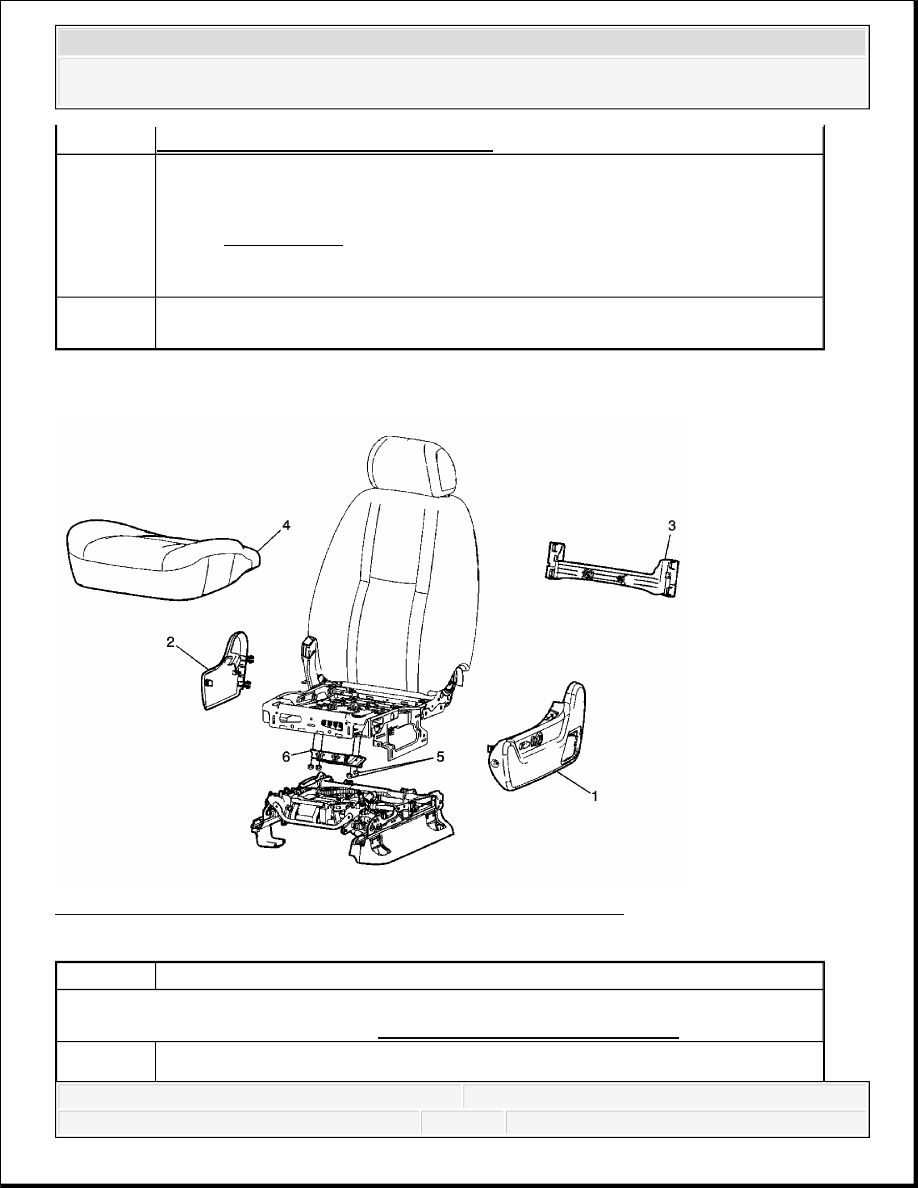

Fig. 10: View Of Memory Seat Control Module & Components
Courtesy of GENERAL MOTORS CORP.
Door Trim Panel Replacement (SLT) .
2
Front Memory Seat Switch Screw (Qty: 2)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
3
Front Memory Seat Switch Assembly
Tip: Disconnect the electrical connector.
Callout
Component Name
Preliminary Procedure:
Remove the front driver seat. Refer to Front Seat Replacement - Bucket .
Driver Seat Adjuster Outer Finish Cover
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
FRONT SEAT ADJUSTER REPLACEMENT (POWER)
1
Refer to Front Seat Cushion Outer Trim Panel Replacement (Manual) or
Front Seat Cushion Outer Trim Panel Replacement (Power) .
2
Driver Seat Adjuster Inner Finish Cover
Refer to Front Seat Cushion Inner Trim Panel Replacement .
3
Driver Seat Riser Finish Cover
Procedure:
Pull rearward to disengage the cover from the seat riser.
4
Driver Seat Cushion Cover and Pad
Refer to Seat Cushion Trim Cover and Pad Replacement .
5
Memory Seat Module Nut (Qty: 4)
Tighten: 9 N.m (80 lb in)
NOTE:
Refer to Fastener Notice .
6
Memory Seat Module
Procedure
1. Disconnect the electrical connector.
2. Refer to Control Module References for programming and set-up
information.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

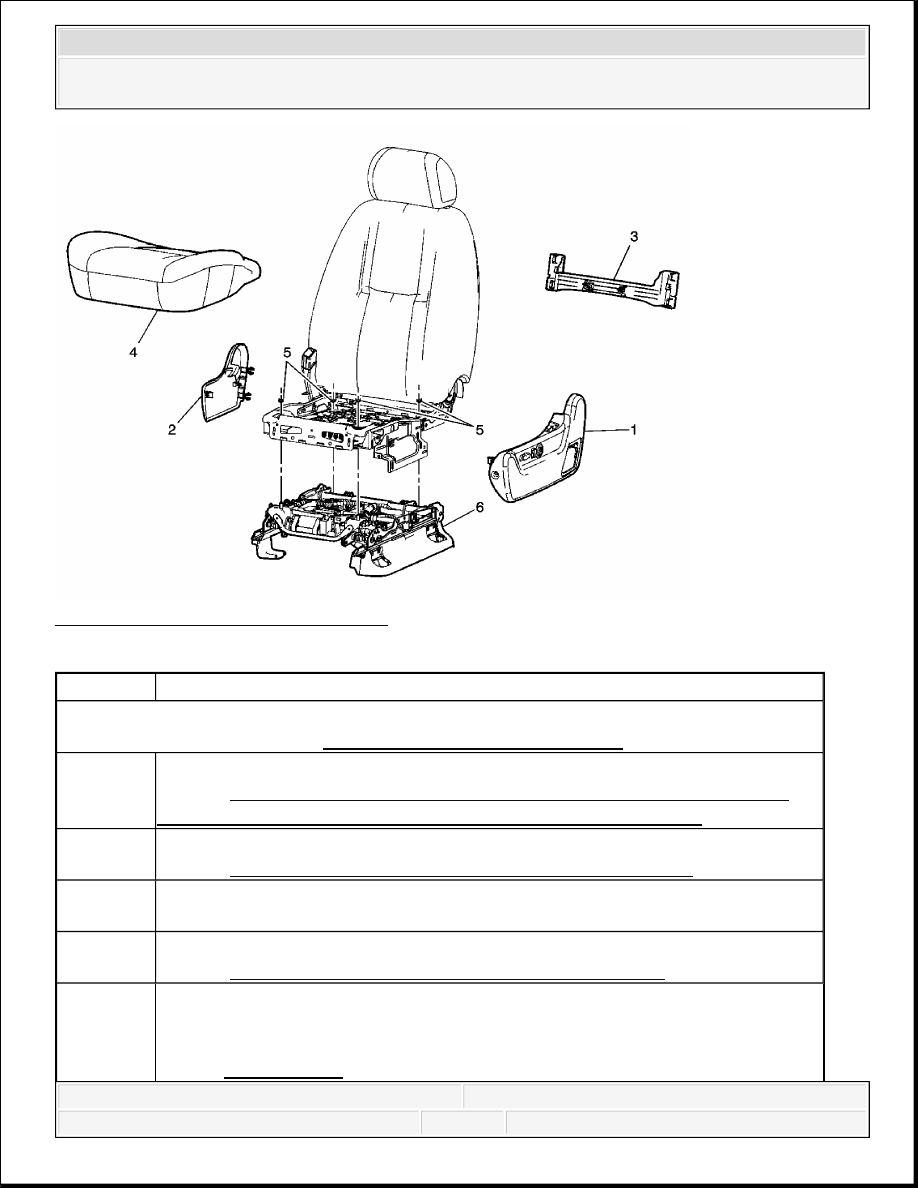

Fig. 11: Front Seat Adjuster (Power)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1
Front Seat Adjuster Outer Finish Cover
Refer to Front Seat Cushion Outer Trim Panel Replacement (Manual) or
Front Seat Cushion Outer Trim Panel Replacement (Power) .
2
Front Seat Adjuster Inner Finish Cover
Refer to Front Seat Cushion Inner Trim Panel Replacement .
3
Front Seat Riser Finish Cover
Tip: Pull rearward to disengage the cover from the seat riser.
4
Seat Cushion Cover and Pad
Refer to Seat Cushion Trim Cover and Pad Replacement .
5
Front Seat Cushion Frame Nut (Qty: 4)
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Power Seats - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
LUMBAR SWITCH REPLACEMENT

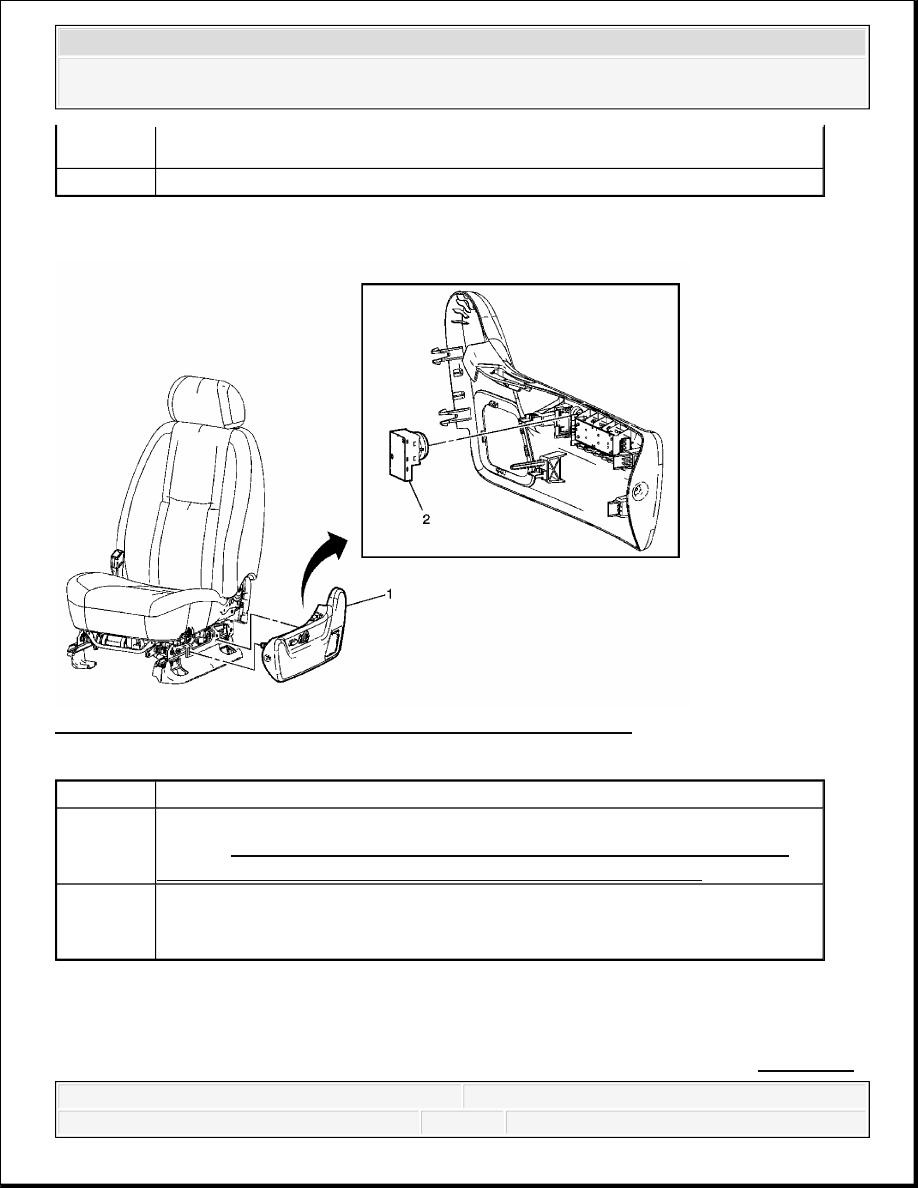

Fig. 12: View Of Lumbar Control Switch & Outer Finish Cover
Courtesy of GENERAL MOTORS CORP.
FRONT SEAT LUMBAR SUPPORT REPLACEMENT
The front seat lumbar support is serviced as part of the seat back assembly. If the lumbar support
needs to be replaced the entire seat back frame kit will need to be installed. Refer to Front Seat
Tighten: 9 N.m (80 lb in)
6
Front Seat Adjuster Assembly
Callout
Component Name
1
Front Seat Adjuster Outer Finish Cover
Refer to Front Seat Cushion Outer Trim Panel Replacement (Manual) or
Front Seat Cushion Outer Trim Panel Replacement (Power) .
2
Lumbar Control Switch
Tip: Use a small flat bladed tool to disengage the lumbar control switch from
the outer finish cover.
