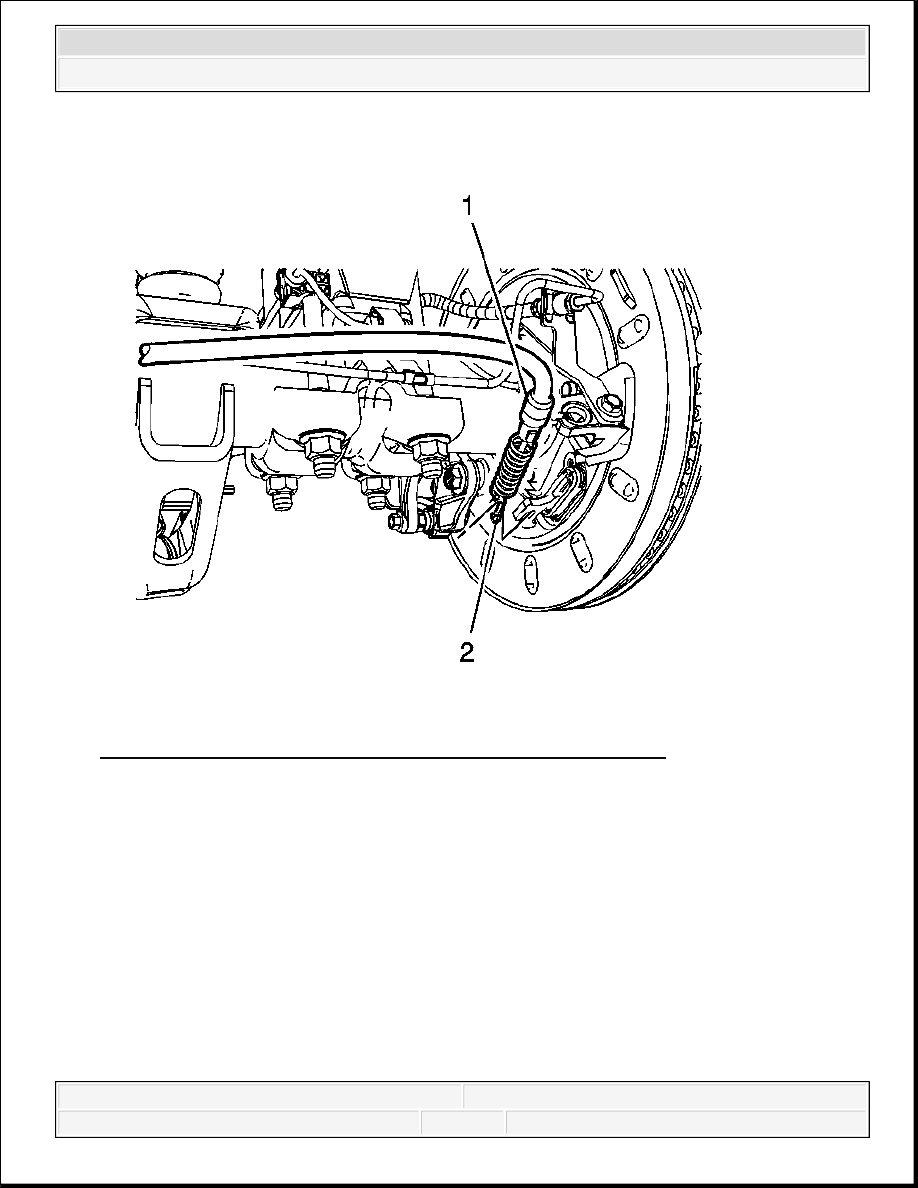

Fig. 38: Park Brake Cable Mounting
Courtesy of GENERAL MOTORS CORP.
6. Release the park brake cable (1) from the rear axle housing cover clip.
7. Remove the park brake cable clip bolt (2).
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 39: Park Brake Cable Conduit And Park Brake Cable Eye
Courtesy of GENERAL MOTORS CORP.
8. Release the park brake cable from the rear axle bracket by compressing the locking tabs and
pulling the park brake cable conduit (1) rearward.
9. Disconnect the park brake cable eye (2) from the park brake actuator lever.
10. Remove the park brake cable assembly from the vehicle.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 40: Park Brake Cable Conduit And Park Brake Cable Eye
Courtesy of GENERAL MOTORS CORP.
1. Connect the right park brake cable eye (2) to the park brake actuator lever.
2. Install the park brake cable to the rear axle bracket by pulling the cable conduit (1)
rearward and inserting the cable conduit into the rear axle bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the rear axle bracket.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

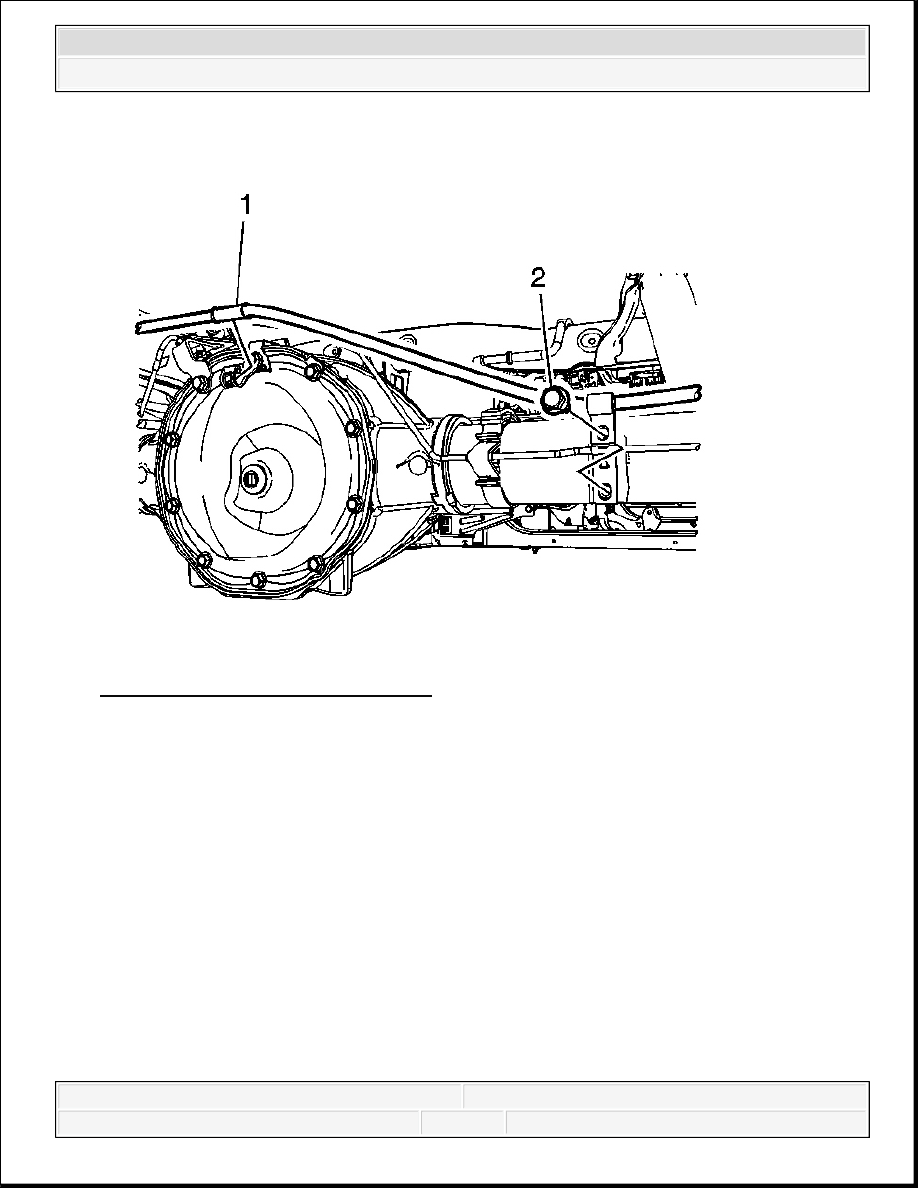

Fig. 41: Park Brake Cable Mounting
Courtesy of GENERAL MOTORS CORP.
3. Install the park brake cable clip bolt (2).
Tighten: Tighten the bolt to 22 N.m (16 lb ft).
4. Connect the park brake cable (1) to the rear axle housing cover clip.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
