Removal Procedure

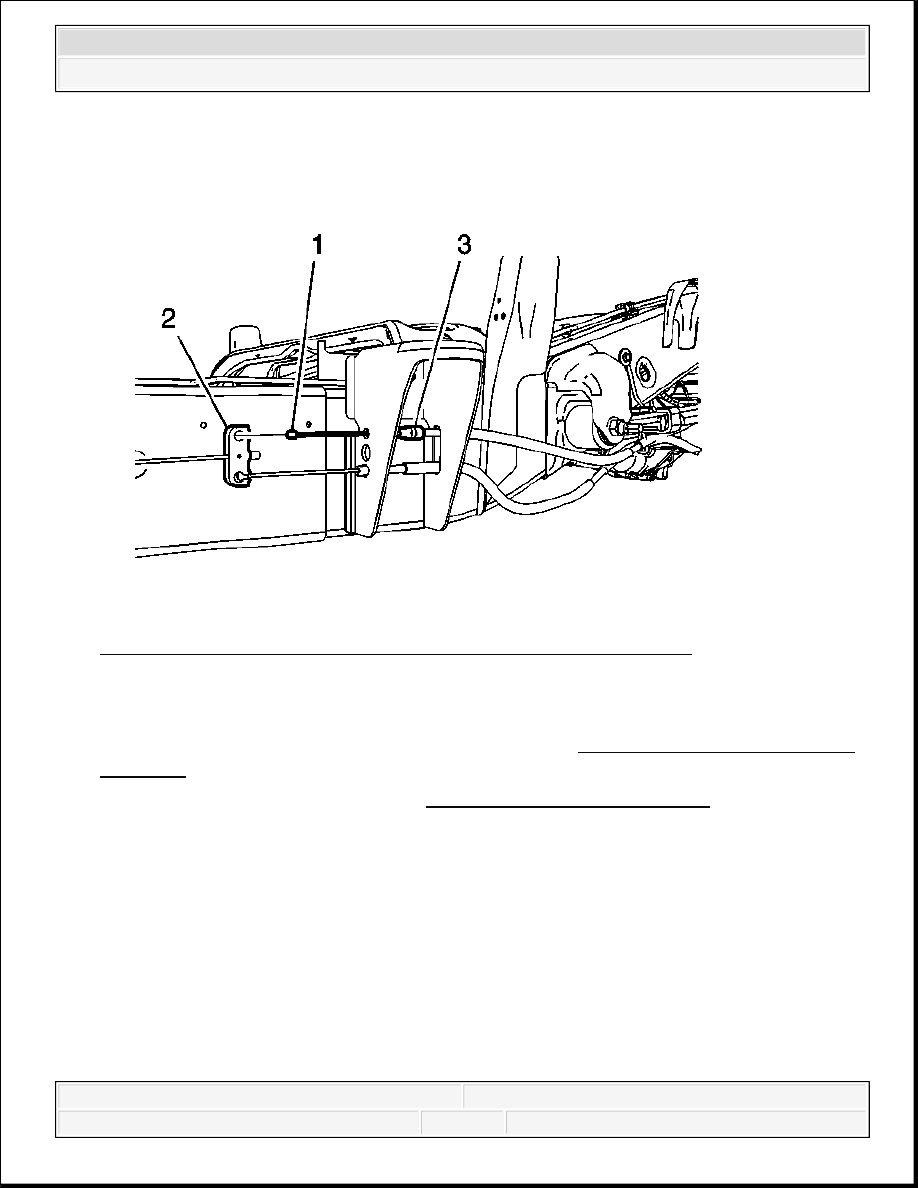

Fig. 30: Park Brake Cable And Intermediate Cable Equalizer Bar
Courtesy of GENERAL MOTORS CORP.
1. Release the park brake.
2. Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster
Disabling.
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
4. Disconnect the right park brake cable (1) from the intermediate cable equalizer bar (2).
5. Release the right park brake cable from the frame bracket by compressing the locking tabs
and pulling the cable conduit (3) rearward.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

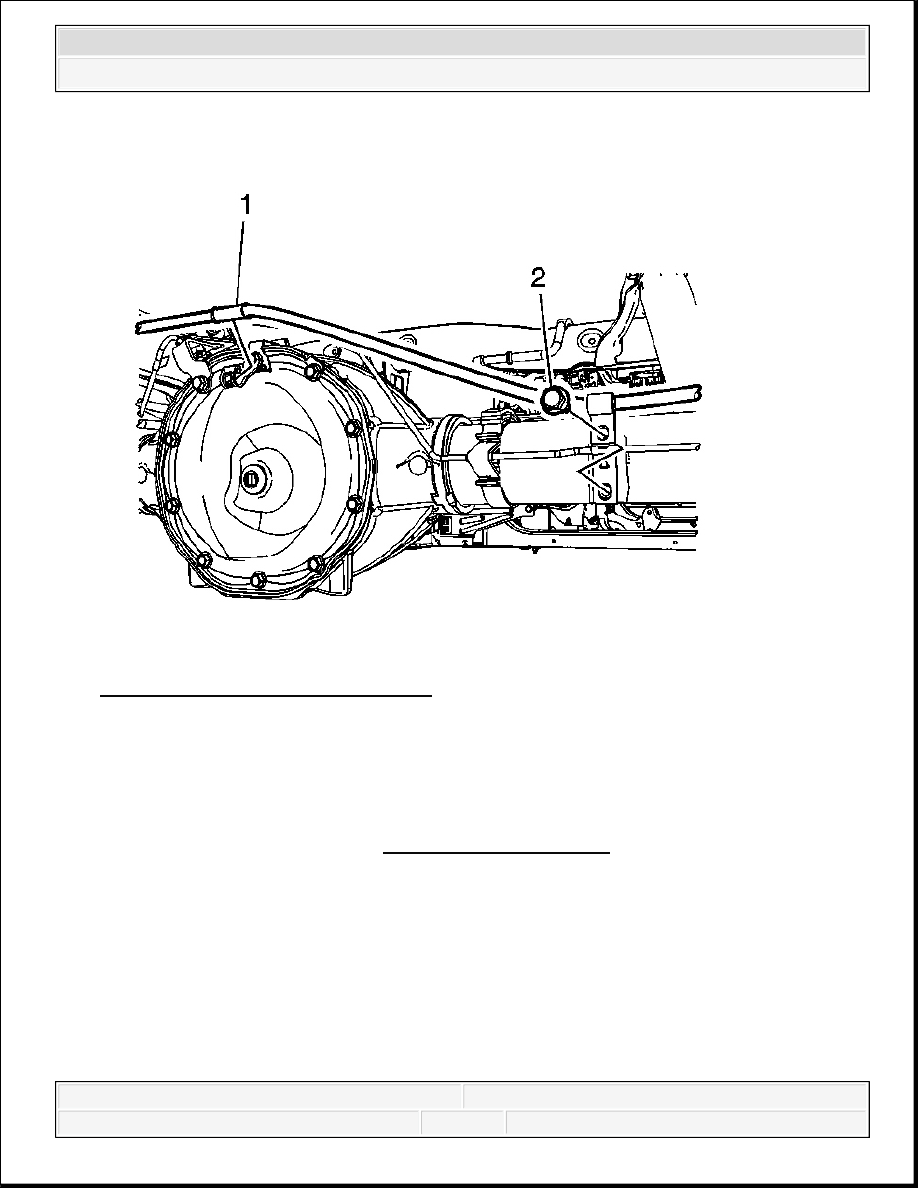

Fig. 31: Park Brake Cable Mounting
Courtesy of GENERAL MOTORS CORP.
6. Release the park brake cable (1) from the rear axle housing cover clip.
7. Remove the park brake cable clip bolt (2).
8. Remove the park brake cable from the cable guides.
9. Remove the brake shoes. Refer to Brake Shoe Replacement .
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

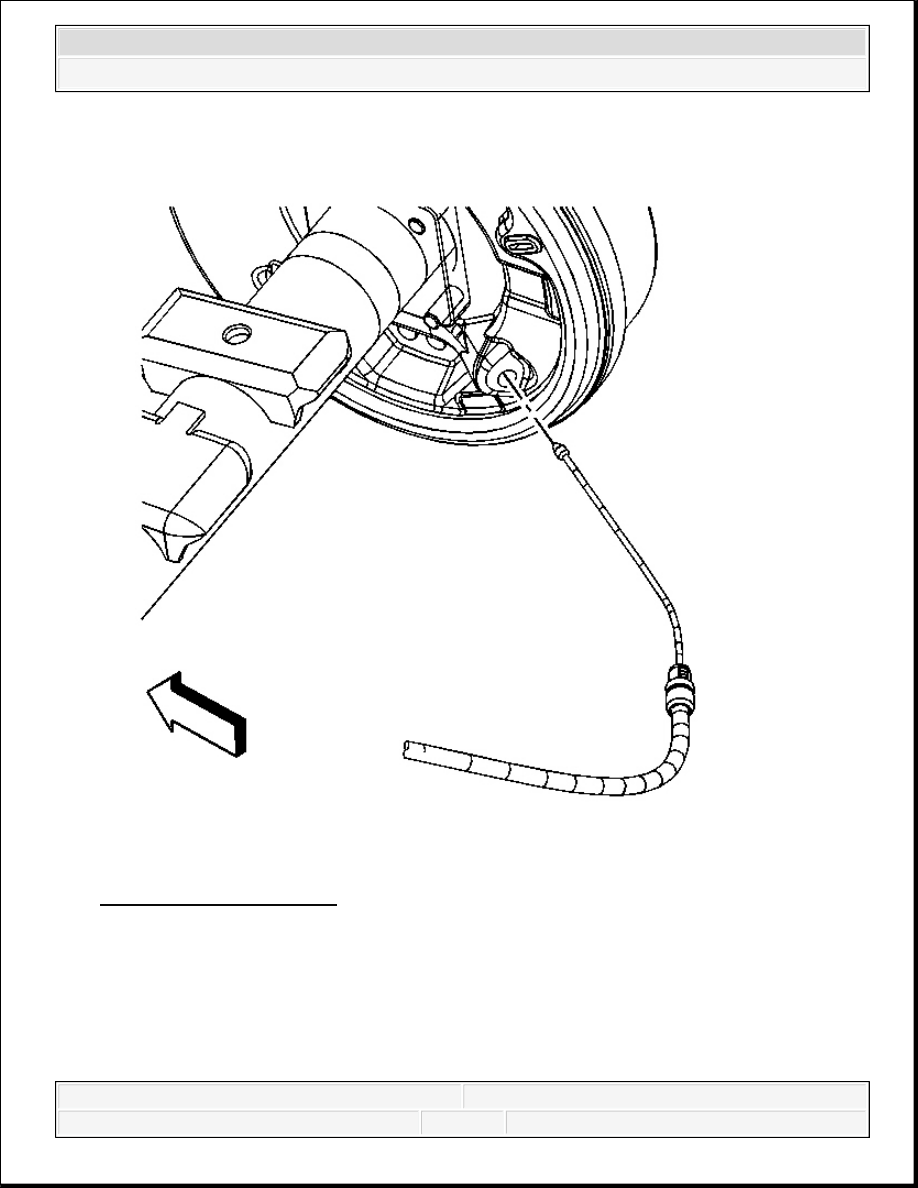

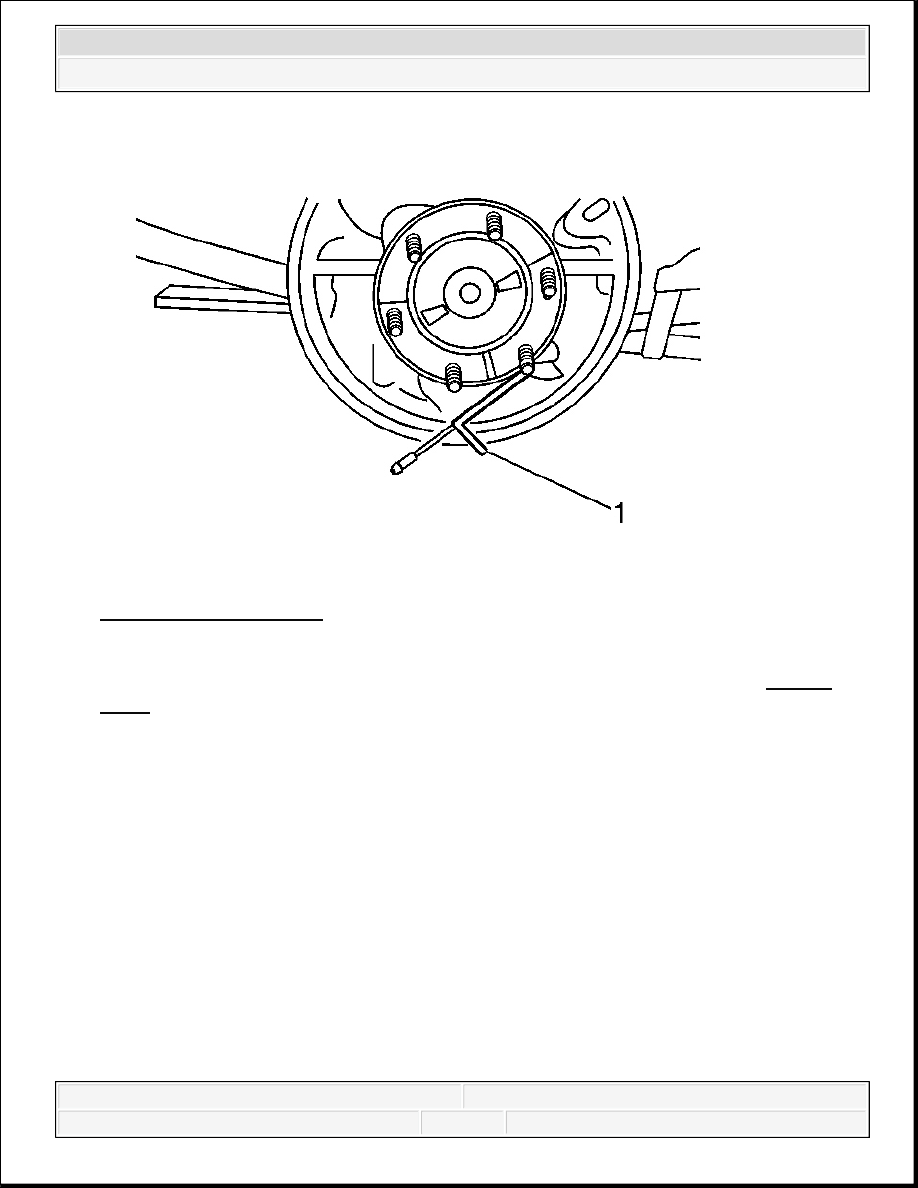

Fig. 32: View Of J 37043
Courtesy of GENERAL MOTORS CORP.
10. Using the J 37043 (1), remove the park brake cable from the backing plate. See Special
Tools.
