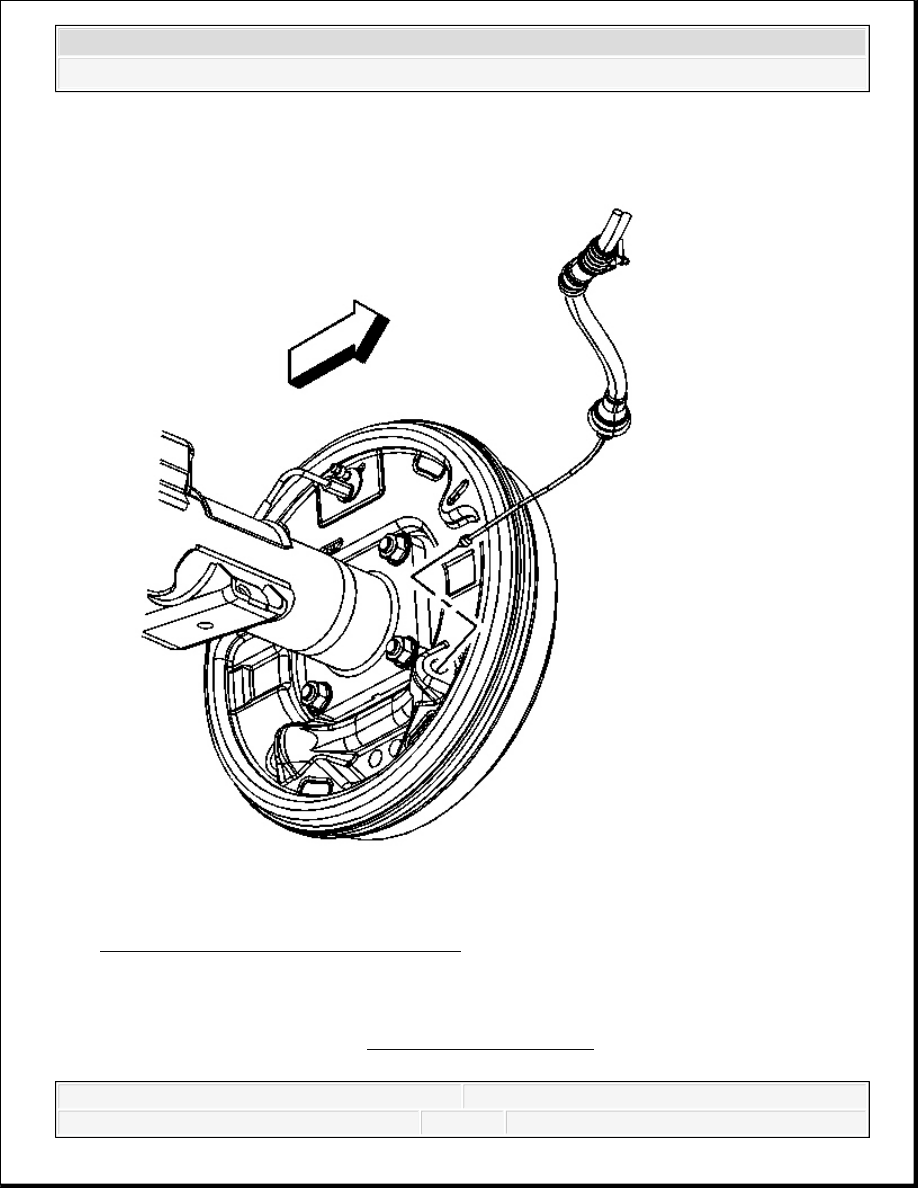

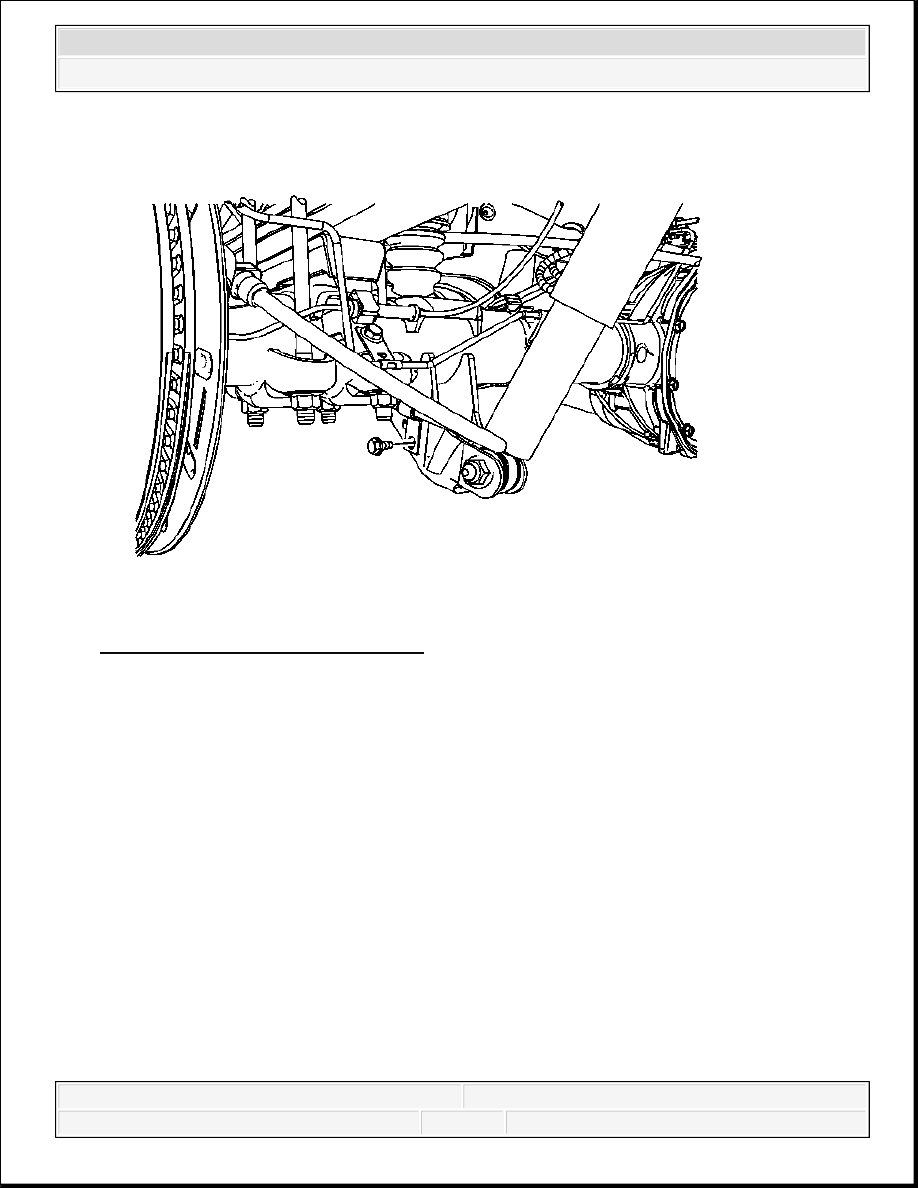

Fig. 22: View Of Left Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
1. Install the park brake cable assembly into the backing plate.
2. Install the brake shoes. Refer to Brake Shoe Replacement .
3. Install the park brake cable to the cable guides.
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

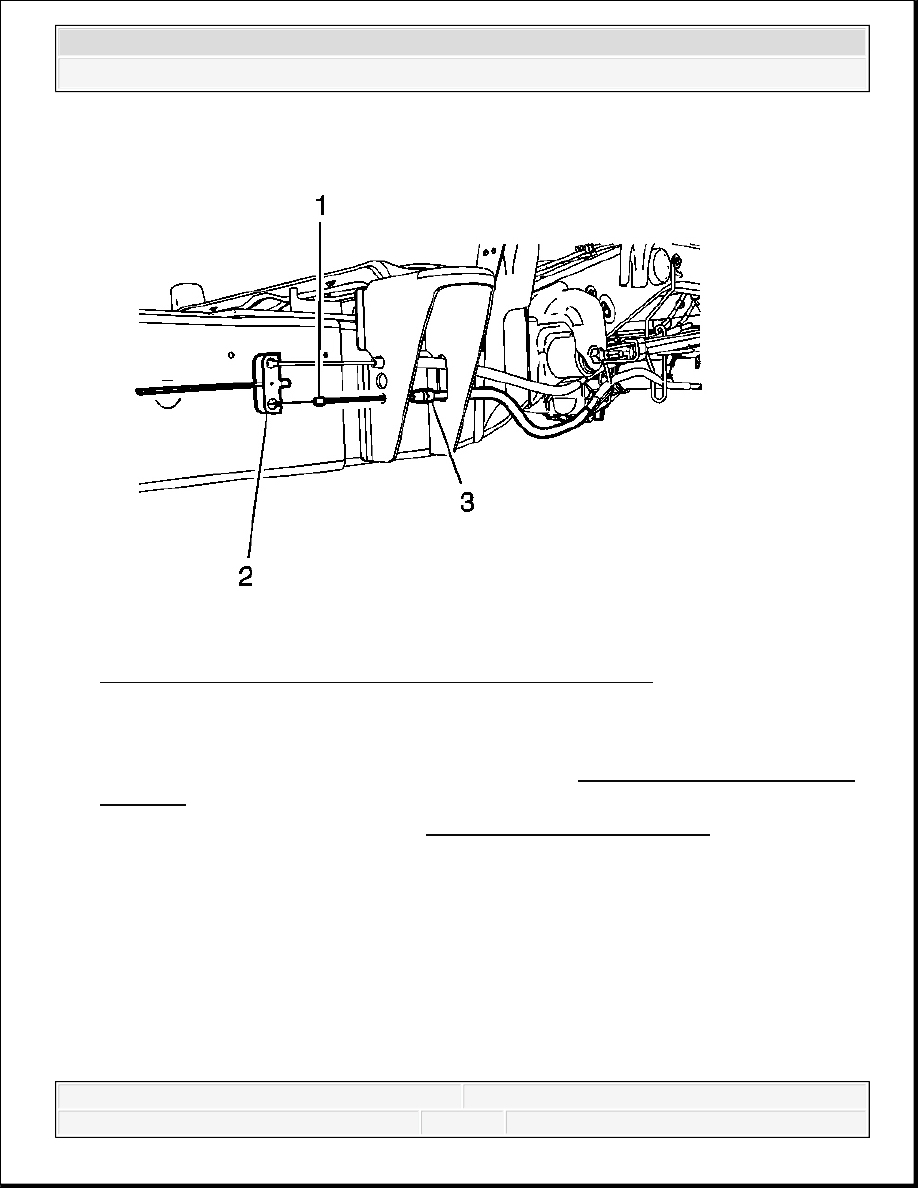

Fig. 23: Park Brake Cable And Intermediate Cable Equalizer
Courtesy of GENERAL MOTORS CORP.
4. Connect the left rear park brake cable (1) to the intermediate cable equalizer bar (2).
5. Insert the park brake cable conduit (3) into the frame bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the frame bracket.
6. Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster
Enabling.
7. Adjust the park brake. Refer to Park Brake Adjustment (Drum Brake) or Park Brake
Adjustment (Disc Brake).
PARKING BRAKE REAR CABLE REPLACEMENT - LEFT SIDE (JD9)
Removal Procedure
2008 Chevrolet Silverado 1500
2008 BRAKES Park Brake - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

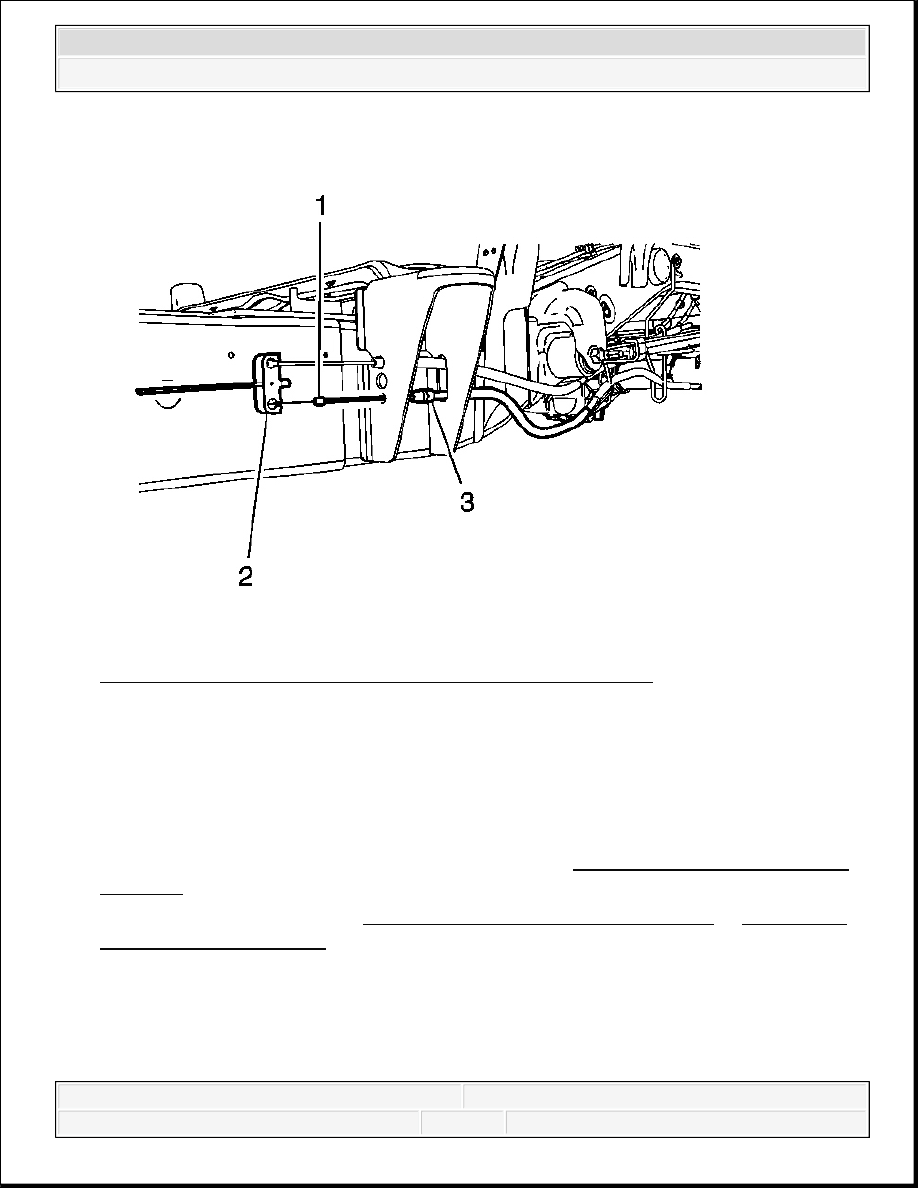

Fig. 24: Park Brake Cable And Intermediate Cable Equalizer
Courtesy of GENERAL MOTORS CORP.
1. Release the park brake.
2. Disable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster
Disabling.
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
4. Disconnect the left park brake cable (1) from the intermediate cable equalizer bar (2).
5. Release the left park brake cable from the frame bracket by compressing the locking tabs
and pulling the cable conduit (3) rearward.
