Chevrolet Silverado / GMC Sierra. Manual - part 2560
Fig. 153: Installing Bearing
Courtesy of GENERAL MOTORS CORP.
1. Using a driving tool, install the bearing.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

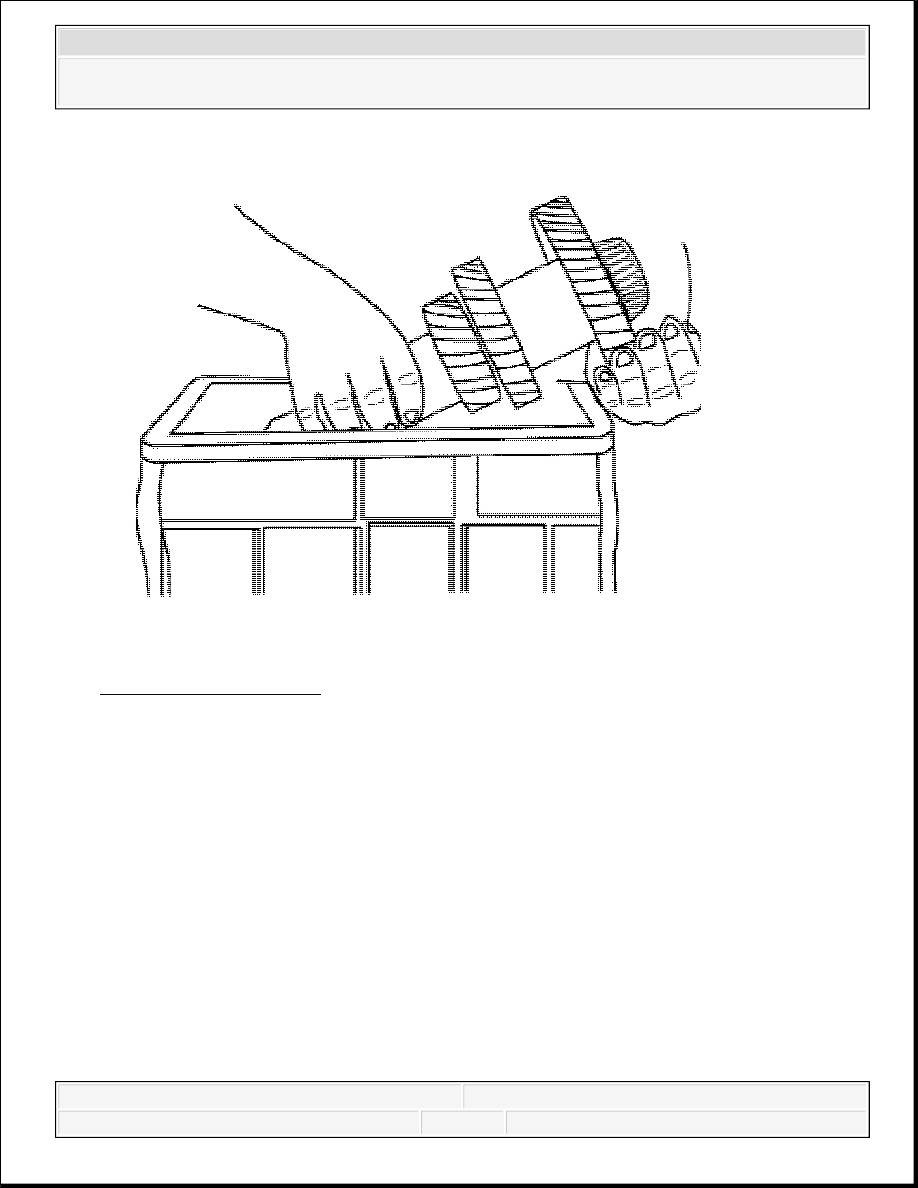

Fig. 154: Gear Assembly
Courtesy of GENERAL MOTORS CORP.
2. Install the gear assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

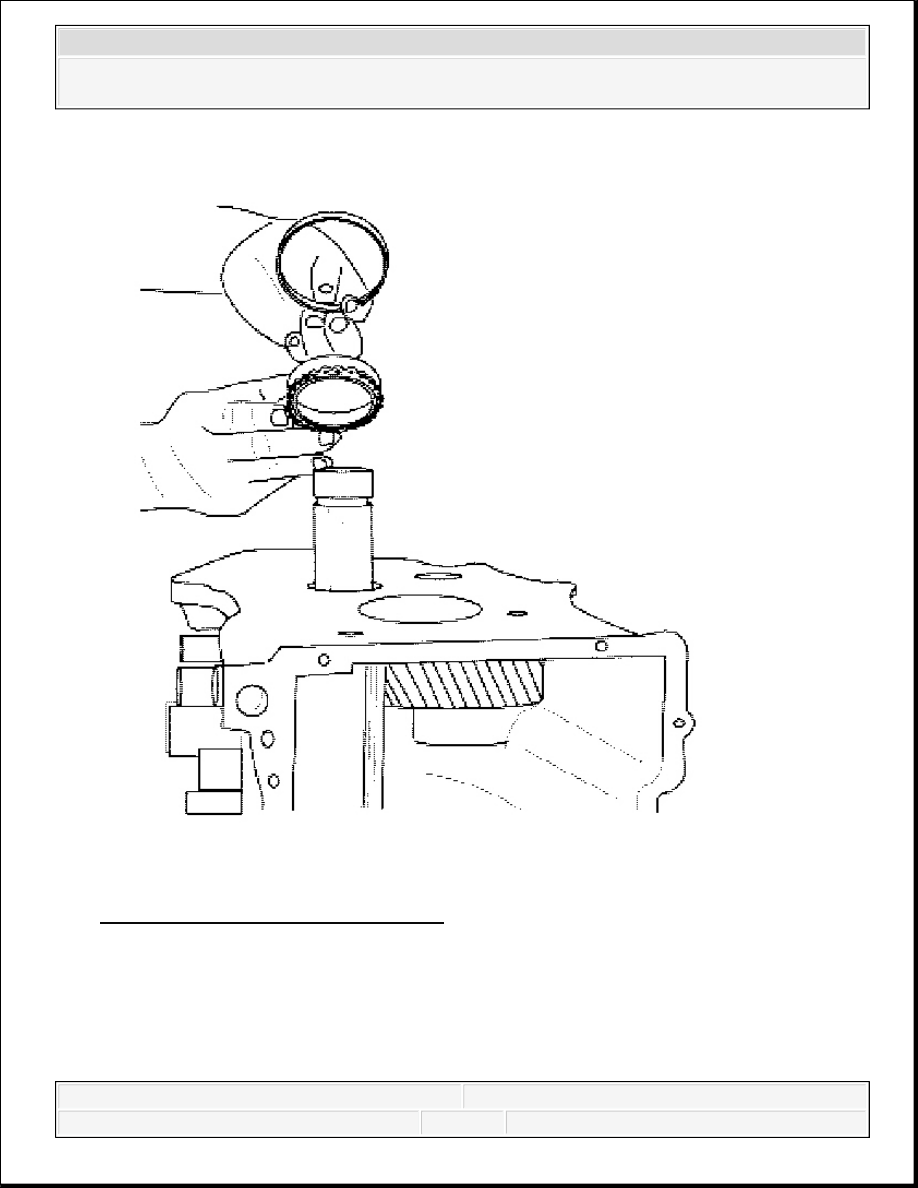

Fig. 155: Cup And Rear Bearing Race
Courtesy of GENERAL MOTORS CORP.
3. Install the bearing and the gear assembly bearing race.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

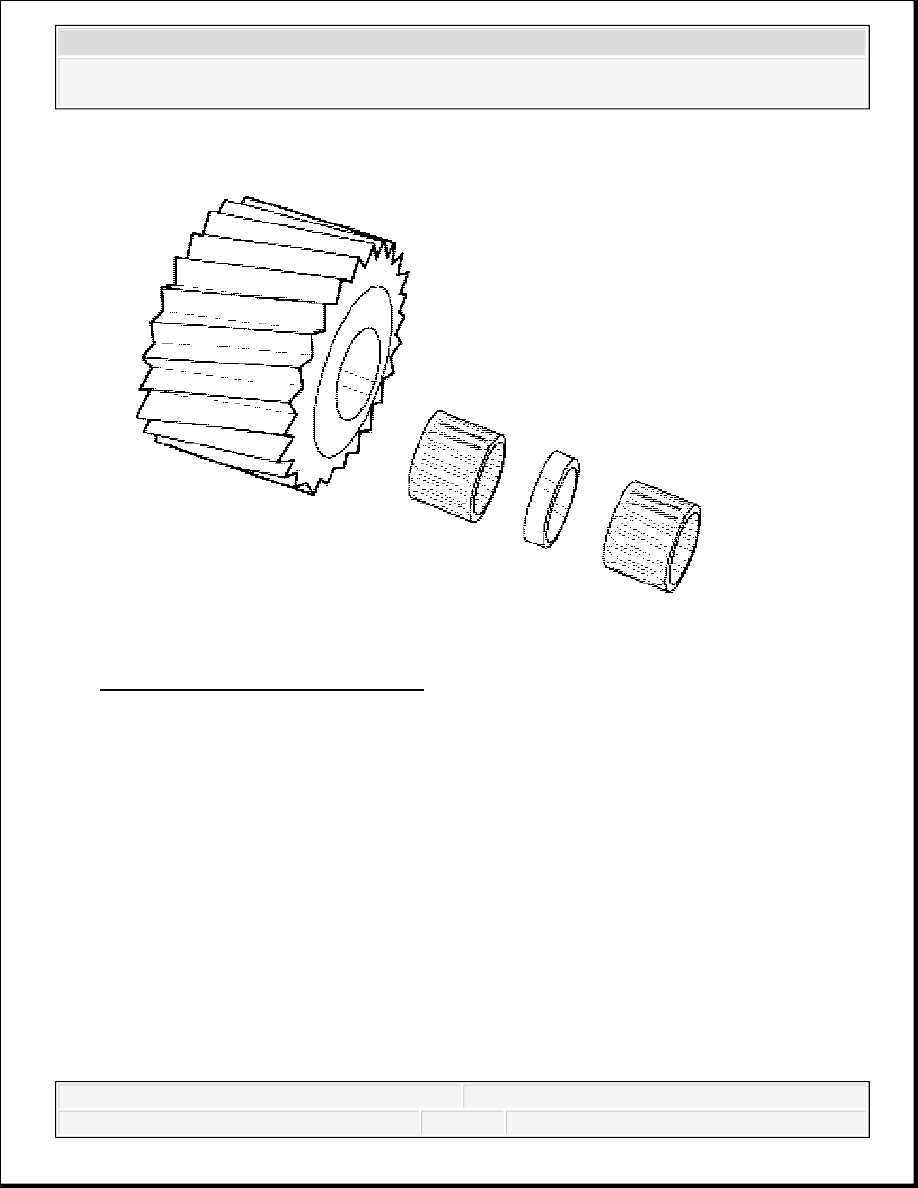

Fig. 156: Cages, Rollers And Spacer
Courtesy of GENERAL MOTORS CORP.
4. Install the 2 caged gears, with the rollers and spacer, into the reverse gear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
