Chevrolet Silverado / GMC Sierra. Manual - part 2540
Fig. 78: Transmission
Courtesy of GENERAL MOTORS CORP.
1. Place the transmission on a workbench.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 79: Using Ratchet On Shift Tower Screws
Courtesy of GENERAL MOTORS CORP.
2. Remove the 4 screws from the shift tower.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 80: Shift Tower
Courtesy of GENERAL MOTORS CORP.
3. Remove the shift tower.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

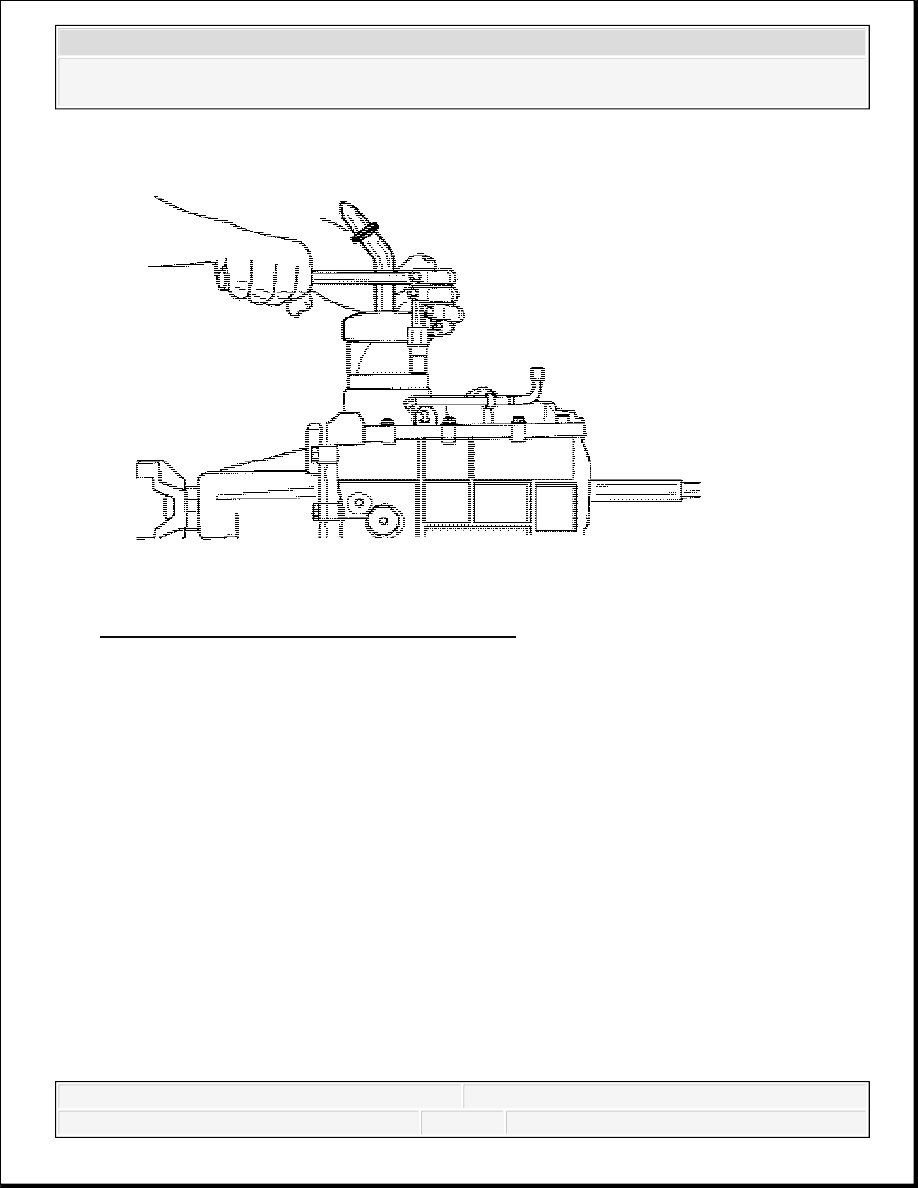

Fig. 81: Using Ratchet On Breather Support Screw
Courtesy of GENERAL MOTORS CORP.
4. Remove the breather support screw.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
