Chevrolet Silverado / GMC Sierra. Manual - part 2512

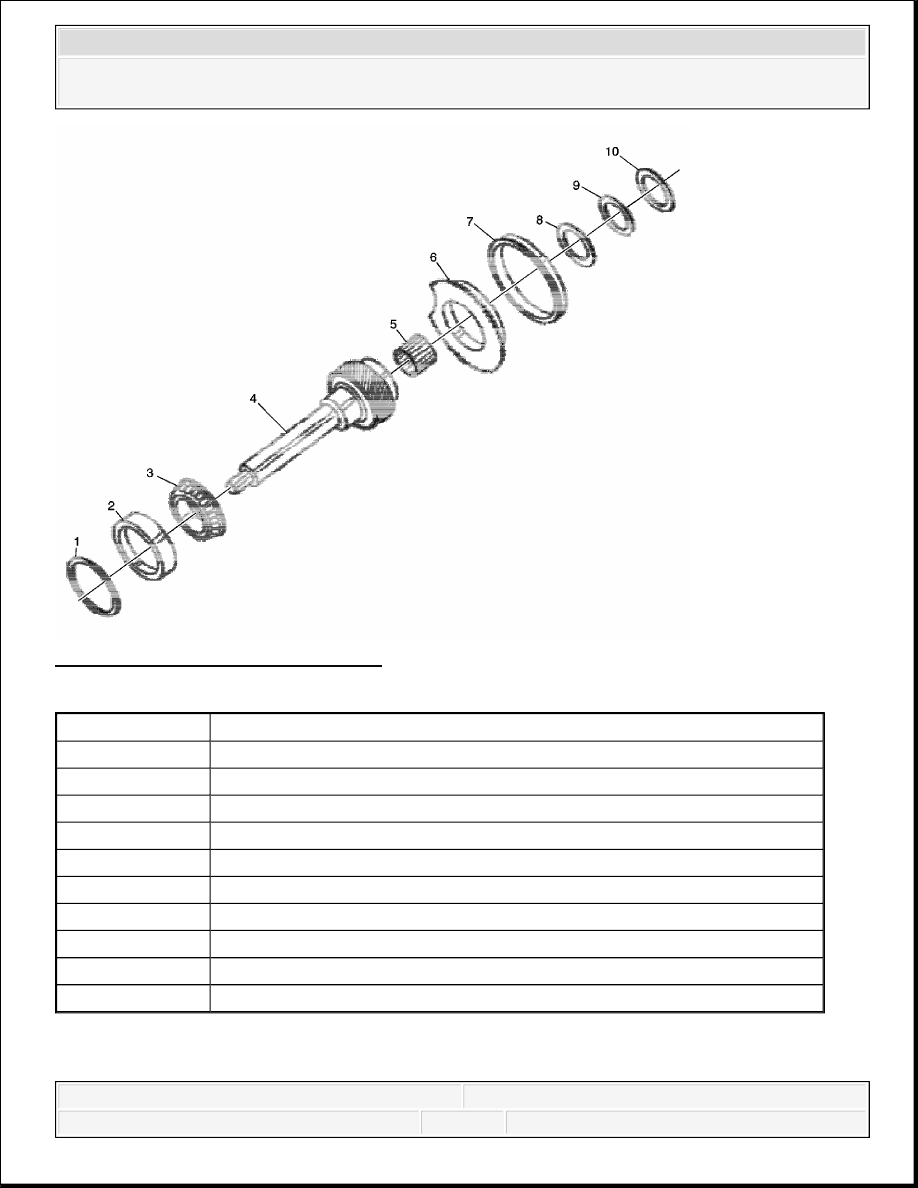

Fig. 3: Input Shaft and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Bearing Retainer Spacer
2
Tapered Bearing Race
3
Bearing Taper and Rollers
4
Input Shaft
5
Input Shaft Guide Rollers
6
Clutch Ring
7
3rd/4th/5th Gear Synchronization Ring
8
Clutch Tapered Push Pulley
9
Axial Bearing
10
3rd-4th Gear Hammer Push Pulley
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

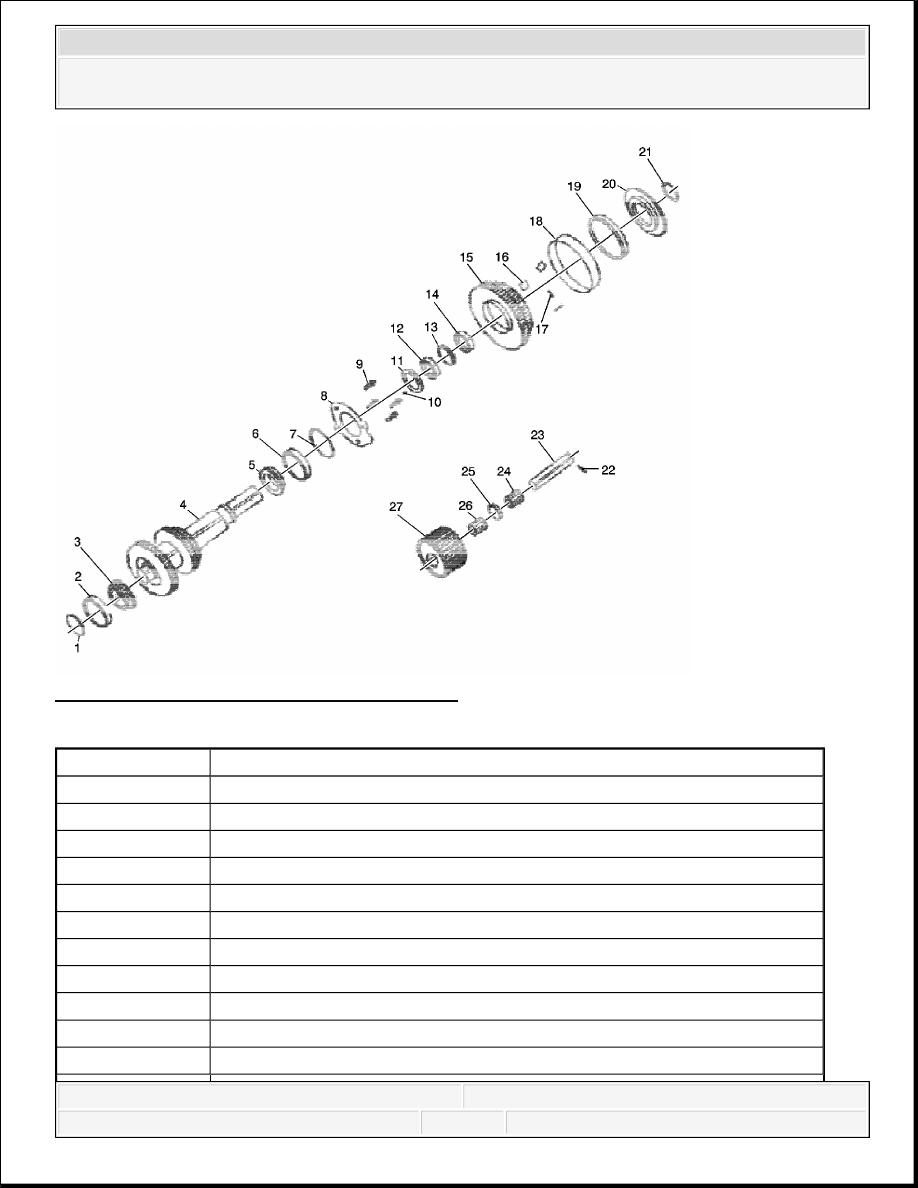

Fig. 4: Counter Gear Shaft and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Front Bearing Cover
2
Front Bearing Race
3
Front Bearings and Rollers
4
Counter Shaft
5
Rear Bearing
6
Rear Bearing Race
7
Rear Bearing Adjuster Shim
8
Rear Bearing Retainer
9
Rear Bearing Retainer Bolts
10
5th Gear Push Pulley Sphere
11
5th Gear Push Pulley
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

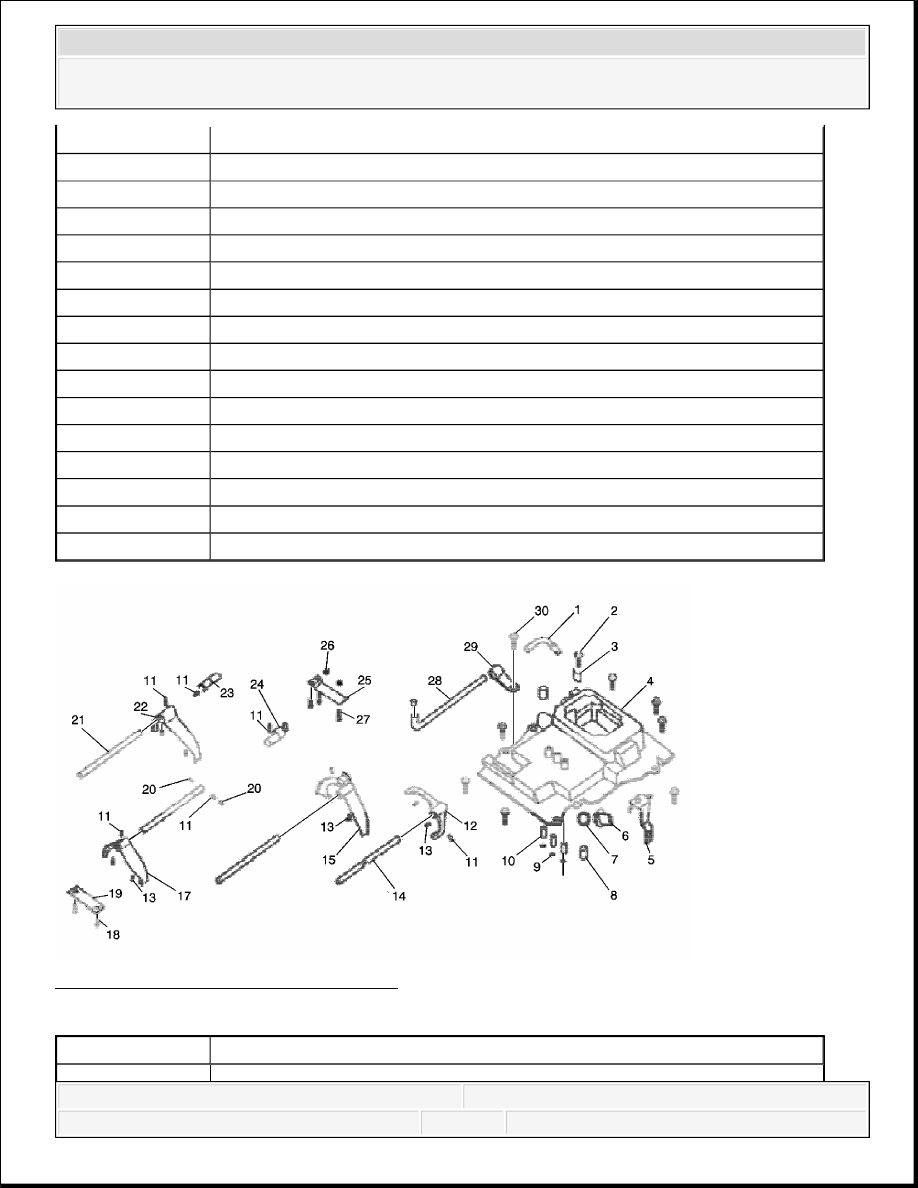

Fig. 5: Shift Control and Components
Courtesy of GENERAL MOTORS CORP.
12
5th Gear Roller Bearing
13
5th Gear Roller Bearing Separator
14
5th Gear Roller Bearing
15
5th Gear Sub Assembly
16
5th/Reverse Gear Synchronization Insert
17
Synchronization Spring
18
Reverse Gear Synchronization Collar
19
3rd/4th/5th Gear Synchronization Ring
20
5th Gear Clutch Ring
21
5th Gear Clutch Tapered Lock Ring
22
Reverse Shaft Safety Pin
23
Reverse Idler Gear Shaft
24
Reverse Idler Gear Roller Bearing
25
Reverse Idler Gear Spacer
26
Reverse Idler Gear Roller Bearing
27
Reverse Idler Gear
Callout
Component Name
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC CODE INDEX
1
Breather Connection
2
Control Cover Screws
3
Clip
4
Control Cover
5
Exhaust Tubing Support
6
Reverse Switch
7
Reverse Switch Gasket
8
Cap Guide Pin - Dowel
9
Insert Sphere
10
Insert Spring
11
Roll Pin
12
5th Gear Fork
13
Nylon Insert - Fork Leg
14
Reverse/5th Gear Shaft
15
5th-Reverse Gear Fork
16
5th-Reverse Gear Shift Lever
17
3rd-4th Gear Fork Assembly
18
Support Plate Bolt
19
Shaft Support Front Plate
20
Interlock Clutch/Gear Catch
21
1st-2nd Gear Shift Lever
22
1st-2nd Gear Fork
23
1st-2nd Gear Stop
24
3rd-4th Gear Stop
25
Shaft Support Rear Plate Assembly
26
Shaft Support Plate Nuts
27
Shaft Support Plate Bolts
28
Hose With Exhaust Valve
29
Hose Support Plate
30
Hose Support Plate Bolt
31
Cap Guide Pin - Dowel
