Chevrolet Silverado / GMC Sierra. Manual - part 2511

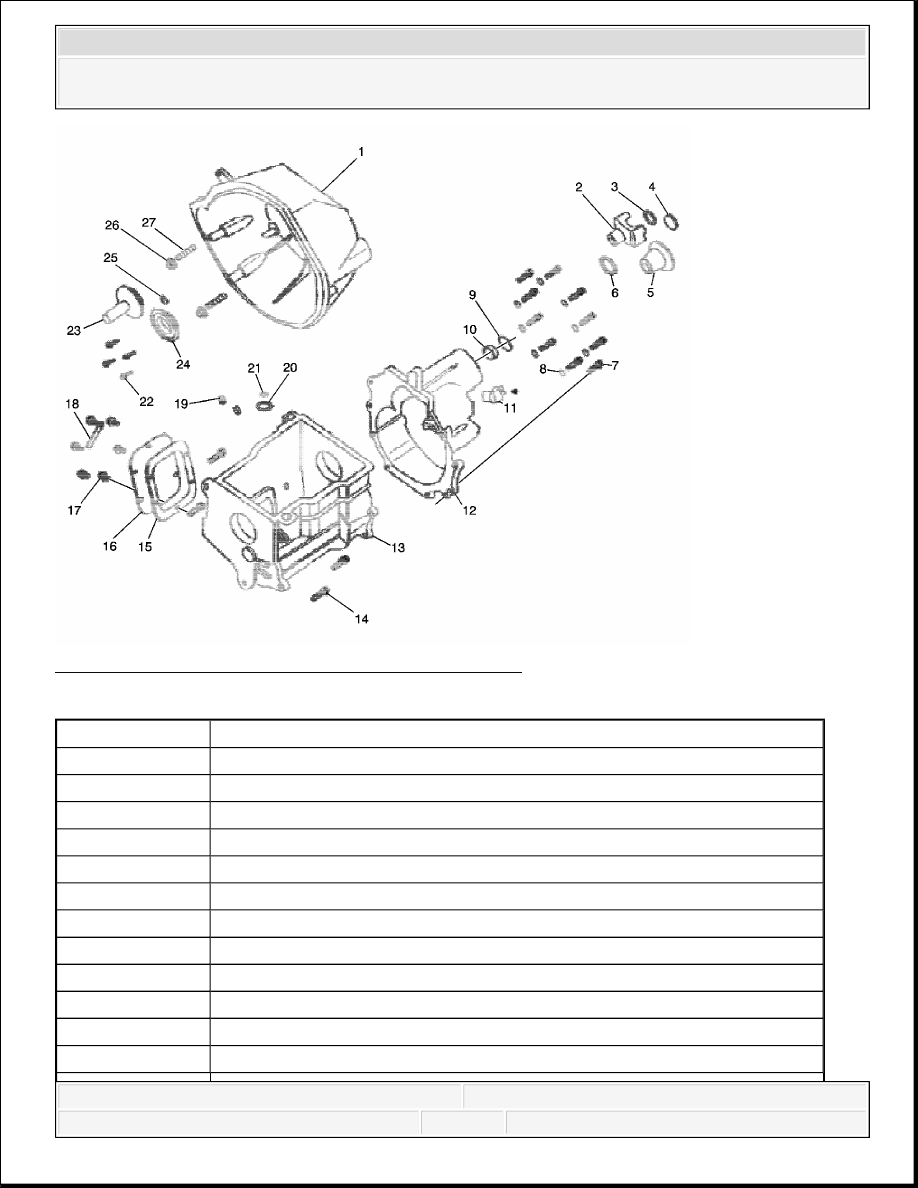

Fig. 1: Transmission Case and Related Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Clutch Housing
2
Yoke
3
Main Shaft Washer
4
Nut
5
Coupling Flange
6
Main Shaft Cover Oil Seal
7
Rear Cover Bolts
8
Rear Hub Screw Washer
9
Rear Cover Lock
10
Roller Bearing
11
Vehicle Speed Sensor (VSS)
12
Rear Cover
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
13
Transmission Case
14
Clutch Housing Screw
15
Power Take-Off (PTO) Gasket
16
PTO Cover
17
PTO Bolts
18
Identification Plate
19
Drain/Fill Plugs
20
Transmission Case Magnet
21
Magnetic Lock
22
Screws
23
Input Shaft Bearing Retainer Plug
24
Input Shaft Bearing Retainer
25
Input Shaft Bearing Retainer Oil Seal
26
Nut
27
Pin
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

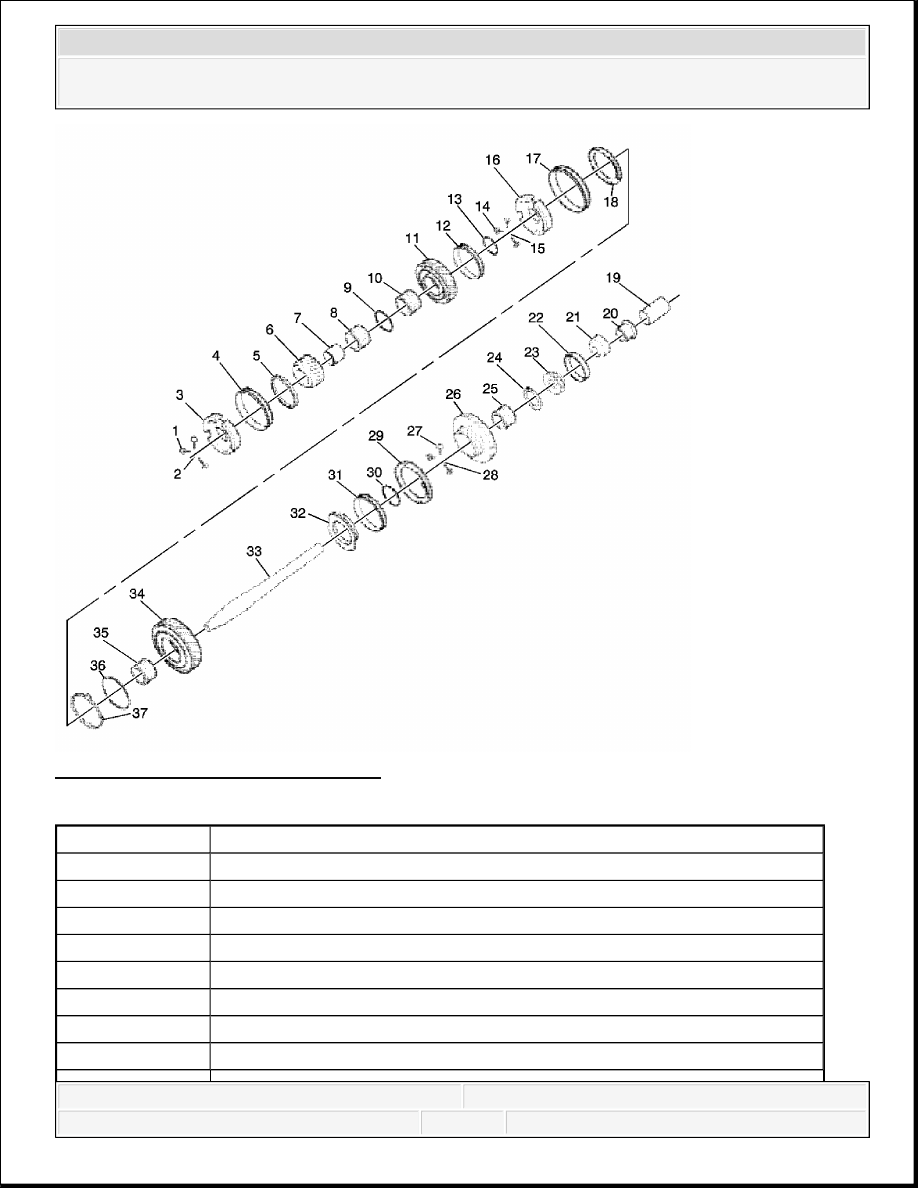

Fig. 2: Main Shaft and Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
1st/2nd and 3rd/4th Gear Synchronization Insert
2
Synchronization Spring
3
3rd-4th Gear Synchronization Hub
4
3rd-4th Gear Synchronization Collar
5
3rd/4th/5th Gear Synchronization Ring
6
Tapered Bearing Race
7
3rd Gear Hub
8
3rd/4th Gear and Reverse Roller Bearing
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
9
3rd Gear F.P. Push Pulley
10
3rd/4th Gear and Reverse Roller Bearing
11
2nd Gear Assemble
12
2nd Gear Synchronization Ring
13
1st/2nd Clutch Gear Hammer Lock Ring
14
1st/2nd and 3rd/4th Gear Synchronization Insert
15
Synchronization Spring
16
1st-2nd Synchronization Gear
17
1st-2nd Synchronization Collar
18
1st Gear Synchronization Ring
19
Spacer Flange
20
Speedometer Gear
21
5th Gear Main Shaft
22
Tapered Bearing Race
23
Bearing and Rollers
24
Reverse Gear Push Pulley
25
3rd/4th Gear and Reverse Roller Bearing
26
5th Gear Sub Assembly
27
5th/Reverse Gear Synchronization Insert
28
Synchronization Spring
29
Reverse Gear Synchronization Collar
30
1st/2nd Clutch Gear Synchronization Assembly
31
Reverse Synchronization Ring
32
Reverse Gear Clutch Ring
33
Main Shaft
34
Input Shaft 1st Gear Assembly
35
1st Gear Roller Bearing
36
1st Gear Synchronization Interior Ring
37
1st Gear Synchronization Intermediate Ring
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Manual Transmission - Tremec 5-Speed (M96) - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
