DRIVER INFORMATION DISPLAY SWITCH REPLACEMENT (WITH RPO SLT)

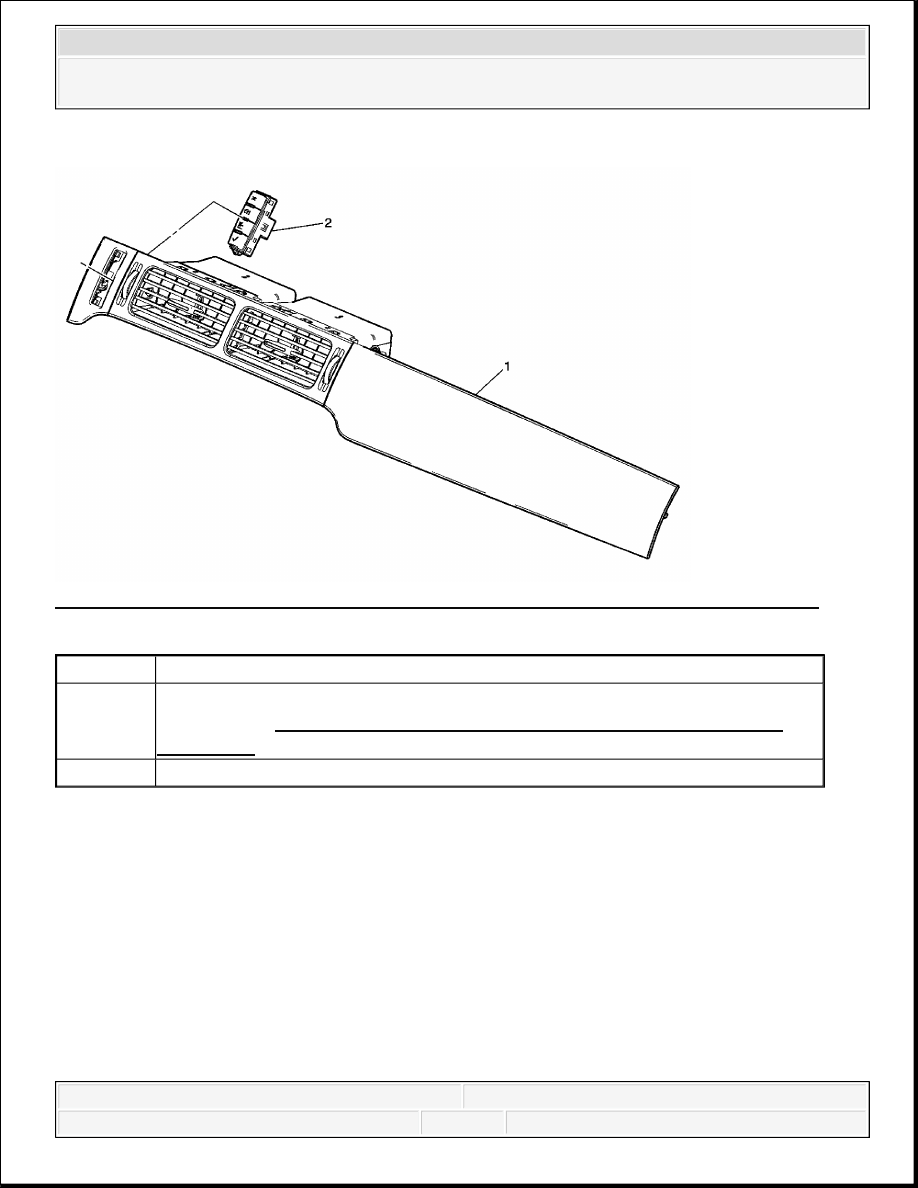

Fig. 7: View Of Driver Information Center Switch Assembly & Accessory Trim Plate
Courtesy of GENERAL MOTORS CORP.
INSTRUMENT CLUSTER REPLACEMENT (WITHOUT RPO SLT)
Callout
Component Name
1
Instrument Panel Center Trim Plate
Tip: Refer to Instrument Panel Center Trim Panel Replacement (with
RPO SLT) .
2
Driver Information Switch Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

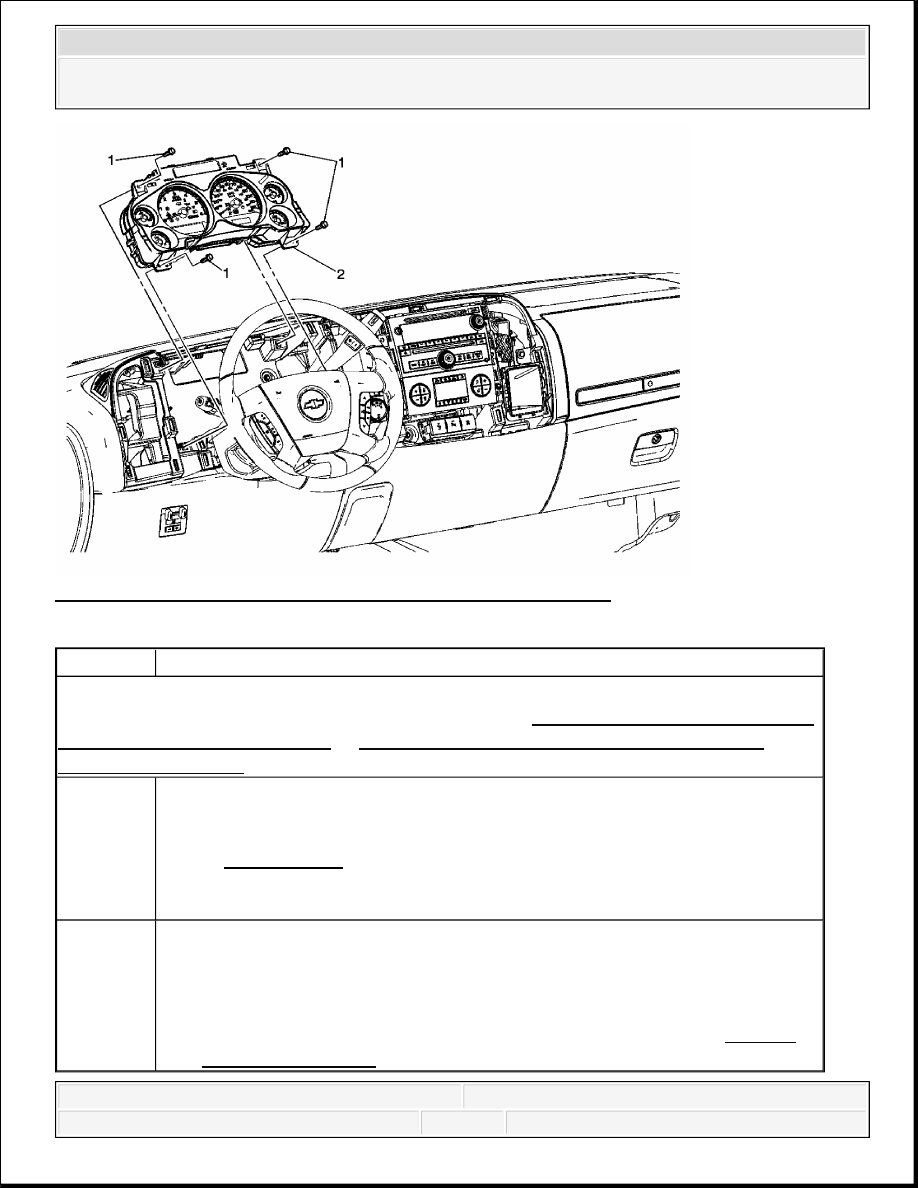

Fig. 8: View Of Instrument Panel Cluster Assembly & Screws
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim panel. Refer to Instrument Cluster Trim Panel
Replacement (with RPO SLT) or Instrument Cluster Trim Panel Replacement
(Without RPO SLT) .
1
Instrument Panel Cluster Assembly Screw (Qty 4)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
2
Instrument Panel Cluster Assembly.
Tip:
1. Disconnect the electrical connections.
2. A replacement cluster assembly must be programmed. Refer to Control
Module References .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
ACCESSORY SWITCH REPLACEMENT (WITH RPO SLT)

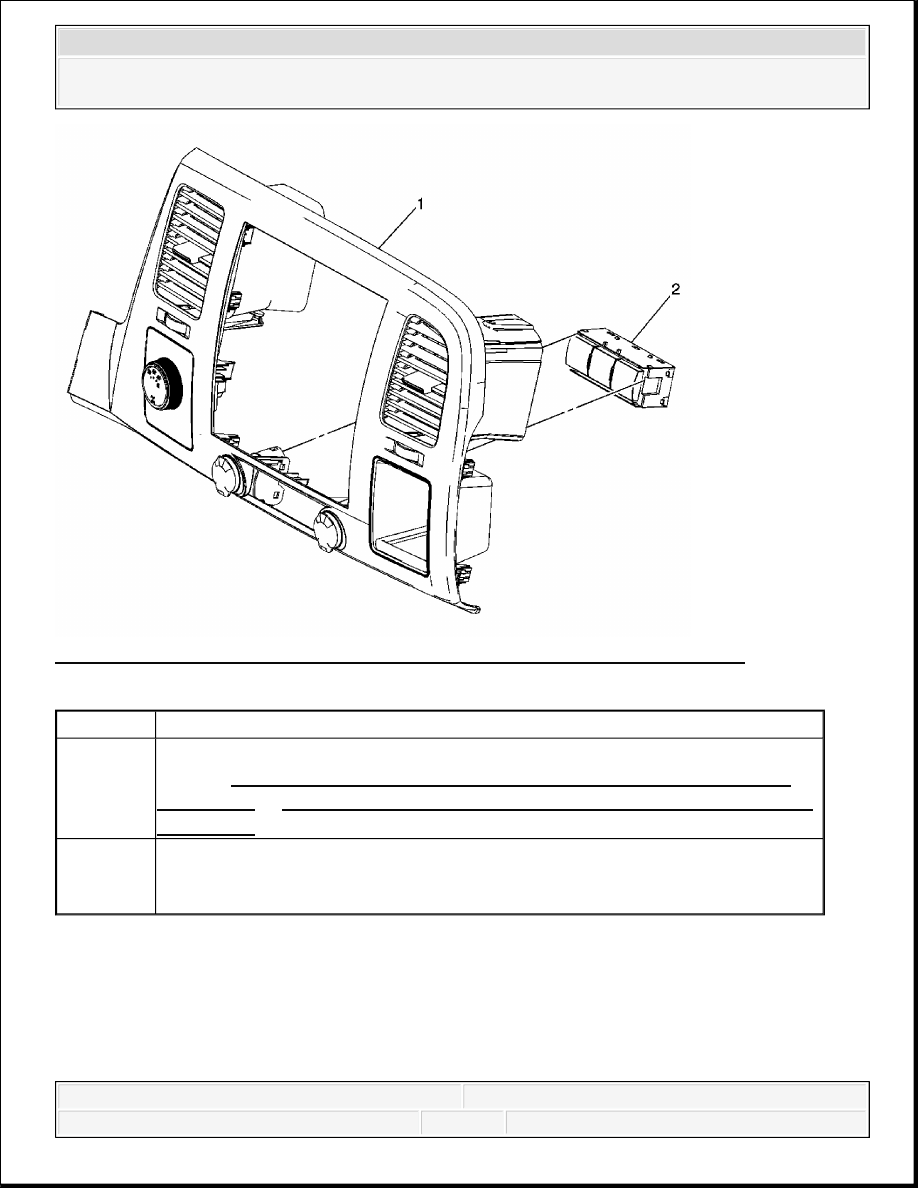

Fig. 9: View Of Instrument Panel Accessory Switch Assembly & Components
Courtesy of GENERAL MOTORS CORP.
ACCESSORY SWITCH REPLACEMENT (WITHOUT RPO SLT)
Callout
Component Name
1
Instrument Panel Accessory Trim Plate
Refer to Instrument Panel Accessory Trim Plate Replacement (without
RPO SLT) or Instrument Panel Accessory Trim Plate Replacement (with
RPO SLT) .
2
Instrument Panel Accessory Switch Screws (Qty: 2)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
3
Instrument Panel Accessory Switch Assembly
Tip: Disconnect the electrical connections.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

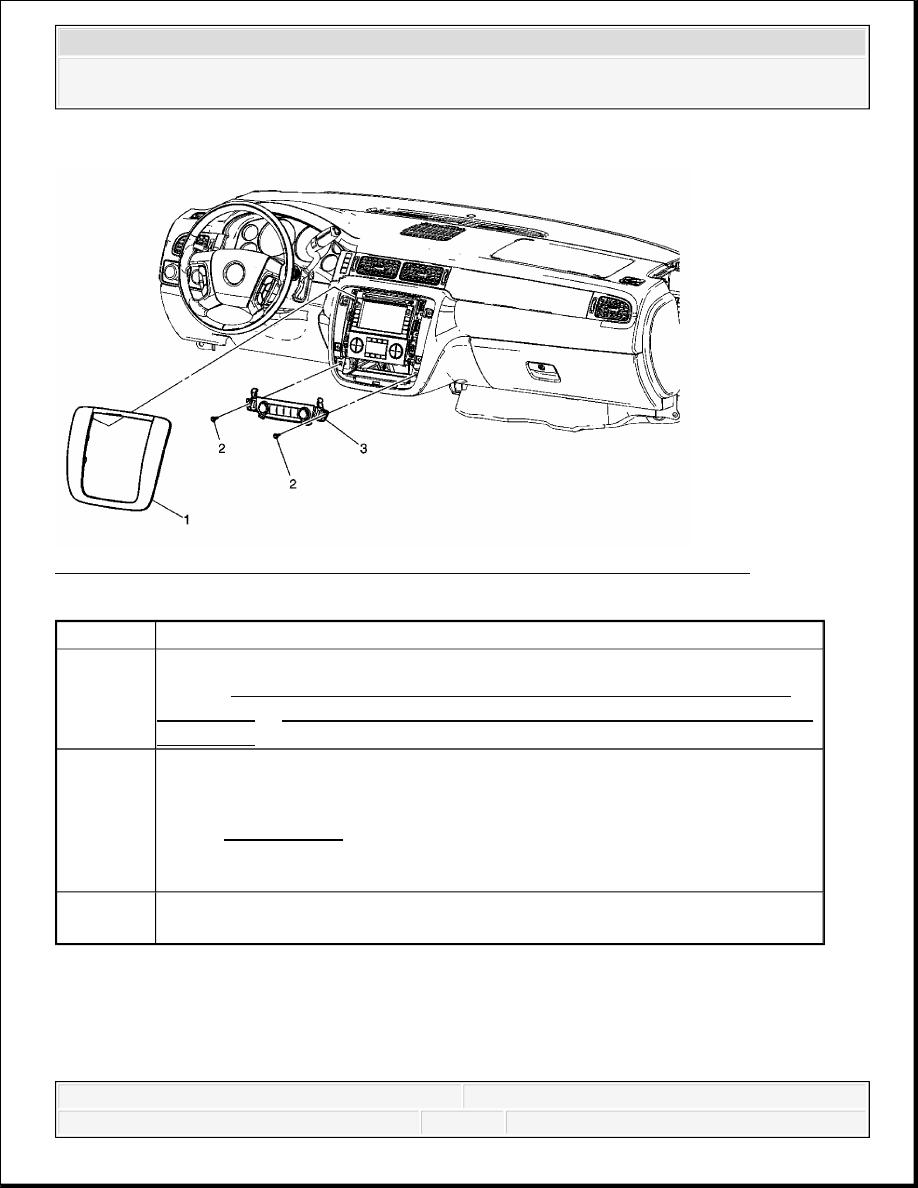

Fig. 10: View Of Instrument Panel Accessory Trim Plate & Switch Assembly
Courtesy of GENERAL MOTORS CORP.
DESCRIPTION AND OPERATION
AUDIBLE WARNINGS DESCRIPTION AND OPERATION
The audible warnings alert the driver of a system concern or a critical vehicle condition. The
radio generates the audible warnings through the left front speaker. The radio receives audible
Callout
Component Name
1
Instrument Panel Accessory Trim Plate
Refer to Instrument Panel Accessory Trim Plate Replacement (without
RPO SLT) or Instrument Panel Accessory Trim Plate Replacement (with
RPO SLT)
2
Instrument Panel Accessory Switch Assembly
Tip: Release the retaining tabs securing the switch to the instrument panel
accessory trim plate.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
