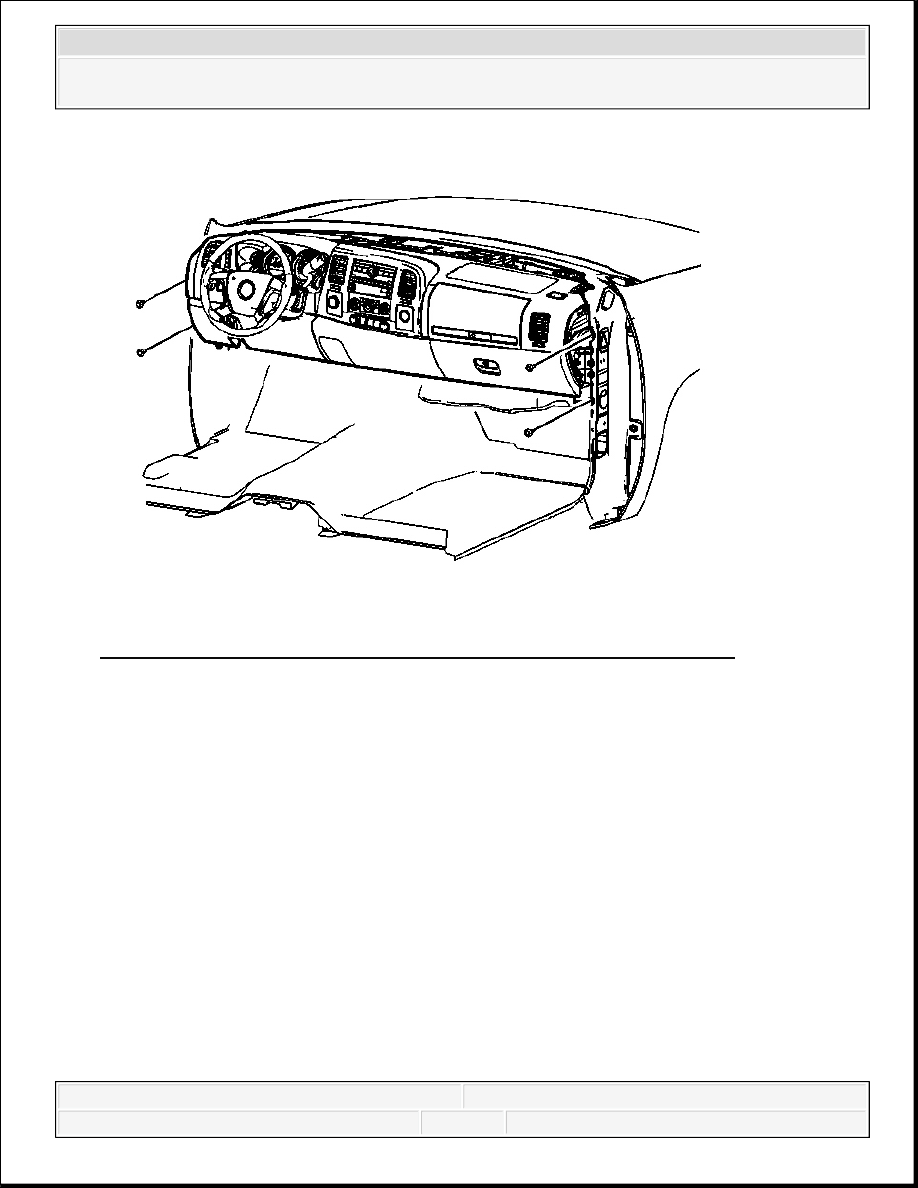

Fig. 50: View Of Bolts Holding Instrument Panel Assembly To Vehicle 2. Loosely install the (4) bolts (1) on the outer ends of the instrument panel.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

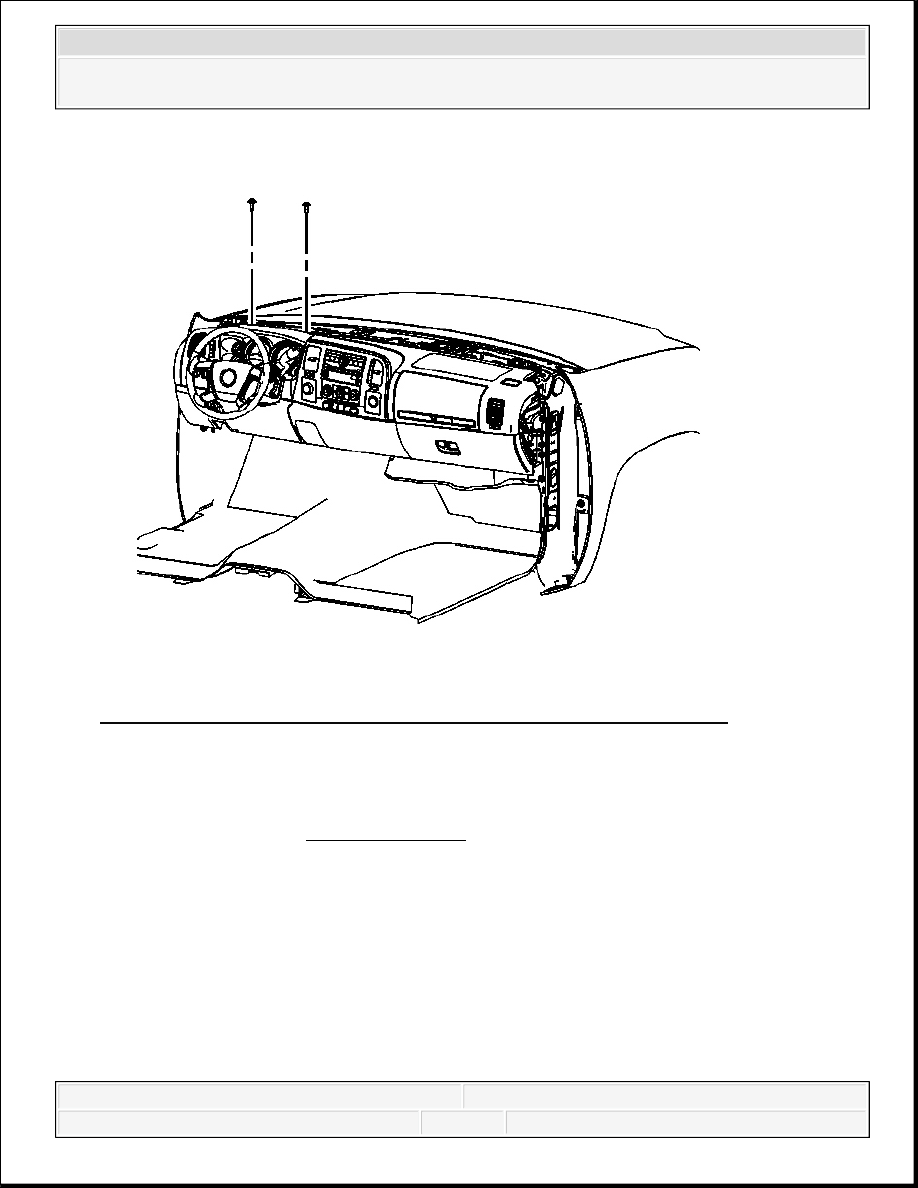

Fig. 51: View Of Bolts Securing Instrument Carrier Support To Cowl 3. Loosely install the (2) bolts (1) securing the instrument panel carrier support to the cowl. 4. Tighten the (6) bolts securing the instrument panel to the vehicle. Tighten: Tighten the bolts to 22 N.m (16 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

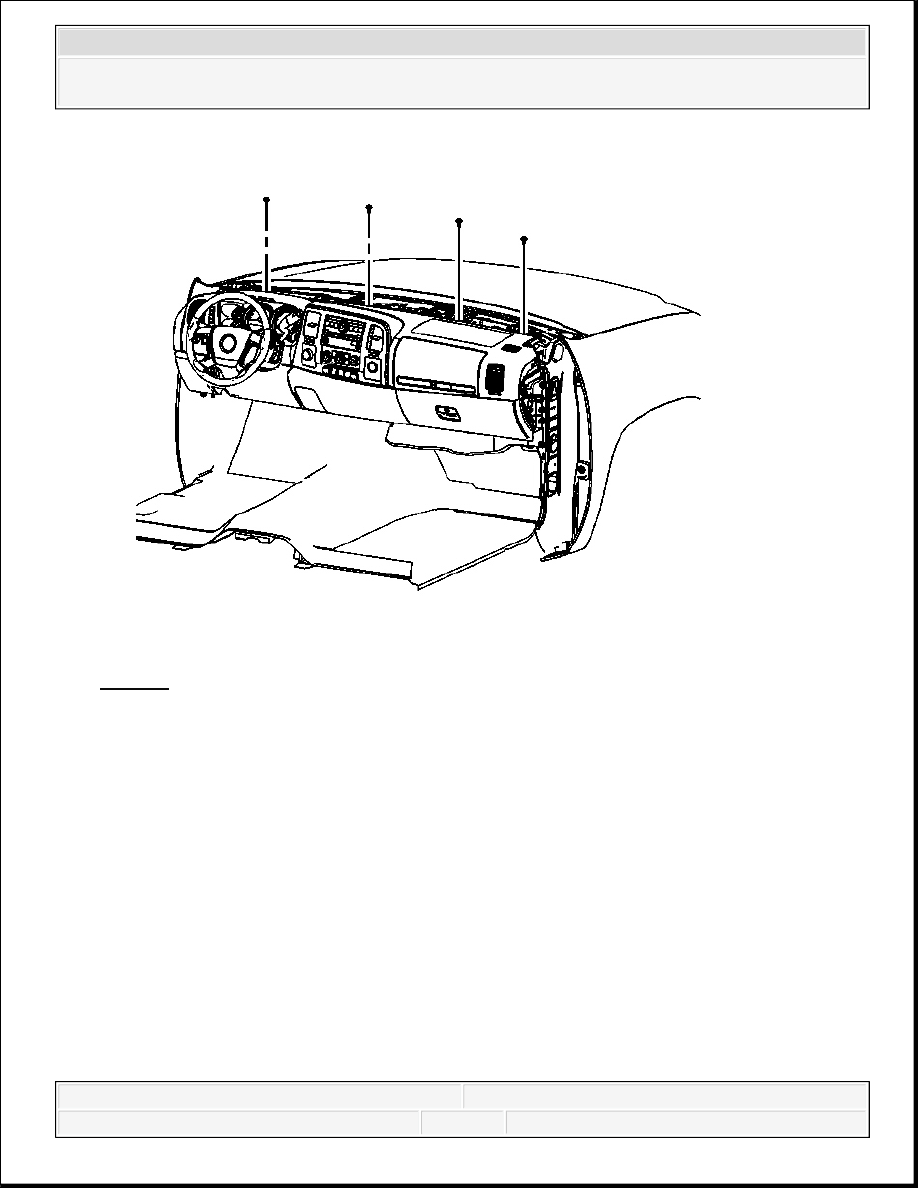

Fig. 52: 5. Install the (4) bolts (1) securing the instrument panel upper trim panel to the cowl. Tighten: Tighten the bolts to 9 N.m (80 lb in). 6. On the left side of the instrument panel. Connect the wire looms securing the wiring harnesses to the left side of the instrument Install the body wiring harness junction block into its bracket. Connect the ground wires to the upper left cowl panel. Tighten: Tighten the nut to 9 N.m (80 lb in). Connect the electrical connections to the instrument panel left electrical center. 7. On the right side of the instrument panel.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Connect the wire looms securing the wiring harnesses to the right side of the Connect the radio antennas. Connect the electrical connection for the instrument panel inflatable restraint module. Connect the electrical connections to the instrument panel right electrical center. 8. Install the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement. 9. Install the right and left body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement . 10. Remove the instrument panel upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille 11. Install the windshield pillar garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement . 12. Install the instrument panel outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement (without RPO SLT) or Instrument Panel Outer Trim Cover 13. Install the transmission control lever knob, if equipped with a manual transmission. Refer to Transmission Control Lever Knob Replacement or Transmission Control Lever 14. Install the front floor console. Refer to Front Floor Console Replacement (with RPO SLT) or Front Floor Console Replacement (without RPO SLT).
