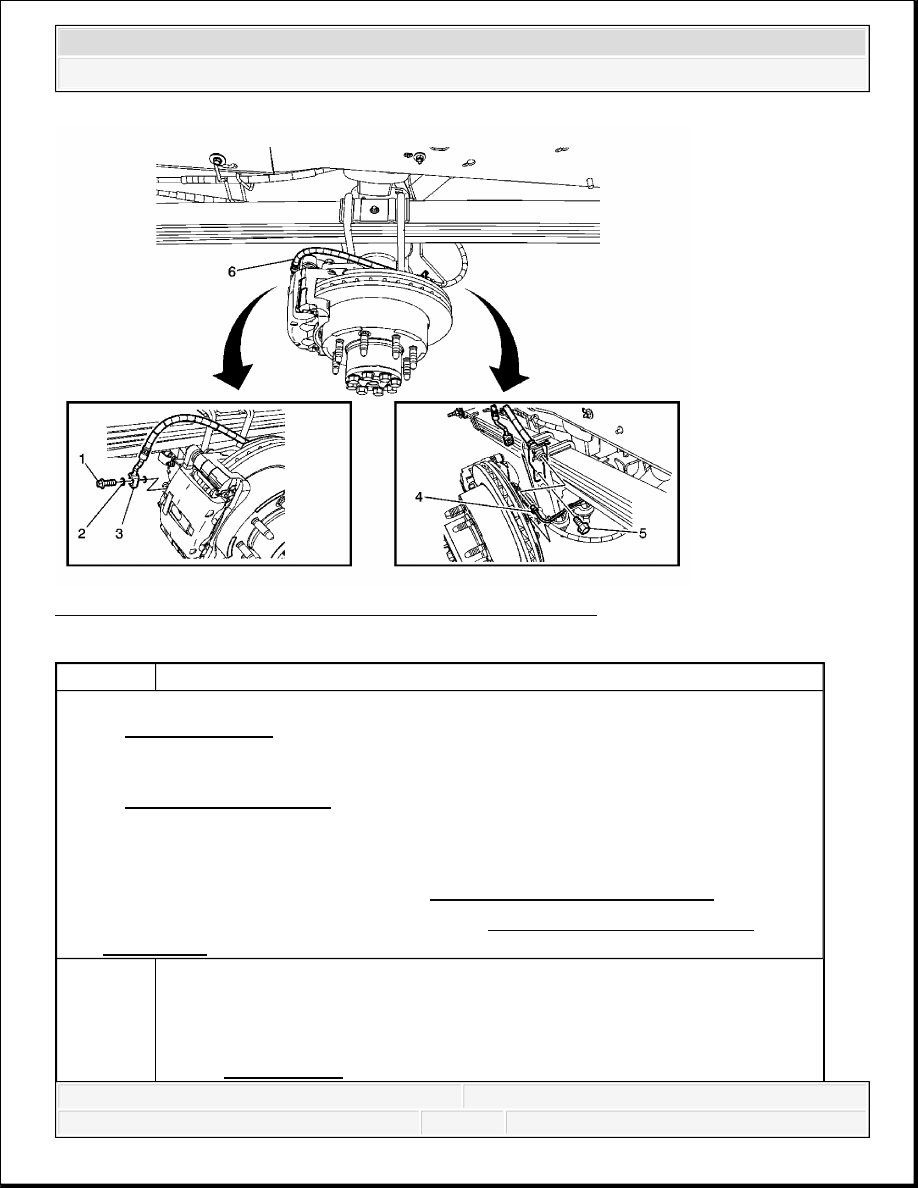

Fig. 30: Rear Brake Hose Replacement (Caliper - JH6, JH7)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation .
CAUTION:
Refer to Brake Dust Caution .
CAUTION:
Refer to Brake Fluid Irritant Caution .
1
Brake Hose Fitting Bolt
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR BRAKE HOSE REPLACEMENT (CALIPER - JD9)
Tighten: 40 N.m (30 lb ft)
2
Brake Hose Fitting Gasket (Qty: 2)
Procedure
1. Discard the brake hose fitting gaskets.
2. Install 2 new brake hose fitting gaskets.
3
Brake Hose Fitting
4
Brake Pipe Fitting
Procedure
1. Remove any dirt or debris from the brake pipe fitting.
2. Cap the brake pipe fittings to prevent brake fluid loss and contamination.
Tighten: 25 N.m (18 lb ft)
5
Hose Bracket to Rear Axle Bolt
Tighten: 9 N.m (80 lb in)
6
Brake Hose
Procedure:
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding
(Pressure) or Hydraulic Brake System Bleeding (Manual).
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

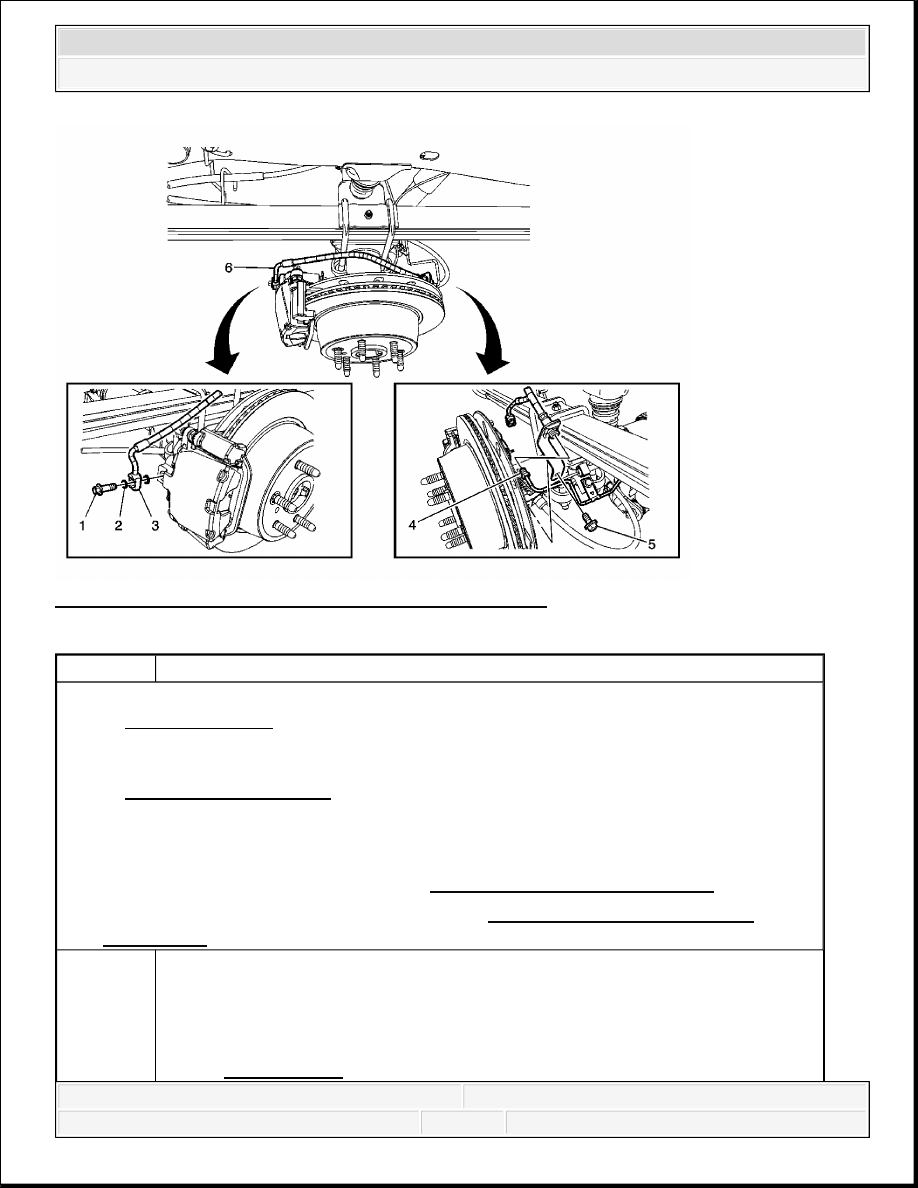

Fig. 31: Rear Brake Hose Replacement (Caliper - JD9)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation .
CAUTION:
Refer to Brake Dust Caution .
CAUTION:
Refer to Brake Fluid Irritant Caution .
1
Brake Hose Fitting Bolt
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR BRAKE HOSE REPLACEMENT (FRAME TO AXLE - JF3 W/O JL4, JF7)
Tighten: 40 N.m (30 lb ft)
2
Brake Hose Fitting Gasket (Qty: 2)
Procedure
1. Discard the brake hose fitting gaskets.
2. Install 2 new brake hose fitting gaskets.
3
Brake Hose Fitting
4
Brake Pipe Fitting
Procedure
1. Remove any dirt or debris from the brake pipe fitting.
2. Cap the brake pipe fitting to prevent brake fluid loss and contamination.
Tighten: 25 N.m (18 lb ft)
5
Hose Bracket to Rear Axle Bolt
Tighten: 9 N.m (80 lb in)
6
Brake Hose
Procedure:
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding
(Pressure) or Hydraulic Brake System Bleeding (Manual).
