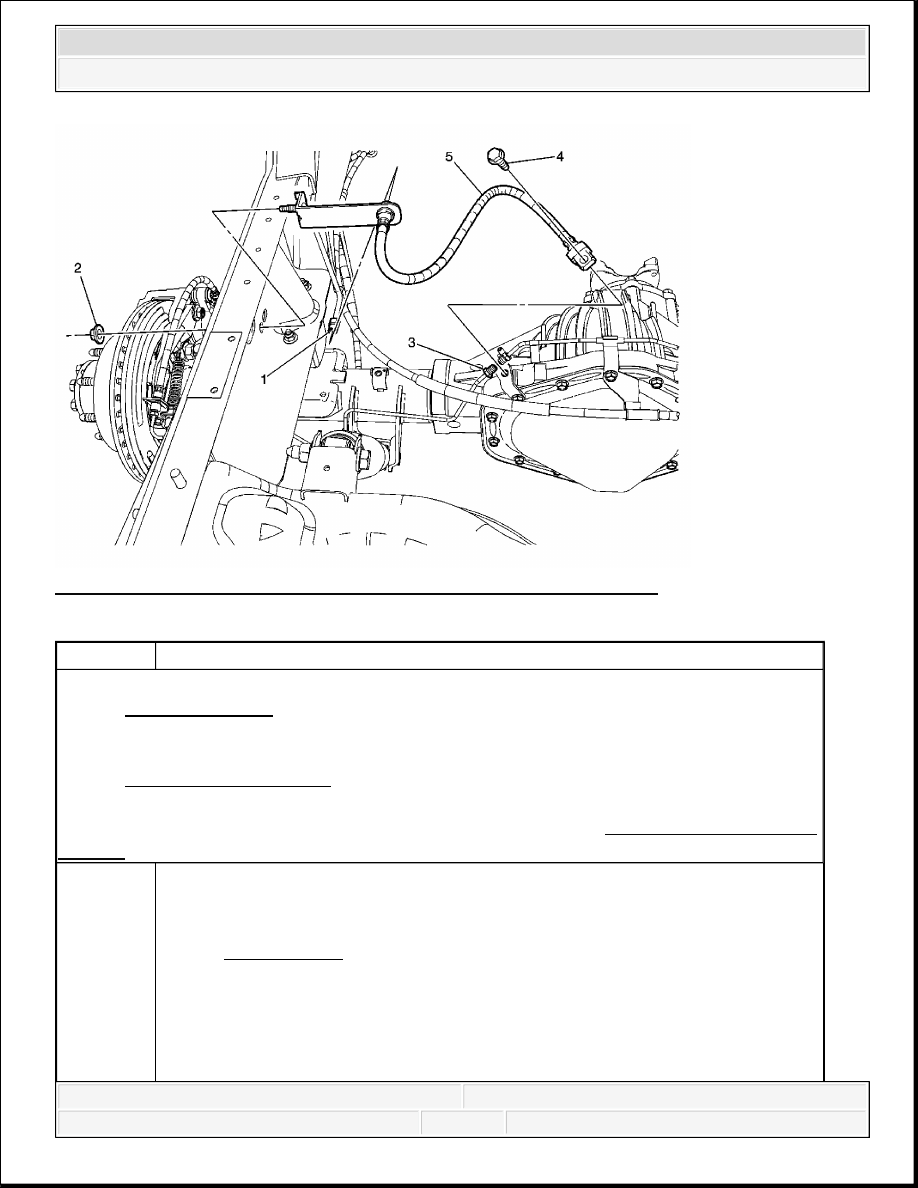

Fig. 28: Rear Brake Hose Replacement (Frame to Axle - JH6, JH7)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the
Vehicle .
CAUTION:
Refer to Brake Dust Caution .
CAUTION:
Refer to Brake Fluid Irritant Caution .
1
Brake Pipe Fitting
Procedure
1. Remove any dirt or debris from the brake pipe fitting.
2. Cap the brake pipe fitting to prevent brake fluid loss and contamination.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR BRAKE HOSE REPLACEMENT (FRAME TO AXLE - JD9, JF3 W/JL4)
Tighten: 25 N.m (18 lb ft)
2
Hose Bracket to Frame Nut
Tighten: 25 N.m (18 lb ft)
3
Brake Pipe Fitting (Qty: 2)
Procedure
1. Remove any dirt or debris from the brake pipe fittings.
2. Cap the brake pipe fittings to prevent brake fluid loss and contamination.
Tighten: 25 N.m (18 lb ft)
4
Hose to Rear Axle Bolt
Tighten: 25 N.m (18 lb ft)
5
Rear Brake Hose Assembly
Procedure:
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding
(Pressure) or Hydraulic Brake System Bleeding (Manual).
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

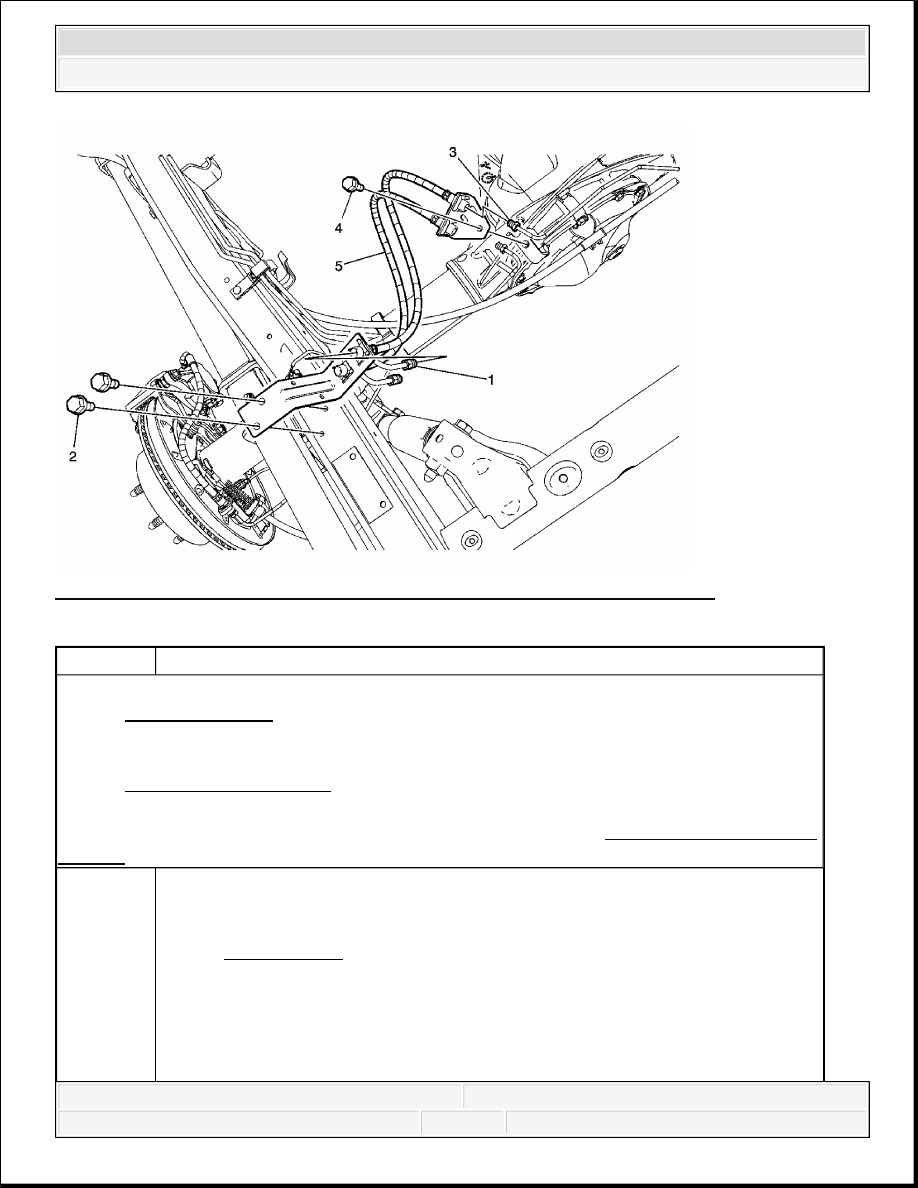

Fig. 29: Rear Brake Hose Replacement (Frame to Axle - JD9, JF3 w/JL4)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the
Vehicle .
CAUTION:
Refer to Brake Dust Caution .
CAUTION:
Refer to Brake Fluid Irritant Caution .
1
Brake Pipe Fitting (Qty: 2)
Procedure
1. Remove any dirt or debris from the brake pipe fitting.
2. Cap the brake pipe fitting to prevent brake fluid loss and contamination.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
REAR BRAKE HOSE REPLACEMENT (CALIPER - JH6, JH7)
Tighten: 25 N.m (18 lb ft)
2
Hose Bracket to Frame Bolt (Qty: 2)
Tighten: 25 N.m (18 lb ft)
3
Brake Pipe Fitting (Qty: 2)
Procedure
1. Remove any dirt or debris from the brake pipe fittings.
2. Cap the brake pipe fittings to prevent brake fluid loss and contamination.
Tighten: 25 N.m (18 lb ft)
4
Hose to Rear Axle Bolt
Tighten: 25 N.m (18 lb ft)
5
Rear Brake Hose Assembly
Procedure:
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding
(Pressure) or Hydraulic Brake System Bleeding (Manual).
2008 Chevrolet Silverado 1500
2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
