Insert the brake pipe end to be flared into the stripping tool to the depth of the ledge While holding the brake pipe firmly against the stripping tool roller ledges, rotate the Rotate the stripping tool in a clockwise direction, ensuring that the brake pipe end After each successive revolution of the stripping tool, carefully rotate the thumbwheel Loosen the thumbwheel of the tool and remove the brake pipe. Inspect the stripped end of the brake pipe to ensure that the proper amount of coating Specification: 6.35 mm (0.250 in) for 4.76 mm (3/16 in) diameter pipe 9.50 mm (0.374 in) for 6.35 mm (1/4 in) and 7.94 mm (5/16 in) diameter pipe IMPORTANT: Do not gouge the metal surface of the brake pipe. IMPORTANT: Ensure that all loose remnants of the nylon coating have been removed from the brake pipe.
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

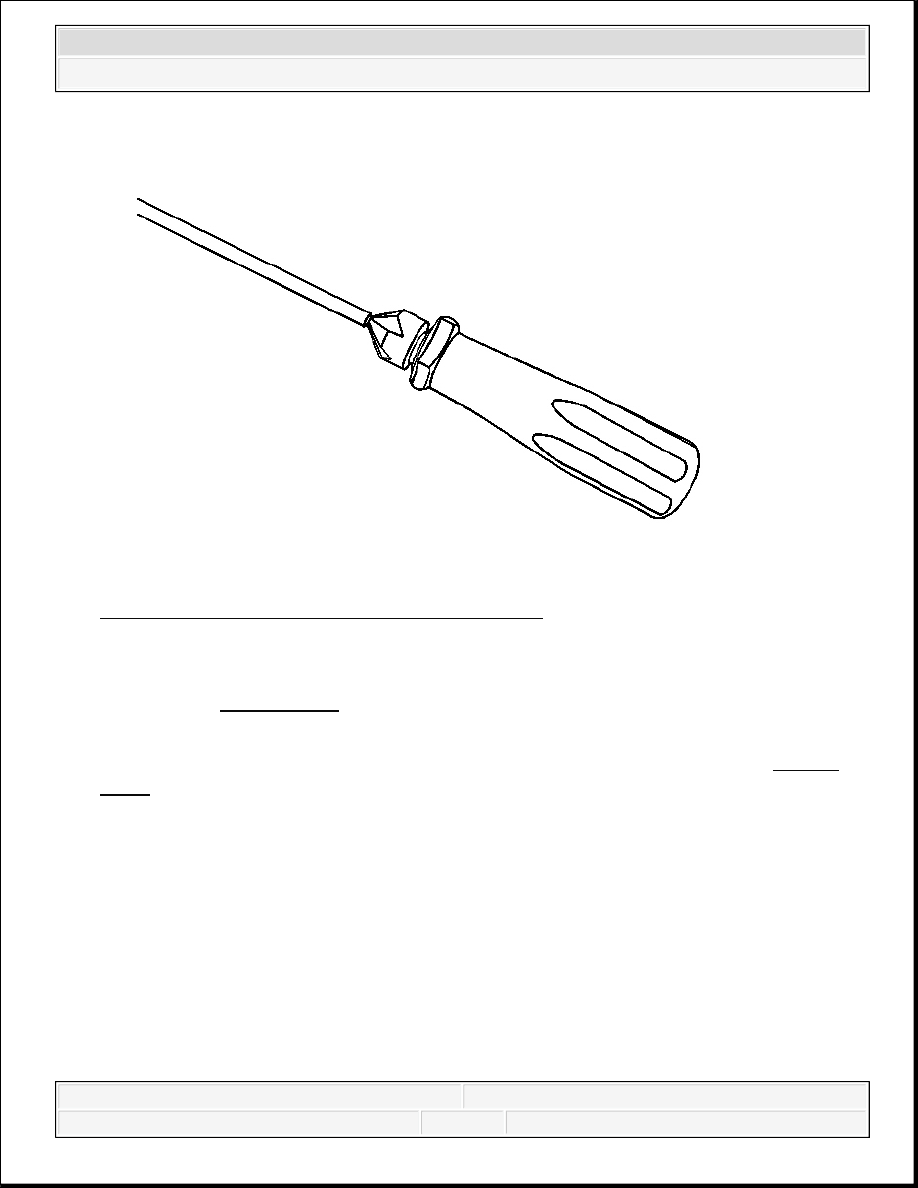

Fig. 19: Chamfering Pipe Using De-Burring Tool 10. Chamfer the inside and outside diameter of the pipe with the de-burring tool included in the J 45405 . See Special Tools. 11. Install the tube nuts on the brake pipe, noting their orientation. 12. Clean the brake pipe and the J 45405 of lubricant, contaminants, and debris. See Special Tools.
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

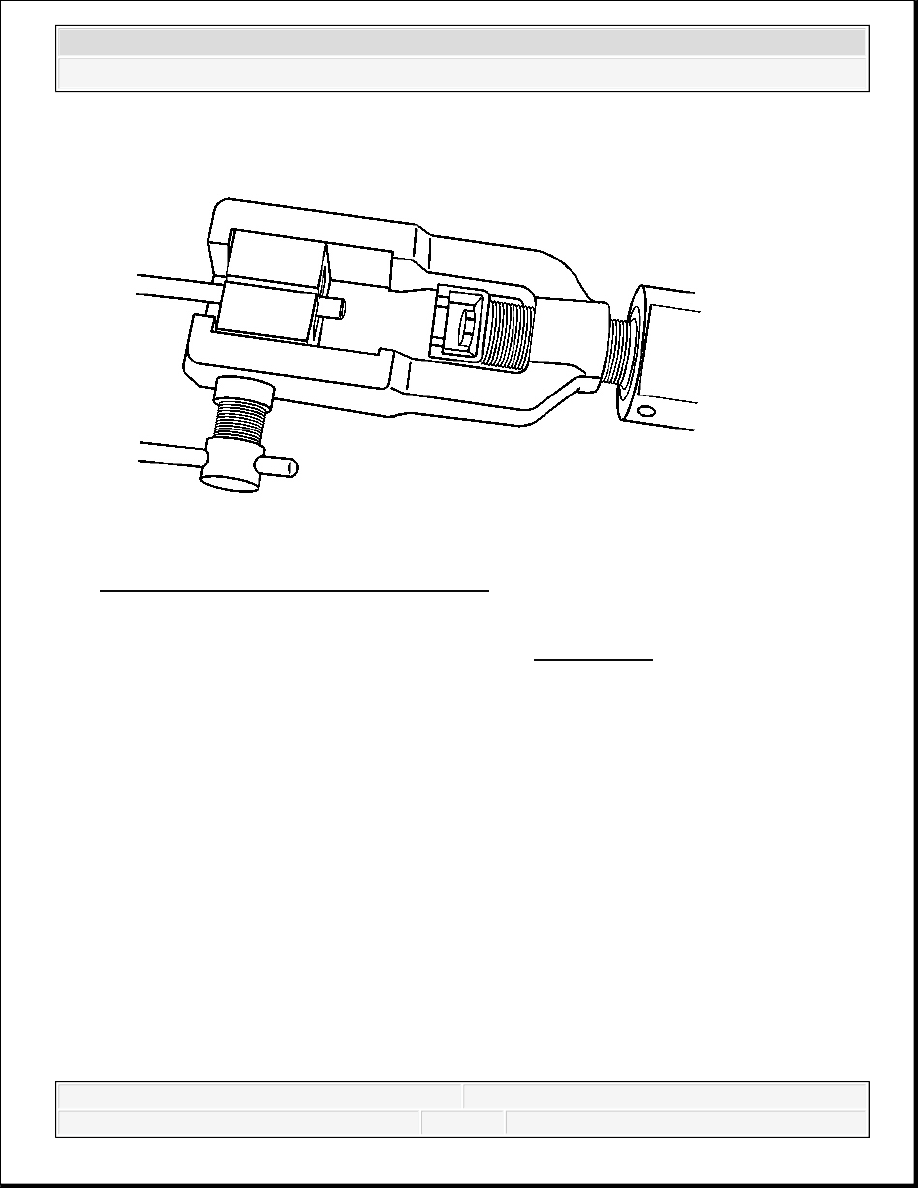

Fig. 20: Installing Die Halves Into Die Cage 13. Loosen the die clamping screw of the J 45405 . See Special Tools. 14. Select the corresponding die set and install the die halves into the die cage with the full, flat face of one die facing the clamping screw, and the counterbores of both dies facing the
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

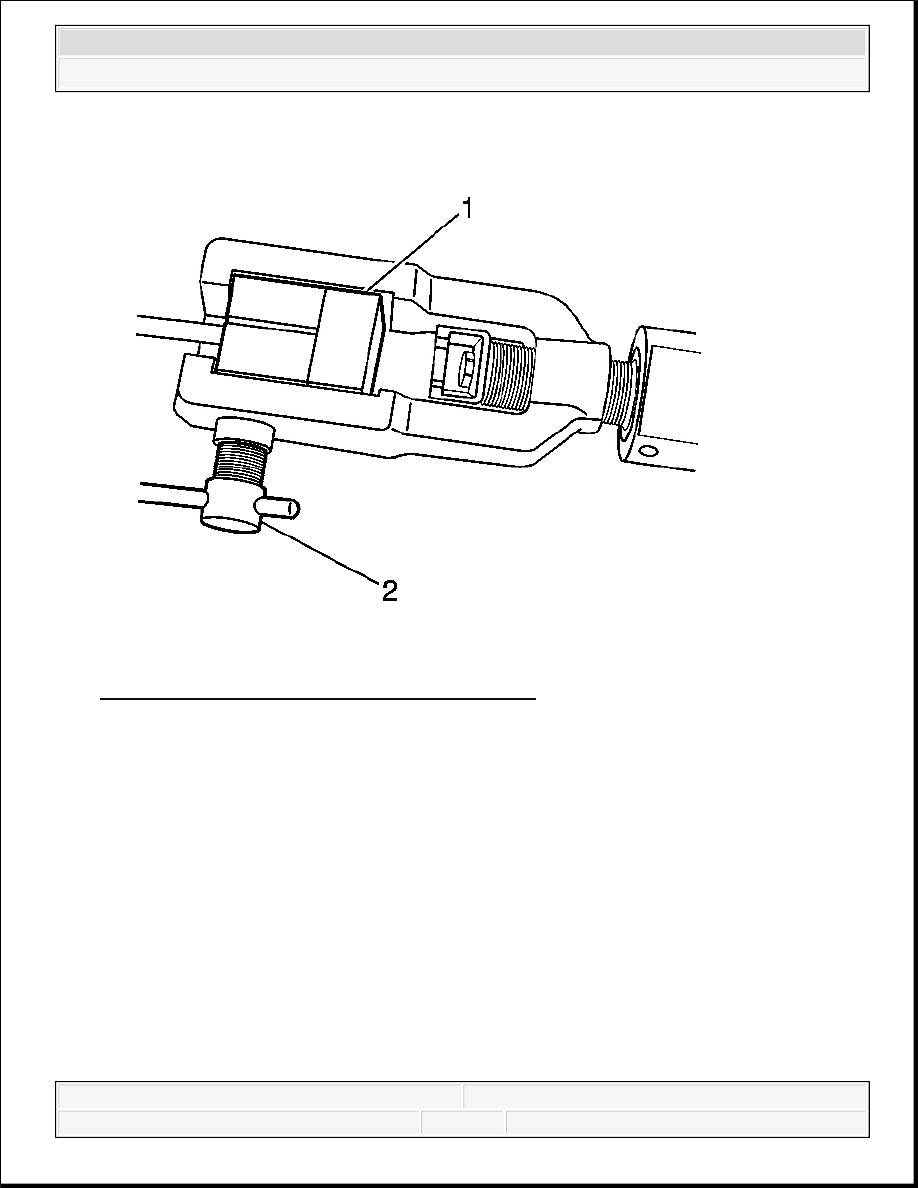

Fig. 21: View Of Clamping Screw & Unused Die 15. Place the flat face of an unused die (1) against the die halves in the clamping cage and hold firmly against the counterbored face of the dies. 16. Insert the prepared end of the pipe to be flared through the back of the dies until the pipe is seated against the flat surface of the unused die (1). 17. Remove the unused die (1). 18. Ensure that the rear of both dies are seated firmly against the enclosed end of the die cage. 19. Firmly hand tighten the clamping screw (2) against the dies.
2008 Chevrolet Silverado 1500 2008 BRAKES Hydraulic Brakes - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
